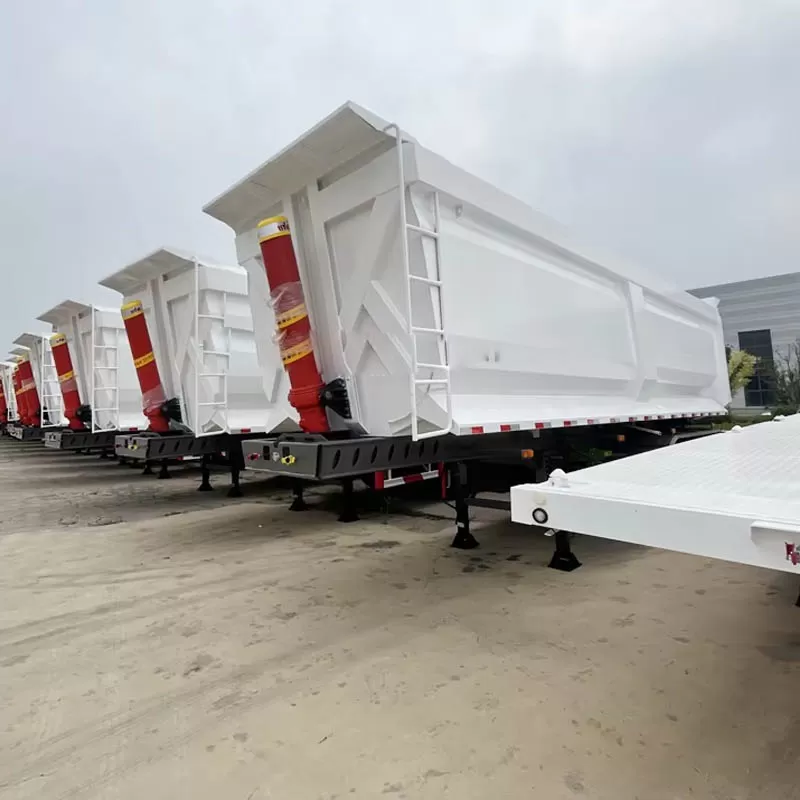

This type of dump trailer, also known as a rear-dump trailer, operates by unloading cargo at the rear of the vehicle. It is commonly used for transporting loose materials such as aggregates, sand, gravel, and construction waste, and is used in industries such as construction, mining, agriculture, waste disposal, landscaping, and excavation.
|
type |
semi-trailer |
|
brand |
custom made |
|
Manufacturing and matching vehicle types |
Truck trailer |
|
Size of axle |
9600*2500*3600mm |
|
tire |
10200 kg |
|
landing gear |
Rear tipping of cargo |
|
size |
8mm at the bottom, 6mm at the sides |
|
Function |
Sand and gravel transportation |
|
Braking system |
Drum brake |
|
Maximum load |
80 tons |
|
country of origin |
Shandong, China |
|
Material |
carbon steel |
|
Material |
carbon steel |
|
suspension |
Three machines are frames and one air frame. |
|
tire |
12R22.5 |
|
hydraulic cylinder |
High-quality Chinese brands |
|
Chassis welding |
Automatic submerged arc welding |
|
Packaging and shipping information |
|
|
Single package size |
9600*2500*3600mm |
|
Gross weight of a single product |
10,500,000 kg |
|
Overall dimensions |
10300*2600 * 3600 mm or custom sizes |
|
curb weight |
10,200 kg |
|
Load capacity |
80,000 kg |
|
Main beam specifications. |
Carbon steel, 12 mm at the top, 14 mm at the bottom, and 8 mm in the middle. |
|
Side frame |
Channel steel |
|
Cross bracket |
Channel steel/bent steel |
|
Bucket |
Carbon steel, 9mm at the bottom, 6mm on the sides |
|
suspension |
3 mechanical suspensions + 1 air suspension |
|
leaf springs |
13-layer leaf springs, 120mm x 13mm x 10pcs |
|
Axle specifications. |
16T * 3pcs + 1 air suspension |
|
Main sales |
3.5" (90 mm) |
|
tire |
12R22.5 |
|
Braking chamber |
8 sets |
|
landing gear |
28T * 2 |
|
appendix |
1 standard toolbox |
|
Electrical system |
24V, a set of 6-core standard cables |
|
Light |
Taillights with turn signals, brake lights and reflectors, side lights, etc. |
|
painting |
Sandblasting, primer, surface coating, colors available, wax polishing |
|
Package |
Bulk carriers, roll-on/roll-off or optional |
