Diesel Engine: The power system uses Cummins or Weichai Deutz diesel engines; Power System: We use well-known brands such as Yantai Electric Motor, Qingdao Electric Motor, Siemens Nord Electric Motor, etc. Radiator: A forced-air plate-fin radiator is used to lower the hydraulic oil temperature and ensure the system operates within the maximum allowable temperature.
Main Oil Pump: Uses a Kawasaki pump from South Korea; the hydraulic system is equipped with three oil pumps, two circuits, and an open system. The pump system circuit and the S-valve circuit are two independent systems, thus extending component life and ensuring reliable performance.
|
Power type. |
diesel fuel |
|
Max. Vertical conveying distance |
200m |
|
productivity |
3OM 2/H |
|
Warranty period |
Year |
|
Core components |
Pressure vessels, motors, bearings, gears, pumps, gearboxes, engines... |
|
weight |
4500 kg |
|
Mechanical test report |
Available |
|
Provide after-sales service |
Engineers can provide mechanical vibration services overseas. |
|
Concrete cylindrical ruler T |
200*1650mm |
|
Delivery pipe diameter |
125mm |
|
main oil pump |
Kawasaki |
|
Engine power |
Weichai, 129kW |
|
brand |
HAMAC |
|
Maximum horizontal conveying distance |
1000 meters |
|
country of origin |
Henan, China |
|
Unique selling points. |
High work efficiency |
|
color |
Yellow, white, custom |
|
Dimensions (length x width x height) |
5800+2000*1750mm |
|
Video factory inspection |
Available |
|
Product Name |

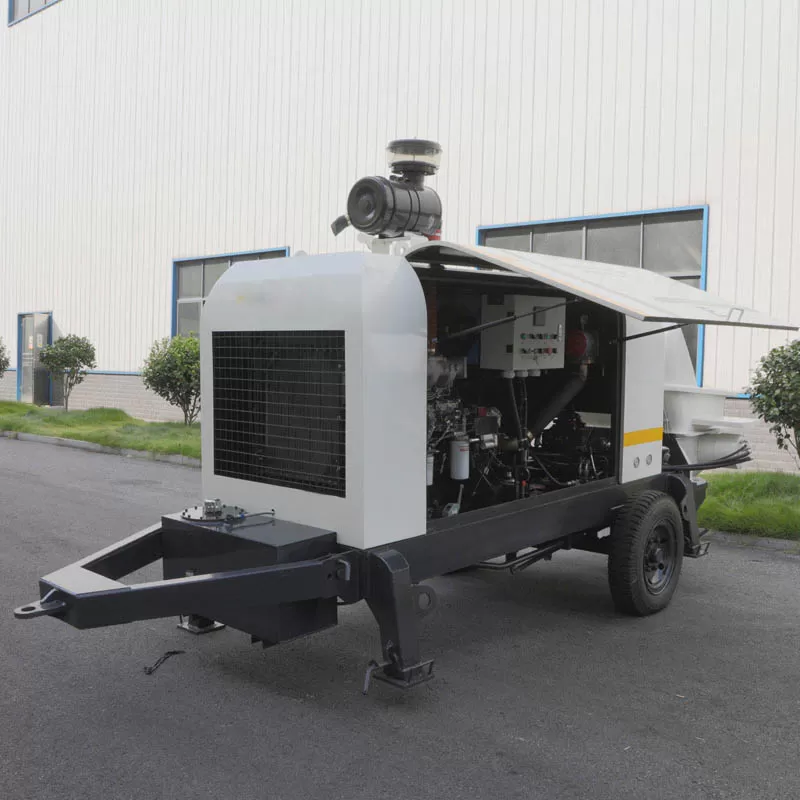

Diesel engine trailer concrete pump for sale |
|
outlet diameter |
180mm |
|
app |
Concrete delivery |
