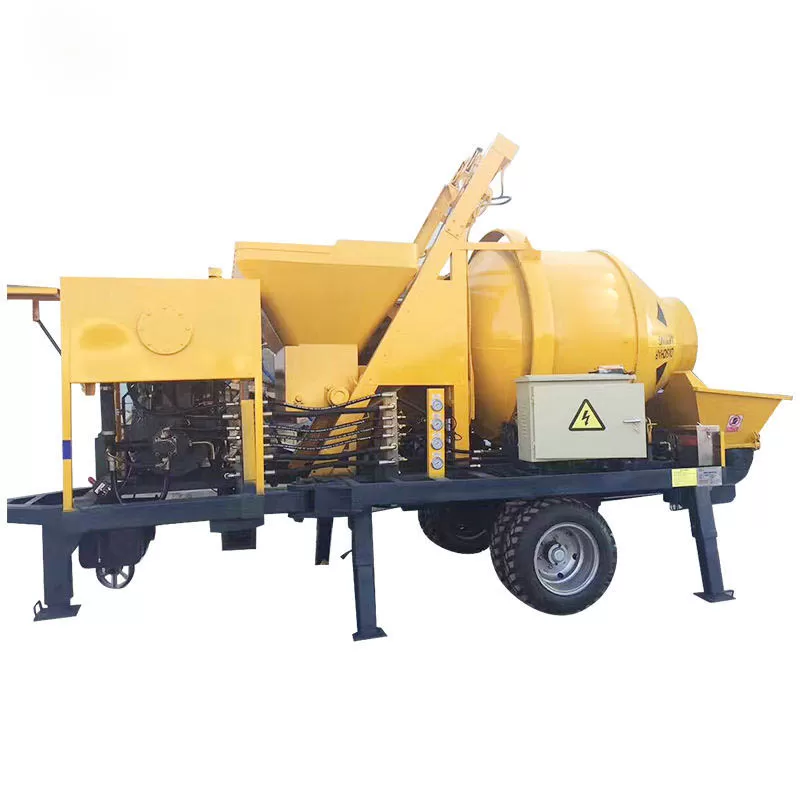

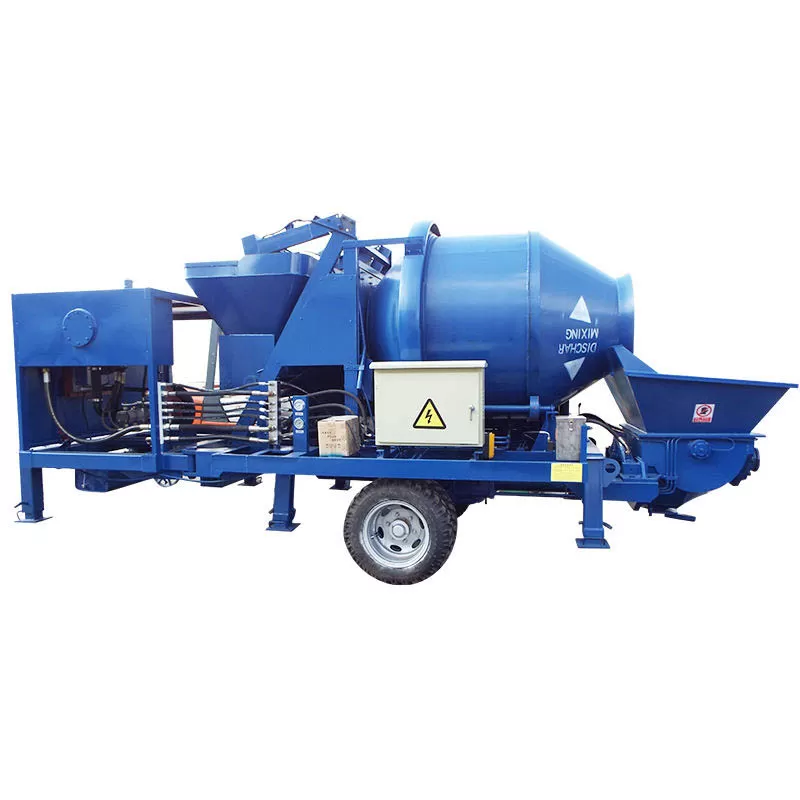

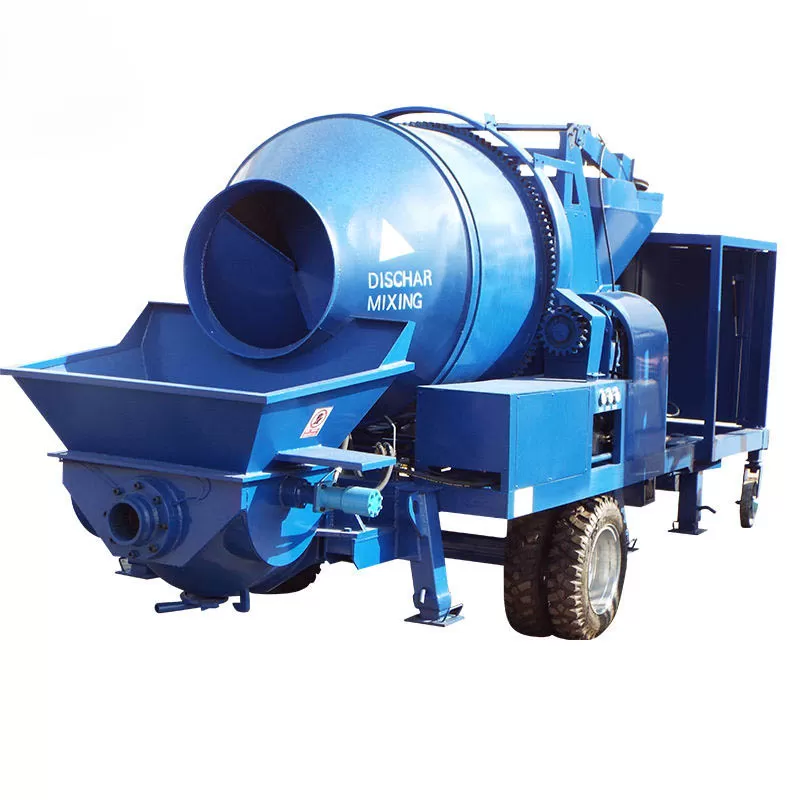

The JBS30 portable concrete mixer pump uses a dual-motor drive for fast and uniform mixing; it is equipped with grinding wheels to ensure stability; and it features a vibration device for complete discharge. The JBS30 concrete mixer pump uses a double-cylinder hydraulic pump system, ensuring stable and reliable performance.
|
Power type |
diesel fuel |
|
Max. Vertical conveying distance |
120 meters |
|
productivity |
40m³/h |
|
Warranty period |
2 years |
|
Core components |
Motor, bearing, engine, PLC |
|
weight |
6000kg |
|
Mechanical test report |
Available |
|
Product name |
Diesel Concrete Mixer Pump |
|
Type |
Diesel concrete pumpwith an mixer |
|
Engine |
WEICHAI-DEUTZ DieselEngine |
|
Circuit type |
Open circuit |
|
Inside diameter of delivering pipe |
125mm |
|
brand |
Spark |
|
Maximum horizontal conveying distance |
300 m |
|
country of origin |
Henan, China |
|
Unique selling points |
High work efficiency |
|
color |
Blue, black, green, yellow, white |
|
Dimensions (Length x Width x Height) |
6000+2300*3150mm |
|
Video of factory inspection. |
Available |
|
Keyword |
Construction MachineryConcrete Pumps |
|
Concrete pump type |
Reliable ConcretePumping |
|
Distribution valve type |
SValve |
|
Oil tank capacity |
350L |
