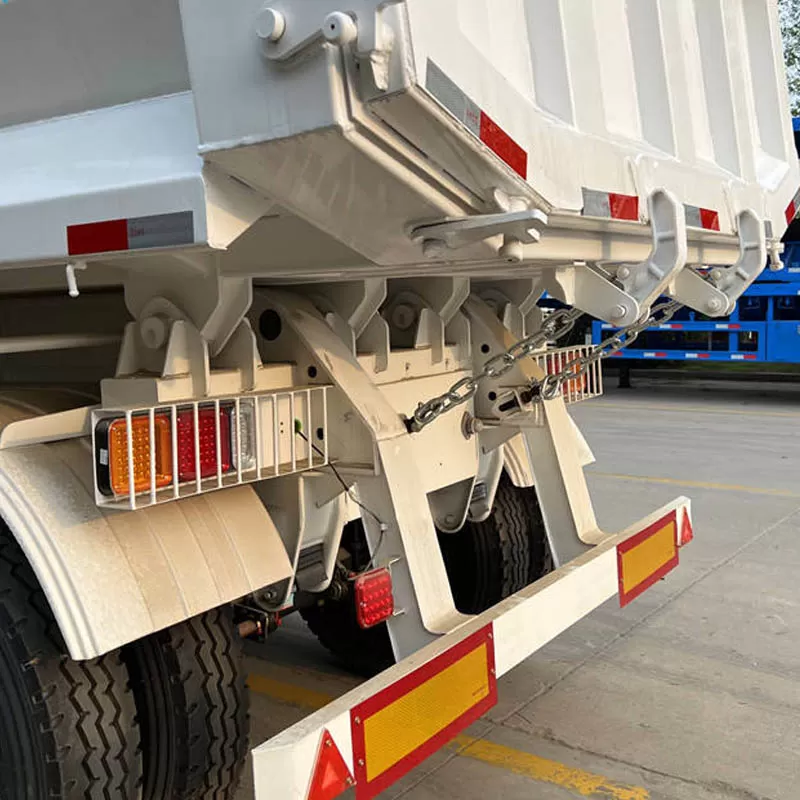

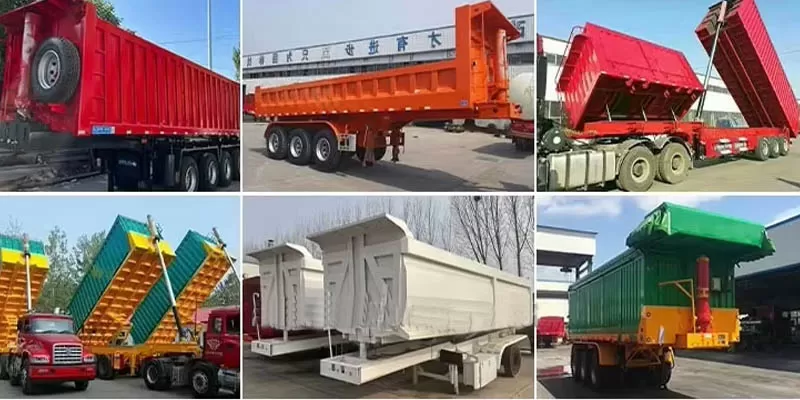

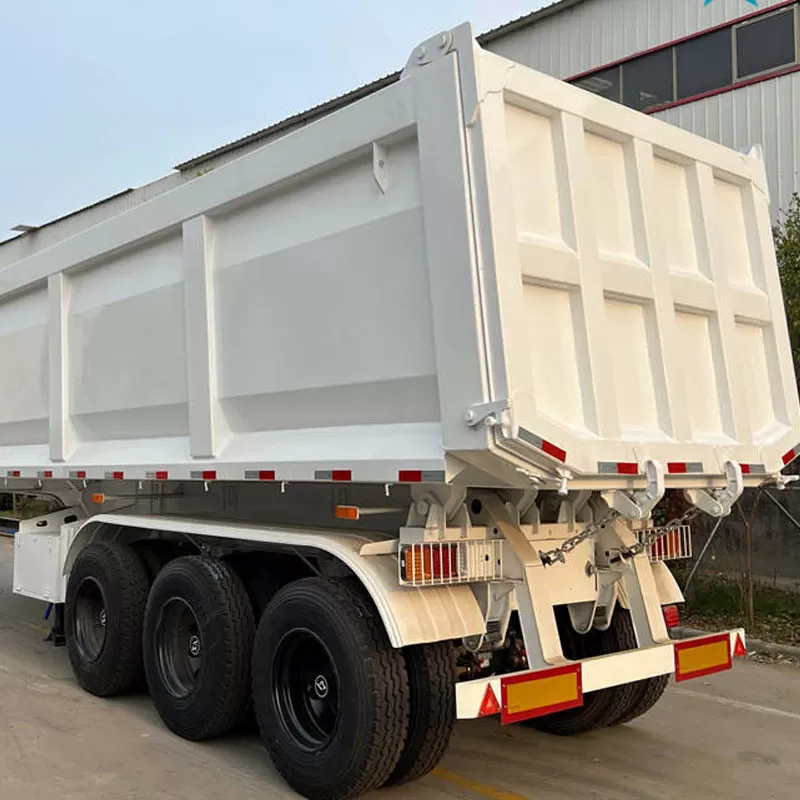

Rear dump semi-trailers are specialized trailers designed for transporting and unloading various bulk materials such as sand, gravel, coal, and construction materials. The main feature of these semi-trailers is their rear unloading capability. This design allows goods to be unloaded from the rear of the trailer, enabling quick unloading and loading. This design significantly improves loading efficiency, saving time and labor. Some rear dump semi-trailers are also equipped with a hydraulic system for more precise and controlled unloading. The advantages of this type of semi-trailer lie in its large carrying capacity, high efficiency, and versatility. It can operate on various roads and terrains and adapt to different working environments.
These dump trailers, also known as rear dump trailers, operate by unloading cargo from the rear of the vehicle. They are commonly used to transport loose materials such as aggregates, sand, gravel, and construction waste, and are widely used in construction, mining, agriculture, waste management, landscaping, and excavation industries.
|
type |
semi-trailer |
||
|
brand |
Heavy Duty Veihcle |
||
|
Compatible vehicle types |
Truck trailer |
||
|
size |
13000X2550X3600mm |
||
|
External dimensions |
13000X2550X3600MM |
||
|
Function |
Bulk cargo |
||
|
landing gear |
Standard 28Ton |
||
|
suspension |
Mechanical suspension Air suspension |
||
|
Main beam |
500mm high Q345B carbon steel |
||
|
Maximum load |
40000 KG |
||
|
country of origin |
Shandong, China |
||
|
Material |
steel |
||
|
Product Name |
dump truck semi-trailer |
||
|
axle tires |
12R22.5 12PR |
||
|
Load capacity |
80000KG |
||
|
Main sales |
2" (50mm) or 3.5" (90mm) JosT |
||
|
country of origin |
|||
|
Single package size |
Truck trailer |
||
|
Gross weight of a single product |
10,500,000 kg |
||
|
Trailer Name |
4-axle dump trailer |
||
|
size |
10900 mm * 2500 mm * 3600 mm |
||
|
load |
30T, 40T, 45T, 50T, 60T, 24 cubic meters, 25 cubic meters, 30 cubic meters, 40 cubic meters, 45 cubic meters |
||
|
tire |
12R22.5, 11.00r20, 12.00r20, 315/80R22.5 |
||
|
Material |
Main beam Q345B, upper flange: 14 mm, middle flange: 10 mm, lower flange: 16 mm |
||
|
axle |
13T/16T/20T BPW or FUWA or EAST |
||
|
floor |
8mm plate, 6mm sidewall |
||
|
landing gear: |
28-ton dual-speed JOST brand |
||
|
Braking system: |
Drum brake, 2-wire pneumatic braking system with 2 oil tanks and 6 air chambers. |
||
|
pause: |
Mechanical suspension/air suspension |
||
|
Spare tire carrier: |
1 item |
||
|
painting: |
Complete body sandblasting double primer coating |
||
|
color: |
Customization options |
||
|
Dump style |
Rear tilt unloading or side tilt unloading |
||
|

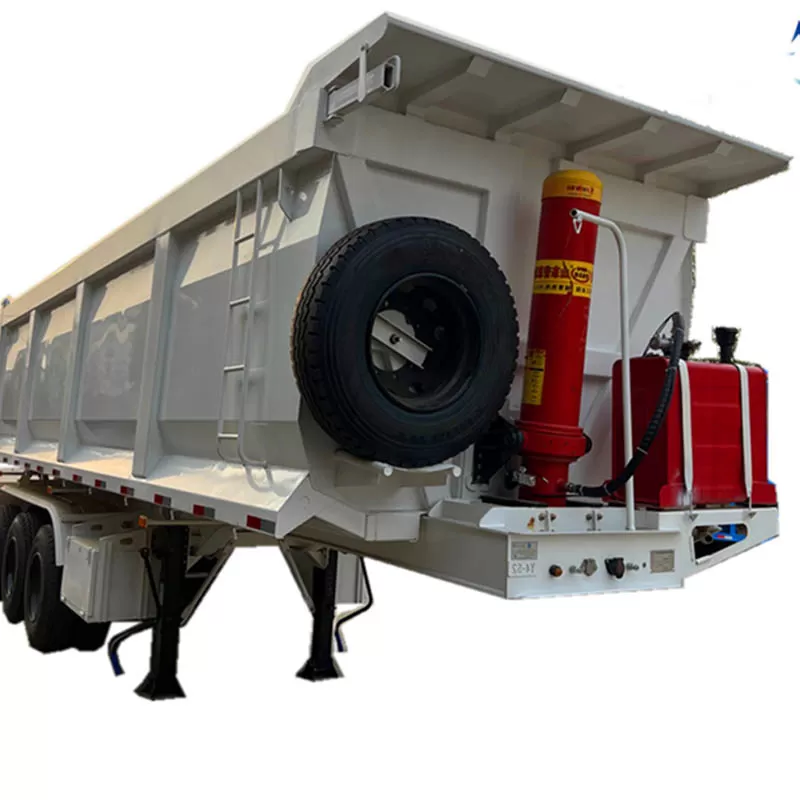

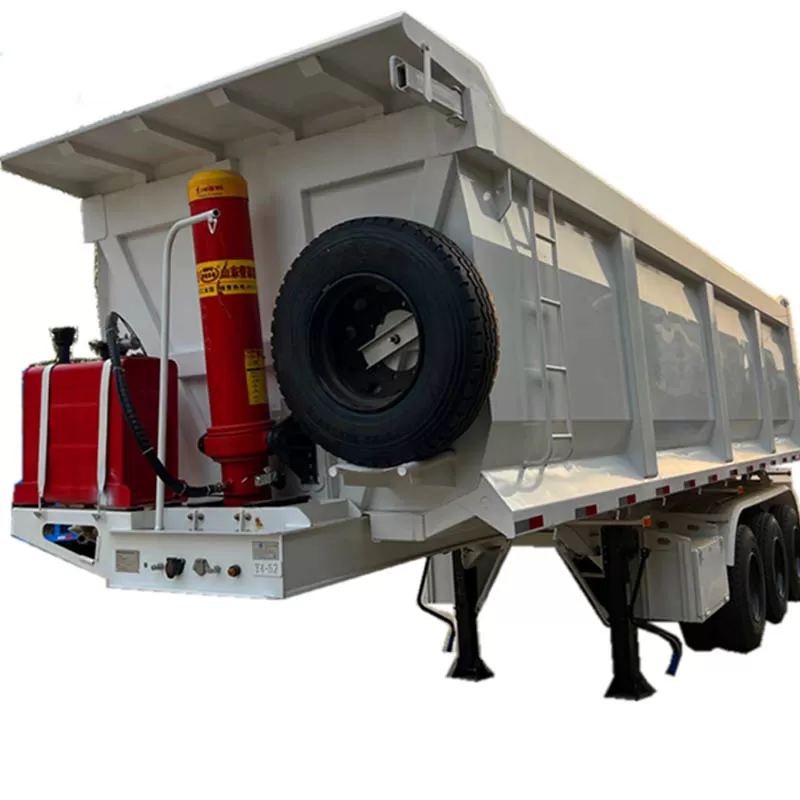

promote |
Hydraulic lifting cylinder |
||
