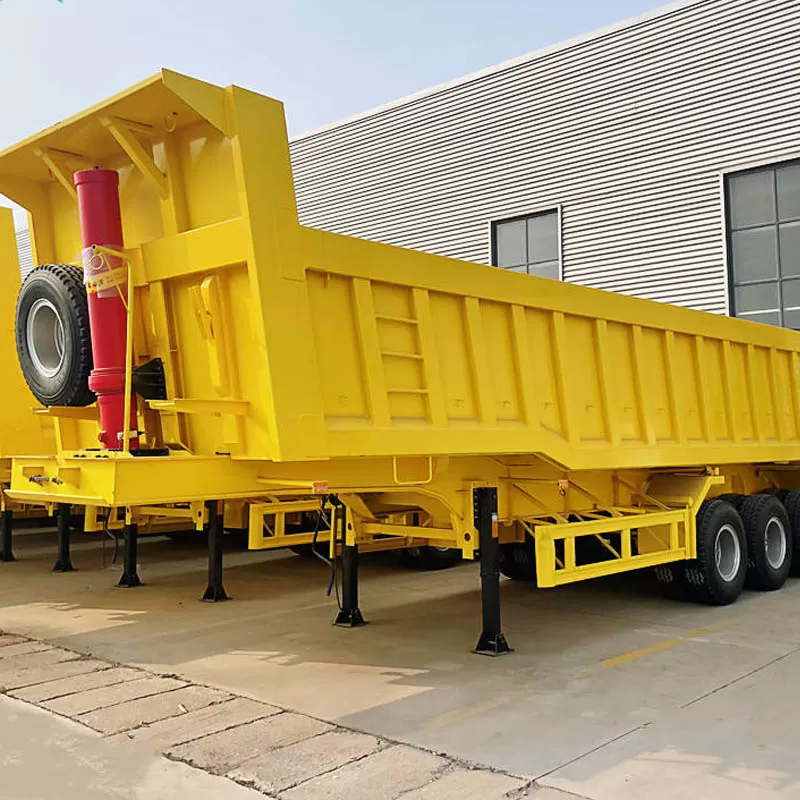

Rear-dump semi-trailers are specialized trailers typically used for transporting and unloading various bulk materials such as gravel, coal, and construction materials. The main feature of this type of semi-trailer is its rear dumping capability. Its design allows cargo to be unloaded from the rear of the trailer, enabling quick dumping and loading. This design significantly improves loading efficiency, saving time and labor. Some rear-dump semi-trailers are also equipped with hydraulic systems for a more precise and controlled dumping process. The advantages of this type of semi-trailer include its large payload capacity, high efficiency, and versatility. It can operate on various roads and terrains, adapting to different working environments.
These self-dumping trailers, also known as rear-dump trailers, operate by unloading cargo at the rear of the vehicle. They are commonly used for transporting loose materials such as aggregates, sand, gravel, and construction waste, and are used in industries such as construction, mining, agriculture, waste management, landscaping, and excavation.
|
type |
semi-trailer |
||
|
brand |
Oem |
||
|
Compatible vehicle types |
Truck trailer |
||
|
Size of axle |
9700+2500*3700mm |
||
|
tire |
13T* 3 |
||
|
landing gear |
11.00r20 12r22.5 |
||
|
size |
Standard 28Ton |
||
|
color |
9700*2500:3700mm |
||
|
Maximum load |
>30,000 kg |
||
|
country of origin |
Shandong, China |
||
|
Material |
steel |
||
|
jewelry store |
Dump truck trailer |
||
|
Product Name |
Mechanical suspension Air suspension |
||
|
suspension |
2" (50mm) or 3.5" (90mm) |
||
|
Main sales |
T700/Q345 steel |
||
|
Main beam |
Shandong local axle |
||
|
axle brands |
>30,000 kg |
||
|
country of origin |
|||
|
Single package size |
Truck trailer |
||
|
Gross weight of a single product |
10,500,000 kg |
||
|
Overall dimensions |
9700*2500 * 3700 mm |
||
|
Curing weight |
8500 kg |
||
|
Payment load |
40 tons |
||
|
type |
Rear tipper trailer |
||
|
Main beam |
2 pieces, material T700, tensile strength 700MPa, "I" shape, thickness: top plate "--" 12 mm, middle plate "I" 10 mm, bottom plate "_" 16 mm. |
||
|
beam |
Channel steel, 4 mm thick |
||
|
Side beam |
Channel steel |
||
|
Bucket |
Carbon steel, 9mm at the bottom, 6mm on the sides |
||
|
Main sales |
2 inches (50 mm) or 3.5 inches (90 mm) |
||
|
landing gear |
28T * 2 |
||
|
axle |
3x13ton standard axles with cast wheels |
||
|
suspension |
Mechanical suspension with 10 leaf springs |
||
|
tire |
12R22.5 |
||
|
rim |
9.0*22.5 |
||
|
Braking chamber |
8 sets |
||
|
hydraulic jack |
50 tons * 1 piece |
||
|
Electrical system |
24V, with all LED lights |
||
|
painting |
Sandblasting, primer, surface coating, colors available, wax polishing |
||
|
appendix |
1 standard toolbox |
||
