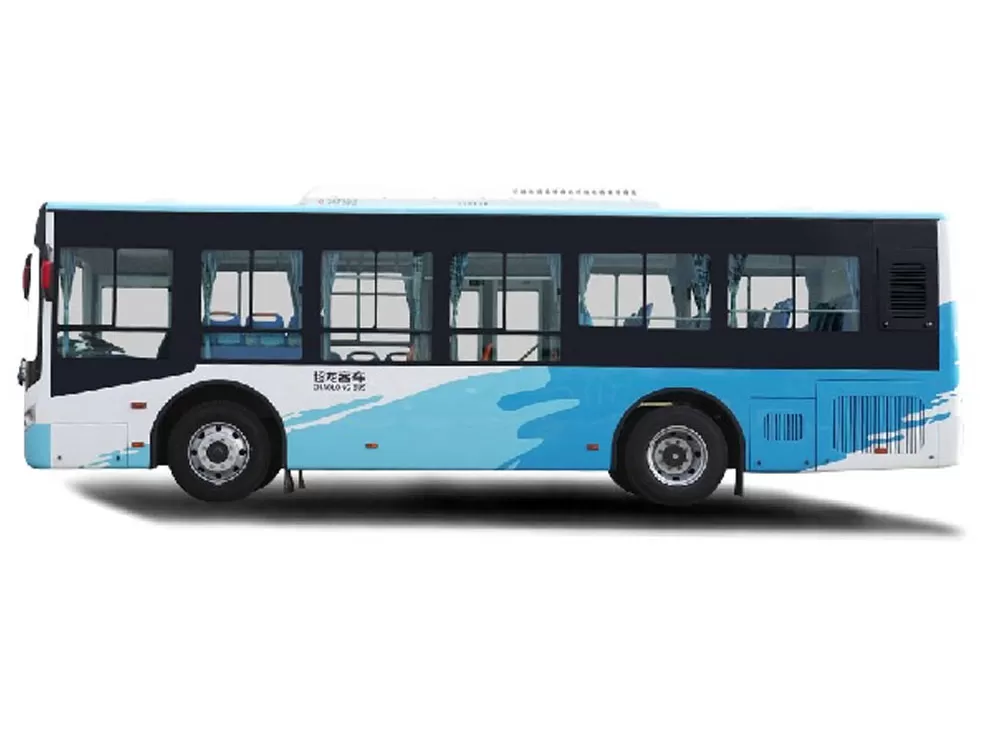

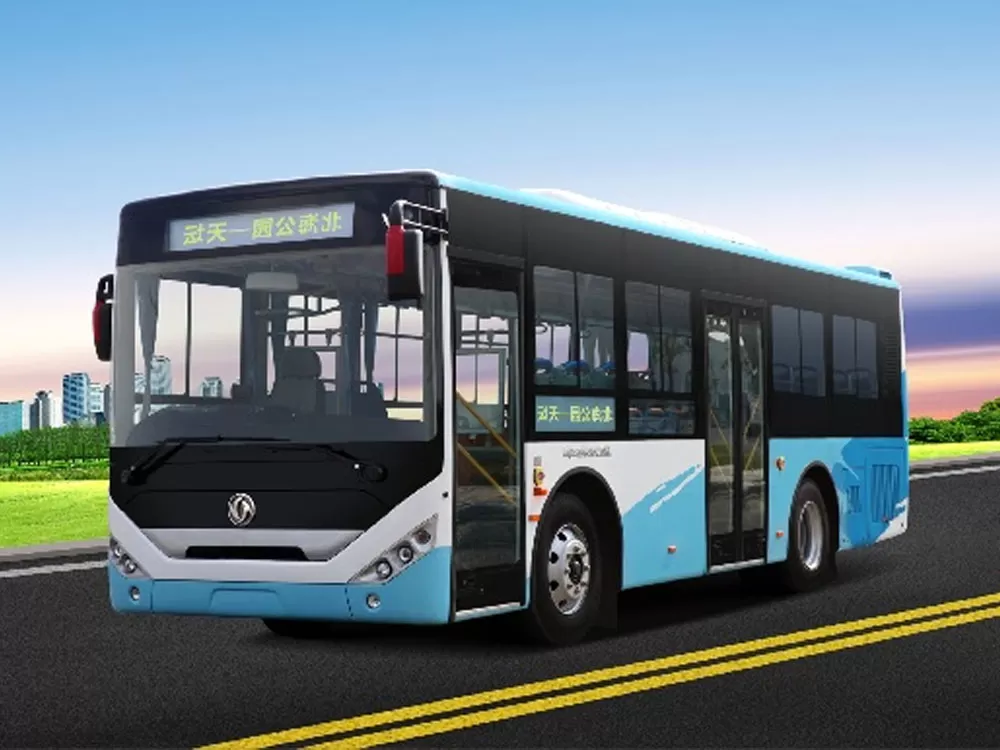

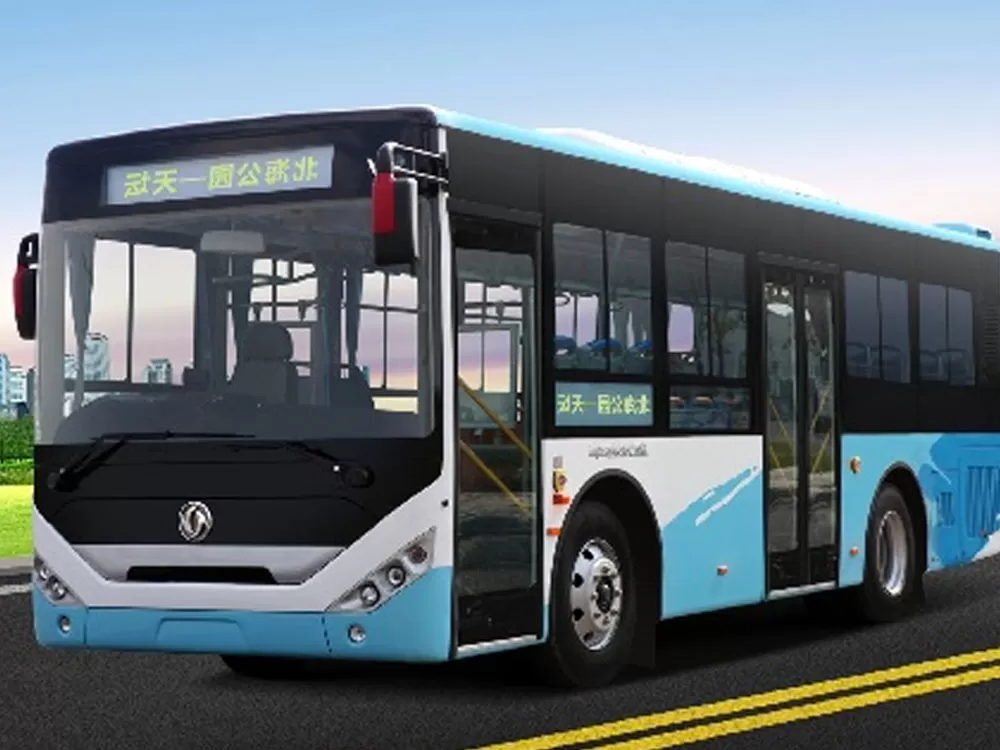

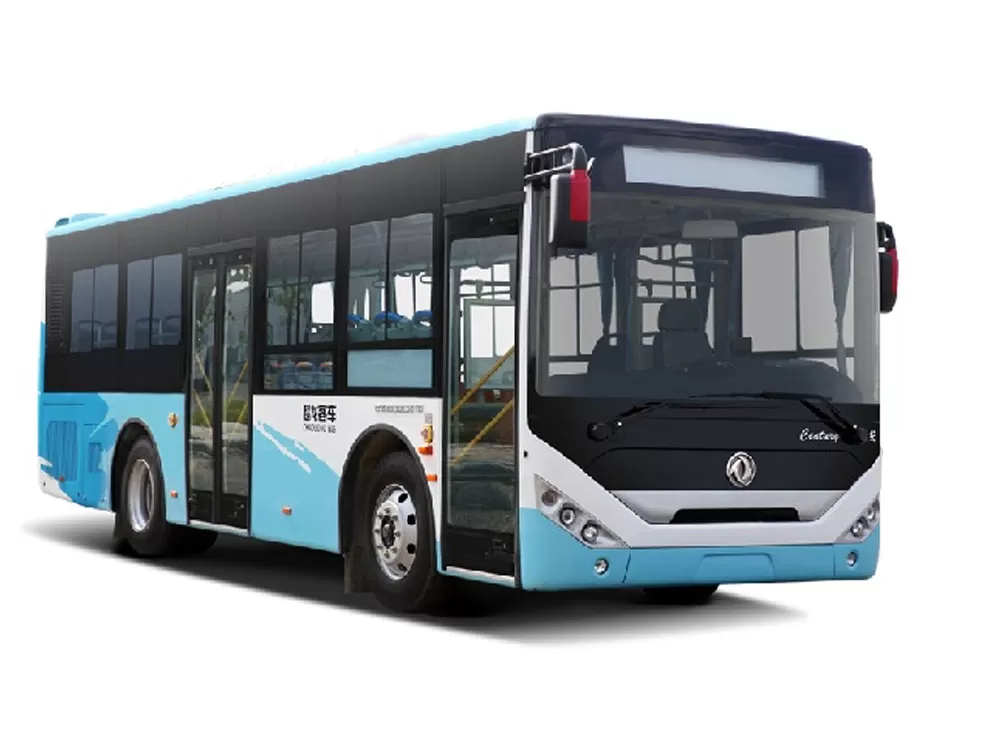

The Dongfeng Chaolong EQ6930CHTN Bus (Natural Gas National V Emission Standard, 17-36 Seats) is a medium-sized gas-powered bus under Dongfeng Chaolong. Designed for urban public transportation and group travel, it features a natural gas powertrain that meets the National V emission standards, balancing environmental friendliness and operational economy, making it suitable for medium- and short-distance passenger transport.
Dimensions: Length 8490mm, Width 2500mm, Height options 2980/3190/3340mm (Air-conditioned version with increased height), Wheelbase 4350mm, providing flexible space layout.
Powertrain: Equipped with the Yuchai YC4G180N-50 natural gas engine, delivering 132kW and 5200mL of displacement, paired with a highly efficient transmission system, it boasts a top speed of 69km/h, meeting the demands of urban public transportation.
Seating Layout: Flexible seating configurations range from 17 to 36 seats, featuring bus-specific seating (25+1 configuration). A standard or shock-absorbing driver's seat is optional to accommodate varying passenger loads.
Safety Features: Standard ABS, electric wipers, a gear-shifting defroster, and a gas leak alarm enhance driving safety.
Comfort Design: Equipped with an MP3 player (optional hard drive player), a standard long dome light, and a 24V auxiliary power supply, the Dongfeng Pine roof-mounted air conditioner (26kW) offers an enhanced passenger experience.
Environmental Compliance: The engine meets China V emission standards and is equipped with a satellite-based driving recorder, meeting urban bus operating regulations.
The Dongfeng Chaolong EQ6930CHTN bus (natural gas China V, 17-36 seats) is suitable for urban bus routes, tourist shuttles, and corporate commuting. Its natural gas fuel system reduces operating costs and carbon emissions.
|
Vehicle parameters/information |
|
|
Announcement Model |
EQ6930CHTN |
|
use |
Public buses |
|
Body length |
9340mm |
|
Body width |
2500mm |
|
Ride height |
2980,3190mm |
|
Vehicle quality |
8200,8450kg |
|
Total mass |
13500kg |
|
Body structure |
Non-load bearing |
|
Number of seats |
17-36 |
|
Maximum speed |
69km/h |
|
Air conditioning system |
Optional Pine roof-mounted air conditioner, 32KW |
|
Audiovisual system |
MP3 player, optional MP4 or MP5 car hard disk player, manual folding display |
|
Auxiliary configuration |
24V, 170W defroster, standard bus seats (27+1), electric wiper motor, front and rear combination lights, half-width sunshade, 800A sunroof, electric fan, interior mirror, fire extinguisher |
|
Engine/motor parameters |
|
|
engine |
YC6J210N-52,WP6NG210E50 |
|
Engine power |
155,155kW |
|
displacement |
6494,6750mL |
|
Engine brand |
Guangxi Yuchai Machinery Co., Ltd., Weichai Power Xigang (Weifang) New Energy Engine Co., Ltd. |
|
Emission standards |
GB17691-2005 National V, GB18285-2005, GB11340-2005 |
|
Chassis parameters/configuration |
|
|
Chassis model |
EQ6900HN5AC Class III Dongfeng Motor Corporation |
|
Front and rear suspension |
2010/2830mm |
|
Number of springs |
3/4 |
|
gearbox |
5+1 gears, flexible shaft drawing control |
|
clutch |
Single-piece dry type Ф330mm, hydraulic remote control, gas power assist |
|
Number of axes |
2 |
|
wheelbase |
4500mm |
|
Axle load |
4500/9000kg |
|
Front track |
2060mm |
|
rear track |
1800mm |
|
Approach departure angle |
8/7° |
|
tire |
|
|
Number of tires |
6 |
|
Specification |
9.00R20,10R22.5 |
