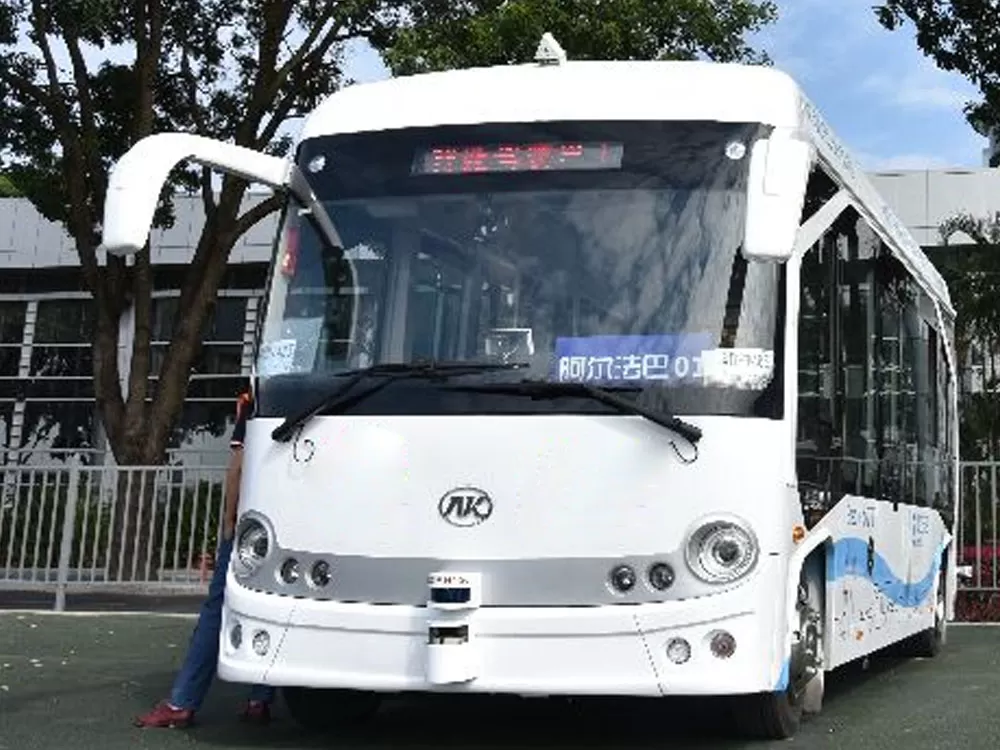

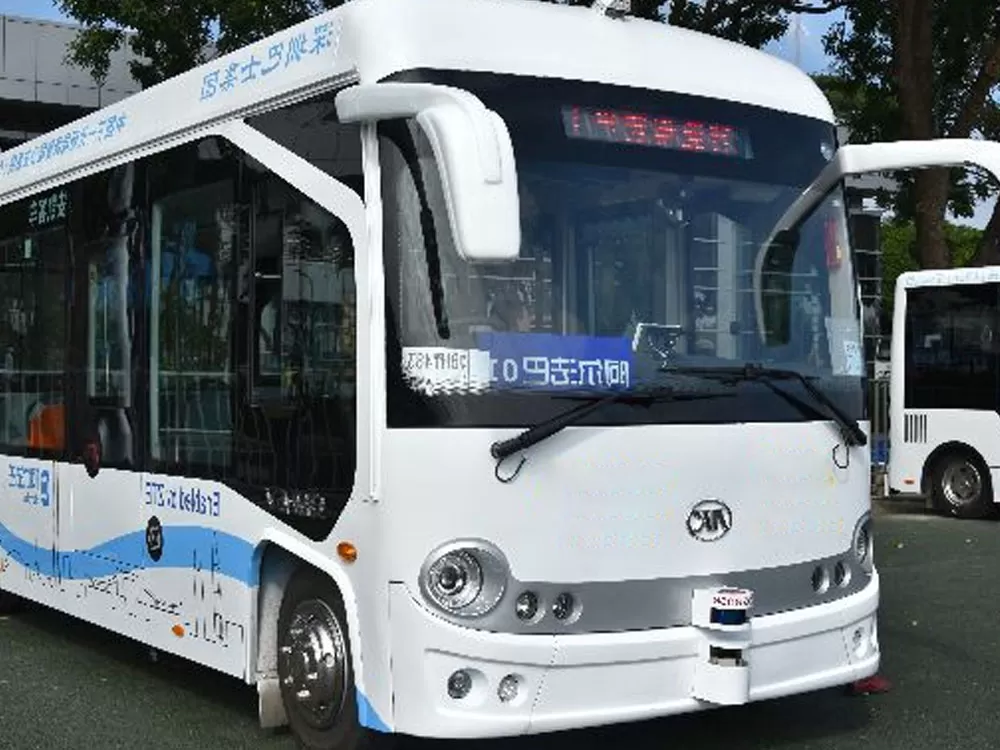

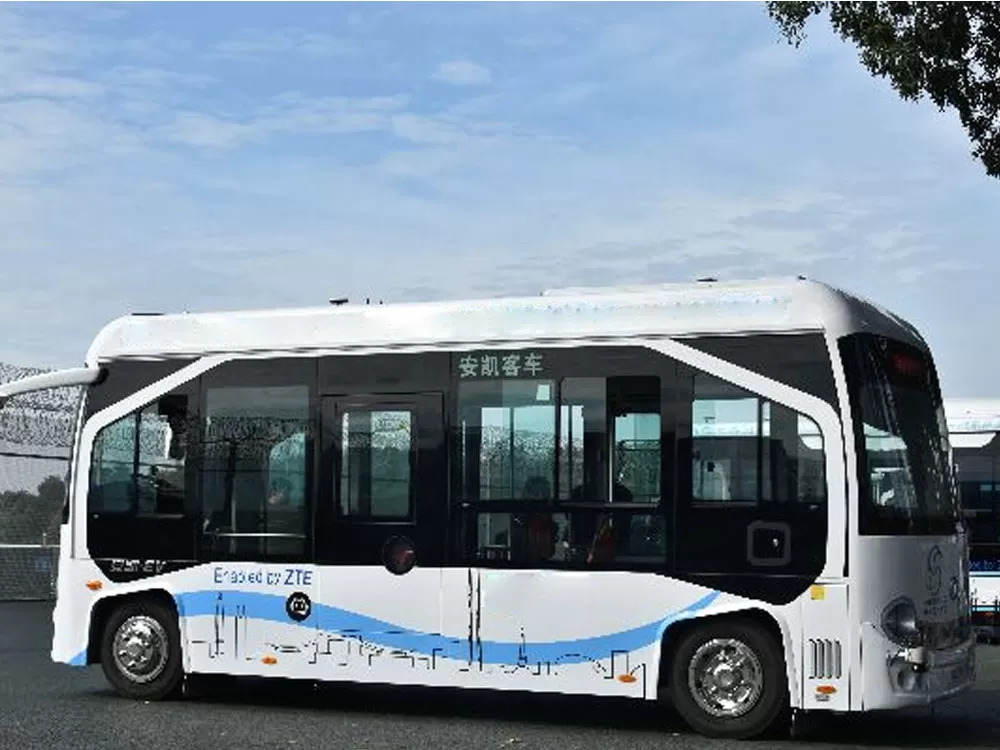

The Ankai Driverless Bus (Pure Electric 9-Seat) is an intelligent driving bus designed for future urban transportation, with the official model number HFF6668GEV. The bus is 6605mm long, 2320mm wide, and 2830mm high, with a curb weight of 5700kg and a gross vehicle weight of 6950kg. Its maximum speed is 69km/h.
The vehicle is equipped with a TZ260XS050 motor produced by Anhui Ankai Automobile Co., Ltd., with a motor power of 100kW. The energy storage device uses lithium manganese oxide batteries supplied by Microvast Power Systems (Huzhou) Co., Ltd. The vehicle is also equipped with safety features such as ABS, speed limiter, external charging device, and driver's area isolation facilities.
The Ankai Driverless Bus (Pure Electric 9-Seat) is currently in the development stage, reflecting Ankai Automobile's technological layout in the field of pure electric buses. Its design takes into account both the practicality of urban public transportation and the trend of intelligent development, making it one of the potential options for solving the "last mile" problem in urban transportation.
|
Vehicle parameters/information |
|
|
Announcement Model |
HFF6668GEV |
|
use |
public buses |
|
Vehicle length |
6605mm |
|
Vehicle width |
2320mm |
|
Vehicle height |
2830mm |
|
Overall vehicle quality |
5700kg |
|
Total mass |
6950kg |
|
Number of seats |
19/7+1+1 |
|
Top speed |
69km/h |
|
Engine/Motor Parameters |
|
|
motor |
TZ260XS050 |
|
motor power |
100kW |
|
Motor Brands |
Anhui Ankai Automobile Co., Ltd. |
|
Chassis parameters/configuration |
|
|
Front overhang Rear overhang |
1000/1205mm |
|
Number of springs |
-/- |
|
Number of axes |
2 |
|
wheelbase |
4400mm |
|
Axle load |
3480/5500kg |
|
Front wheel track |
1830mm |
|
Rear wheel track |
1710mm |
|
Approach departure angle |
17/14° |
|
tire |
|
|
Number of tires |
6 |
|
Specification |
215/75R17.5 |
|
Specification |
215/75R17.5 |
|
Number of tires |
6 |
|
Specification |
295/80R22.5 |
