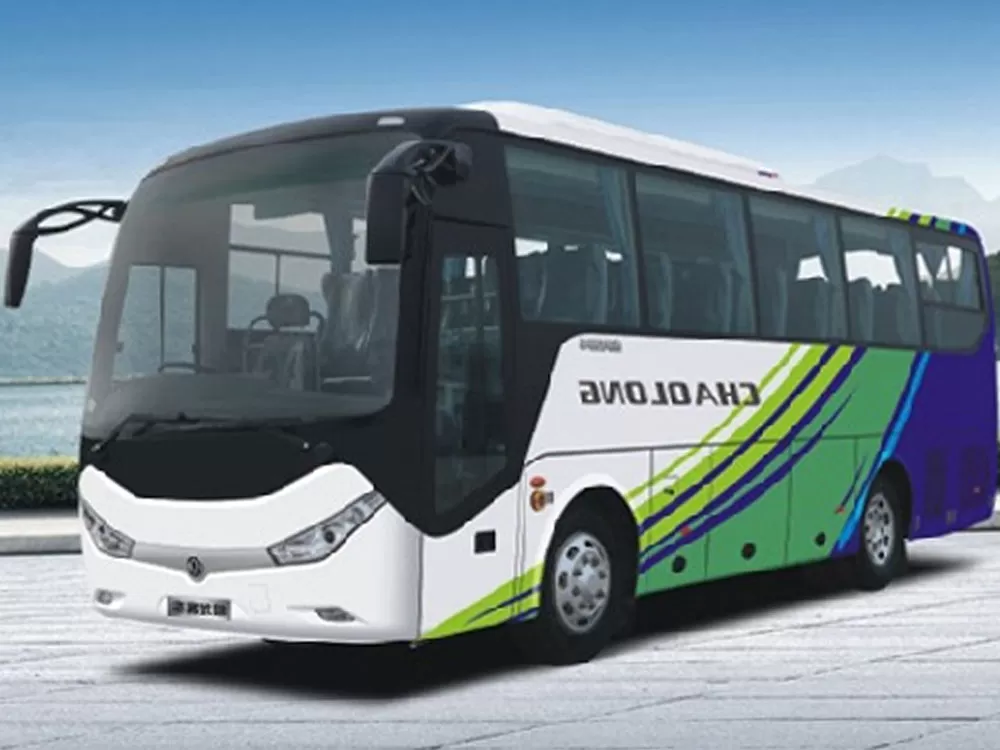

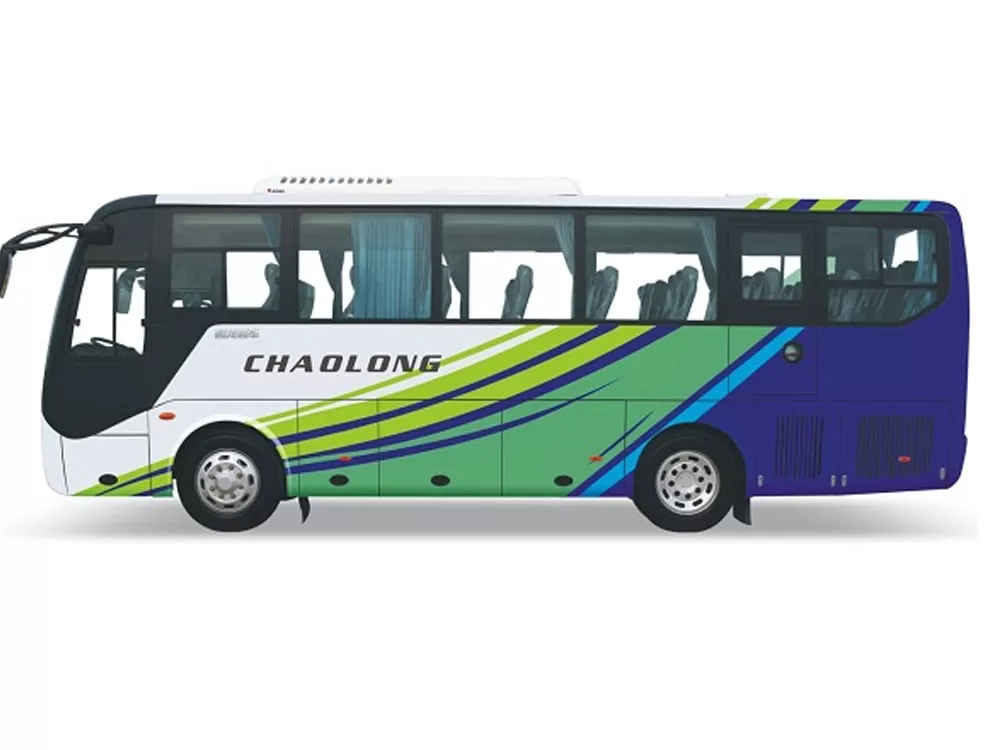

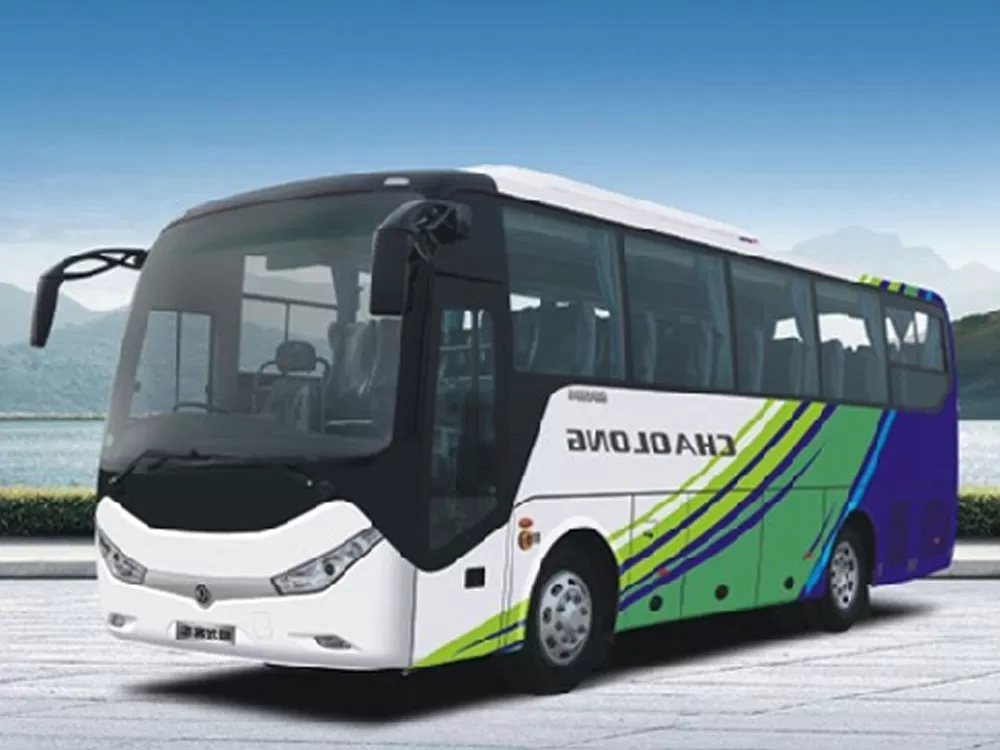

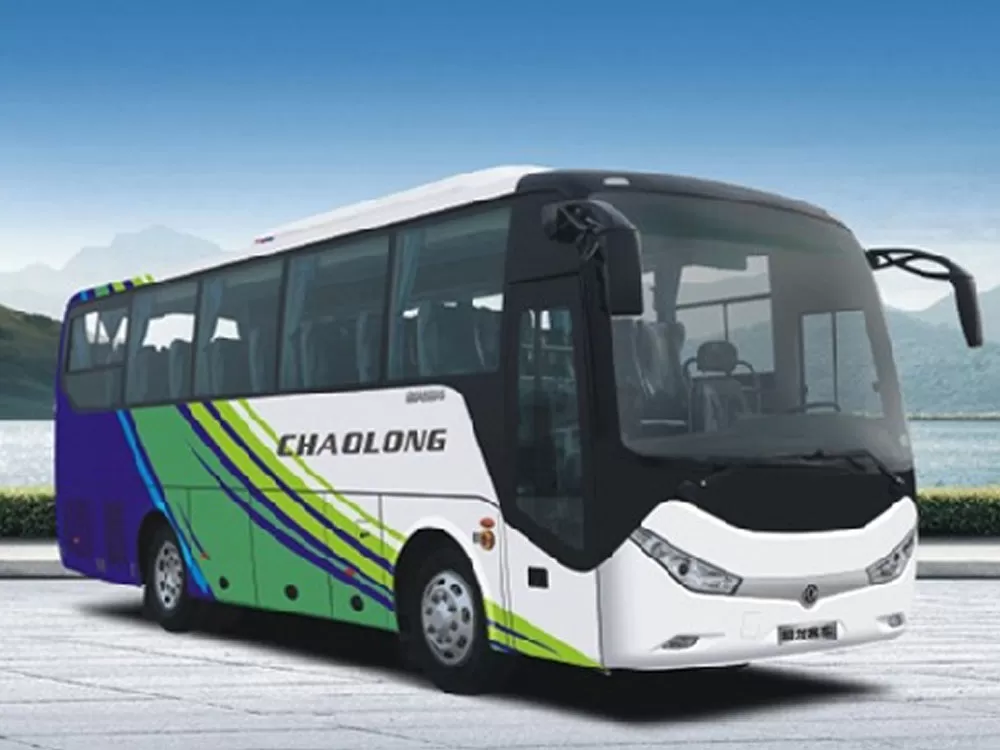

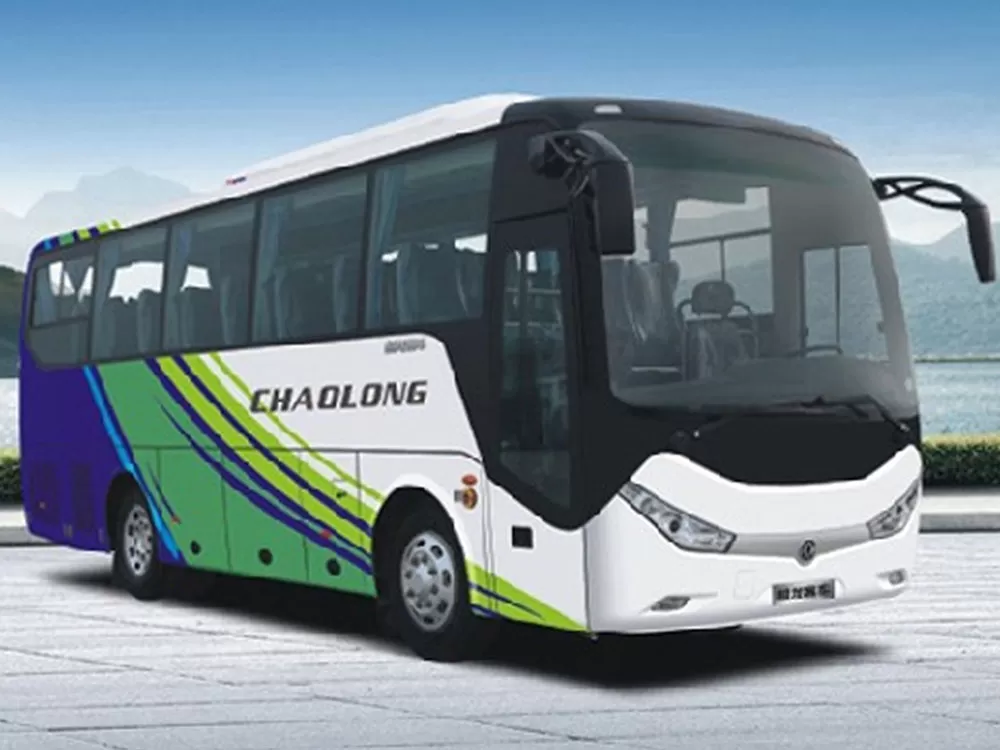

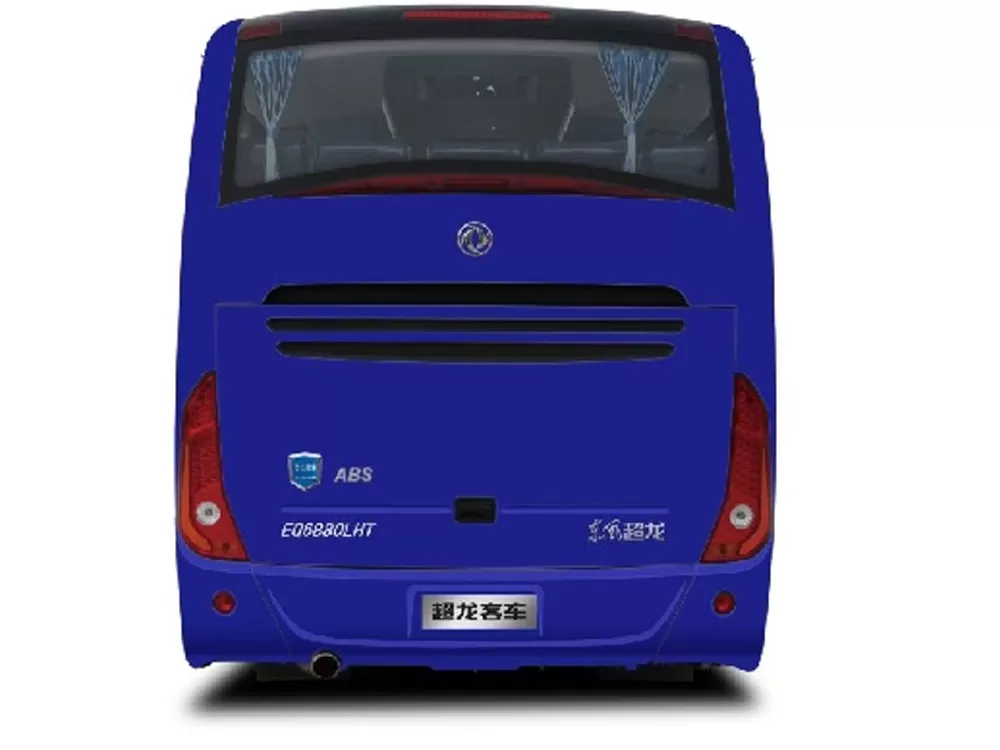

Dongfeng Chaolong EQ6880LHTN Bus (Natural Gas, China V Emission Standard, 24-39 Seats)
The Dongfeng Chaolong EQ6880LHTN Bus (Natural Gas, China V Emission Standard, 24-39 Seats) is a medium-sized gas-powered bus under Dongfeng Chaolong. Designed for passenger transport, tourism, and group travel, it features a natural gas powertrain that meets China V emission standards, balancing environmental friendliness and operational economy, making it suitable for medium- and short-distance passenger transport.
Core Parameters and Configuration
Dimensions: Length 8.8 meters, width 2.4 meters, height options 2.9 meters and 3.06 meters (including roof-mounted air conditioning version). Vehicle weight 5.9-6.1 tons, gross vehicle mass 9.6 tons. It utilizes a semi-unibody structure.
Powertrain: Equipped with either the Yuchai YC4S150-50 or Weichai WP4.1Q150E50 engine, boasting 110 kW of power and 3.8-4.1 L of displacement. Maximum speed 80 km/h. Emissions meet China V standards.
Seating Layout: Flexible seating configurations from 24 to 39 seats are standard, with standard bus seats available. Folding doors, a 360-degree surround view system, and various side window configurations are optional.
Functionality and Safety
Safety Features: Standard ABS (Guangzhou Kemi), a GPS-based driving recorder, emergency door openings, and a reverse parking sensor are standard. The vehicle structure has undergone multiple safety verifications.
Comfort: Optional roof-mounted air conditioning (vehicle height 3.06 meters), an MP3 audio system, and half-width sunshades are available. The interior emphasizes practicality and basic needs.
The Dongfeng Chaolong EQ6880LHTN bus (natural gas National V standard, 24-39 seats) is suitable for urban bus shuttles, tourist group transportation, and other applications. Its natural gas fuel design reduces operating costs while meeting environmental regulations.
Vehicle parameters/information
|
Announcement Model
|
EQ6880LHTN
|
use
|
Passenger bus, tourist bus, group bus
|
Body length
|
8760mm
|
Body width
|
2480mm
|
Ride height
|
3130,3345,3510mm
|
Vehicle quality
|
9650kg
|
Total mass
|
12700kg
|
Body structure
|
Non-load-bearing
|
Number of seats
|
24-39
|
Maximum speed
|
100km/h
|
Air conditioning system
|
Optional Dongfeng Pine
|
Audiovisual system
|
MP3 player
|
Auxiliary configuration
|
Special-shaped headlights on the front and rear; electric wipers; solid paint
|
Engine/motor parameters
|
engine
|
YC6J225N-52
|
Engine power
|
166kW
|
displacement
|
6494mL
|
Engine brand
|
Guangxi Yuchai Machinery Co., Ltd.
|
Emission standards
|
GB17691-2005 National V, GB18285-2005, GB11340-2005
|
Chassis parameters/configuration
|
Chassis model
|
EQ6840KR5TN Class III Dongfeng Special Automobile Co., Ltd.
|
Front and rear suspension
|
1900/2690mm
|
Number of springs
|
-/-,6/8
|
gearbox
|
S6-80 (Qijiang)
|
clutch
|
Single-piece dry diaphragm spring, friction plate Ф395, gas-assisted
|
Number of axes
|
2
|
wheelbase
|
4170mm
|
Axle load
|
4200/8500kg
|
Front track
|
2020,2060mm
|
rear track
|
1800mm
|
Approach departure angle
|
11/6°
|
tire
|
Number of tires
|
6
|
Specification
|
8.25R20,9R22.5
|
