Dongfeng Chaolong EQ6860ZTV bus (diesel National V emission standard, 24-34 seats)

Dongfeng Chaolong EQ6860ZTV Bus (National V Diesel, 24-34 Seats)

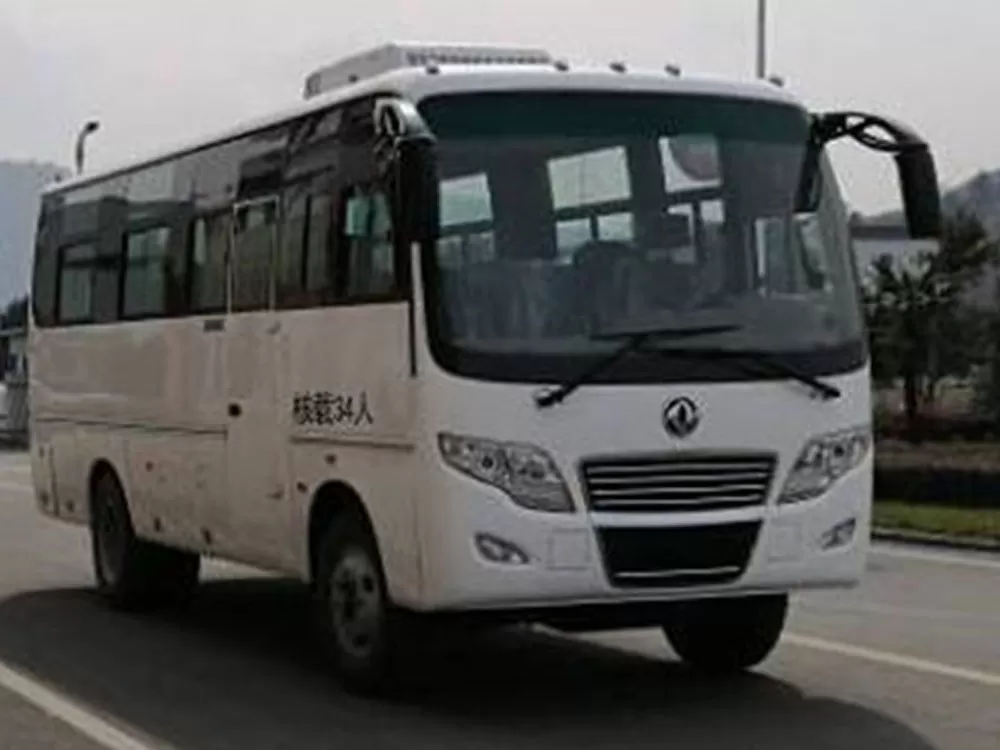

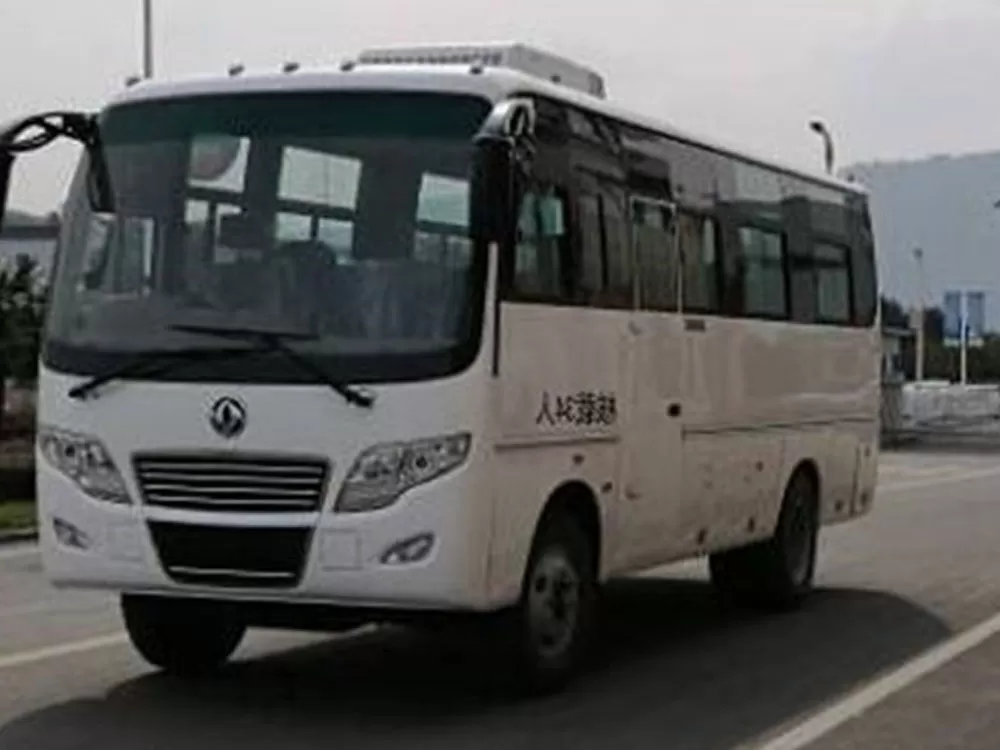

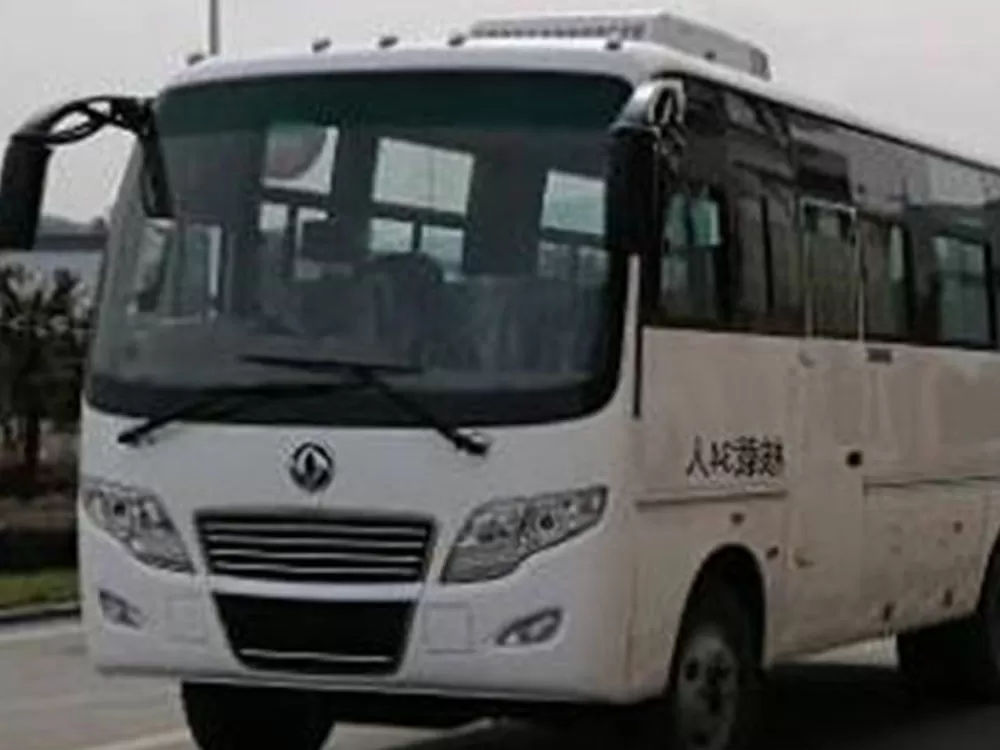

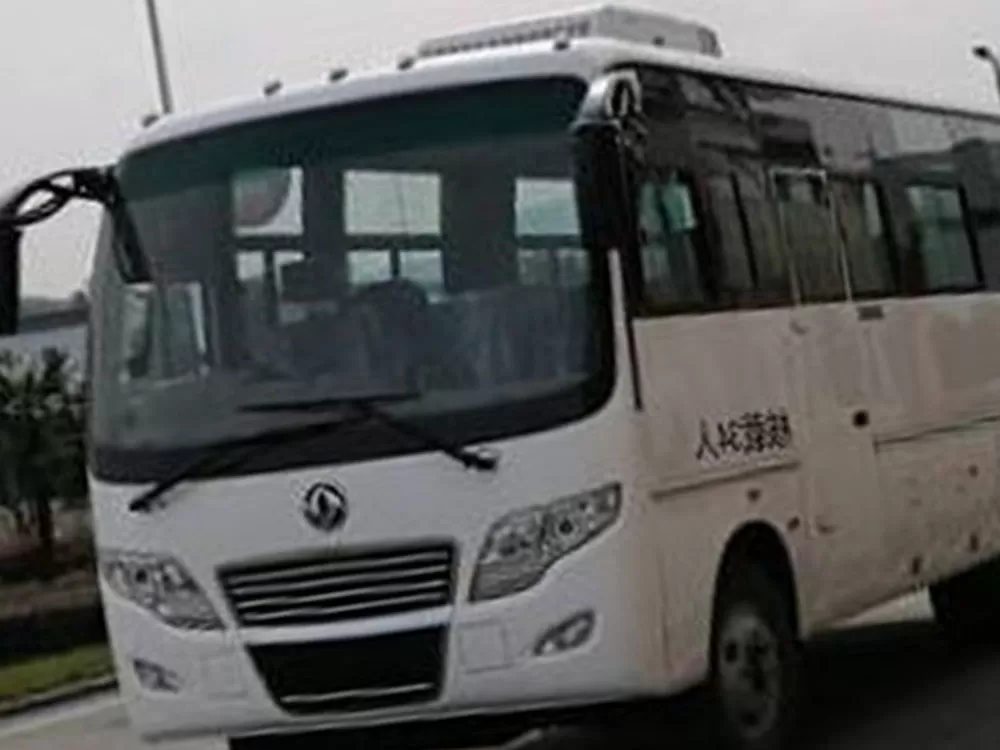

The Dongfeng Chaolong EQ6860ZTV is a diesel-powered bus designed specifically for urban and rural passenger transport and group commuting. It meets the National V emission standards and offers high load capacity, reliable power, and a flexible interior layout, making it a practical model for medium- and short-distance transportation.

Efficient Powertrain

Equipped with a Yuchai YC4S140-50 diesel engine with a displacement of 3767 mL and a maximum power of 103 kW, paired with a 5-speed manual transmission, it delivers smooth power delivery and excellent fuel economy, with a top speed of 100 km/h.

Flexible Interior Layout

The bus is approximately 6860 mm long with a wheelbase of 3800 mm. It offers 24 to 34 seats (2+2 seating configuration) to meet diverse passenger needs.

Optional roof-mounted air conditioning (3040-3160mm height) and swing-out doors are available. Curb weight ranges from 5850-6000kg, with a total weight of 8550kg.

Safety and Environmental Protection

Standard features include ABS (Guangzhou Ruili Komi brand), a satellite-based driving recorder, and engine ECU speed limiter (100km/h).

Emissions meet China V emissions standards (GB17691-2005) and utilize high-efficiency after-treatment technology, balancing power and environmental performance.

Detailed Improvements

Chassis Performance: Front overhang 1250mm/rear overhang 2450mm, axle loads 3050/5500kg, and tire sizes 8.25-16 or 9.5R17.5, ensuring compatibility with complex road conditions.

Customization: Optional side scuff strips, a rear luggage compartment door, and various side window configurations are available (sliding, bonded, or hybrid). Market Positioning

Dongfeng Chaolong EQ6860ZTV Bus (National V Diesel, 24-34 Seats)
With its high load capacity and sophisticated powertrain technology, this model is a reliable choice for urban and rural passenger transport and group commuting, especially suitable for routes with numerous slopes and curves.
