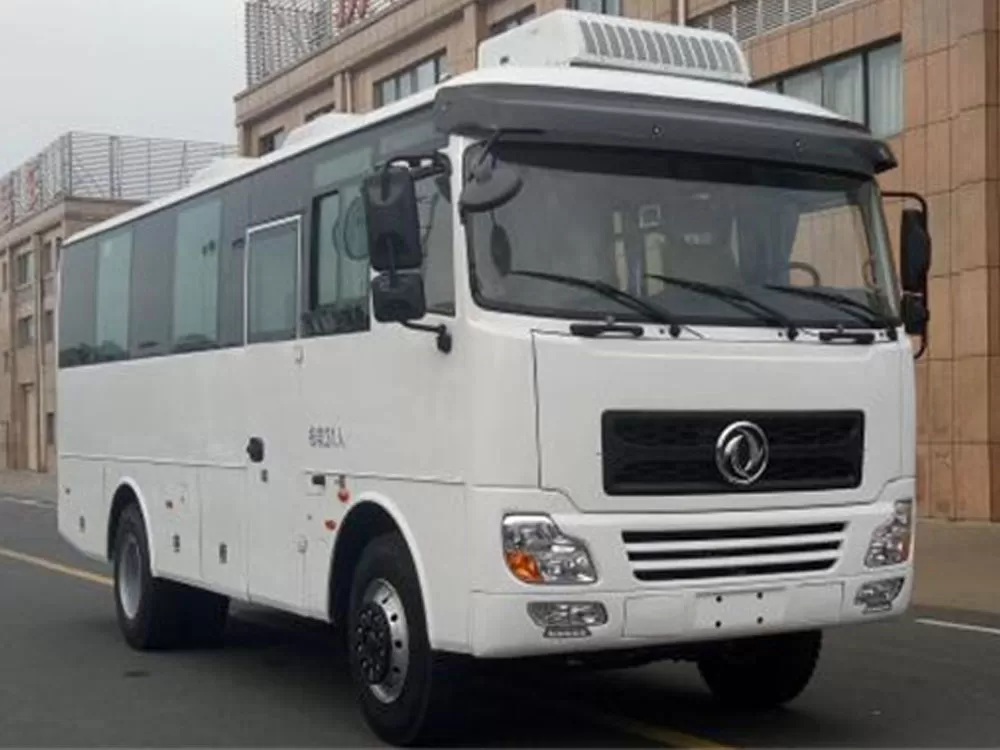

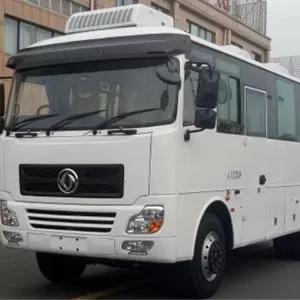

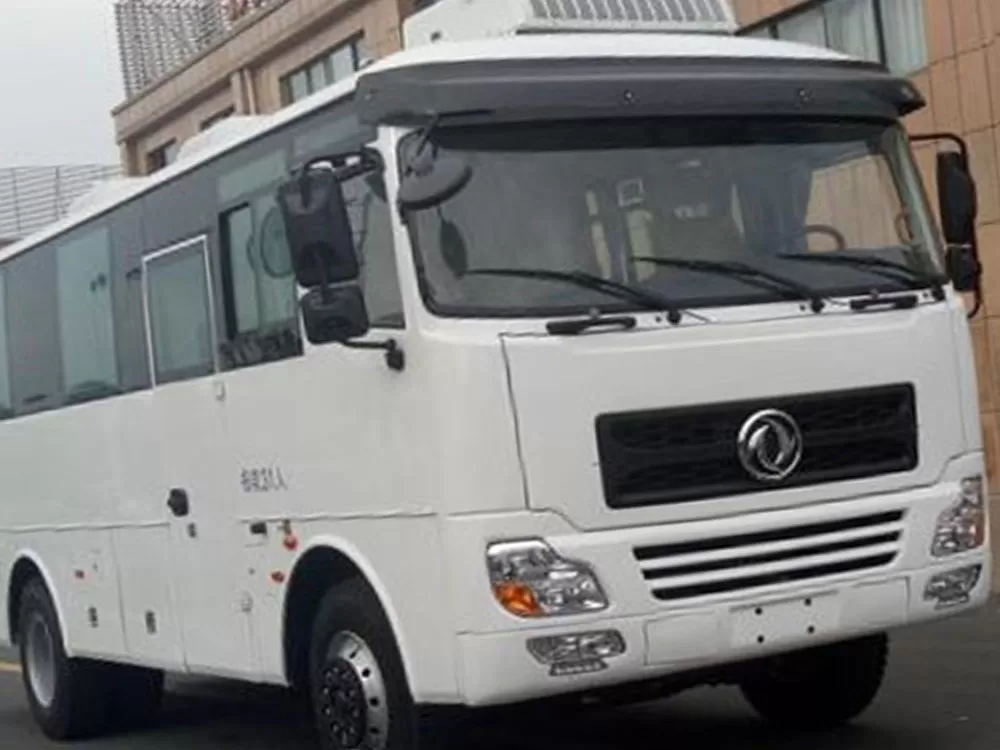

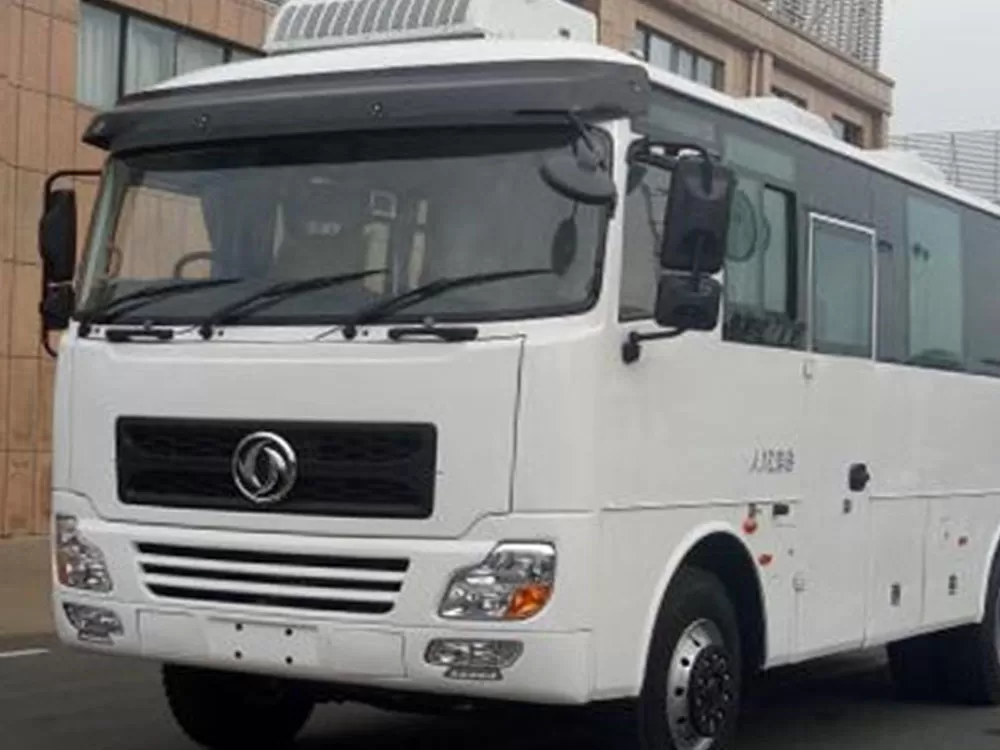

Dongfeng Chaolong EQ6830ZT6D Bus (China VI Diesel, 24-31 Seaters)
The Dongfeng Chaolong EQ6830ZT6D is a diesel-powered bus designed specifically for urban and rural passenger transport, group commuting, and tourism. It strictly complies with China VI emission standards. Its powerful performance, flexible seating layout, and high safety make it a popular choice for medium- and short-distance transportation.
Efficient Powertrain
Equipped with a Dongfeng Cummins D6.7NS6B230 diesel engine with a maximum power of 169kW (230 horsepower) and a displacement of 6700mL, paired with a 5-speed manual transmission, it delivers smooth power delivery and excellent fuel economy, making it suitable for complex road conditions.
Flexible Space Layout
With a body length of 8350mm and a wheelbase of 4500mm, the bus offers 24-31 seats (2+2 layout) for efficient space utilization. Optional features include a roof-mounted air conditioner (3470mm high), a skylight, and various side window configurations to meet the needs of diverse operating scenarios.
Safety and Environmental Protection
Standard features include ABS (WABCO or SRICOM), a satellite-based driving recorder, and an engine ECU speed limiter (90 km/h).
Emissions meet China VI emission standards, with DPF after-treatment technology to reduce pollutants.
Detailed Improvements
Chassis Performance: Front overhang 1420mm/rear overhang 2430mm, axle loads of 5500/11000kg, and tire sizes of 10.00R20 or 11R22.5, providing balanced load capacity.
Customization: Optional ETC onboard device, disc brakes, and tire blowout protection (high-end models) enhance operational convenience.
The Dongfeng Chaolong EQ6830ZT6D bus (China VI diesel, 24-31 seats) maintains Dongfeng Chaolong's reputation as an "expert in urban and rural passenger transport." With its China VI engine technology and high cost-effectiveness, it is a reliable choice for group commuting, tourist transfers, and intercity transportation.
Vehicle parameters/information
|
Announcement Model
|
EQ6830ZT6D
|
use
|
Passenger bus, tourist bus, group bus
|
Body length
|
8350mm
|
Body width
|
2480mm
|
Ride height
|
3215,3315,3470mm
|
Vehicle quality
|
9800kg
|
Total mass
|
16500kg
|
Number of seats
|
24-31
|
Maximum speed
|
90km/h
|
Engine/motor parameters
|
engine
|
D6.7NS6B230
|
Engine power
|
169/229kW
|
displacement
|
6700mL
|
Engine brand
|
Dongfeng Cummins Engine Co., Ltd.
|
Emission standards
|
National VI
|
Chassis parameters/configuration
|
Front and rear suspension
|
1420/2430mm
|
Number of springs
|
11/12,11/-
|
Number of axes
|
2
|
wheelbase
|
4500mm
|
Axle load
|
5500/11000kg
|
Front track
|
2035,2055mm
|
rear track
|
1860mm
|
Approach departure angle
|
25/15°
|
tire
|
Number of tires
|
6
|
Specification
|
10.00R20,11R22.5
|
