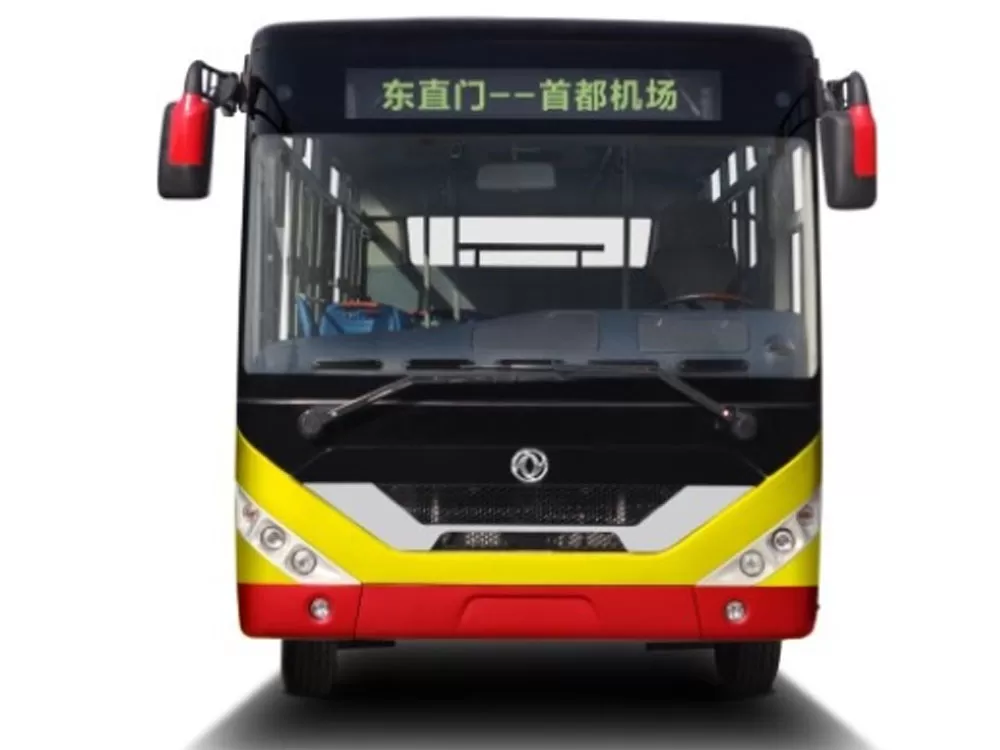

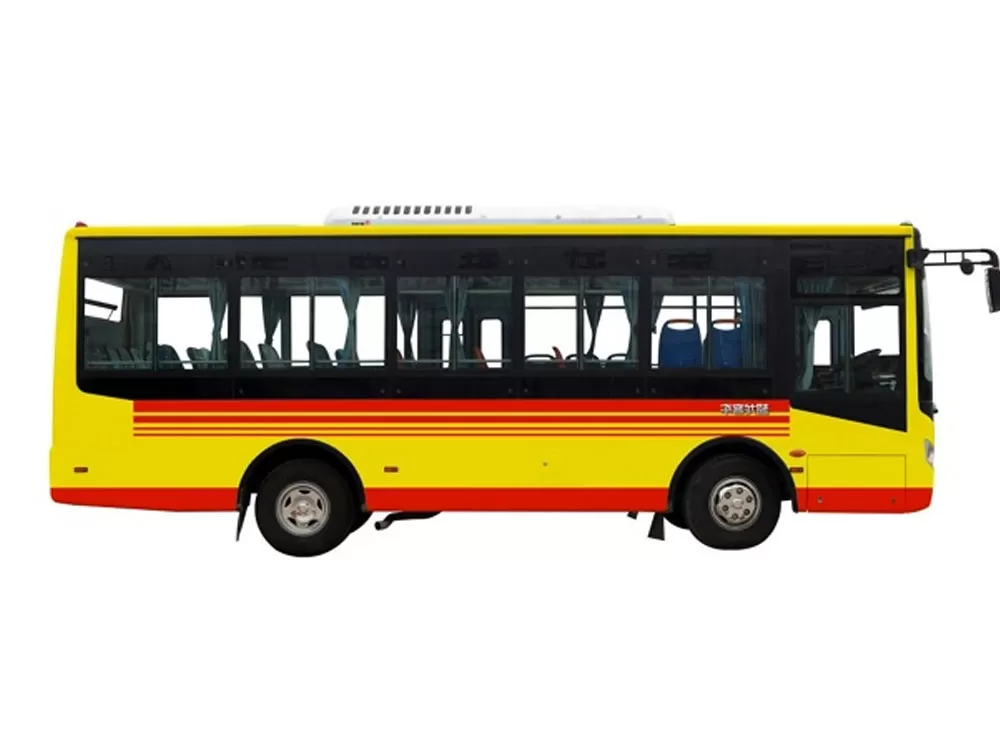

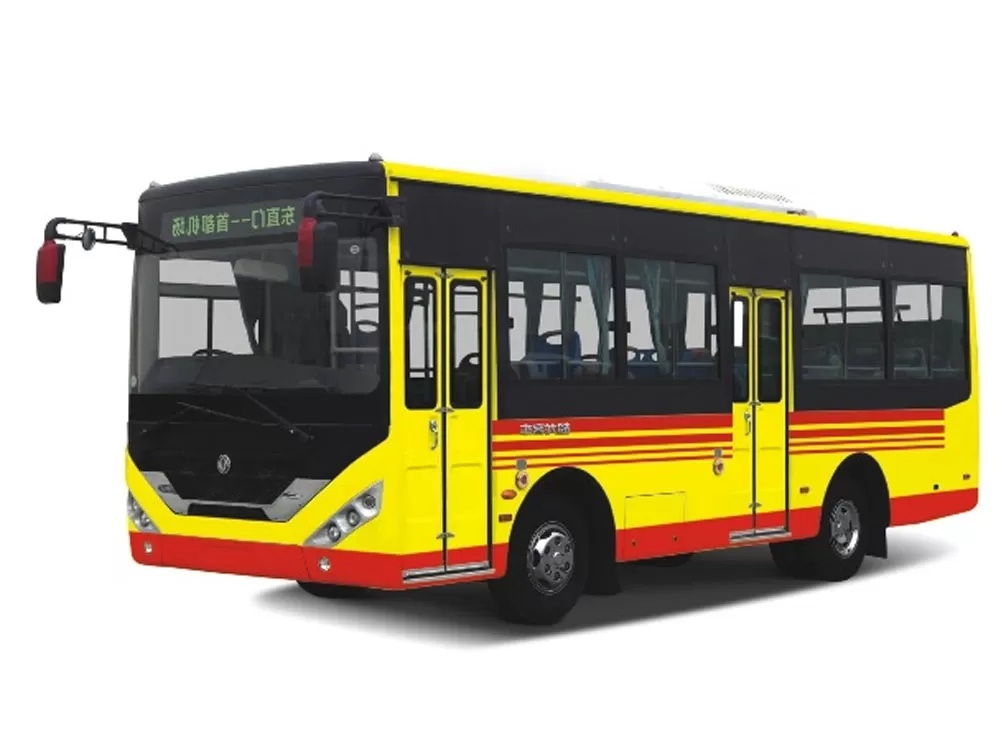

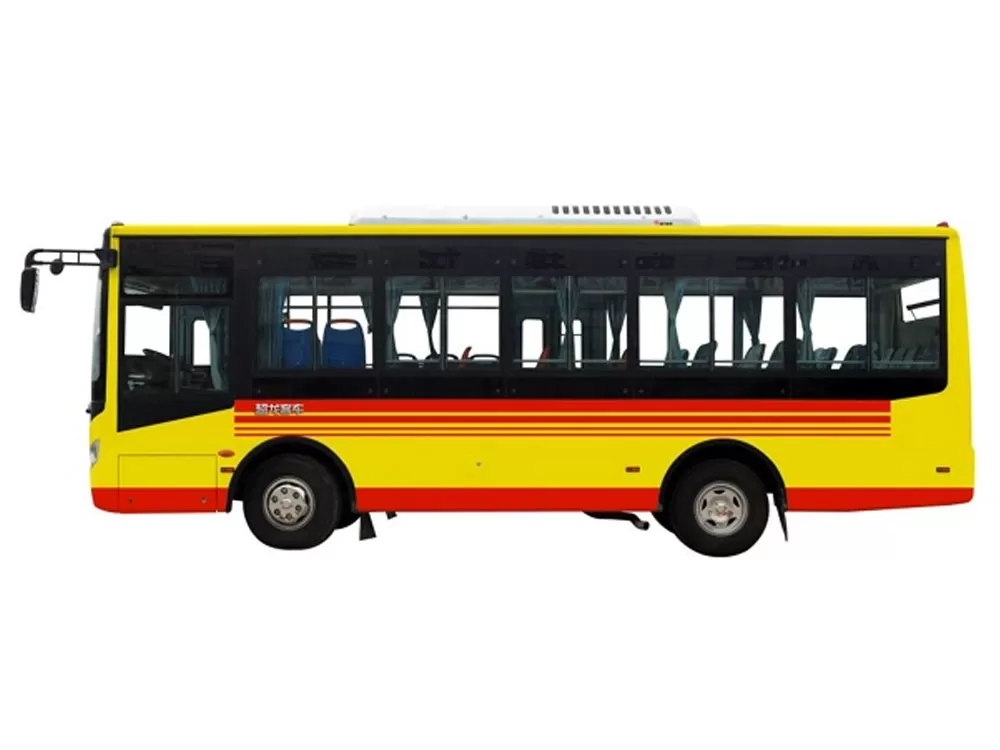

The Dongfeng Chaolong EQ6830CTN1 Bus (Natural Gas National V Emission Standard, 10-33 Seats) is a medium-sized gas-powered bus under Dongfeng Chaolong. Designed for urban public transportation and group travel, it features a natural gas powertrain that meets the National V emission standards, balancing environmental friendliness and operational economy, making it suitable for medium- and short-distance passenger transport.
Dimensions: Length 8290mm, Width 2360mm, Height available in 2850/3060mm (Air-conditioned version has a higher height). Wheelbase not specified. Total vehicle weight 6690kg, Gross Vehicle Weight 10,400kg. It utilizes a semi-unibody structure.
Powertrain: Equipped with the Geely Sichuan Commercial Vehicle Co., Ltd. NQ170DN5 natural gas engine, boasting a displacement of 5638ml and a power output of 125kW. This engine is paired with a highly efficient transmission system, boasting a top speed of 69km/h and meeting China V emissions standards (GB17691-2005, etc.).

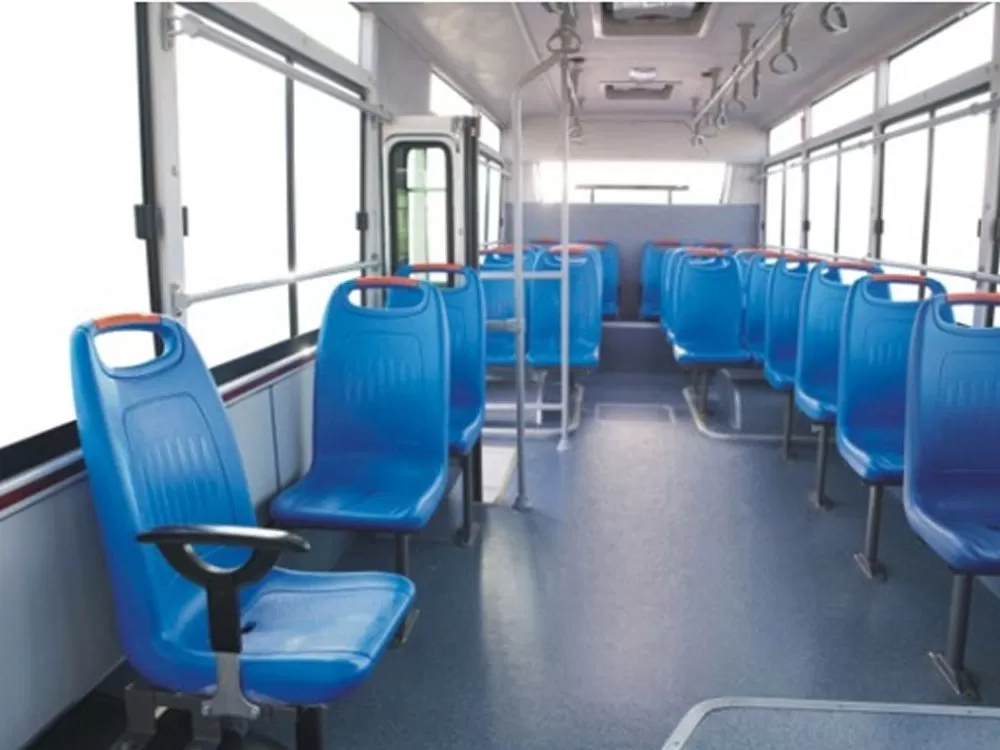

Seating: Flexible seating configurations range from 10 to 33 seats, with a standard 23+1 bus seating arrangement. Pneumatic swing doors and hybrid side windows are optional.
Comfort Features: Optional Dongfeng Pine roof-mounted air conditioning (21kW), an MP3 player (with USB/SD card expansion support), standard dual-wipe electric wipers, a 24V gear-shift defroster, and standard long dome lights.
Safety Design: Features a combination of front and rear round lights, a gas leak alarm (standard on China V models), and a body structure that enhances passive safety.
The Dongfeng Chaolong EQ6830CTN1 bus (natural gas National V 10-33 seats) is suitable for scenarios such as urban bus shuttles and tourist group transportation. The natural gas fuel design can reduce operating costs while meeting environmental regulations.
|
Vehicle parameters/information |
|
|
Announcement Model |
EQ6830CTN1 |
|
use |
Public buses |
|
Body length |
8290mm |
|
Body width |
2360mm |
|
Ride height |
2850,3060mm |
|
Vehicle quality |
6690kg |
|
Total mass |
10400kg |
|
Body structure |
Semi-loaded |
|
Number of seats |
13-33 |
|
Maximum speed |
69km/h |
|
Air conditioning system |
Optional Dongfeng Pine top-mounted, 21KW (18000Kcal/h), PN43 compressor |
|
Audiovisual system |
MP3 player; MP3 player can be equipped with USB flash drive or SD card |
|
Auxiliary configuration |
24V, 130W gear-shift defroster; standard bus seats, 23+1 configuration; electric wipers; new front and rear round light combination, standard long dome light |
|
Engine/motor parameters |
|
|
engine |
NQ170DN5 |
|
Engine power |
125kW |
|
displacement |
5638mL |
|
Engine brand |
Geely Sichuan Commercial Vehicle Co., Ltd. |
|
Emission standards |
GB11340-2005, GB18285-2005, GB17691-2005 National V |
|
Chassis parameters/configuration |
|
|
Chassis model |
EQ6800TN5AC1 Class III Dongfeng Motor Corporation |
|
Front and rear suspension |
1860/2430mm |
|
Number of springs |
11/12 |
|
gearbox |
QJ5S600 |
|
clutch |
φ380 single-piece dry diaphragm spring, clutch assist |
|
Number of axes |
2 |
|
wheelbase |
4000mm |
|
Axle load |
3800/6600kg |
|
Front track |
1950mm |
|
rear track |
1800mm |
|
Approach departure angle |
11/12° |
|
tire |
|
|
Number of tires |
6 |
|
Specification |
8.25-20,8.25R20,9R22.5 |
