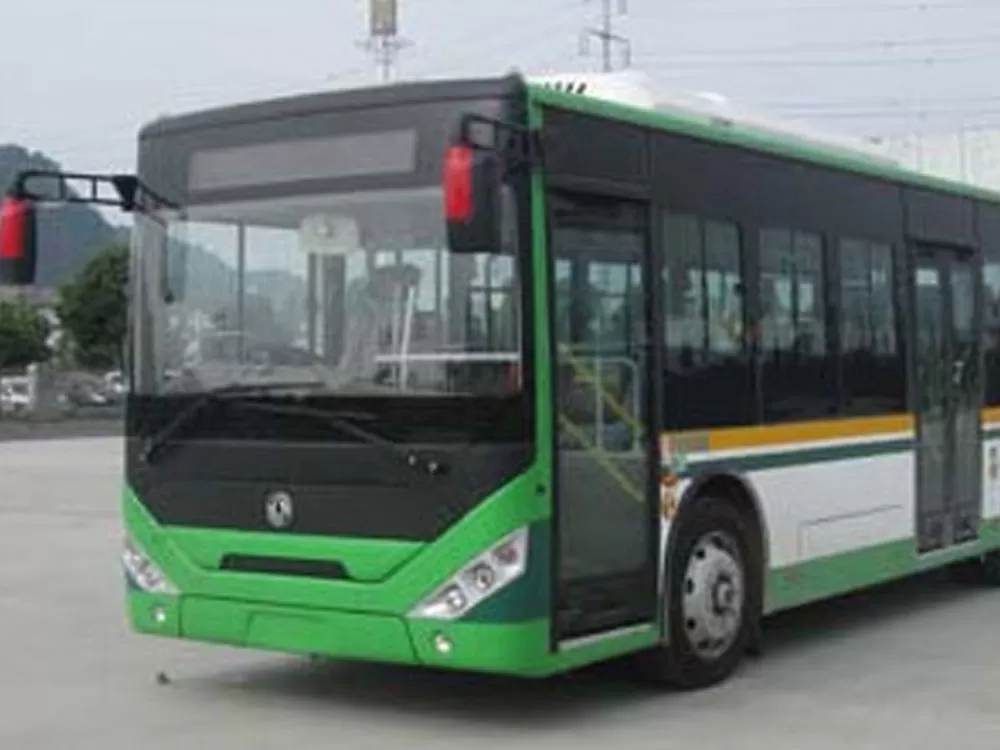

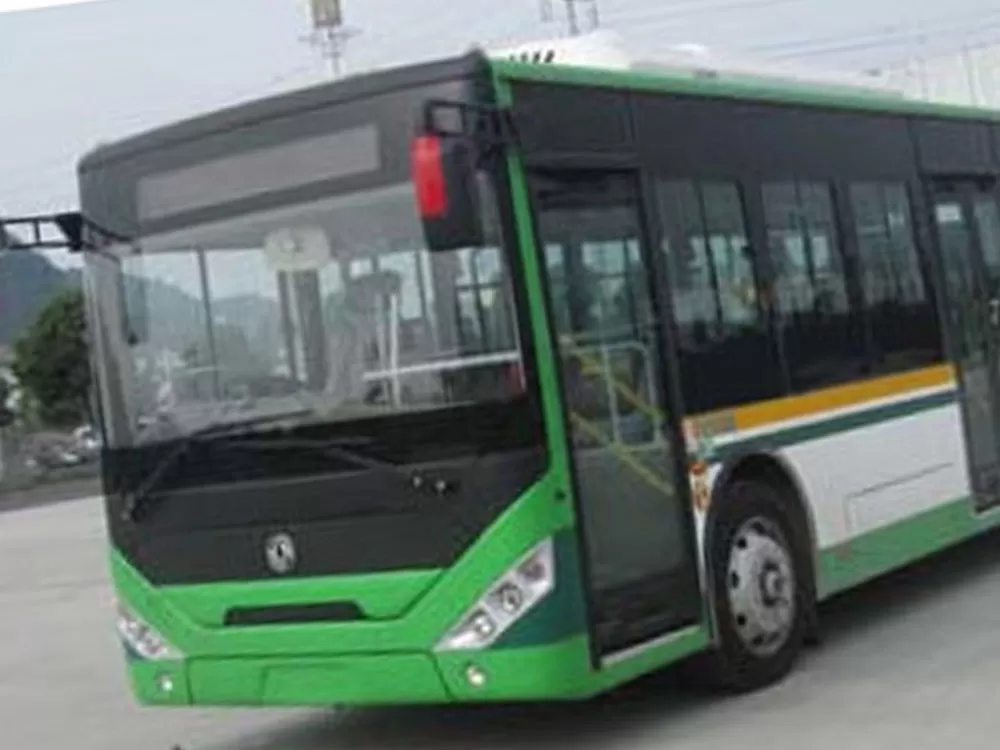

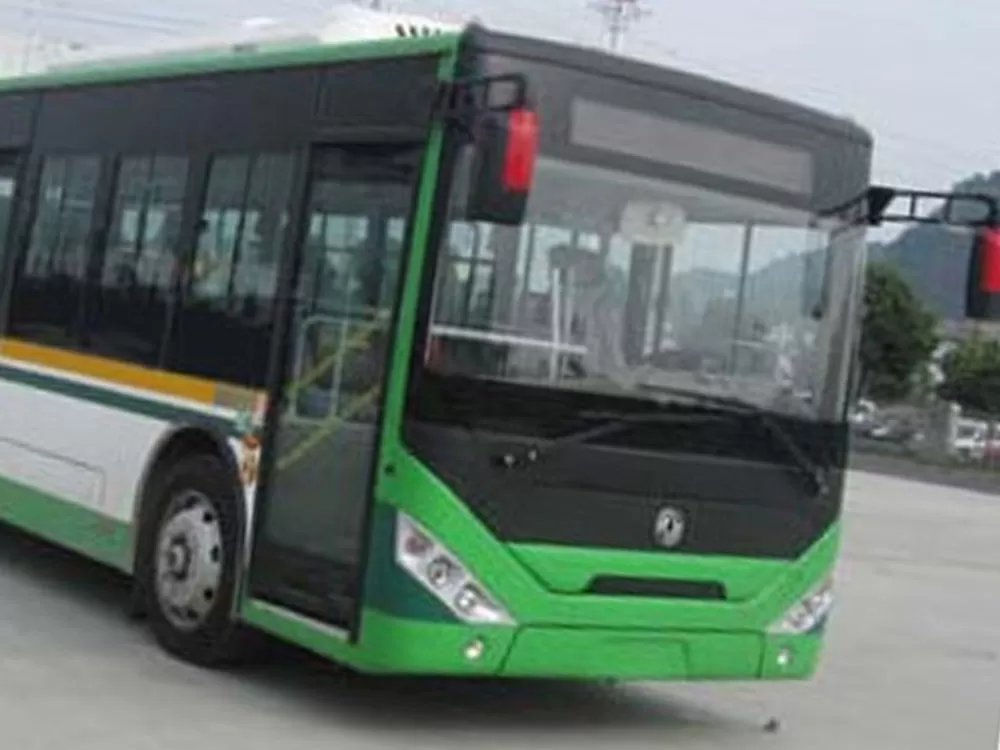

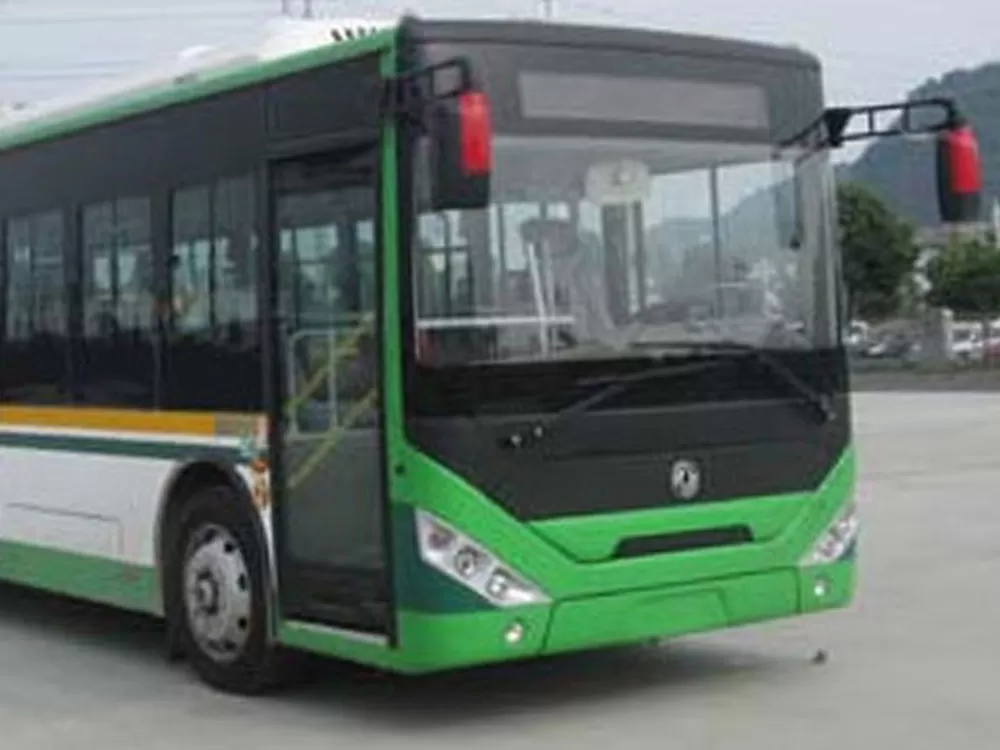

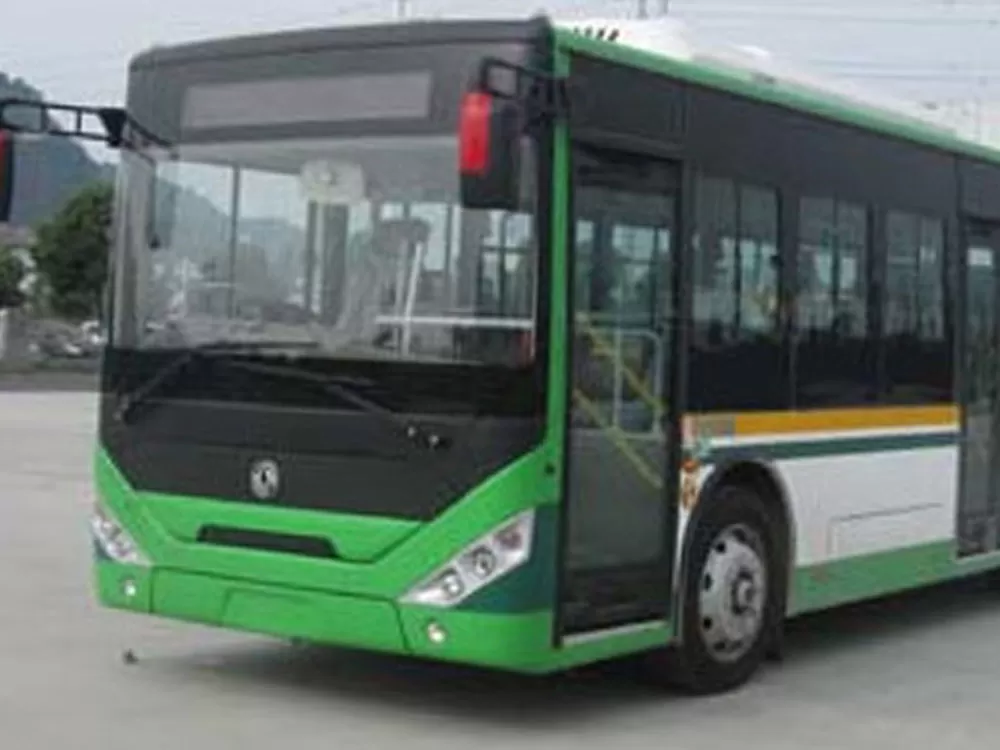

Dongfeng Chaolong EQ6830CTBEV11 Bus (Pure Electric, 16-30 Seats)
The Dongfeng Chaolong EQ6830CTBEV11 is a pure electric bus designed specifically for urban public transportation and group commuting. With zero emissions, low noise, and high comfort as its core advantages, it is an ideal model for green transportation in small and medium-sized cities.
Efficient Electric System
Equipped with a well-known domestic brand battery pack (specific capacity not disclosed) and a highly efficient electric drive system, the vehicle's range meets the needs of daily urban bus operations, and charging time is optimized to 4-6 hours (in fast charging mode).
Flexible Space Layout
With a body length of 8300mm and a wheelbase of 4500mm, it offers 16-30 seats (2+2 seating configuration) to accommodate various passenger scenarios.
Its fully monocoque structure and leaf-spring-reduced suspension significantly enhance ride stability and comfort.
Safety and Intelligence
Standard ABS anti-lock braking system, 360-degree surround view monitoring, and battery thermal management system ensure driving safety.
Supports access to intelligent dispatching systems, enabling remote monitoring and energy management, improving operational efficiency.
Detailed Improvements
Eco-friendly Design: The vehicle produces zero exhaust emissions and operates with noise levels below 60 decibels, making it suitable for routes in residential areas and scenic areas.
Humanized Features: Optional accessibility features (such as wheelchair guides), USB charging ports, and LED ambient lighting enhance the passenger experience.
The Dongfeng Chaolong EQ6830CTBEV11 bus (pure electric, 16-30 seats) builds on Dongfeng Chaolong's technological expertise in the new energy sector. With zero emissions and low energy consumption as its core competitive advantages, it has become a benchmark for the electrification of public transportation in small and medium-sized cities.
Vehicle parameters/information
|
Announcement Model
|
EQ6830CTBEV11
|
use
|
Public buses
|
Body length
|
8340mm
|
Body width
|
2340mm
|
Ride height
|
2910,3050mm
|
Vehicle quality
|
7400kg
|
Total mass
|
12500kg
|
Number of seats
|
16-30
|
Maximum speed
|
69km/h
|
Engine/motor parameters
|
motor
|
TZ380XS04006
|
Motor power
|
135kW
|
Motor brand
|
Wuhan Hekang Power Technology Co., Ltd.
|
Chassis parameters/configuration
|
|
Chassis model
|
Unibody
|
Front and rear suspension
|
1790/1950mm
|
Number of springs
|
3/4
|
Number of axes
|
2
|
wheelbase
|
4600mm
|
Axle load
|
4500/8000kg
|
Front track
|
2055mm
|
rear track
|
1805mm
|
Approach departure angle
|
8/10°
|
tire
|
Number of tires
|
6
|
Specification
|
255/70R22.5
|
