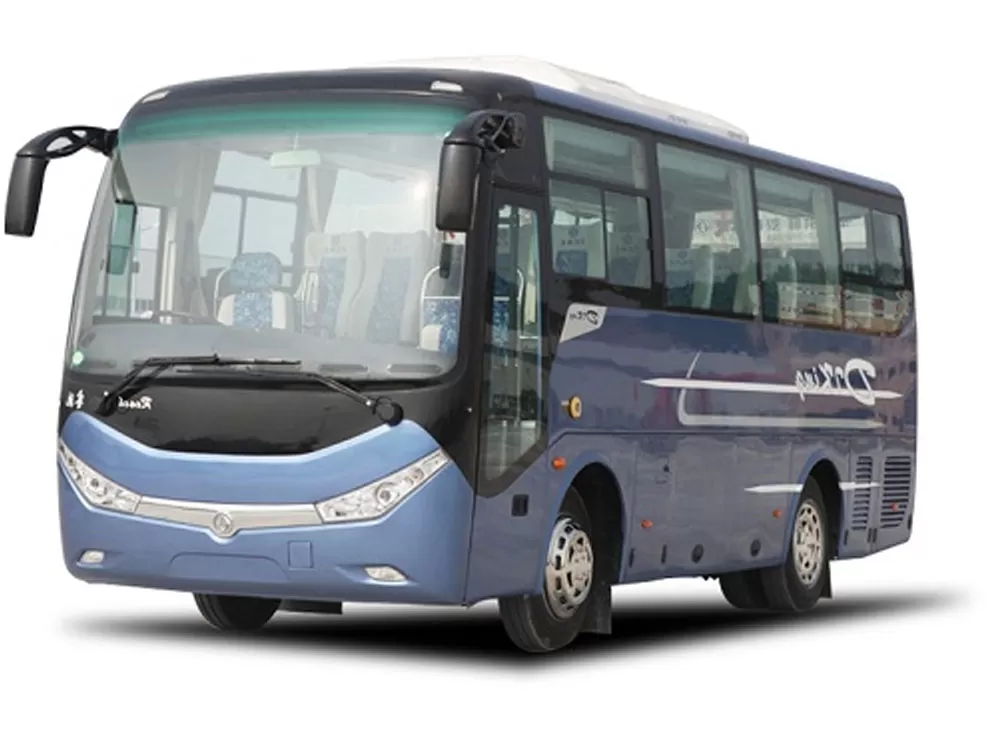

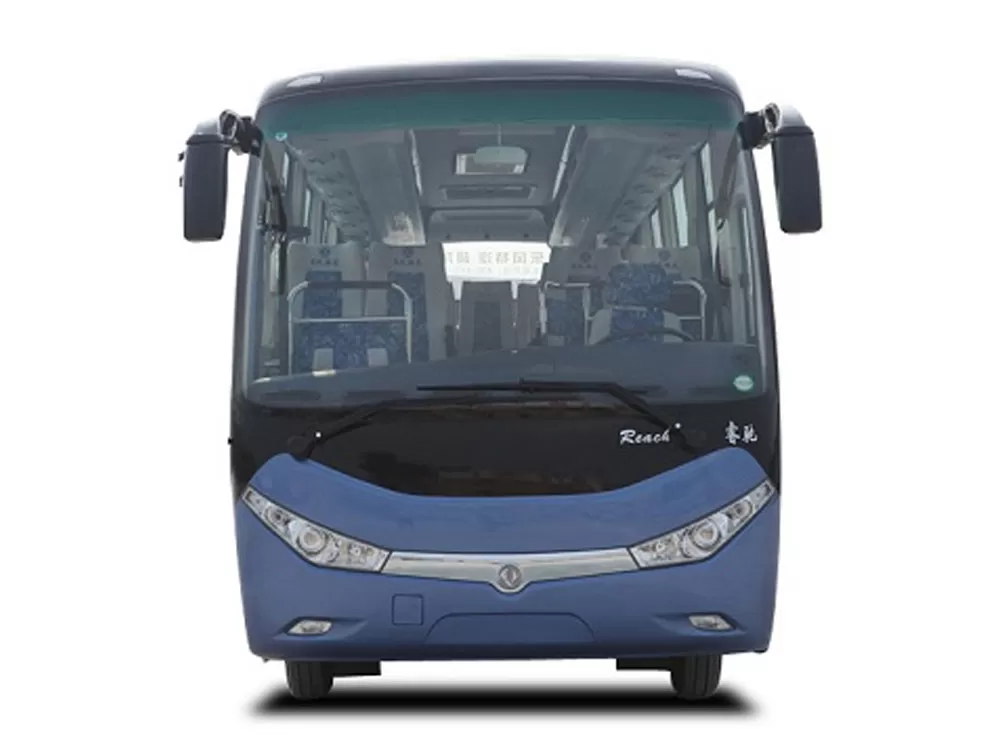

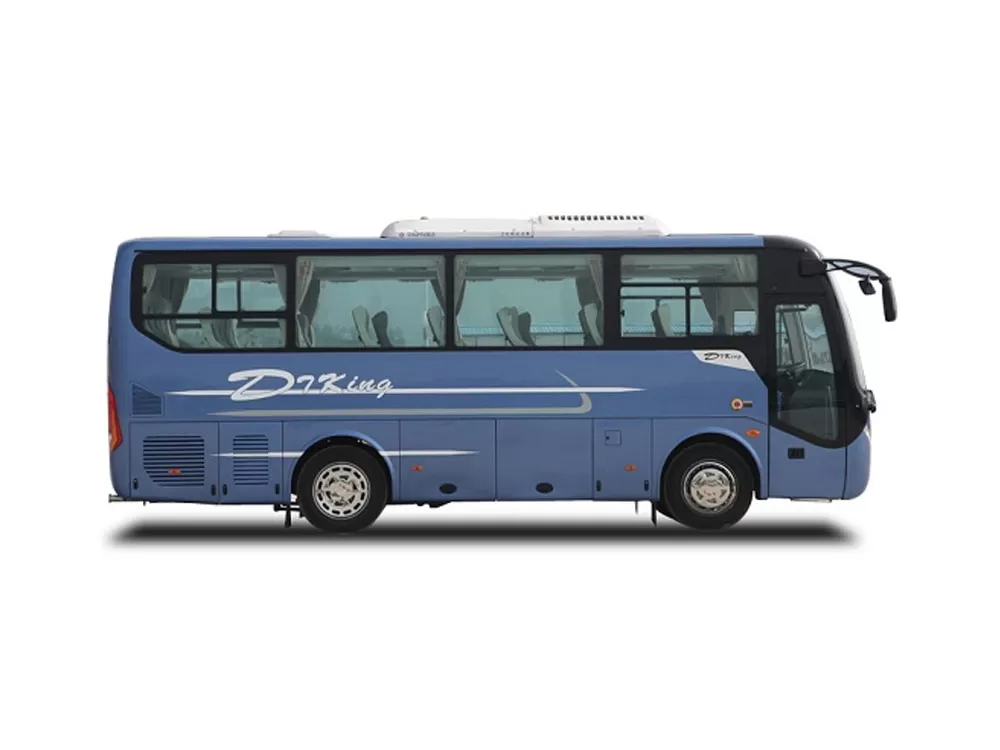

The Dongfeng Chaolong EQ6800LHTN Bus (Natural Gas, China V, 24-35 Seats) is designed for passenger transport, tourism, and group travel. It is 8.04 meters long, 2.48 meters wide, and has a height of 3.16 meters or 3.33 meters (including overhead air conditioning). It weighs 7.6-7.8 tons and has a gross vehicle weight of 11 tons. It is equipped with either the Yuchai YC4G200-50 or Weichai WP5.200E51 engine, boasting 147 kW of power and 5.2L/4.98L displacement. It meets China V emission standards and has a top speed of 100 km/h.
Powertrain: Powered by natural gas and equipped with a gas leak alarm, the engines offer maximum net power of 144 kW (Yuchai) and 142 kW (Weichai), respectively.
Chassis Design: Wheelbase: 3.8 meters, front/rear overhang: 1.78 meters/2.46 meters, 9/11 leaf springs, tire sizes: 8R22.5 or 7.50R20.
Safety Features: Standard ABS (Guangzhou Ruili Kemi), satellite-based driving recorder, emergency door, and reversing camera. The vehicle structure has passed multiple safety certifications.

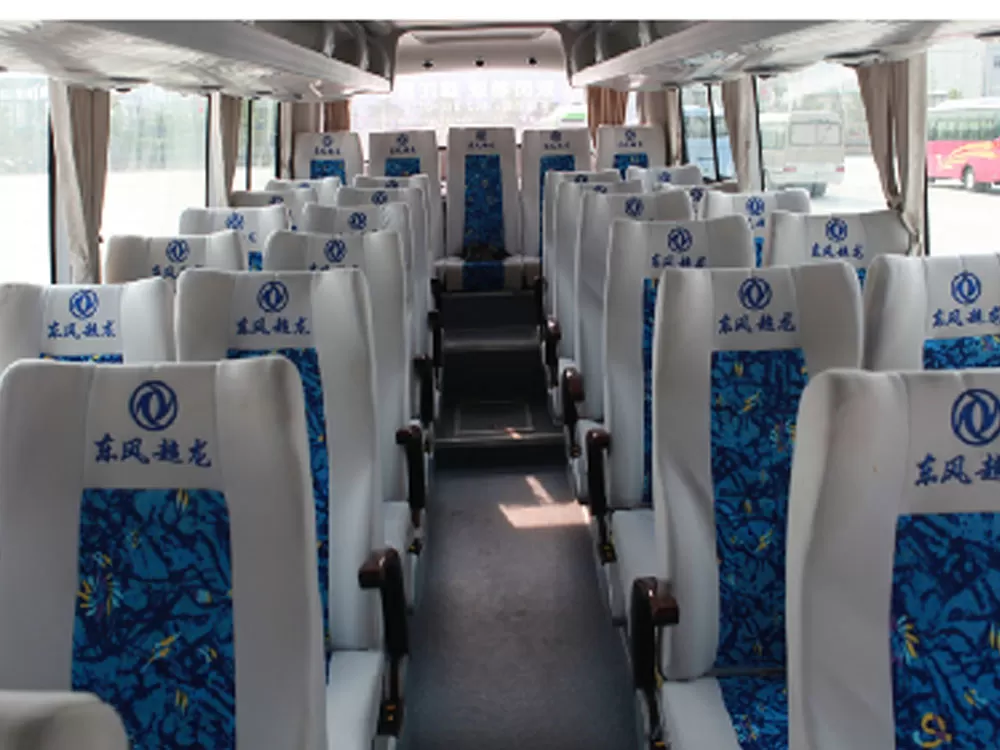

Space: Flexible seating configurations from 24 to 35 are available, with optional sliding windows or outward-opening side windows. The interior features dual luggage racks, a digital clock, and an MP3 audio system.
Comfort: Optional high-low floor design, half-width roller sunshades, and ergonomically designed seats ensure comfortable long-distance travel.
The Dongfeng Chaolong EQ6800LHTN bus (Natural Gas National V Emission Standard, 24-35 seats) features efficient and environmentally friendly natural gas power and versatile adaptability, making it suitable for medium- and short-distance passenger transport and group travel.
|
Vehicle parameters/information |
|
|
Announcement Model |
EQ6800LHTN |
|
grade |
Higher level |
|
use |
Passenger bus, tourist bus, group bus |
|
Body length |
8040mm |
|
Body width |
2480mm |
|
Ride height |
3160,3330mm |
|
Vehicle quality |
7900kg |
|
Total mass |
10700kg |
|
Body structure |
Non-load bearing |
|
Number of seats |
24-35 |
|
Maximum speed |
100km/h |
|
Air conditioning system |
Pine rooftop air conditioner, 20KW |
|
Audiovisual system |
MP3 player, optional MP4 or MP5 car hard disk player, manual folding display |
|
Auxiliary configuration |
Defroster 24V, 170W, mid-range seats (33 seats), electric wipers, front and rear combination lights, electromagnetic clutch fan |
|
Engine/motor parameters |
|
|
engine |
YC4G190N-50，WP5NG200E51 |
|
Engine brand |
Guangxi Yuchai Machinery Co., Ltd., Weichai Xigang New Energy Power Co., Ltd. |
|
Emission standards |
GB11340-2005, GB18285-2005, GB17691-2005 National V |
|
Chassis parameters/configuration |
|
|
Chassis model |
EQ6770RN5AC Class III Dongfeng Motor Corporation |
|
Front and rear suspension |
1780/2460mm |
|
Number of springs |
9/11,-/- |
|
gearbox |
5+1 gears, flexible shaft drawing control |
|
clutch |
Single-piece dry type, hydraulic remote control, gas power assist |
|
Number of axes |
2 |
|
wheelbase |
3800mm |
|
Axle load |
4000/6700kg |
|
Front track |
1950mm |
|
rear track |
1800mm |
|
Approach departure angle |
12/10° |
|
tire |
|
|
Number of tires |
6 |
|
Specification |
7.50R20,8R22.5 |
|
Specification |
8.25R20,8.25-20,9R22.5 |
