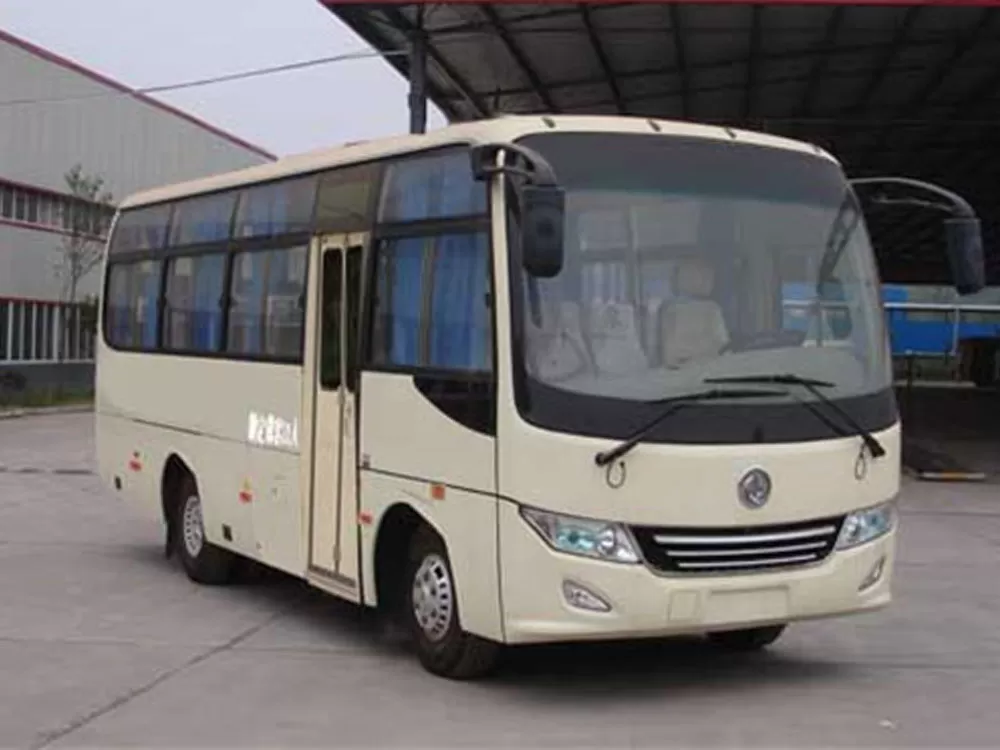

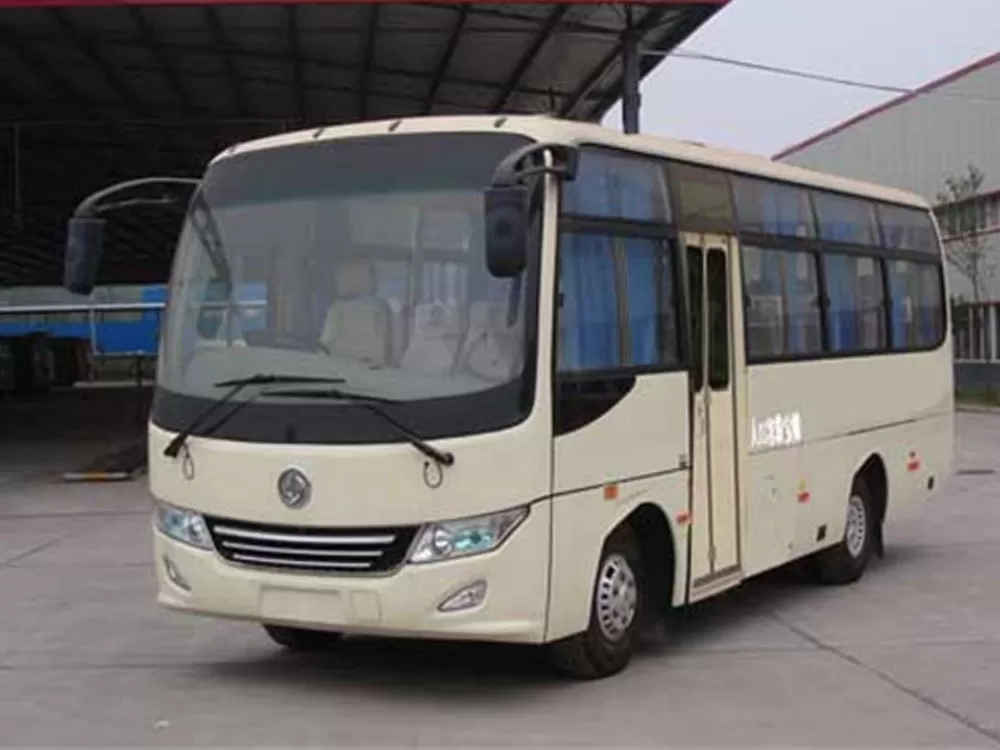

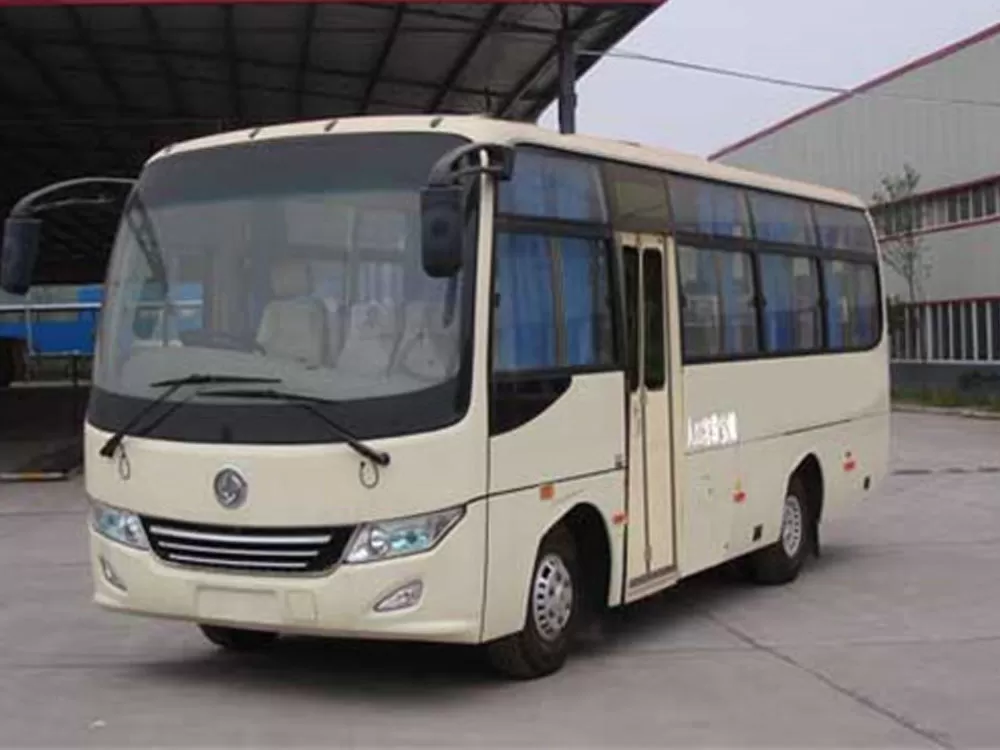

Dongfeng Chaolong EQ6760PCN50 Bus (Natural Gas, China V Emission Standard, 25-31 Seaters)
The Dongfeng Chaolong EQ6760PCN50 is a natural gas-powered bus designed for urban public transportation and group travel. It meets China V emission standards and features environmental friendliness, economy, and adaptability, meeting diverse passenger needs with 25-31 seats.
Clean Powertrain
Equipped with the Dongfeng Nanchong NQ120BN5 natural gas engine, it boasts a displacement of 3759 mL and a maximum power of 88 kW. It is paired with a 5-speed manual transmission, offering optimized fuel consumption across all operating conditions, smooth power delivery, and significantly lower operating costs than diesel models.
Flexible Space Layout
The bus is 6640 mm long with a 3300 mm wheelbase. Its short front overhang (1200 mm) enhances turning maneuverability in urban areas, while its 2140 mm rear overhang optimizes cargo space.
Optional features include a roof-mounted air conditioner (3050mm height), swing-out doors, and a hybrid side window structure. The interior supports customizable features such as folding doors and a skylight.
Safety and Environmental Protection
Standard ABS braking, a satellite-based driving recorder, and an engine ECU speed limiter (100km/h) ensure safe driving in complex urban road conditions.
China V emission technology reduces pollutant emissions through an efficient after-treatment system, balancing environmental protection and power performance.
The Dongfeng Chaolong EQ6760PCN50 bus (natural gas China V, 25-31 seats) features a short front overhang, strong gradeability, and low fuel costs, making it an ideal choice for urban public transportation and group travel, especially in environments with numerous curves and steep slopes. Its sophisticated powertrain technology and flexible configuration have further enhanced market recognition for the Dongfeng Chaolong brand.
Vehicle parameters/information
|
Announcement Model
|
EQ6760PCN50
|
use
|
Passenger bus, tourist bus, group bus
|
Body length
|
7595mm
|
Body width
|
2380mm
|
Ride height
|
3040,3260mm
|
Vehicle quality
|
5920,6120kg
|
Total mass
|
8550kg
|
Number of seats
|
25-31
|
Maximum speed
|
100km/h
|
Engine/motor parameters
|
engine
|
NQ140BN5,NQ160CN5,NQ150DN5
|
Engine power
|
103,118,110kW
|
displacement
|
3759,4750,5638mL
|
Engine brand
|
Dongfeng Nanchong Motor Co., Ltd., Dongfeng Nanchong Motor Co., Ltd., Dongfeng Nanchong Motor Co., Ltd.
|
Emission standards
|
GB17691-2005 National V, GB11340-2005, GB18285-2005
|
Chassis parameters/configuration
|
Chassis model
|
EQ6690KSN50 Class III Dongfeng Nanchong Motor Co., Ltd.
|
Front and rear suspension
|
1350/2445,1350/2345mm
|
Number of springs
|
9/11
|
Number of axes
|
2
|
wheelbase
|
3800,3900mm
|
Axle load
|
3550/5000kg
|
Front track
|
1831mm
|
rear track
|
1612mm
|
Approach departure angle
|
17/12°
|
tire
|
Number of tires
|
6
|
Specification
|
8.25-16,8.25R16
|
