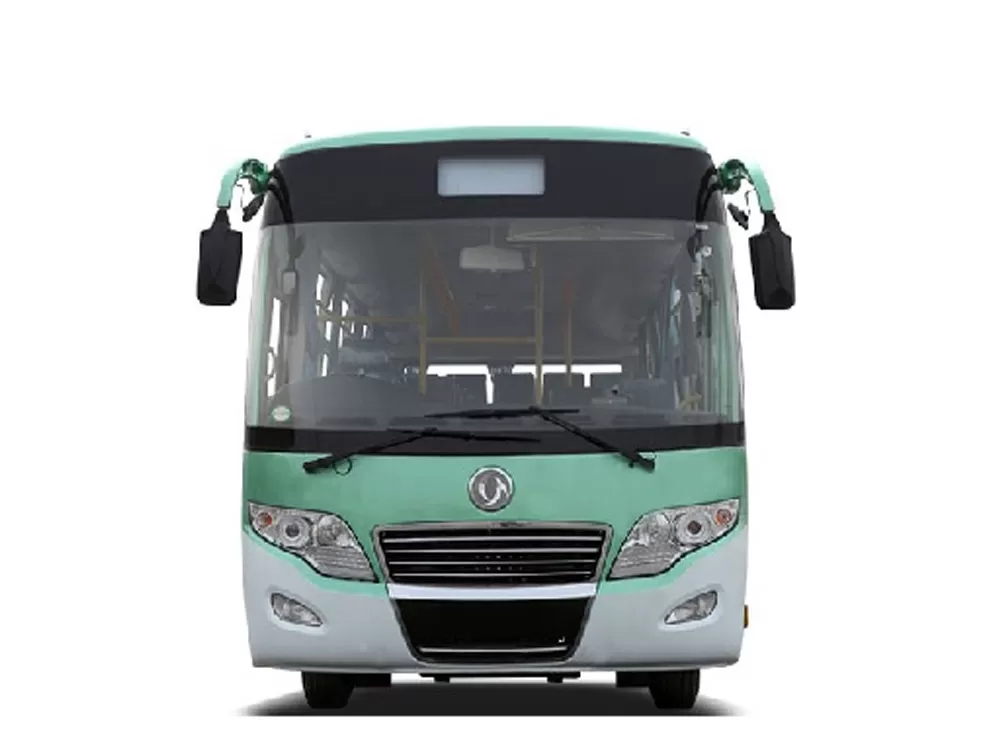

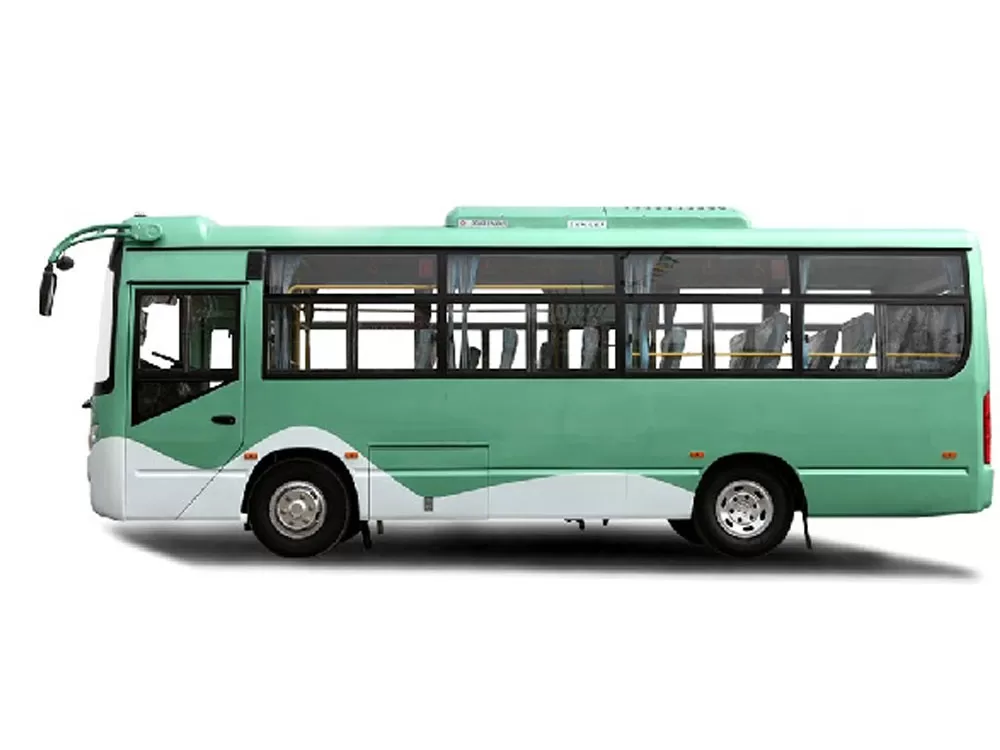

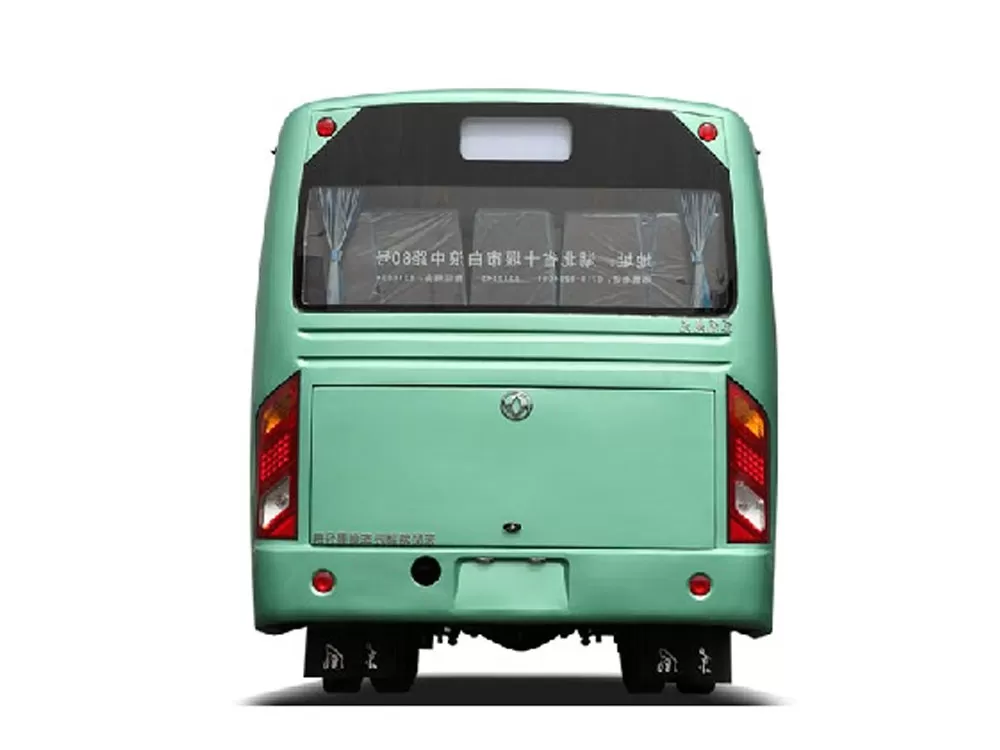

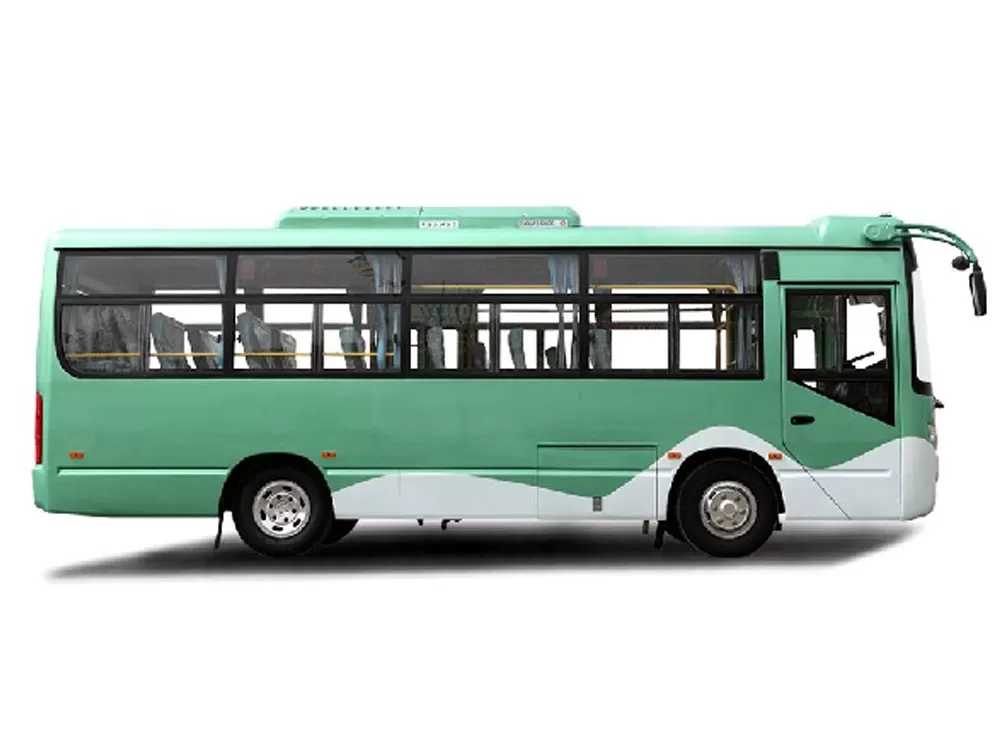

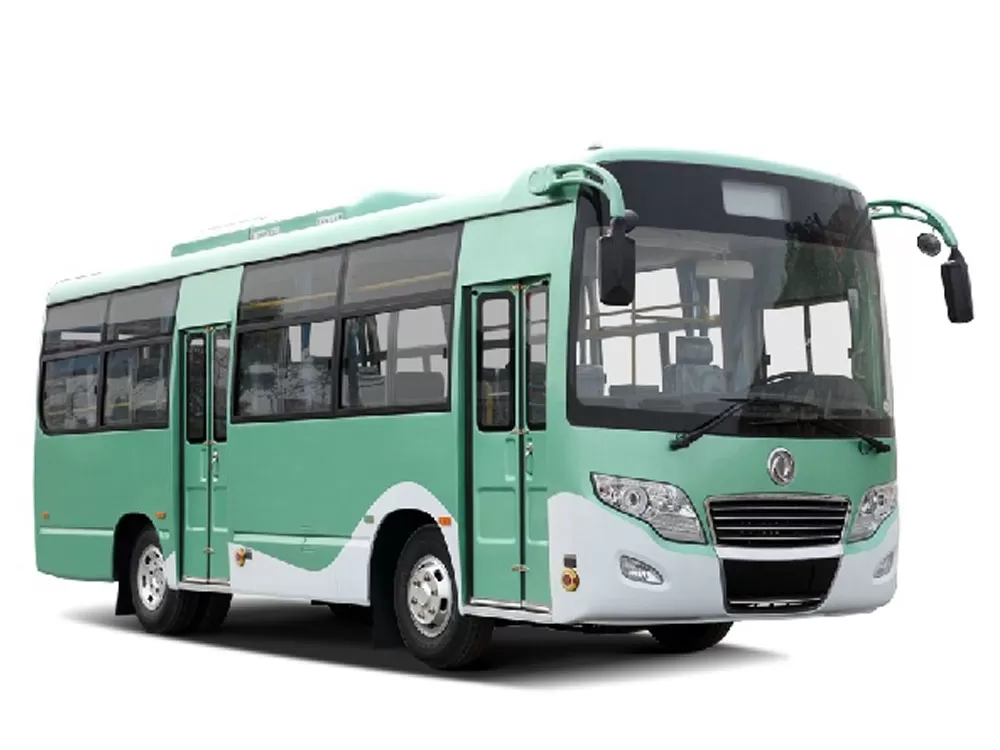

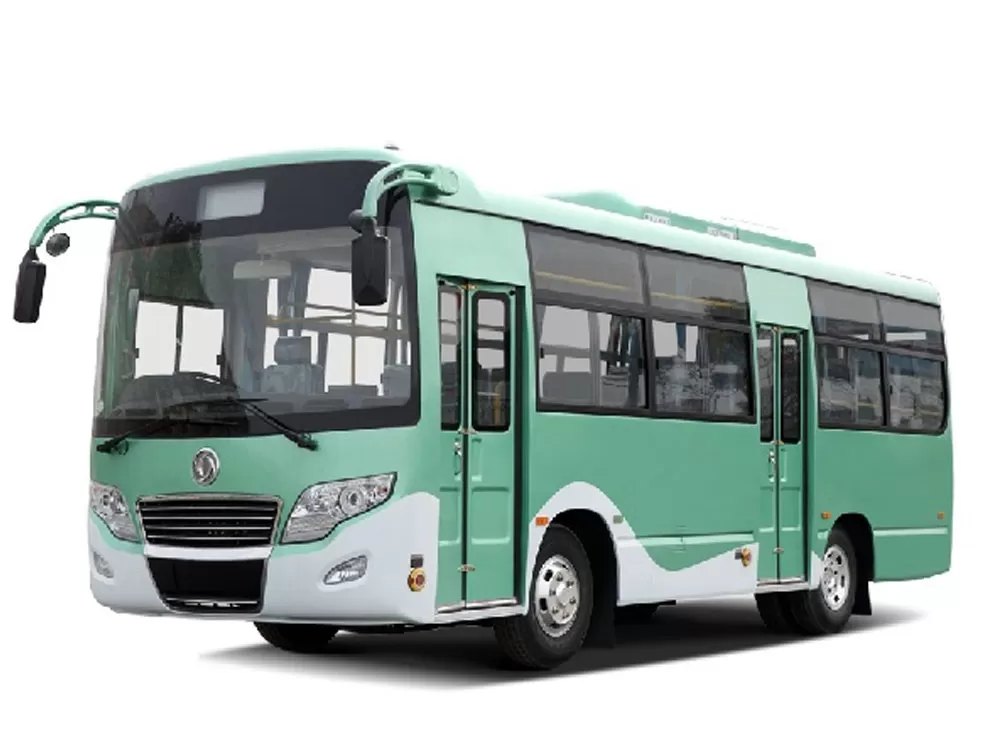

Dongfeng Chaolong EQ6751CTN1 Bus (Natural Gas, National V Emission Standard, 13-31 Seats) Overview: This medium-sized gas-powered bus under Dongfeng Chaolong's brand is designed for urban public transportation and group travel. Equipped with a natural gas powertrain that meets the National V emission standards, it balances environmental friendliness and operational economy, making it suitable for medium- and short-distance passenger transport.
Body Dimensions: Length 7540mm, Width 2400mm, Height 2850mm (Standard Version) or 3020mm (Air-conditioned Version), GVW 5.8-6.0 tons, Gross Vehicle Weight 9.6 tons, Semi-unibody Structure.
Powertrain: Equipped with a Yuchai YC4G180N-50 or Weichai WP4.1Q150E50 natural gas engine, with power output of 110-125 kW, displacement of 3.8-4.1 L, a top speed of 69 km/h, and emissions that meet the National V standard (GB17691-2005).

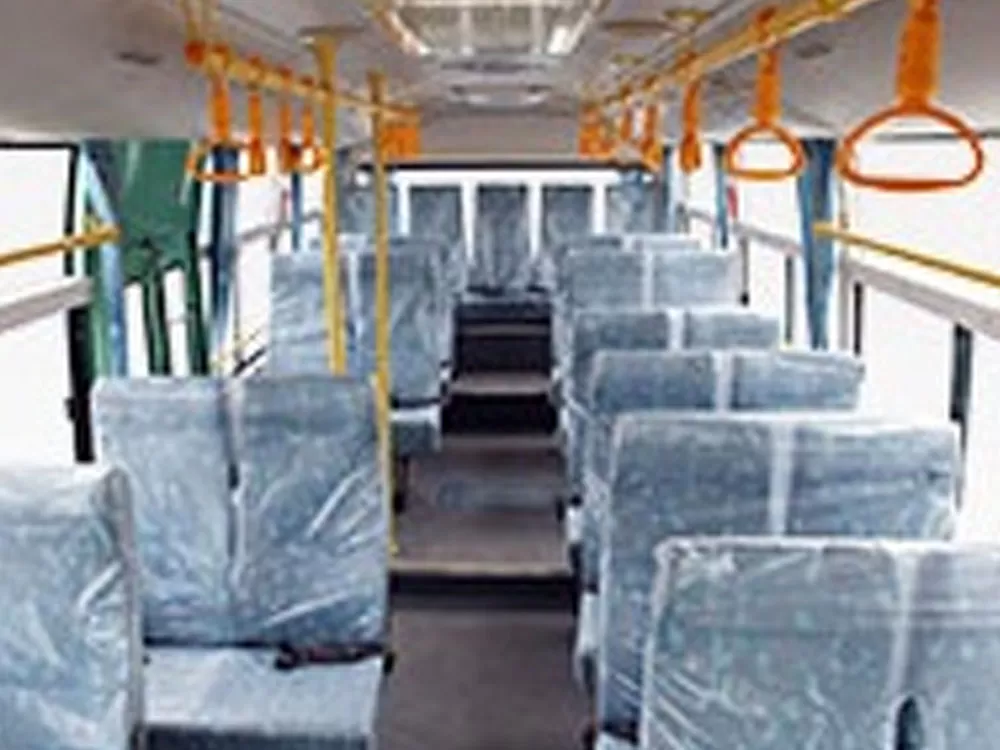

Seating: Flexible seating configurations from 13 to 31 seats, with standard bus seating (23+1), and optional swing-out doors or sliding windows.
Safety: Standard ABS (Guangzhou Kemi CM4XL-4S/4K), a satellite-based driving recorder, and an emergency door. The vehicle has passed multiple safety certifications.
Comfort: Optional roof-mounted air conditioning (vehicle height 3020 mm), an MP3 player (supports USB flash drive/SD card expansion), dual-sweep electric wipers, a 24V defroster (130W), and a half-width sunshade.
The Dongfeng Chaolong EQ6751CTN1 bus (natural gas National V emission standard, 13-31 seats) is suitable for urban bus routes, tourist shuttles and corporate commuting. The natural gas fuel design can reduce operating costs while meeting environmental regulations.
|
Vehicle parameters/information |
|
|
Announcement Model |
EQ6751CTN1 |
|
use |
Public buses |
|
Body length |
7540mm |
|
Body width |
2360mm |
|
Ride height |
2950,3160mm |
|
Vehicle quality |
5550,5800kg |
|
Total mass |
9000kg |
|
Body structure |
Non-load bearing |
|
Number of seats |
13-31 |
|
Maximum speed |
69km/h |
|
Air conditioning system |
Optional Pine roof-mounted air conditioner, 19KW |
|
Audiovisual system |
MP3 player, optional MP4 or MP5 car hard disk player, manual folding display |
|
Auxiliary configuration |
24V, 130W defroster, standard bus seats (18+1), electric wiper motor, front and rear combination lights, half-width sunshade, 700A sunroof, electric fan, interior mirror, fire extinguisher |
|
Engine/motor parameters |
|
|
engine |
NQ140BN5,CY4102-N5C |
|
Engine power |
103,91kW |
|
displacement |
3759,3856mL |
|
Engine brand |
Geely Sichuan Commercial Vehicle Co., Ltd., Dongfeng Chaoyang Chaochai Power Co., Ltd. |
|
Emission standards |
GB11340-2005, GB18285-2005, GB17691-2005 National V |
|
Chassis parameters/configuration |
|
|
Chassis model |
EQ6733TN5AC Class III Dongfeng Motor Corporation |
|
Front and rear suspension |
1780/2110mm |
|
Number of springs |
9/11 |
|
gearbox |
5+1 gears, flexible shaft drawing control |
|
clutch |
Single-piece dry type Ф330mm, Ф350mm (NQ), hydraulic remote control, gas power assist |
|
Number of axes |
2 |
|
wheelbase |
3650mm |
|
Axle load |
3400/5600kg |
|
Front track |
1975mm |
|
rear track |
1628mm |
|
Approach departure angle |
16/8° |
|
tire |
|
|
Number of tires |
6 |
