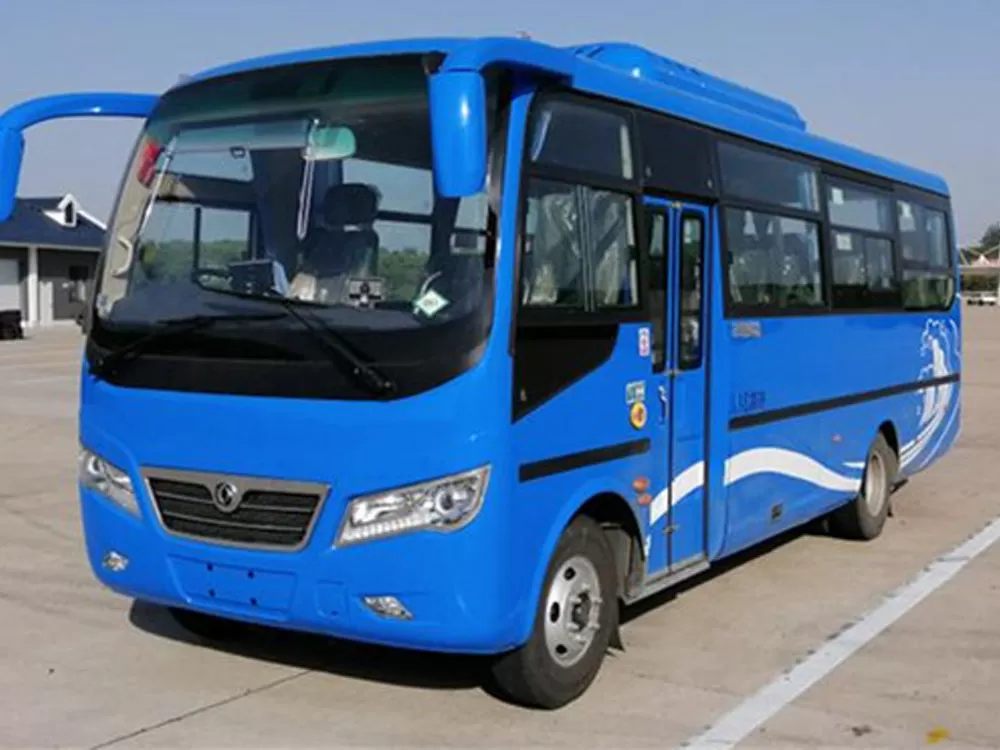

Dongfeng Chaolong EQ6738LT6N Bus (Natural Gas, China VI Emission Standard, 24-31 Seaters)
The Dongfeng Chaolong EQ6738LT6N is a mid-size bus designed for urban and rural passenger transport, tourism, and group travel. Powered by natural gas (LNG/CNG), it meets China VI emission standards. With environmental protection, economy, and adaptability as its core advantages, it meets diverse passenger needs with 24-31 seats.
Clean Powertrain
Equipped with the Yuchai YC4S140-60 natural gas engine, it boasts a displacement of 3767 mL and a maximum power of 103 kW. It is paired with a 5+1-speed manual transmission and boasts a combined fuel consumption of 13.0 L/100 km (natural gas). This provides smooth power delivery and significantly lower operating costs than diesel models.
Flexible Space Layout
The bus is 7330 mm long and has a 4000 mm wheelbase. The short front overhang (975 mm) enhances cornering maneuverability in mountainous terrain, while the 2355 mm rear overhang optimizes cargo space.
Optional features include a roof-mounted air conditioner (3055mm height), swing-out doors, and a hybrid side window structure. The interior supports customizable features such as folding doors and a skylight.
Safety and Environmental Protection
Standard ABS braking system (CM-ESC model), satellite-based driving recorder, and engine ECU speed limiter (100km/h) ensure safe driving in complex road conditions.
China VI emission technology reduces pollutant emissions through an efficient after-treatment system, balancing environmental protection and power performance.
The Dongfeng Chaolong EQ6738LT6N bus (natural gas China VI, 24-31 seats) features a short front overhang, strong gradeability, and low fuel costs, making it an ideal choice for urban and rural passenger transport and mountainous routes, particularly suited to operating on winding roads and steep slopes. Its mature powertrain technology and flexible configuration have further enhanced customer recognition of the Dongfeng Chaolong brand.
Vehicle parameters/information
|
Announcement Model
|
EQ6738LT6N
|
use
|
Passenger bus, tourist bus, group bus
|
Body length
|
7340mm
|
Body width
|
2280mm
|
Ride height
|
2875,3010mm
|
Vehicle quality
|
5300,5530kg
|
Total mass
|
7950kg
|
Number of seats
|
24-31
|
Maximum speed
|
100km/h
|
Engine/motor parameters
|
engine
|
YCS04140N-62
|
Engine power
|
103kW
|
displacement
|
4156mL
|
Engine brand
|
Guangxi Yuchai Machinery Co., Ltd.
|
Emission standards
|
GB18285-2005, GB17691-2018 Country VI
|
Chassis parameters/configuration
|
Chassis model
|
EQ6650KN6AC Class III Dongfeng Motor Corporation
|
Front and rear suspension
|
940/2400mm
|
Number of springs
|
9/11, 3/4
|
Number of axes
|
2
|
wheelbase
|
4000mm
|
Axle load
|
2950/5000kg
|
Front track
|
1830mm
|
rear track
|
1670mm
|
Approach departure angle
|
22/11°
|
tire
|
Number of tires
|
6
|
Specification
|
215/75R17.5,7.50R16LT
|
