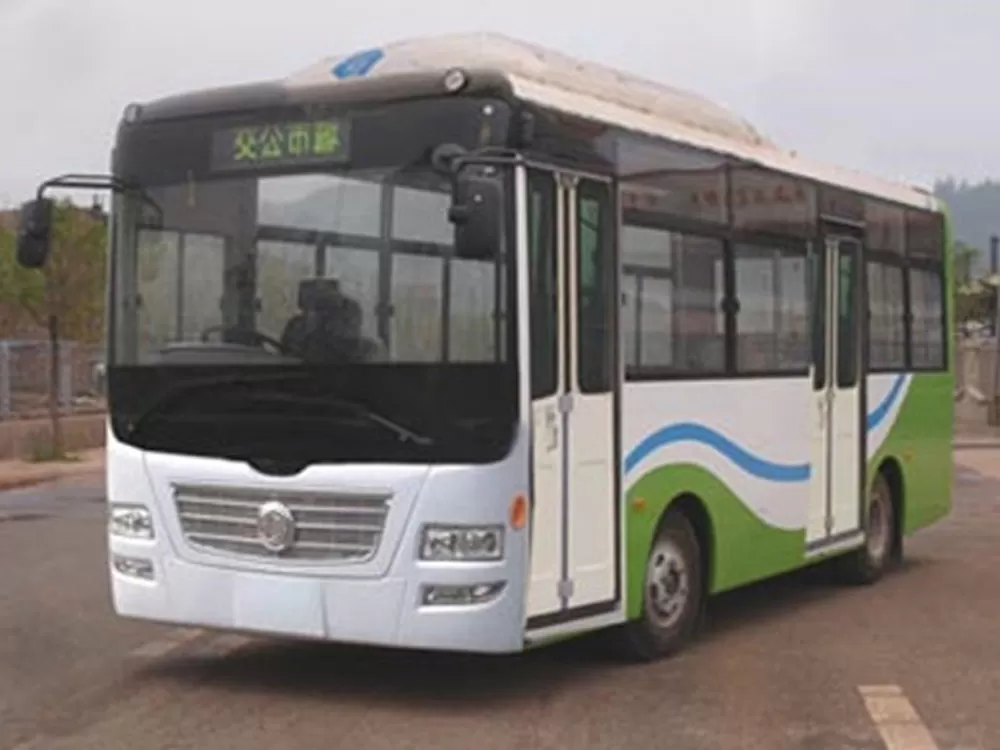

Dongfeng Chaolong EQ6730PCN50 Bus (Natural Gas, China V Emission Standard, 19-31 Seats)
The Dongfeng Chaolong EQ6730PCN50 is a natural gas-powered bus designed specifically for urban public transportation and group travel. It meets China V emission standards and features environmental friendliness, economy, and adaptability, meeting diverse passenger needs with seating for 19-31 passengers.
Clean Powertrain
Equipped with the Yuchai YC4S140-50 natural gas engine, it boasts a displacement of 3767 mL and a maximum power of 103 kW. It is paired with a five-speed manual transmission and boasts a combined fuel consumption of 13.0 L/100 km (natural gas). This provides smooth power delivery and significantly lower operating costs than diesel models.
Flexible Space Layout
The bus is 7260 mm long and has a 3800 mm wheelbase. Its short front overhang enhances turning agility in urban areas, while its 2450 mm rear overhang optimizes cargo space.
Optional features include a roof-mounted air conditioner (3080mm height), swing-out doors, and a hybrid side window structure. The interior supports customizable features such as folding doors and a sunroof.
Safety and Environmental Protection
Standard ABS braking system (CM4XL-4S/4M models), a satellite-based driving recorder, and an engine ECU speed limiter (69km/h) ensure safe driving in complex urban conditions.
China V emission standards reduce pollutant emissions through an efficient after-treatment system, balancing environmental protection and power performance.
Market Positioning
With its short front overhang, strong gradeability, and low fuel costs, this model is an ideal choice for urban public transportation and group travel, especially in environments with numerous curves and steep slopes. Its sophisticated powertrain technology and flexible configuration have further enhanced user recognition of the Dongfeng Chaolong brand.
Vehicle parameters/information
|
Announcement Model
|
EQ6730PCN50
|
use
|
Public buses
|
Body length
|
7345mm
|
Body width
|
2380mm
|
Ride height
|
3040,3260mm
|
Vehicle quality
|
5050,5150kg
|
Total mass
|
7880kg
|
Number of seats
|
42/19-31
|
Maximum speed
|
69km/h
|
Engine/motor parameters
|
engine
|
NQ120BN5,NQ140BN5
|
Engine power
|
88,103kW
|
displacement
|
3759,3759mL
|
Engine brand
|
Dongfeng Nanchong Motor Co., Ltd., Dongfeng Nanchong Motor Co., Ltd.
|
Emission standards
|
GB17691-2005 National V, GB11340-2005, GB18285-2005
|
Chassis parameters/configuration
|
Chassis model
|
EQ6680KTN50 Class III Dongfeng Nanchong Motor Co., Ltd.
|
Front and rear suspension
|
1945/2100mm
|
Number of springs
|
9/11
|
Number of axes
|
2
|
wheelbase
|
3300mm
|
Axle load
|
2880/5000kg
|
Front track
|
1860mm
|
rear track
|
1612mm
|
Approach departure angle
|
13/10°
|
tire
|
Number of tires
|
6
|
Specification
|
7.50-16,7.50R16, 8.25-16,8.25R16
|
