Dongfeng Chaolong EQ6672ZTV bus (diesel National V emission standard, 10-19 seats)

  • BrandAnkai
  • MSRP$17829 - $21486
  • Min. Order1
  • Size(mm)6700*2320*3140mm
  • Engine TypeDiesel
  • Seats10-19
  • ColorBlack,Gray,White
  • Time To Market2025
  • Support customizationYes
  • Sales methodWholesale, Retail
Get Free Quote

Get the cheapest parallel export price, we will reply you within 24 hours.

Dongfeng Chaolong EQ6672ZTV Bus (National V Diesel, 10-19 Seaters)

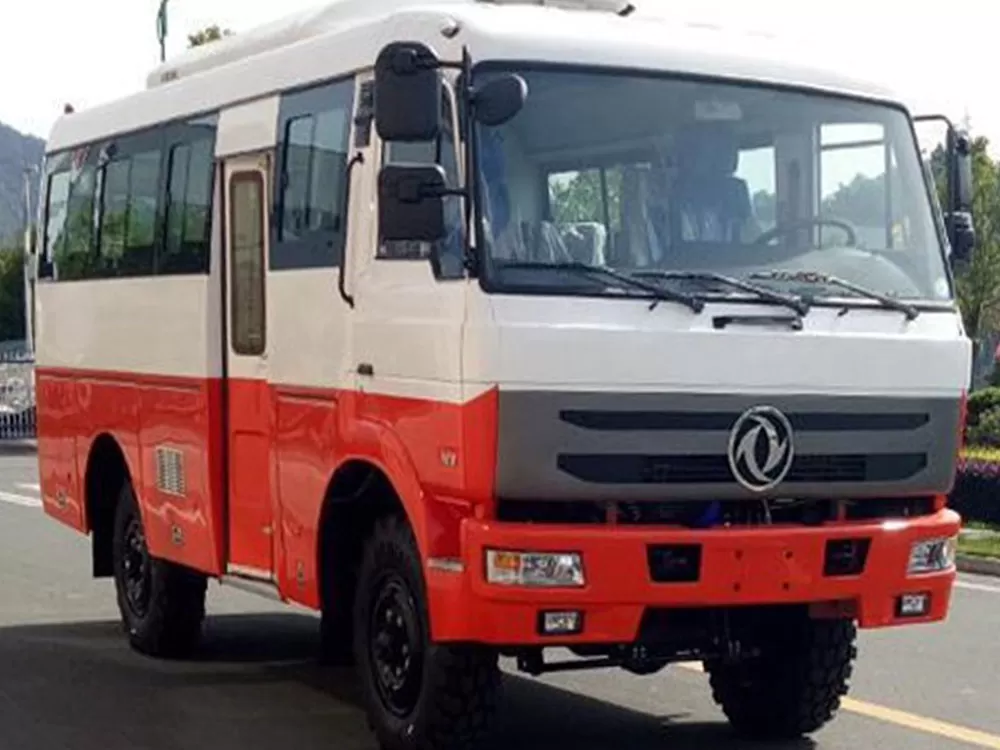

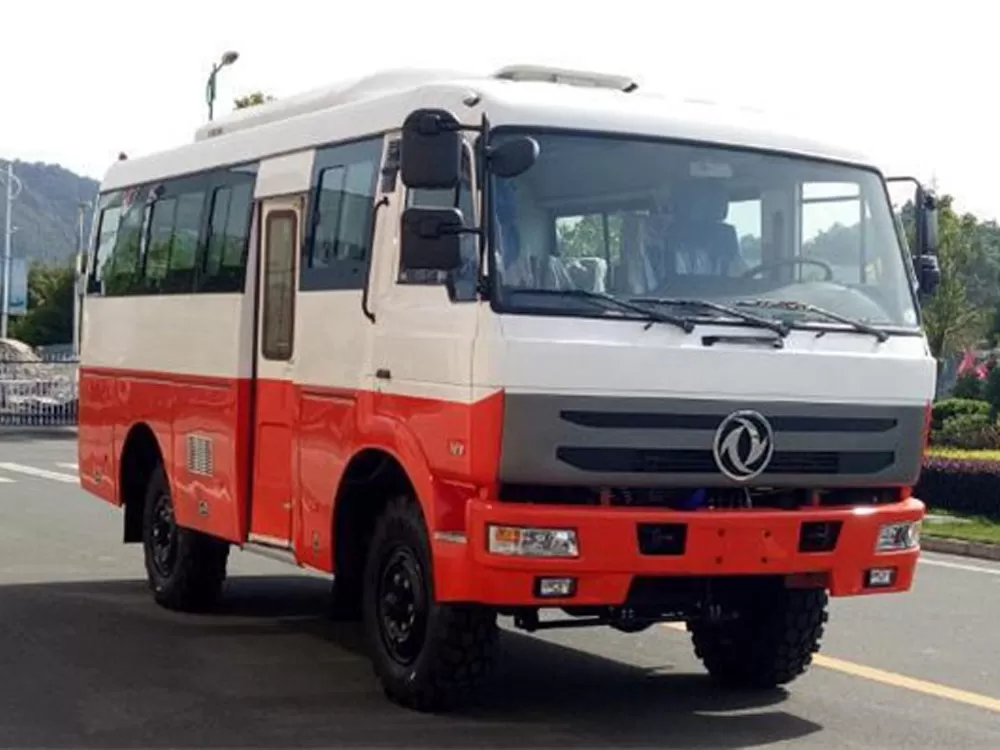

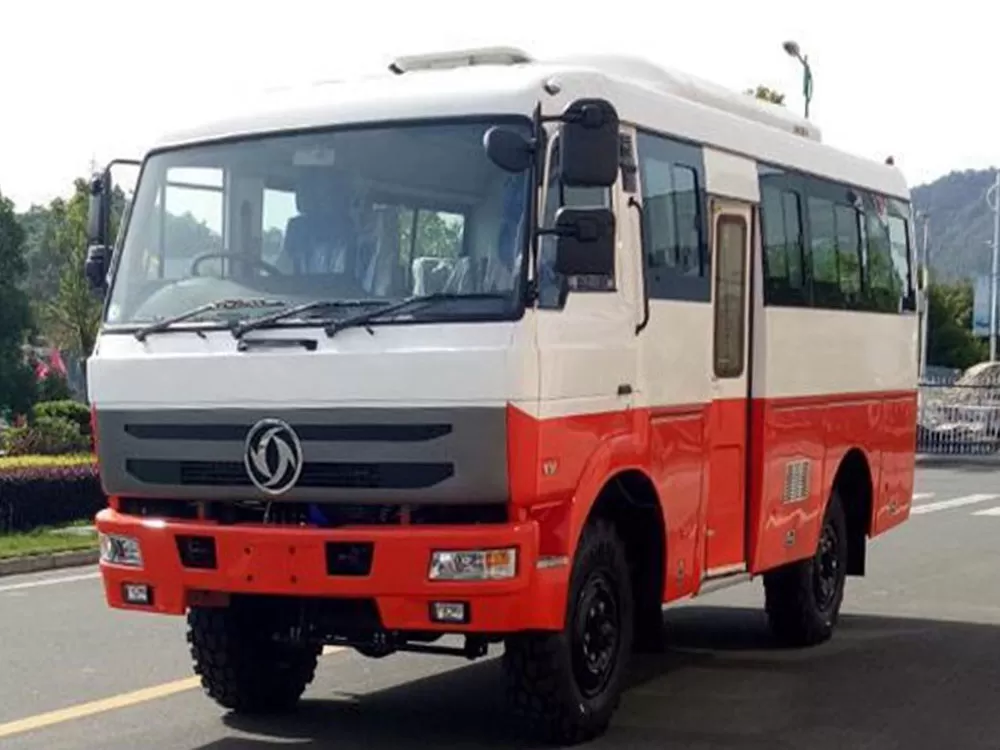

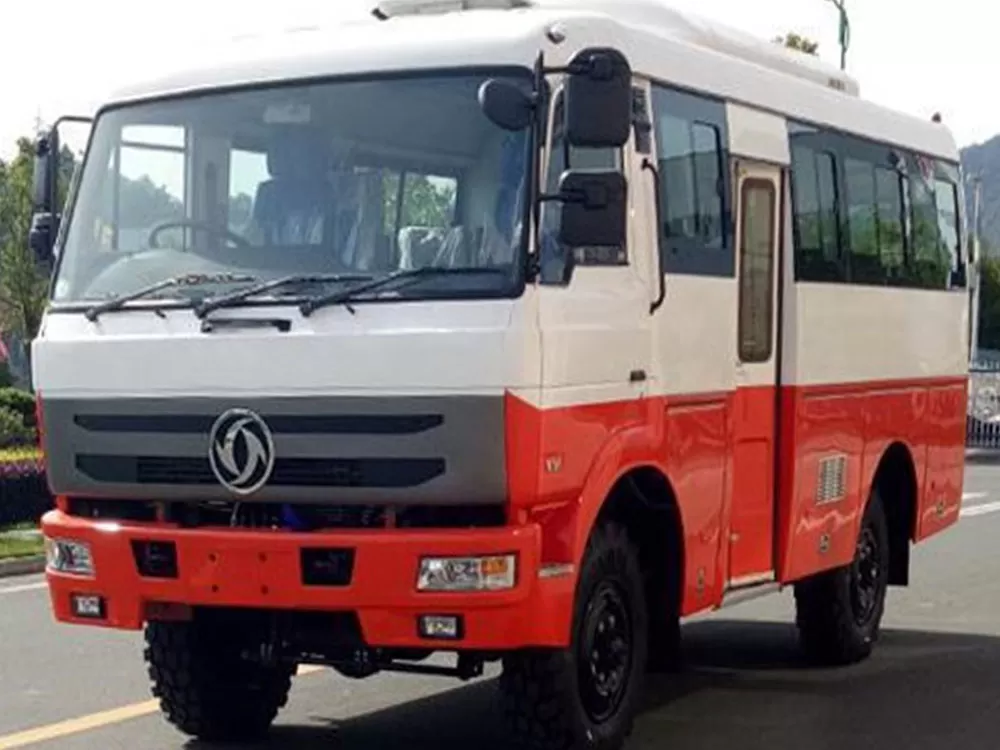

The Dongfeng Chaolong EQ6672ZTV 4WD Off-Road Bus is a 4WD off-road bus designed for complex road conditions, such as forest firefighting, oilfield operations, and troop transport in special areas. It meets the National V emission standards.

Appearance and Dimensions:

Body length: 6700mm, width: 2320mm, height: 2800mm or 3010mm (including luggage rack), wheelbase: 3650mm, approach/departure angles: 35°/23°, offering superior maneuverability compared to ordinary buses. Equipped with 11R18 wide-tread off-road tires and a removable front bumper, it is suitable for use in harsh terrain such as sand and mud.

Power Performance:

Equipped with a 4.5L Dongfeng Cummins ISD140 50 diesel engine, it delivers 103kW (140 horsepower) and 550Nm of torque. It features turbocharging and high-pressure common rail technology for powerful power output. The four-wheel drive system has high and low range gears, a top speed of 80km/h, a curb weight of 5,900kg, and a gross vehicle weight of 7,500kg.

Features:

Optional features include air conditioning, a GPS-enabled driving recorder, folding doors, and various rear taillights. Three underbody storage compartments are convenient for storing repair tools or a spare fuel tank.

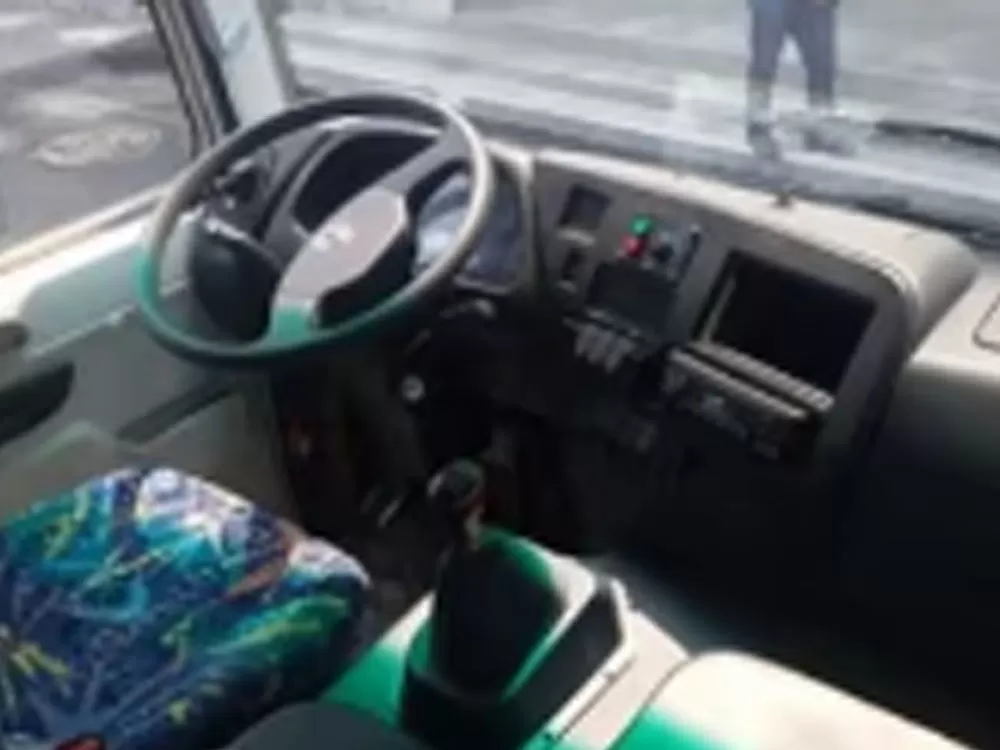

The interior comes standard with ABS (Ningbo Gelubo Technology), seatbelts throughout, a fire extinguisher, and a safety hammer, providing comprehensive safety features.

The Dongfeng Chaolong EQ6672ZTV bus (National V diesel, 10-19 seats) is designed for specialized industries, meeting the needs of both passenger and material transportation, such as emergency rescue and field operations.

Vehicle parameters/information

Announcement Model

EQ6672ZTV

use

Passenger bus, tourist bus, group bus

Body length

6700mm

Body width

2320,2330mm

Ride height

2800,3010,2900,3140mm

Vehicle quality

5700kg

Total mass

7200kg

Number of seats

10-19

Maximum speed

80km/h

Engine/motor parameters

engine

ISD160 50

Engine power

118kW

displacement

4500mL

Engine brand

Dongfeng Cummins Engine Co., Ltd.

Emission standards

GB17691-2005 National V, GB3847-2005

Chassis parameters/configuration

Chassis model

EQ6640KS5T Class III Dongfeng Special Automobile Co., Ltd.

Front and rear suspension

1250/1800mm

Number of springs

10/10

Number of axes

2

wheelbase

3650mm

Axle load

3600/3600kg

Front track

1774,1845mm

rear track

1774,1845mm

Approach departure angle

35/23°

tire

Number of tires

4

Specification

11R18
