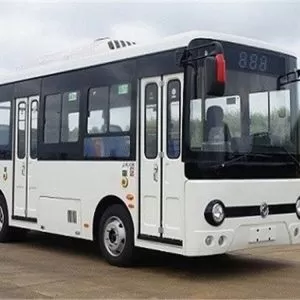

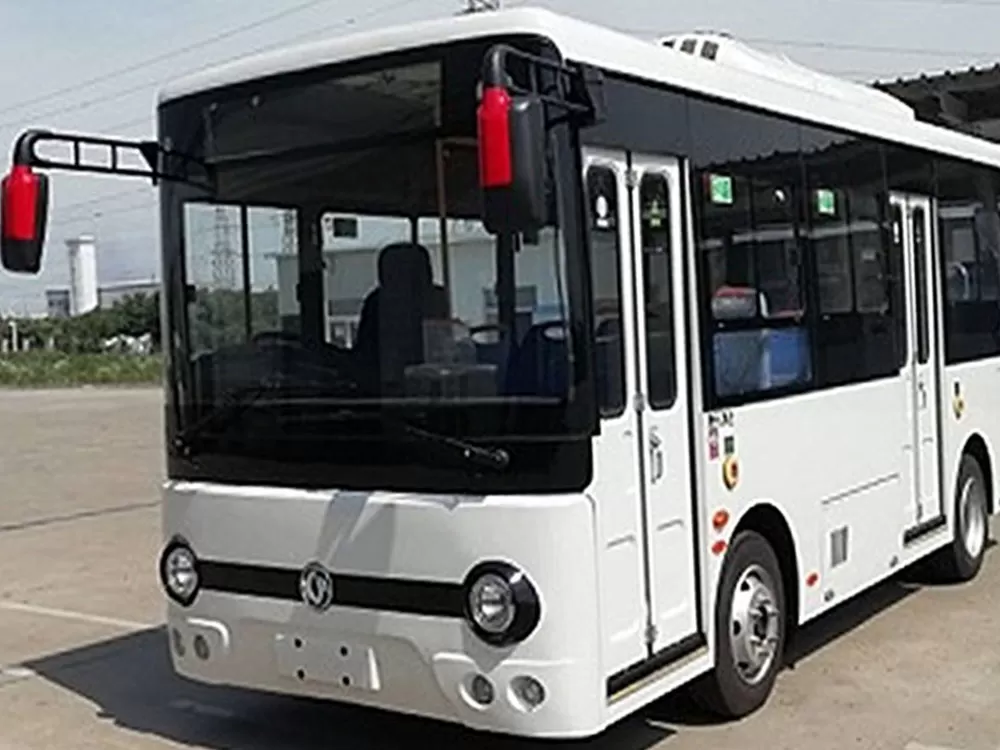

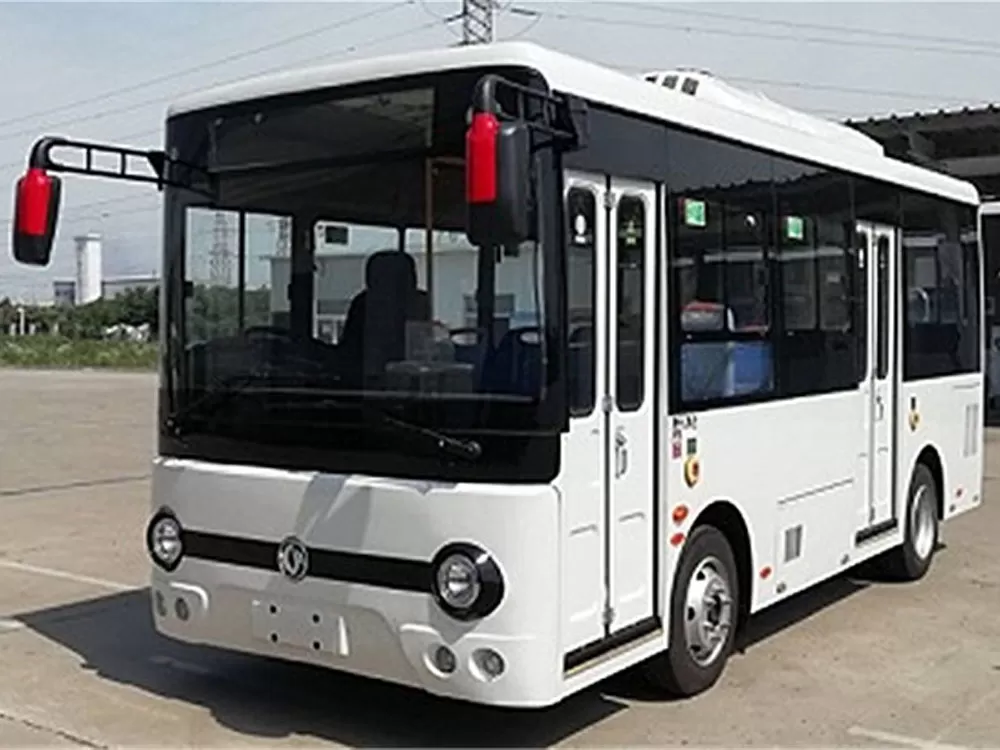

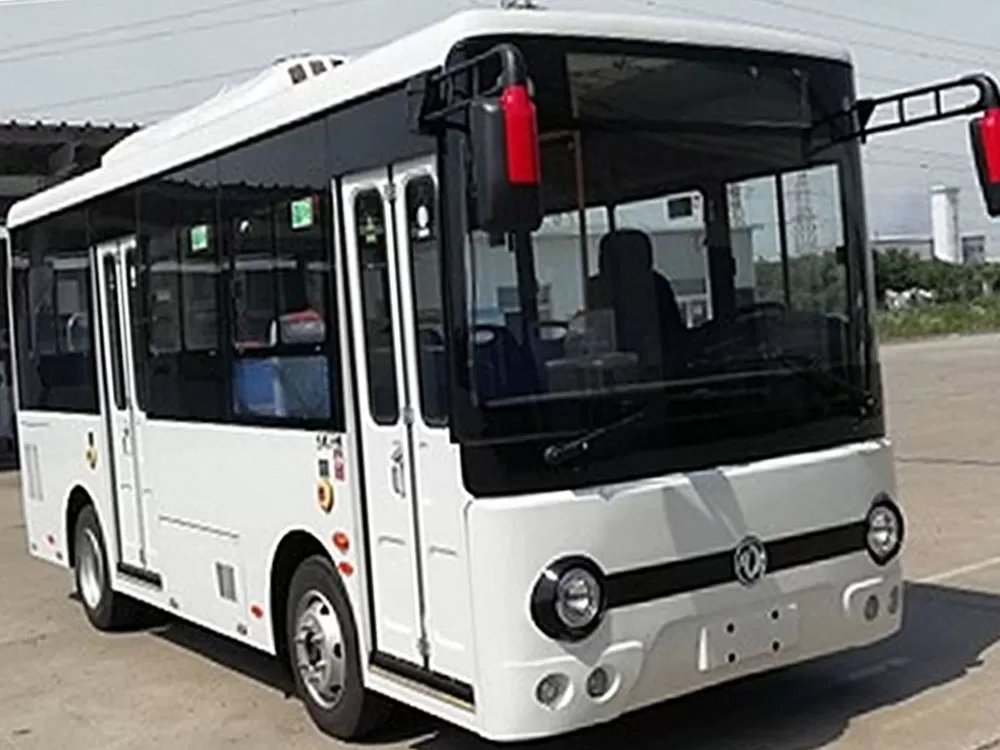

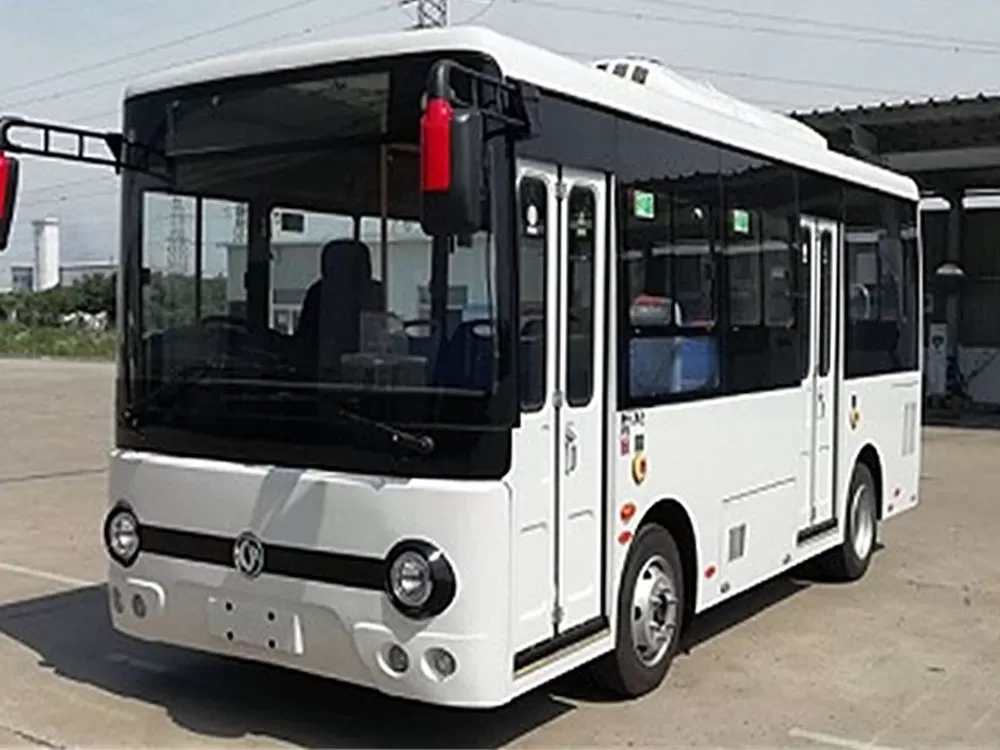

Dongfeng Chaolong EQ6651CACBEV1 bus (pure electric 10-19 seats)

Dongfeng Chaolong EQ6651CACBEV1 Bus (Pure Electric, 10-19 Seaters)

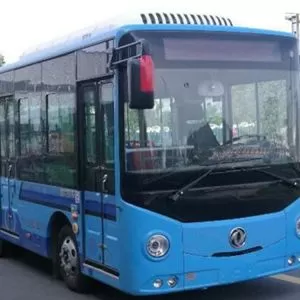

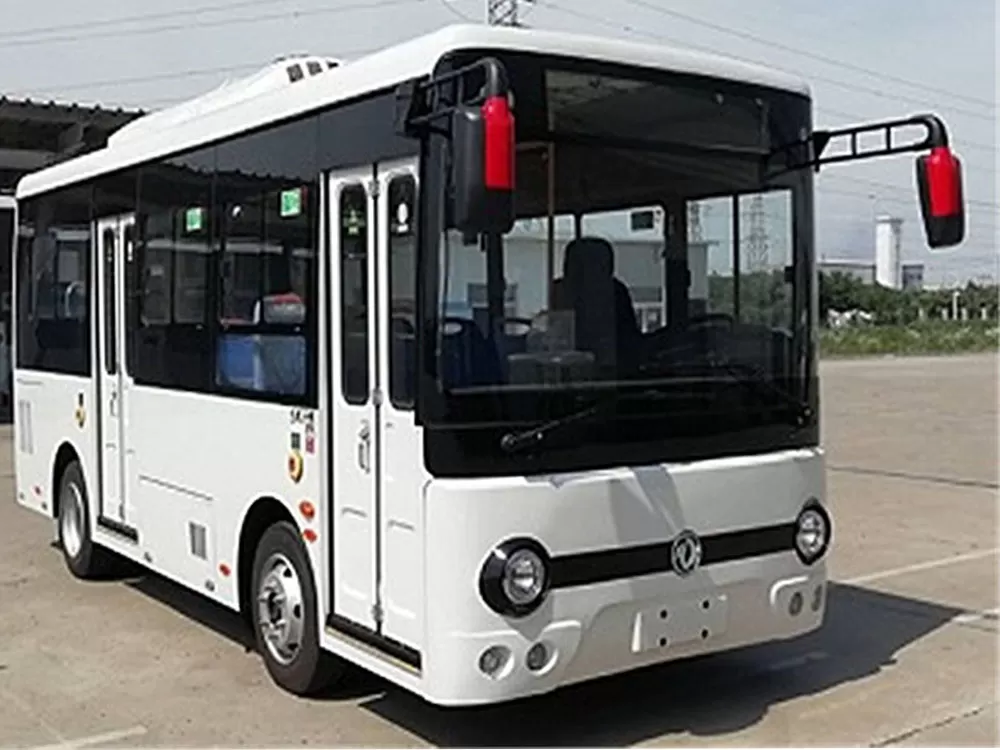

The Dongfeng Chaolong EQ6651CACBEV1 pure electric bus is a pure electric city bus/shuttle bus designed for short-distance commuting, community shuttles, and scenic area connections. It conforms to the "double-low" (low entry, low floor) trend for new energy buses and is suitable for aging-friendly transportation.

Appearance and Dimensions:

The bus has a length of 6540mm, a width of 2120mm, and a height of 2770mm (without air conditioning) or 2800mm (with air conditioning). Its wheelbase is 3300mm, making it flexible enough to fit narrow roads. A one-step design and wide doors improve passenger boarding and alighting efficiency, making it particularly suitable for seniors and high-frequency short-distance transportation.

Power and Range:

Equipped with a Jingjin Electric TZ290XS901 motor, boasting a peak power of 120kW and a top speed of 69km/h, and a lithium iron phosphate battery (manufactured by Huizhou Yiwei Lithium Energy), it meets the needs of urban fixed-route operations. A speed limiter and satellite-based driving recorder are standard, complying with public transportation regulations.

Features:

Optional features include a reversing camera, customizable side windows and rear surrounds, and support for customized road sign layouts. Curb weight is 5420kg for the air-conditioned version and 5150kg for the non-air-conditioned version. The chassis utilizes the EQ6620RACEV1 dedicated electric platform, with a front overhang of 1625mm/rear overhang of 1615mm and an axle load distribution of 3500/5500kg, ensuring a balanced load capacity and stability.

The Dongfeng Chaolong EQ6651CACBEV1 bus (pure electric, 10-19 seats) is suitable for subway connections, community micro-circulation, and short shuttle services to scenic spots. Its core advantages are low energy consumption and high passability.
