Dongfeng Chaolong EQ6621LBEVT1 bus (pure electric, 10-17 seats)

Dongfeng Chaolong EQ6621LBEVT1 Bus (Pure Electric, 10-17 Seaters)

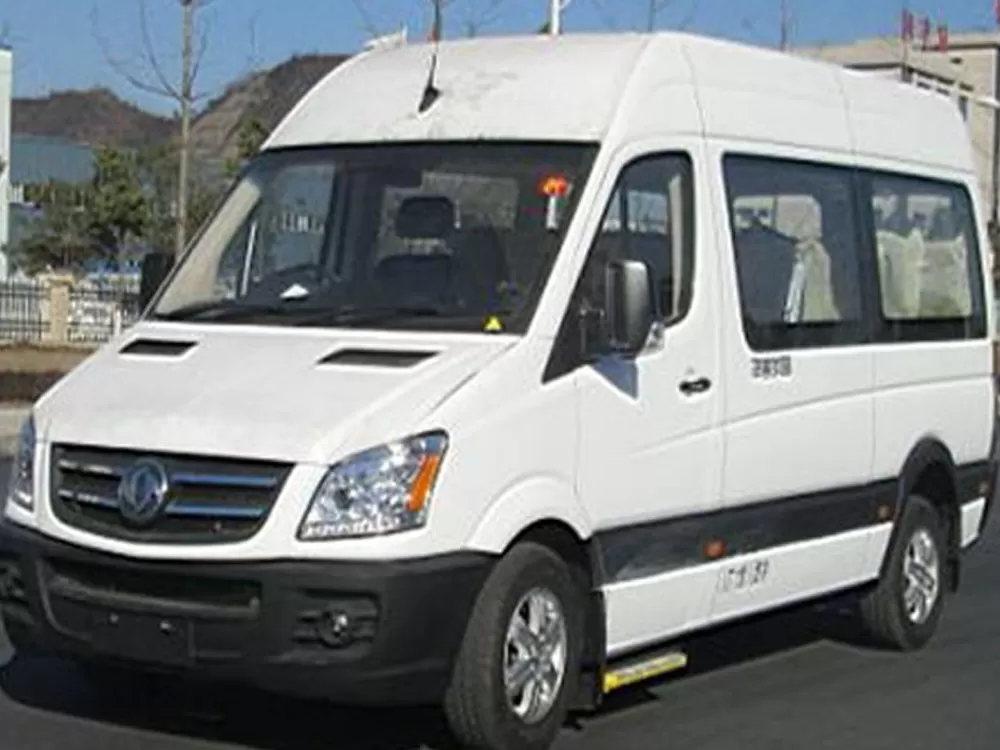

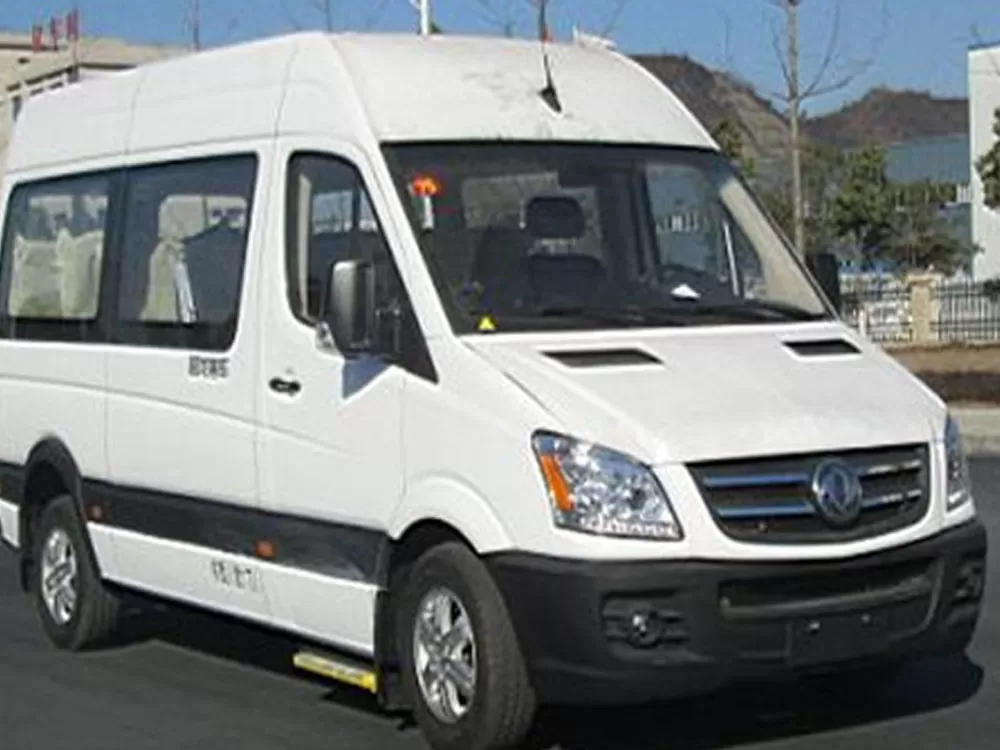

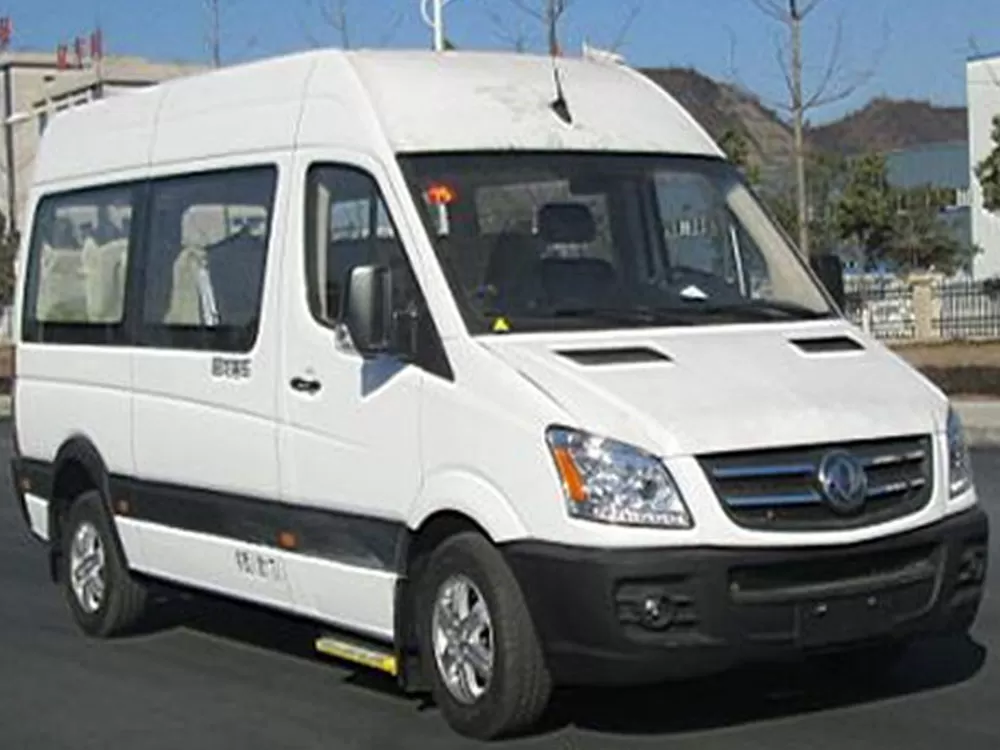

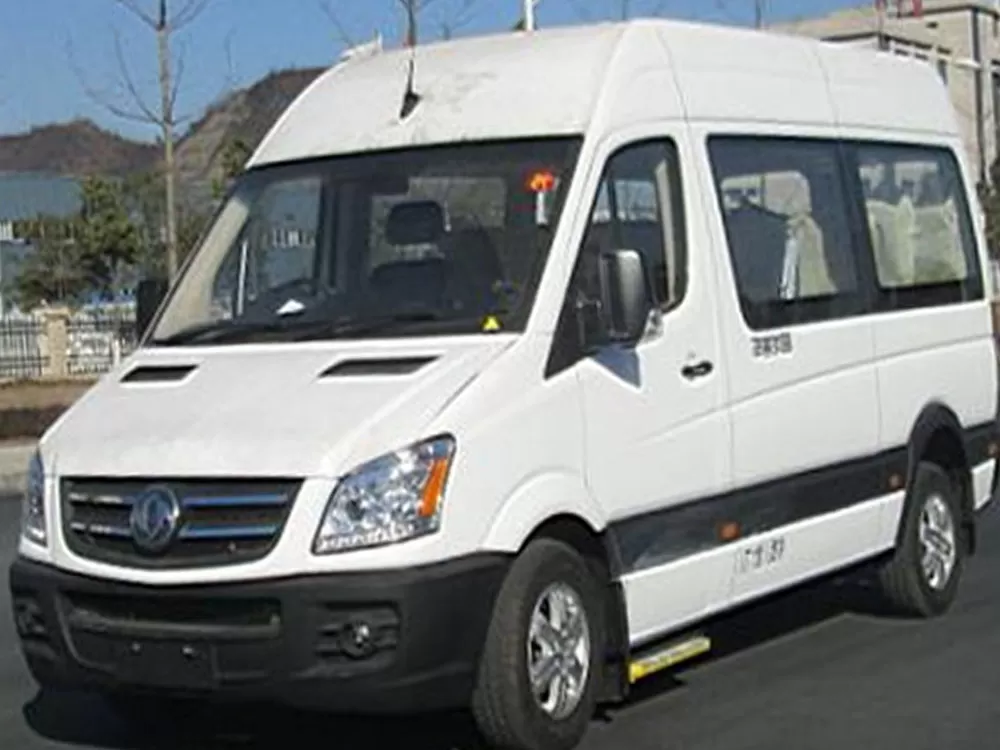

The Dongfeng Chaolong EQ6621LBEVT1 is a pure electric mid-size bus with a length of 6150mm, a width of 2005mm, a height of 2650mm, a curb weight of 3750kg, a gross vehicle mass of 5350kg, and a rated capacity of 10-17 passengers. It has a maximum speed of 100km/h (with a standard speed limiter) and is equipped with an M100C-F permanent magnet synchronous motor produced by Zhejiang Zhongda Transmission Co., Ltd., with a rated power of 60kW and a peak power of 100kW. The vehicle adopts a monocoque design, a wheelbase of 3665mm, and front and rear overhangs of 1005/1480mm, respectively. It is equipped with 215/75R16C tires, and an axle load distribution of 2200/3150kg.

Safety Features

The vehicle comes standard with a Guangzhou Kemi ABS system (model CM4XL-4S/4K) and a satellite-based driving recorder. A right-side center door and an onboard charger are optional. The power battery utilizes a lithium manganese oxide battery pack from Jinhua Keyuan Electronics Co., Ltd., a technology currently in its developmental stages, suitable for passenger transport, tourism, and group transfers. The vehicle has approach and departure angles of 21°/17° and a rear track of 1716mm, making it well-suited for both urban and rural road conditions.
