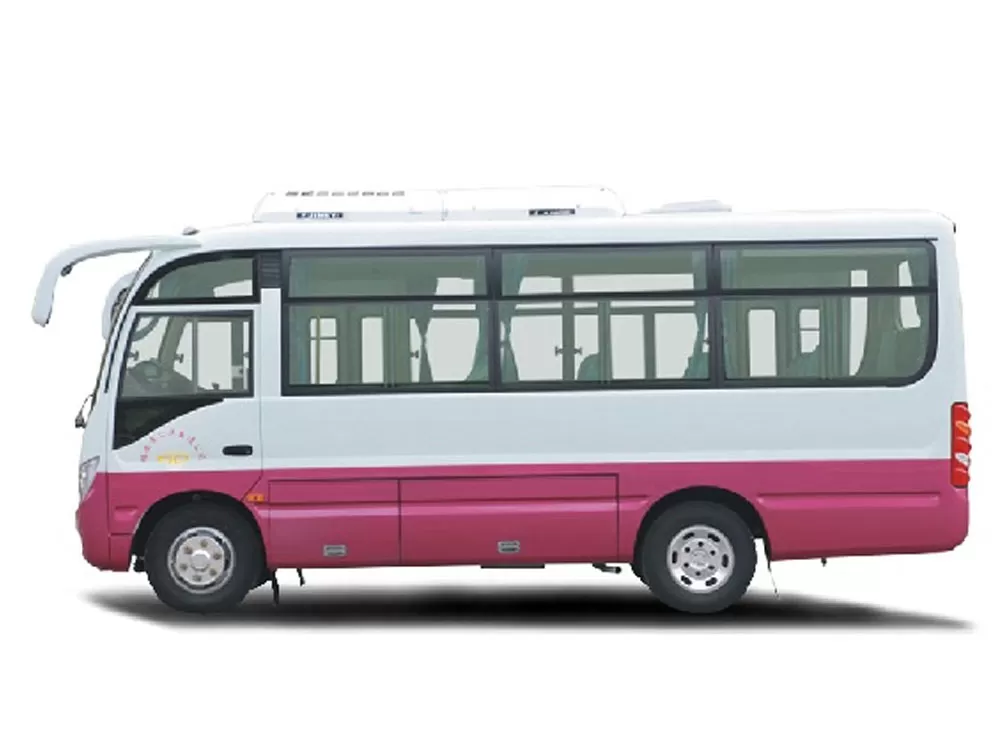

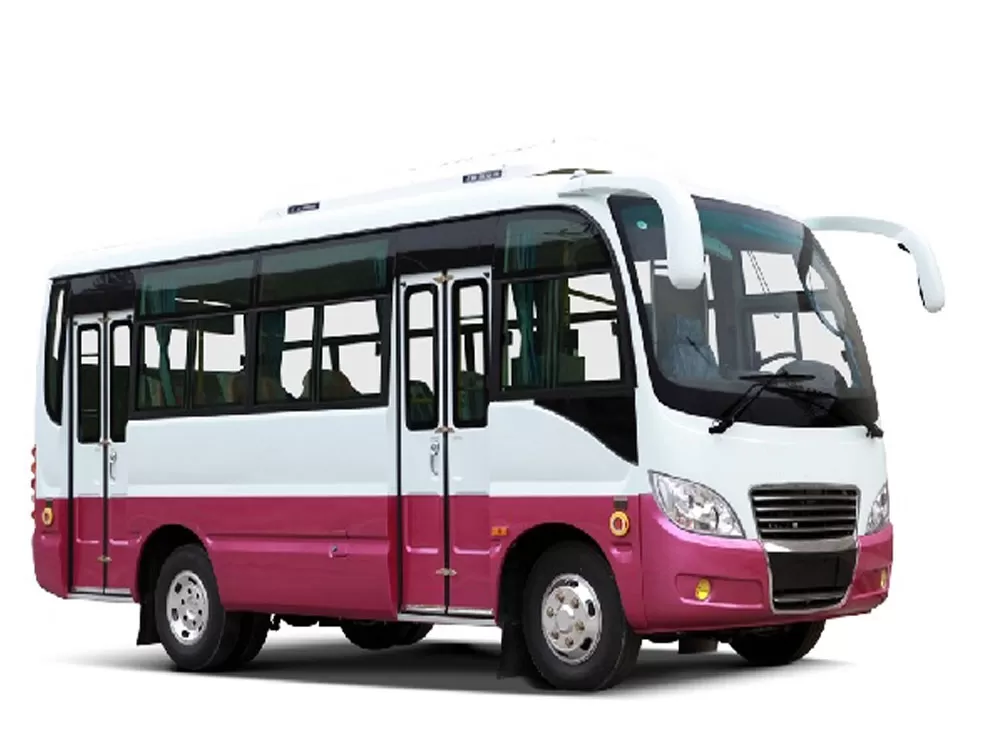

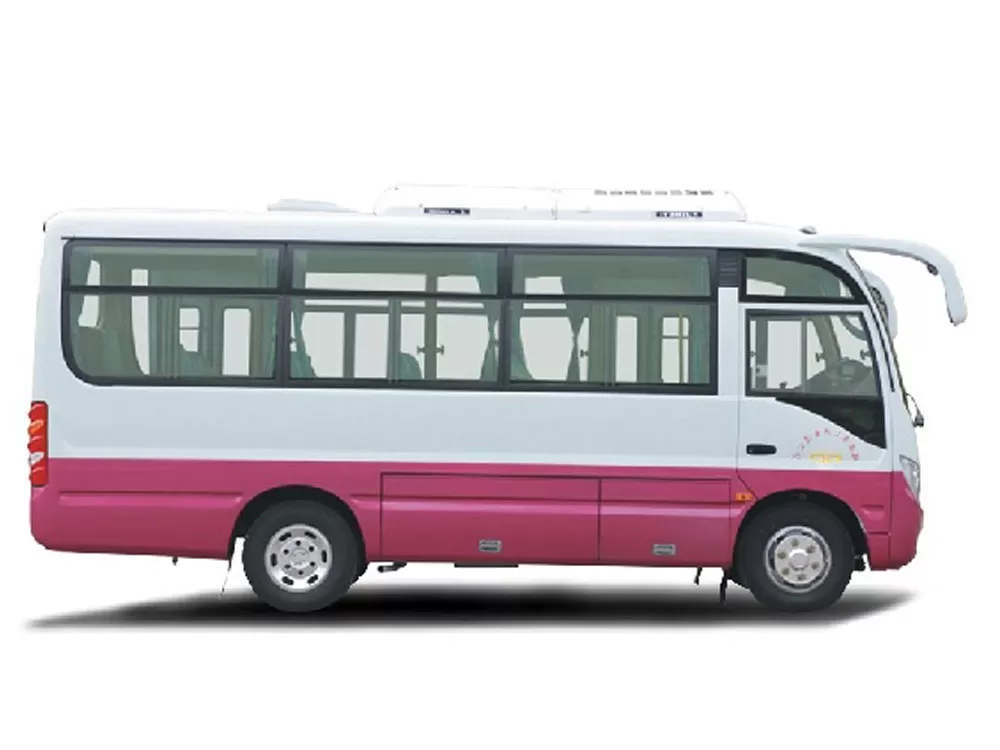

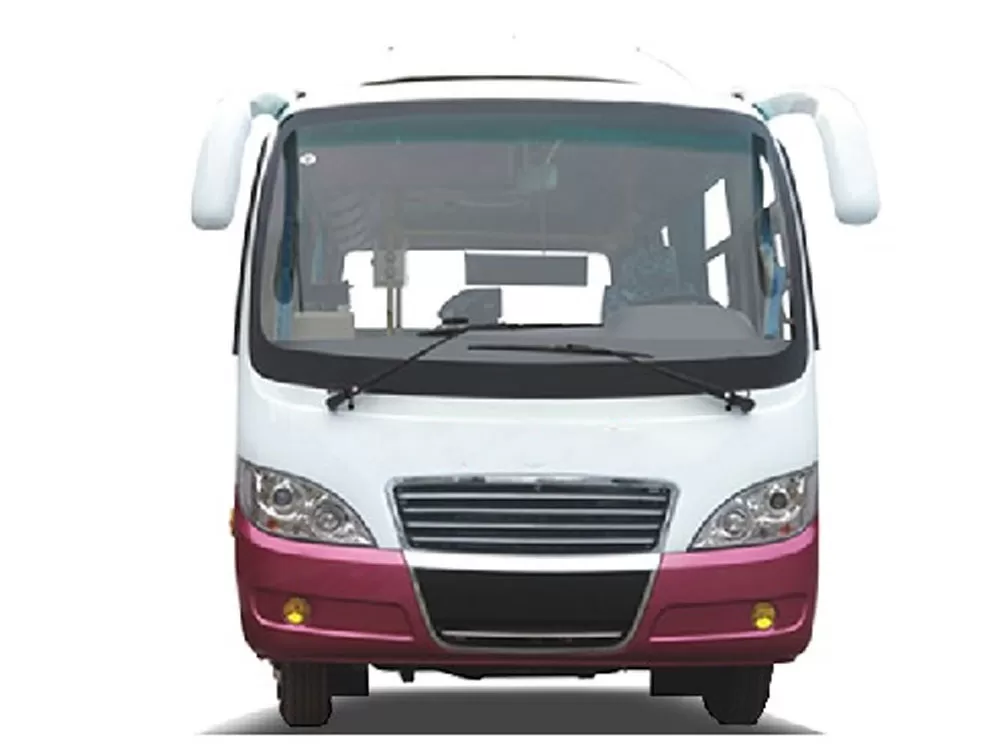

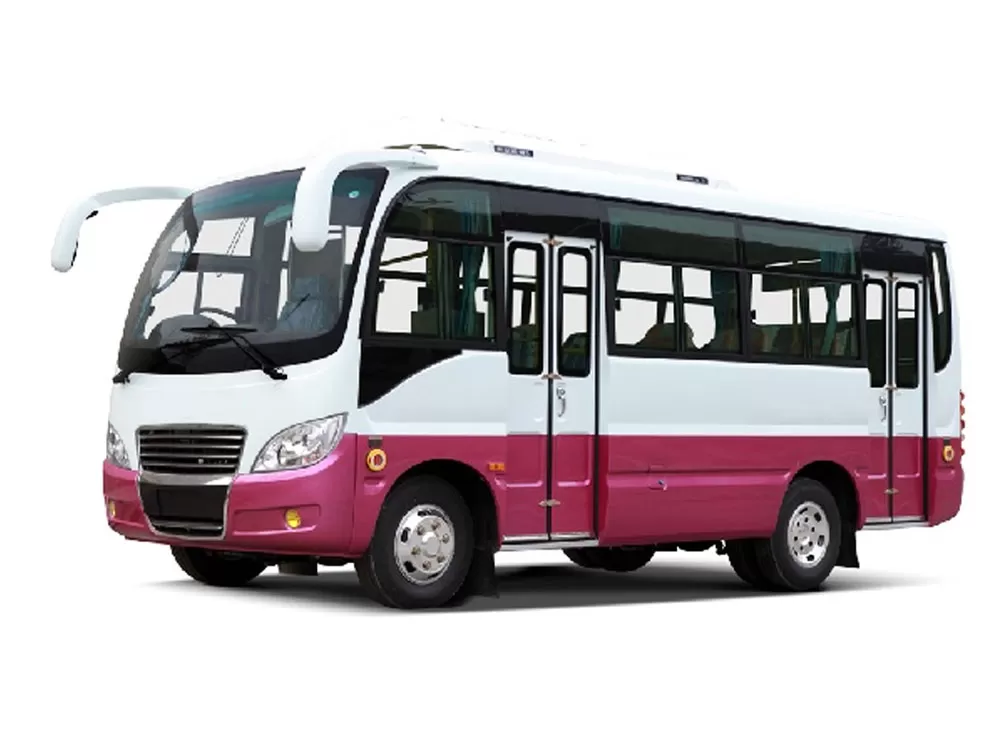

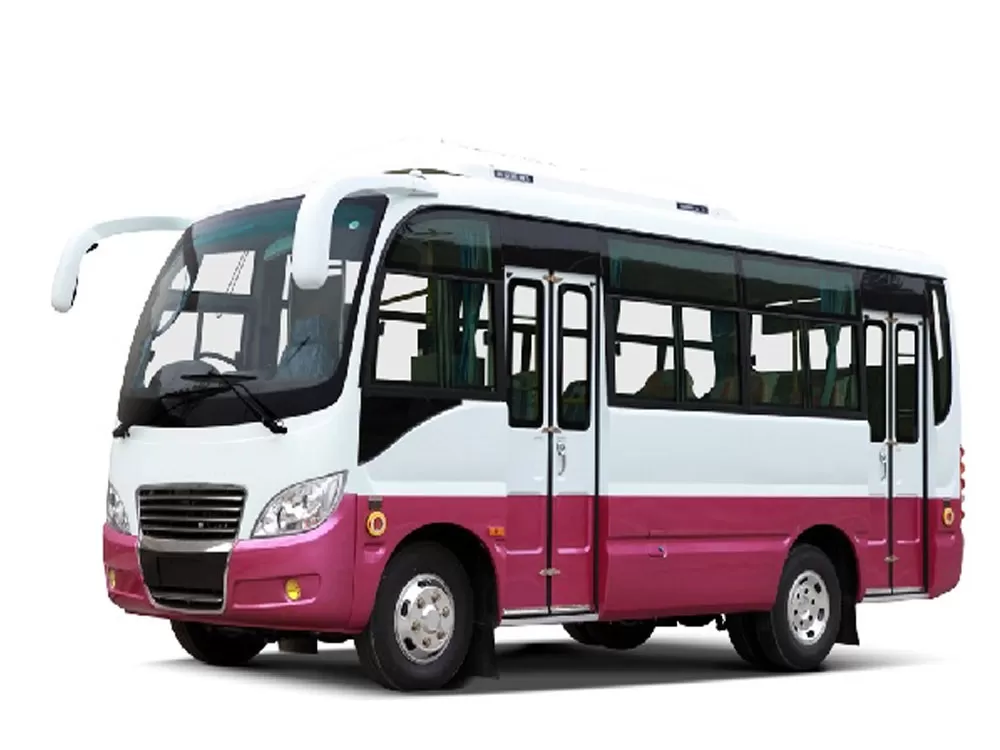

Dongfeng Chaolong EQ6607CTV Bus: A Reliable Partner for Efficient Commuters. The Dongfeng Chaolong EQ6607CTV is a diesel-powered bus designed for urban and rural passenger transport and corporate commuting. Its flexible layout and stable performance have made it a popular choice in the short-distance transport market. This bus strictly meets the National V emission standards, ensuring environmental performance while balancing economy and practicality.

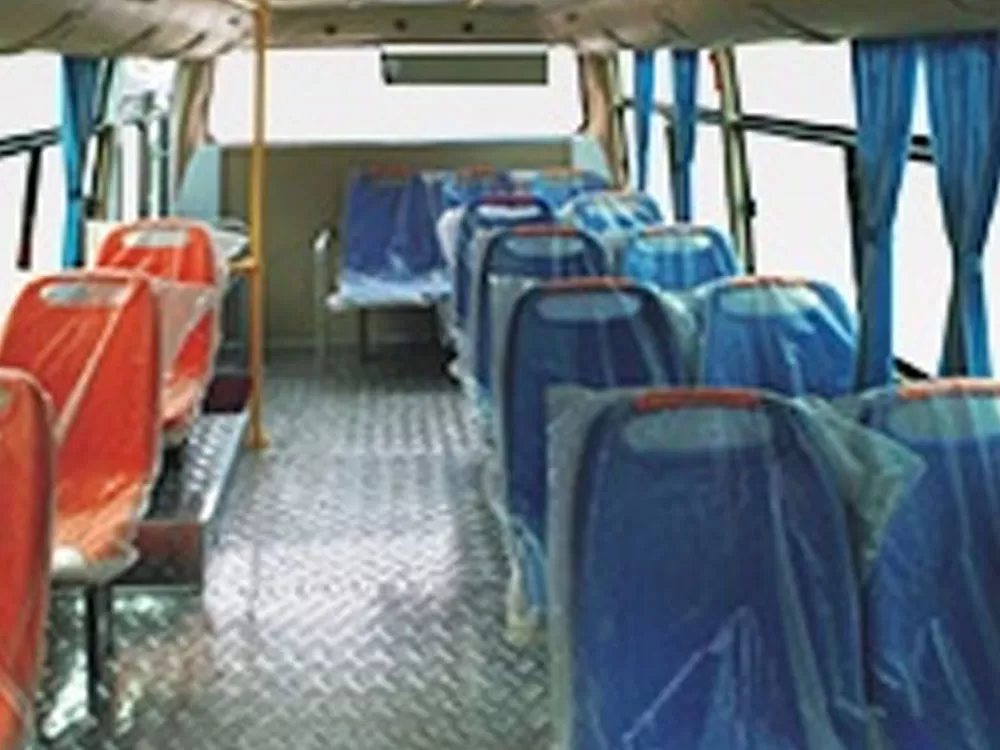

Flexible Spacious Design: The bus is 5990mm long and offers a variety of seating configurations, ranging from 11 to 19 seats. The ergonomic 2+2 seating layout ensures passenger comfort. The wide-body (2250mm wide) and wide doors significantly improve boarding and alighting efficiency, meeting the demands of peak passenger traffic.
Powerful Powertrain: Equipped with a YC4FA115-50 or WP3.7Q113E50 diesel engine, delivering a maximum power of 85-96 kW. Combined with a 9/11 leaf spring suspension and a 3300 mm wheelbase, the vehicle maintains a smooth and reliable ride even in challenging road conditions.
Upgraded Safety: Standard ABS and a driving recorder are available, while optional features include a reversing camera and pneumatic swing doors, further enhancing driving safety and convenience.
Versatile Adaptability: Optional roof-mounted air conditioning, luggage racks, and sliding side windows are available, and the vehicle's height can be adjusted from 2800 to 2990 mm, easily adapting to various operating scenarios (such as scenic spot transfers and business receptions).
Chassis Performance: The reinforced chassis design, with a curb weight of 3950-4200 kg and a gross vehicle weight of 6500 kg, provides excellent load-bearing capacity. A 22° approach angle and a 14° departure angle optimize maneuverability.
Environmental Protection and Compliance: Complies with GB17691-2005 National V emission standards and features an electrophoretic anti-corrosion treatment on the body, extending vehicle service life.
The Dongfeng Chaolong EQ6607CTV bus (National V diesel, 11-19 seats) features a mature technical architecture and modular design, providing operators with an efficient and cost-effective solution. It is an ideal choice for urban and rural passenger transport and corporate shuttle buses.
|
Vehicle parameters/information |
|
|
Announcement Model |
EQ6607CTV |
|
use |
Public buses |
|
Body length |
5990mm |
|
Body width |
2250mm |
|
Ride height |
2800,2990,2920mm |
|
Vehicle quality |
3950,4200kg |
|
Total mass |
6500kg |
|
Number of seats |
11-19 |
|
Maximum speed |
69km/h |
|
Audiovisual system |
MP3 player |
|
Auxiliary configuration |
24V, 130W gear-shift defroster; standard bus seats, 14+1 seating configuration; electric wipers; front and rear combination lights; engine speed limit: 69 km/h; PVC floor coverings, flat floor, half-width roll-up sunshade, electric fan, one fire extinguisher (4 kg), rearview mirror, two safety hammers; passenger seats without front safety handrails or requiring seatbelts; 550A sunroof; roller-shaped handrails |
|
Engine/motor parameters |
|
|
engine |
YC4FA115-50,WP3.7Q113E50,YC4FA130-50,WP3.7Q130E50 |
|
Engine power |
85, 83, 95, 96kW |
|
displacement |
2982,3660,2982,3660mL |
|
Engine brand |
Guangxi Yuchai Machinery Co., Ltd., Weichai Power Yangzhou Diesel Engine Co., Ltd., Guangxi Yuchai Machinery Co., Ltd., Weichai Power Yangzhou Diesel Engine Co., Ltd. |
|
Emission standards |
GB17691-2005 National V, GB3847-2005 |
|
Chassis parameters/configuration |
|
|
Chassis model |
EQ6570K5AC Class III Dongfeng Motor Corporation |
|
Front and rear suspension |
860/1830mm |
|
Number of springs |
9/11 |
|
gearbox |
JK5S470 |
|
clutch |
Diaphragm spring, clutch assist |
|
Number of axes |
2 |
|
wheelbase |
3300mm |
|
Axle load |
2300/4200kg |
|
Front track |
1750mm |
|
rear track |
1586mm |
|
Approach departure angle |
22/14° |
|
tire |
|
|
Number of tires |
6 |
|
Specification |
7.00-16,7.00R16,7.00-16LT,7.00R16LT |
