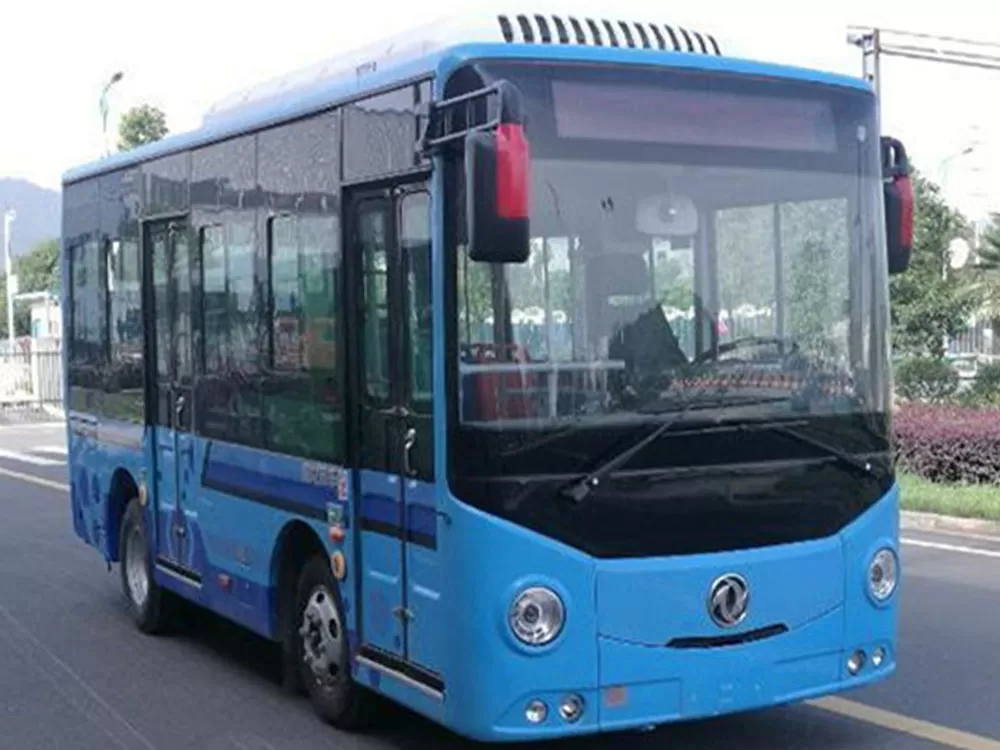

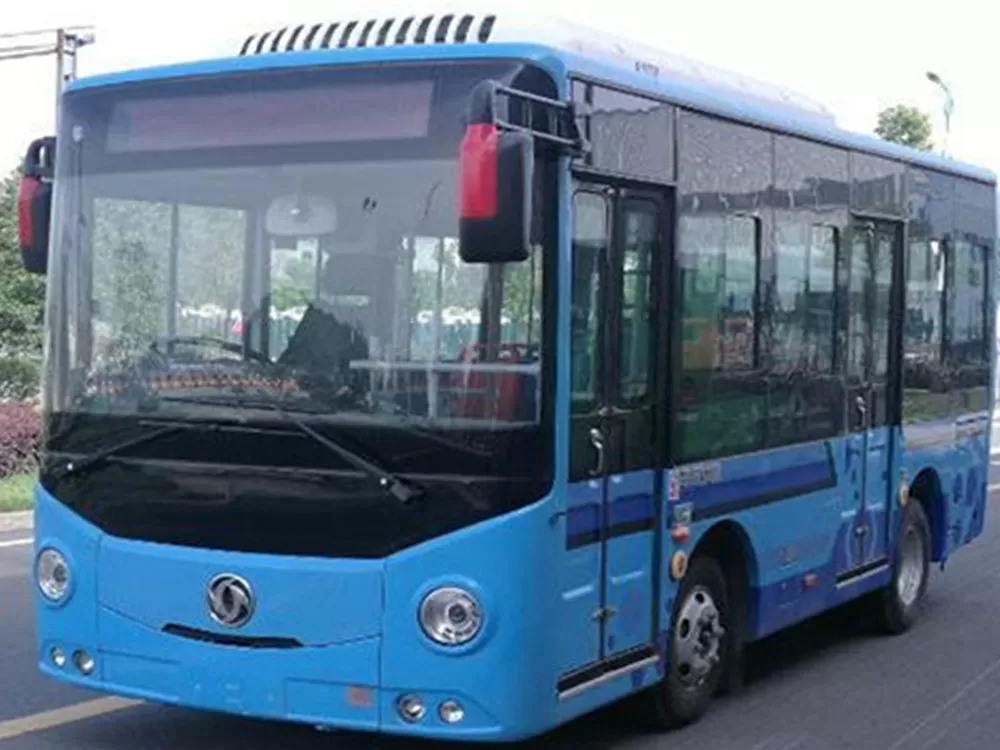

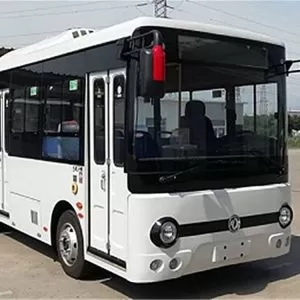

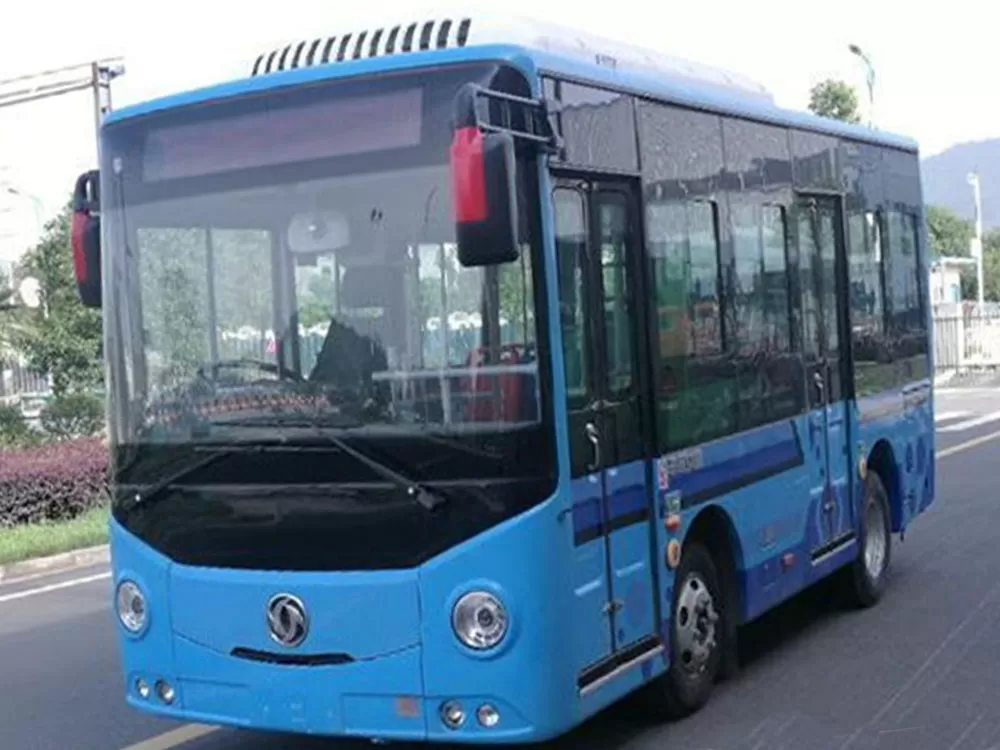

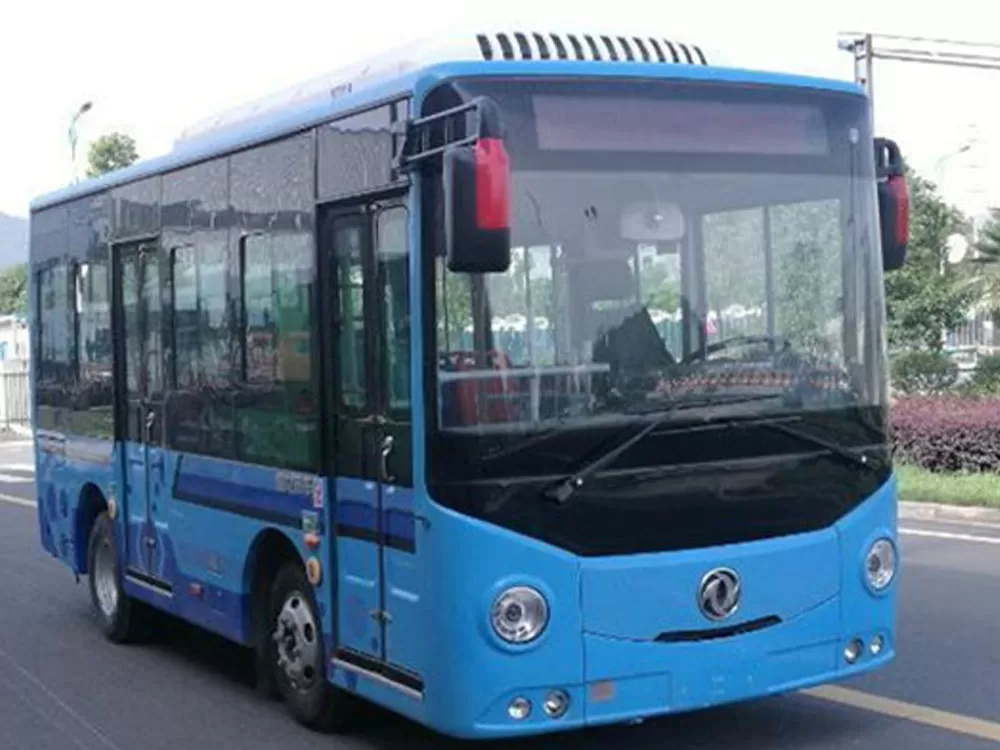

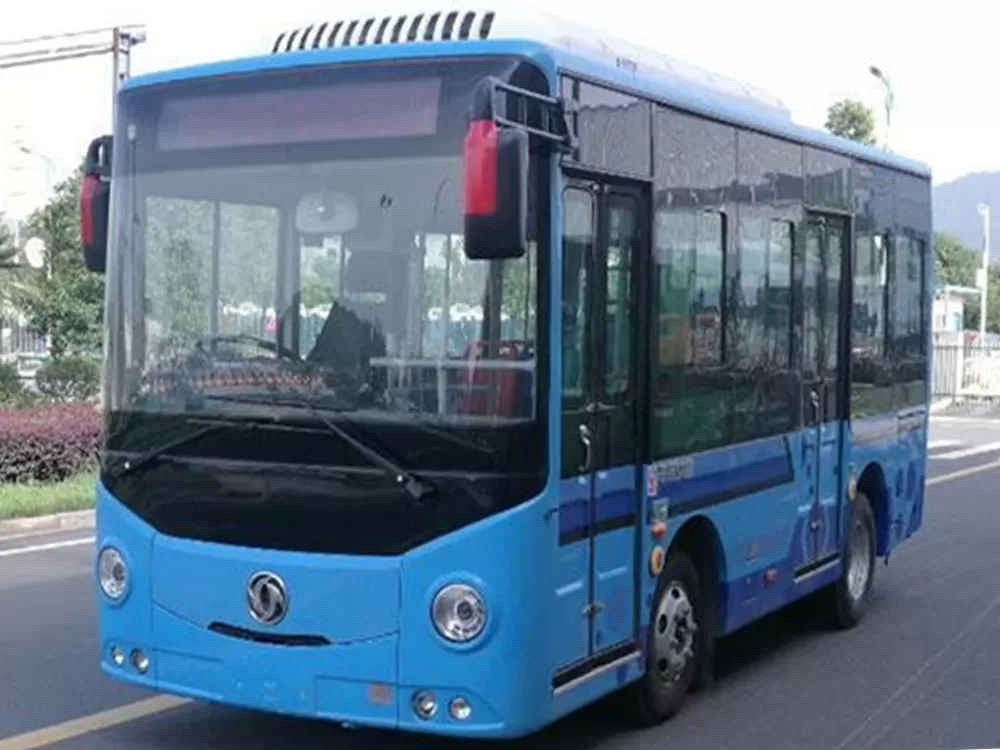

Dongfeng Chaolong EQ6601CTBEV1 bus (pure electric 10-16 seats)

Dongfeng Chaolong EQ6601CTBEV1 Bus (Pure Electric, 10-16 Seaters)

The Dongfeng Chaolong EQ6601CTBEV1 pure electric bus is a pure electric city bus/shuttle bus designed for short-distance commuting, community circulation, and scenic spot shuttles. It meets the low-floor, high-passengability requirements of new energy buses and is suitable for elderly-friendly and high-frequency transportation scenarios.

Appearance and Dimensions:

The bus measures 5990mm in length, 2100mm in width, and has a height option of 2825mm (without air conditioning) or 2925mm (with air conditioning). The 2800mm wheelbase allows for flexible adaptation to narrow urban roads. A one-step design and wide doors improve passenger boarding and alighting efficiency. Optional side hatches, swing doors, and a variety of rearview mirror configurations are available.

Power and Range:

Equipped with a Jingjin Electric TZ290XSA011 motor, boasting a peak power of 125kW and a top speed of 69km/h, it is paired with a CATL lithium iron phosphate battery and supports external charging. A satellite-based driving recorder and motor controller with speed limit (69km/h) are standard, complying with public transportation safety regulations.

Features:

Air conditioning, a reversing camera, and various side windows are optional; the ABS system is provided by Guangzhou Ruili Kemi for braking safety. The chassis utilizes the EQ6570KSTEV dedicated electric platform, with an axle load of 2400/4100kg, a front track of 1750mm, and a rear track of 1586mm, providing balanced stability and load capacity.

The Dongfeng Chaolong EQ6601CTBEV1 bus (pure electric, 10-16 seats) is suitable for subway connections, community circulation, and short shuttle services to scenic spots, with low energy consumption and high passability as its core advantages.
