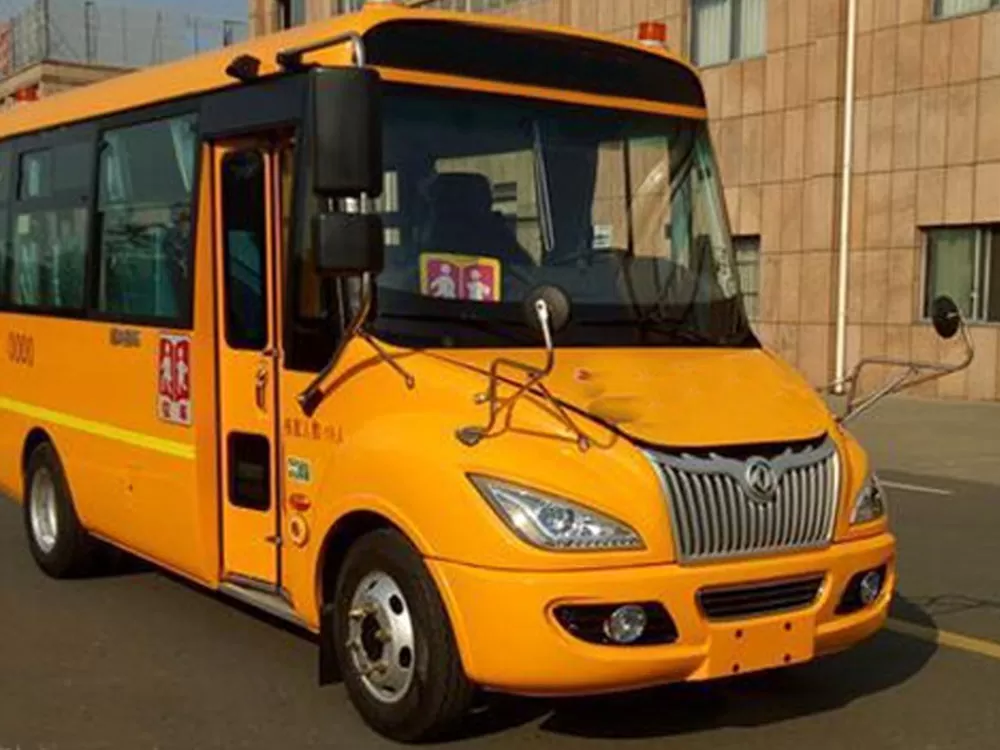

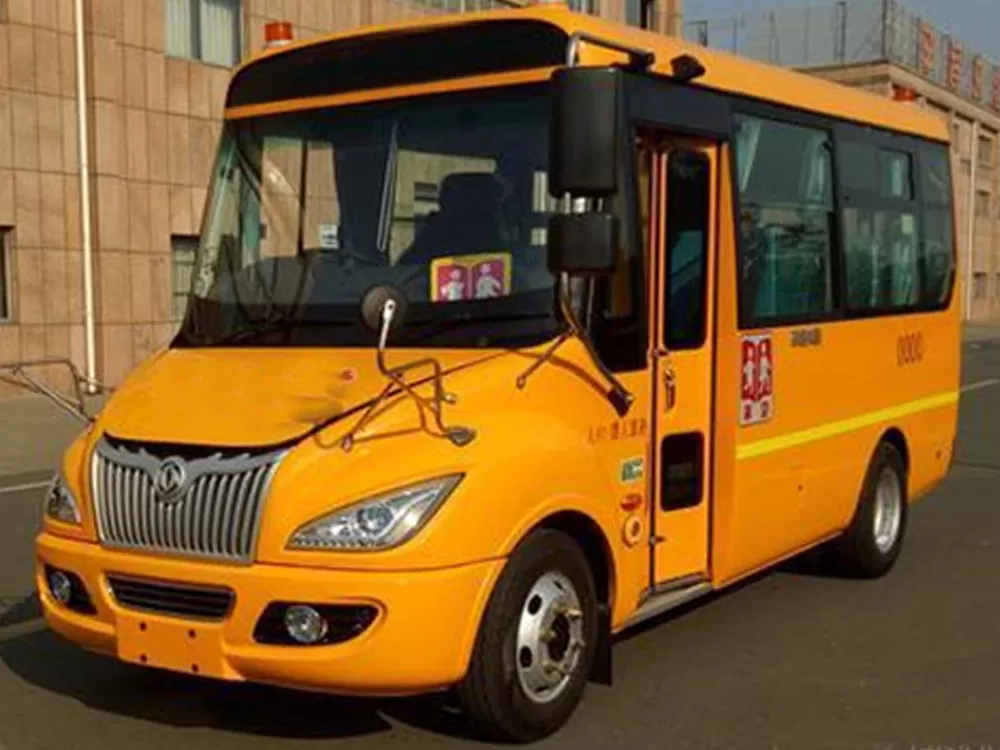

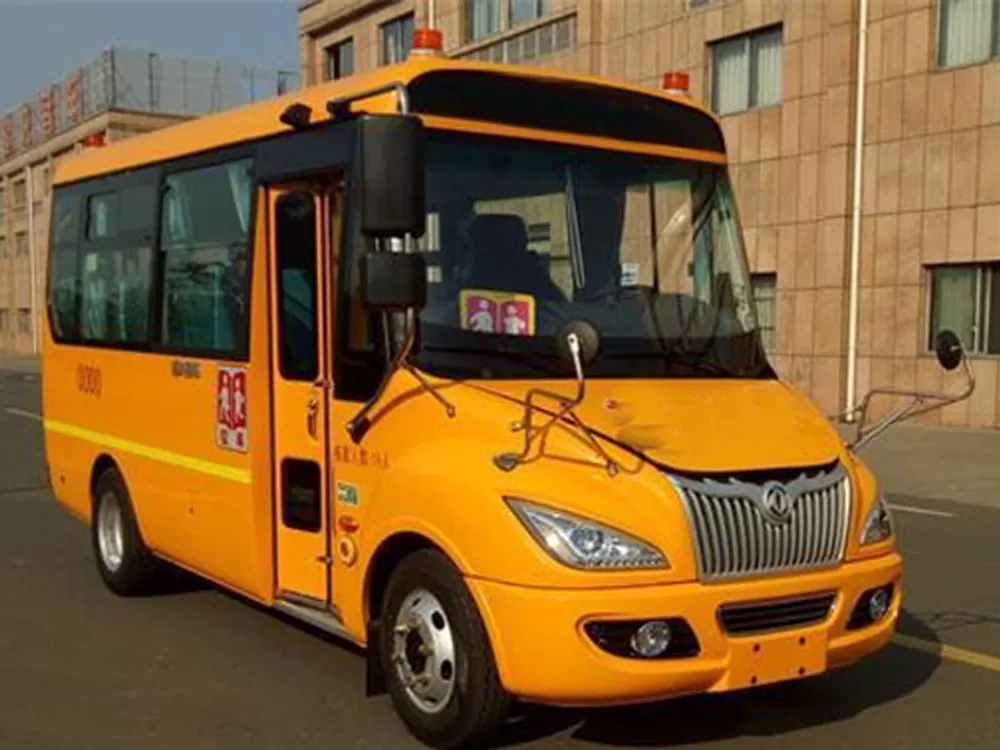

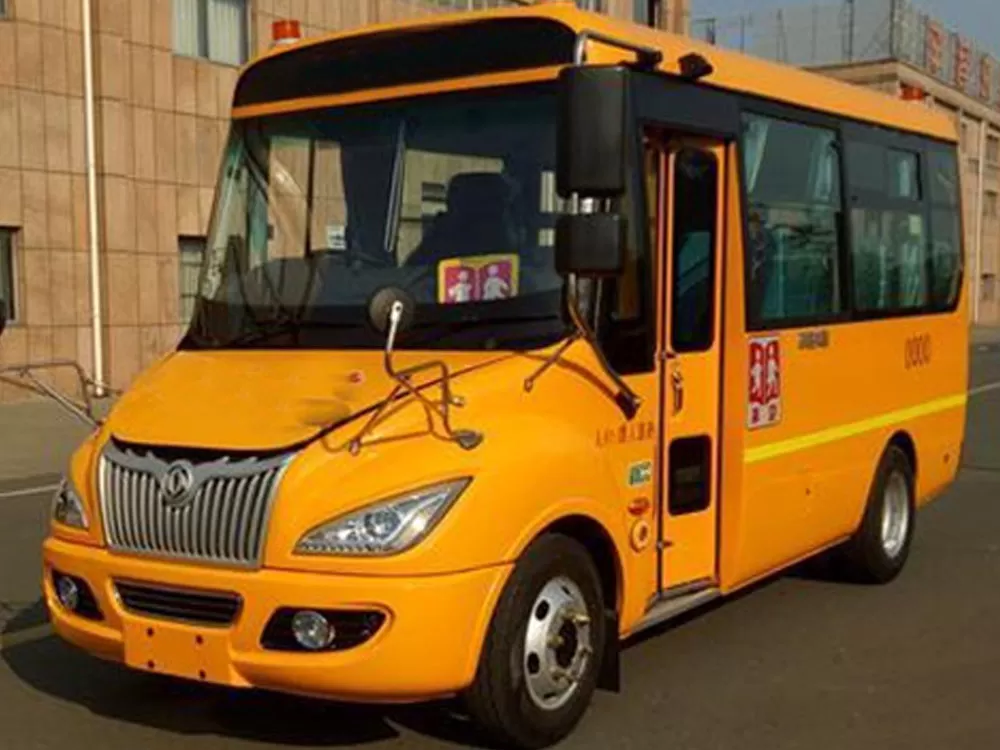

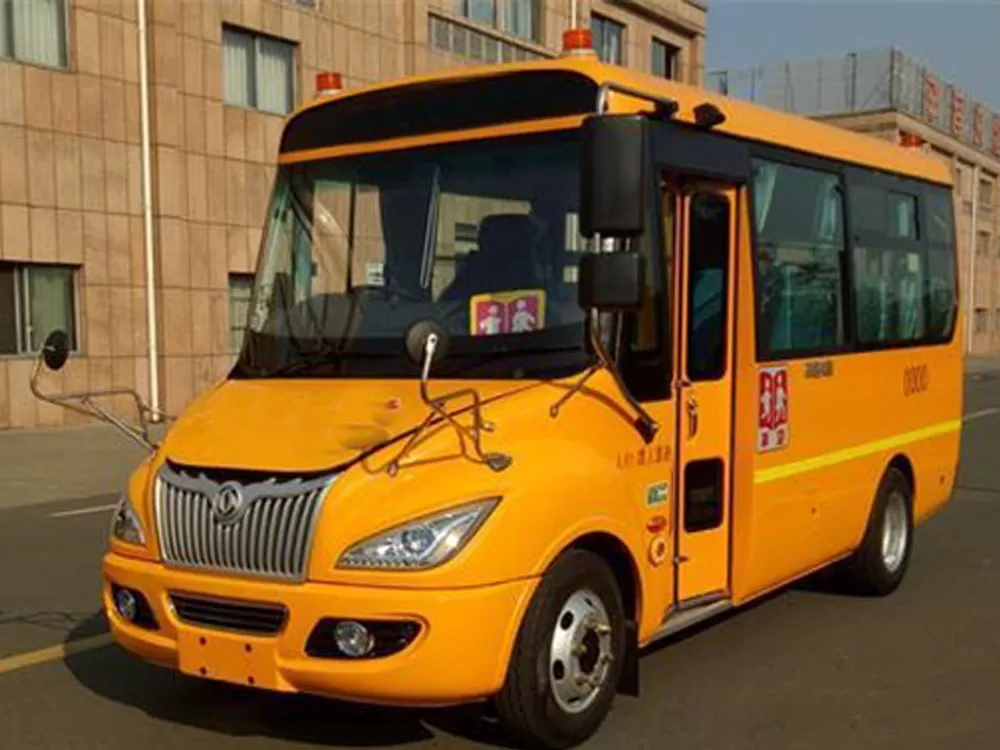

Dongfeng Chaolong EQ6580ST6D1 Elementary School Bus (China VI Diesel, 10-19 Seats)
Core Product Strengths of the Dongfeng Chaolong EQ6580ST6D1: As a narrow-body school bus designed specifically for student safety, the EQ6580ST6D1 features a narrow 1920mm body and a compact 5840mm length, making it suitable for narrow urban and rural roads. Equipped with a Weichai 120-horsepower China VI diesel engine, it offers a flexible seating configuration of 10-19 seats.
Safety Protection System:
Strong Structure: Available with either a non-load-bearing or semi-load-bearing structure, it comes standard with a 2+2 layout for child-only seats, seatbelts throughout the vehicle, and a caretaker seat. It is also equipped with an electric parking sign, four school bus marker lights, and a speed limiter (80 km/h limit).
Emergency Features: Dual fire extinguishers (4kg), a safety hammer, an automatic engine compartment fire extinguisher, a first aid kit holder, and a glass breaker. PVC non-slip flooring and electric folding doors enhance emergency evacuation efficiency.
Functionality and Compliance:
Audio-visual Monitoring: Standard features include an MP3 player, a hard disk recorder, and multiple cameras; an optional MP5 player supports in-vehicle behavior monitoring and reversing camera.
Environmental Compatibility: China VI emission standards are met, equipped with a remote emission control system (T-BOX) and urea pipe heating technology, complying with the latest environmental regulations.
The Dongfeng Chaolong EQ6580ST6D1 elementary school bus (China VI diesel, 10-19 seats) features a body design optimized for maneuverability, making it suitable for complex road conditions in mountainous areas and rural areas. The front dash fascia features a signature dragon-horn trim.
Vehicle parameters/information
|
Announcement Model
|
EQ6580ST6D1
|
use
|
school bus
|
Body length
|
5840mm
|
Body width
|
1920mm
|
Ride height
|
2670,2700mm
|
Vehicle quality
|
3550,3700kg
|
Total mass
|
5550kg
|
Number of seats
|
10-19
|
Maximum speed
|
80km/h
|
Engine/motor parameters
|
engine
|
WP2.3NQ120E61
|
Engine power
|
88kW
|
displacement
|
2289mL
|
Engine brand
|
Weichai Power Co., Ltd.
|
Emission standards
|
GB3847-2005, GB17691-2018 Country VI
|
Chassis parameters/configuration
|
Chassis model
|
EQ6548KX6AC Class III Dongfeng Motor Corporation
|
Front and rear suspension
|
900/1490mm
|
Number of springs
|
3/4
|
Number of axes
|
2
|
wheelbase
|
3450mm
|
Axle load
|
2000/3550kg
|
Front track
|
1610mm
|
rear track
|
1430mm
|
Approach departure angle
|
22/13°
|
tire
|
Number of tires
|
6
|
Specification
|
215/75R16LT
|
