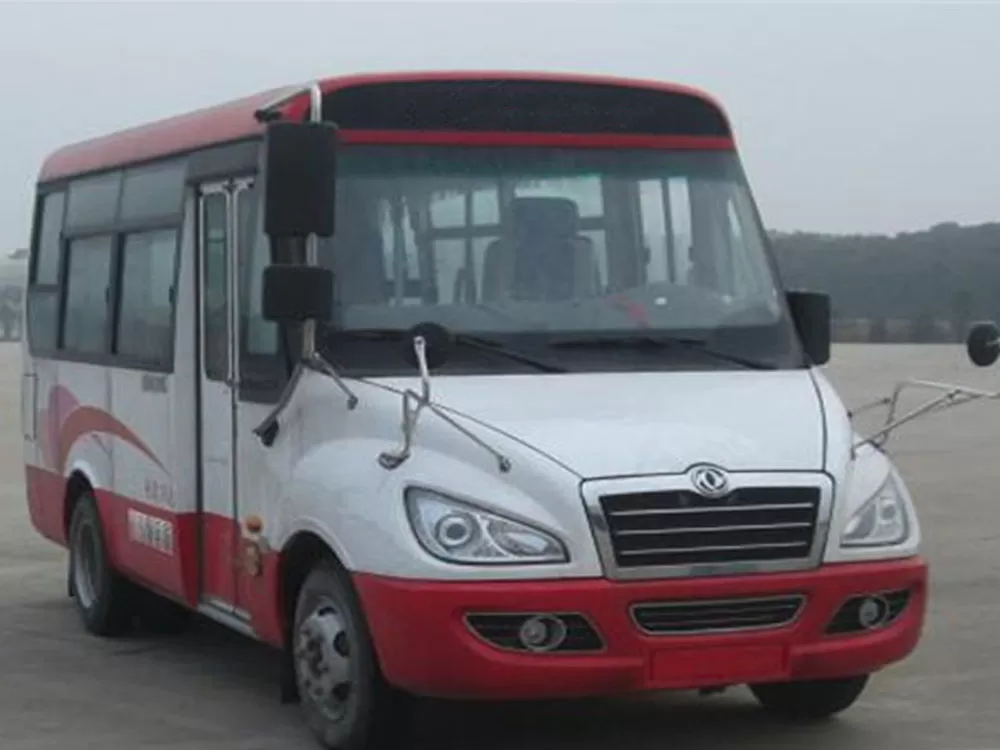

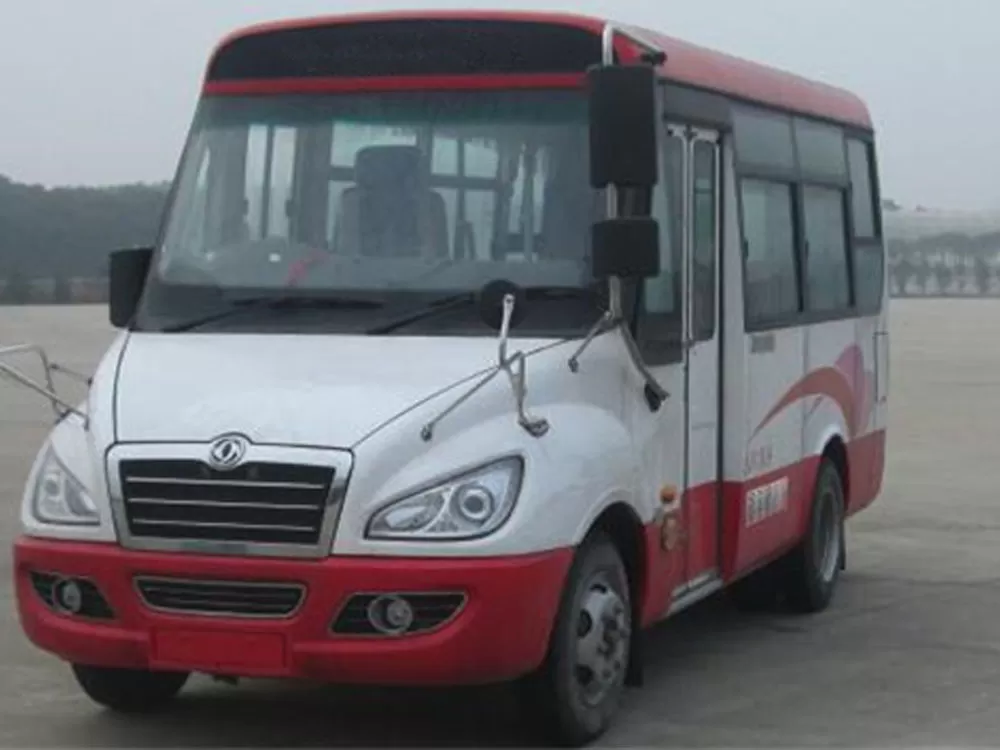

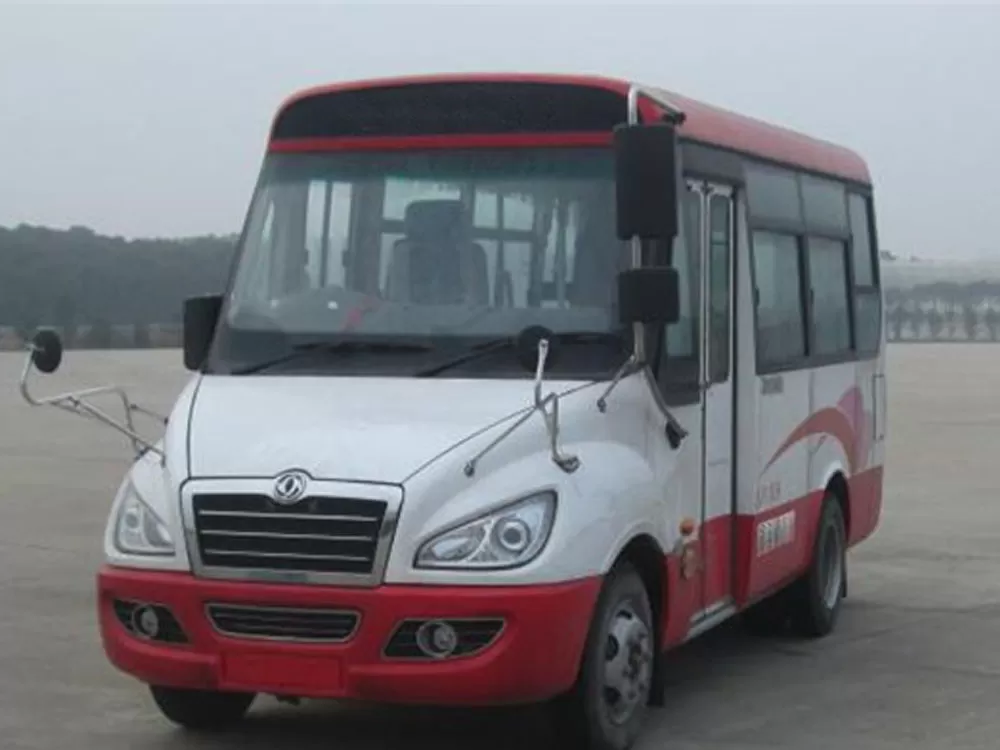

Dongfeng Chaolong EQ6550CTN Bus (Natural Gas, China V Emission Standard, 11-14 Seats)
Core Product Strengths of the Dongfeng Chaolong EQ6550CTN Bus (Natural Gas, China V Emission Standard, 11-14 Seats) As Dongfeng Chaolong's classic city bus, the EQ6550CTN focuses on efficiency, environmental protection, and practical design, meeting the needs of medium- and short-distance passenger transport with 11-14 seats. Its compact dimensions of 5540×1900×2565mm, a wheelbase of 3100mm, and 6.50-16LT tires ensure agile operation on urban roads. Equipped with the China V emission standard YN30QNE or YC4FA115N-50 natural gas engine, it boasts a maximum power of 75-85kW, balancing power output with environmental friendliness, making it particularly suitable for urban operations with stringent emission standards.
Safety and Comfort:
Standard ABS (CM4XL-4S/4K) and a speed limiter (maximum speed 69 km/h) are standard, and the vehicle is GB17691-2005 National V certified, ensuring driving stability.
A 3/4 spring suspension design optimizes shock absorption, while optional features such as a reversing camera and air conditioning enhance driving comfort.
Flexible Configuration:
Customizable options include fully enclosed or hybrid side windows and side grilles to meet the needs of different regions.
The interior layout is well-designed, balancing passenger efficiency and luggage storage, making it suitable for diverse applications such as tourist transfers and community micro-circulation.
Leveraging the technological expertise of Dongfeng Motor Group, the Dongfeng Chaolong boasts a complete vehicle cathode electrophoresis process and ISO9001 quality management system certification. Its products are exported to overseas markets and have proven their reliability.
Vehicle parameters/information
|
Announcement Model
|
EQ6550CTN
|
use
|
Public buses
|
Body length
|
5540mm
|
Body width
|
1900mm
|
Ride height
|
2565,2635mm
|
Vehicle quality
|
3480kg
|
Total mass
|
5500kg
|
Number of seats
|
11-14
|
Maximum speed
|
69km/h
|
Engine/motor parameters
|
engine
|
YN30QNE,YC4FA115N-50
|
Engine power
|
75,85kW
|
displacement
|
2977,2982mL
|
Engine brand
|
Chengdu Yunnei Power Co., Ltd., Guangxi Yuchai Machinery Co., Ltd.
|
Emission standards
|
GB17691-2005 National V, GB18285-2005, GB11340-2005
|
Chassis parameters/configuration
|
Chassis model
|
EQ6500KN5AC Class III Dongfeng Motor Corporation
|
Front and rear suspension
|
900/1540mm
|
Number of springs
|
3/4
|
Number of axes
|
2
|
wheelbase
|
3100mm
|
Axle load
|
1900/3600kg
|
Front track
|
1610mm
|
rear track
|
1430mm
|
Approach departure angle
|
20/13°
|
tire
|
Number of tires
|
6
|
