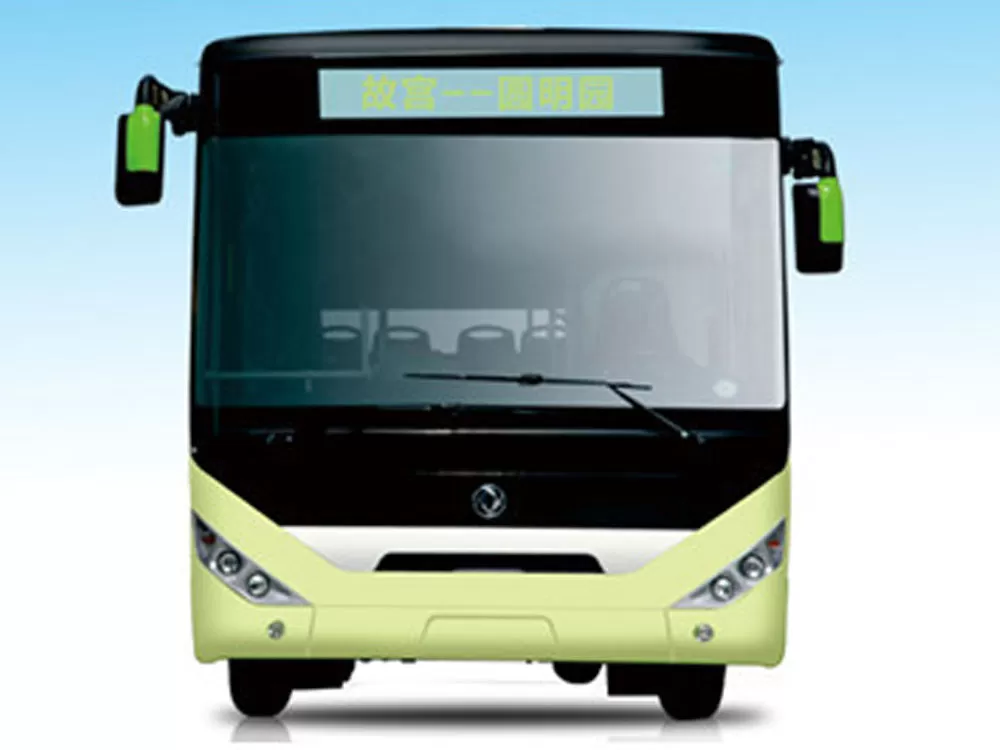

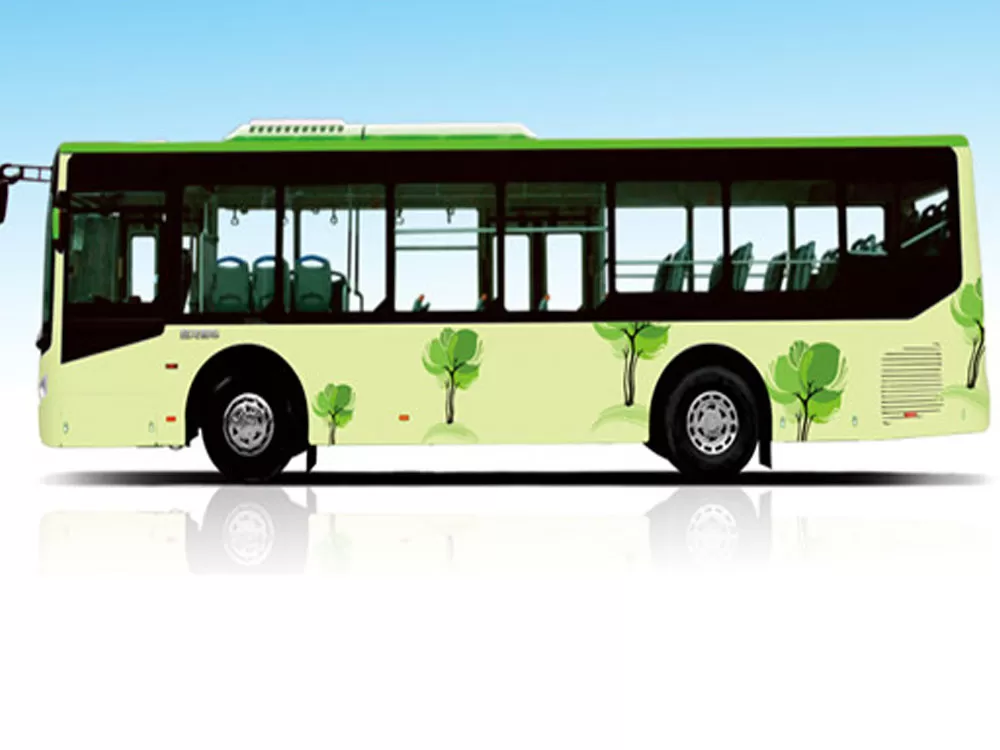

As a representative model of the Dongfeng Chaolong new energy vehicle series, the Dongfeng Chaolong EQ6120CBEVT pure electric bus (10-46 seats) is positioned as a large city bus. With a length of 12 meters and a monocoque structure, the EQ6120CBEVT boasts a top speed of 69 km/h and a motor rated at 120 kW (peak power of 200 kW). It is equipped with a CATL lithium iron phosphate battery pack and supports external charging, providing a range sufficient for daily urban bus operations.
Flexible Space: Available in a variety of seating configurations, ranging from 10 to 46 seats, with optional sliding doors and hybrid side windows to accommodate diverse passenger flow scenarios.
Safety Features: Standard ABS (manufactured by Guangzhou Ruili Komi), a satellite-based driving recorder, and a motor controller with speed limiting function. All are certified by stringent industry standards.
Technological Design: The vehicle boasts a beautiful and elegant design, refined manufacturing techniques, a 5200mm wheelbase, and 275/70R22.5 tires, ensuring both stability and roadworthiness.
The Dongfeng Chaolong EQ6120CBEVT bus (pure electric, 10-46 seats) is designed for urban trunk routes and group passenger transport. Its pure electric powertrain achieves zero emissions, and its low noise levels make it suitable for operation in high-density urban areas.
|
Vehicle parameters/information |
|
|
Announcement Model |
EQ6120CBEVT |
|
grade |
Higher level |
|
use |
Public buses |
|
Body length |
12000mm |
|
Body width |
2550mm |
|
Ride height |
2985,3220mm |
|
Vehicle quality |
12600kg |
|
Total mass |
18000kg |
|
Body structure |
High-strength steel welding |
|
Number of seats |
10-46 |
|
Maximum speed |
69km/h |
|
Air conditioning system |
Electric air conditioner |
|
Audiovisual system |
MP3 player |
|
Auxiliary configuration |
Electric defroster; standard bus seats; domestically produced solid-color paint; dual-wipe wipers; front and rear split lights, 570V voltage; 228kWh battery capacity; pure electric range ≥ 200km (measured at a constant speed of 40km/h) |
|
Engine/motor parameters |
|
|
motor |
GLMP250L1 |
|
Motor power |
120kW |
|
Motor brand |
Zibo Zhenghua Electric Vehicle Technology Co., Ltd. |
|
Chassis parameters/configuration |
|
|
Chassis model |
Unibody |
|
Front and rear suspension |
2630/3370mm |
|
Number of springs |
-/- |
|
Number of axes |
2 |
|
wheelbase |
6000mm |
|
Axle load |
6500/11500kg |
|
Front track |
2080mm |
|
rear track |
1860mm |
|
Approach departure angle |
7/7° |
|
tire |
|
|
Number of tires |
6 |
|
Specification |
295/80R22.5 |
