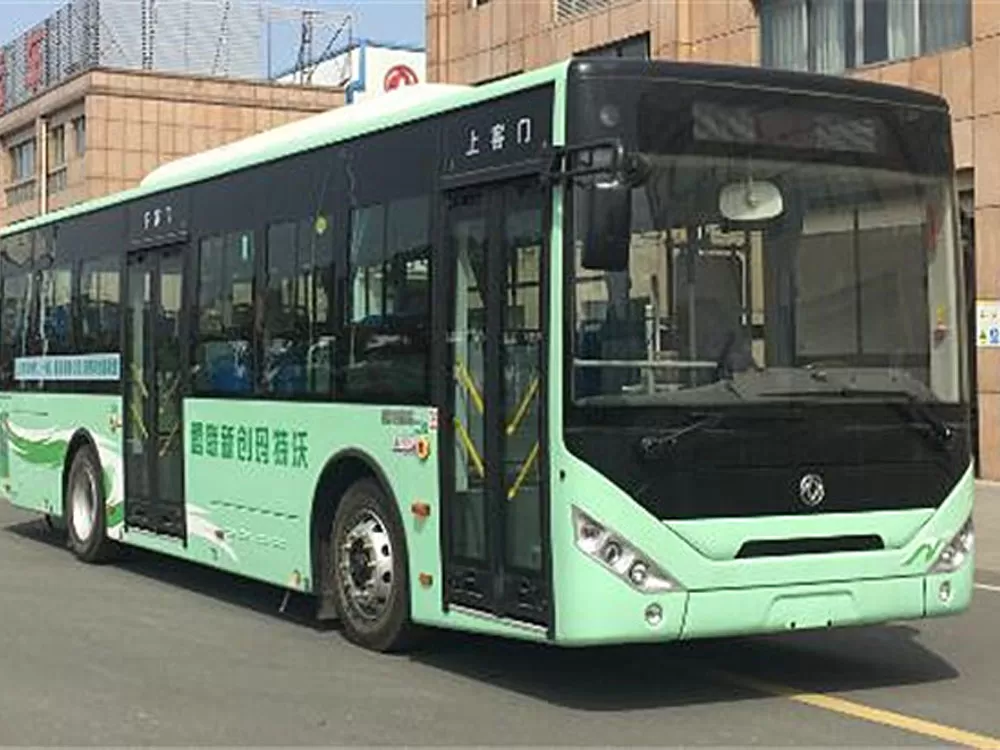

Dongfeng Chaolong EQ6105CTBEV7 bus (pure electric 21-40 seats)

Dongfeng Chaolong EQ6105CTBEV7 Bus (Pure Electric, 21-40 Seats)

The Dongfeng Chaolong EQ6105CTBEV7 Bus (Pure Electric, 21-40 Seats) is a large pure electric city bus under Dongfeng Chaolong. Designed for trunk bus routes and group travel, it utilizes a zero-emission electric powertrain and is suitable for high-density passenger transport.

Core Specifications

Dimensions: Length 10,490mm, Width 2,500mm, Standard Height 3,020mm (Increased to 3,260mm with optional air conditioning), Wheelbase 5,000mm, Curb Weight 11,060-11,400kg, Gross Vehicle Weight 18,000kg.

Powertrain: Equipped with the TZ480XSLC12BB motor from Hubei Lvchi Precision Electric Drive System Co., Ltd., rated power 120kW, peak power 200kW, and a maximum speed of 69km/h (designed for speed limits).

Battery Configuration: Utilizes a lithium iron phosphate battery pack from the Contemporary Amperex Technology (CATL) era, supports fast charging, and boasts a range sufficient for all-day operation.

Functionality and Safety

Passenger Capacity: Flexible seating arrangements of 21-40 seats are available, with a maximum capacity of 75 passengers (including standing). A low-floor design improves boarding and disembarking efficiency.

Safety Design: Standard features include ABS (Guangzhou Ruili Komi CM4XL-4S/4M), a satellite-based driving recorder, and emergency escape features. The vehicle has passed crash safety testing.

Comfort: Optional roof-mounted air conditioning (vehicle height 3260mm), a multi-channel video surveillance system (five sensors + a 7-inch screen), and standard electric wipers and defrost.

The Dongfeng Chaolong EQ6105CTBEV7 bus (pure electric, 21-40 seats) is suitable for urban trunk routes, BRT (Bus Rapid Transit), and large-group shuttles. Its pure electric design reduces operating noise and carbon emissions.
