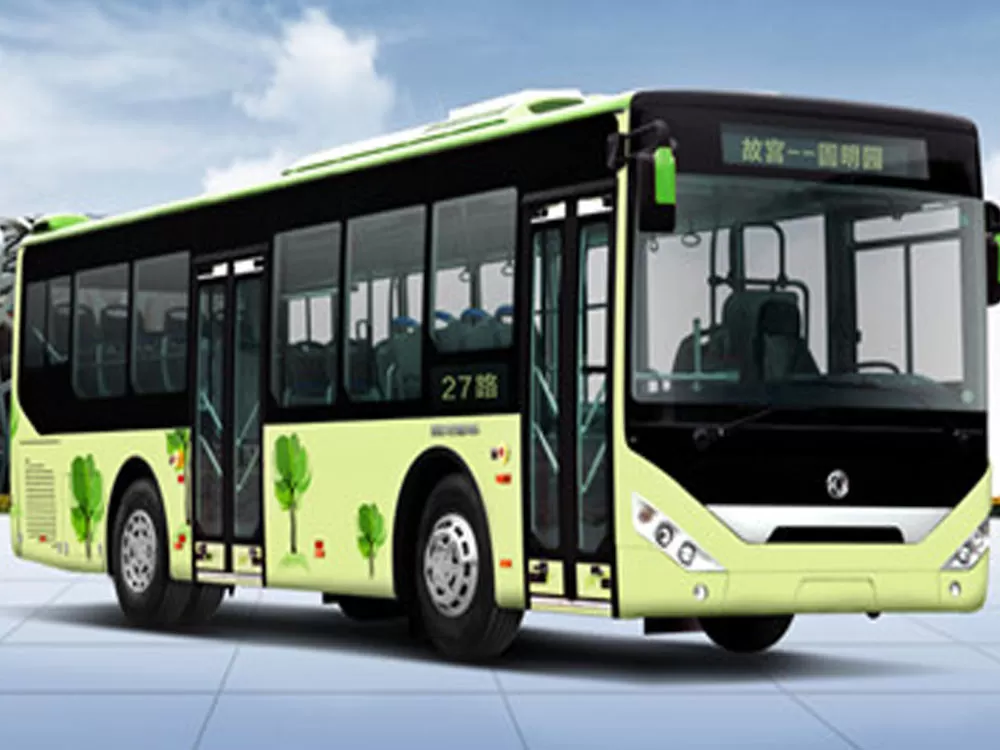

The Dongfeng Chaolong EQ6105CTBEV4 Bus (Pure Electric, 10-40 Seaters) is a pure electric city bus with a length of 10,490 mm, a width of 2,500 mm, and a height of 3,020 mm (non-AC version) or 3,260 mm (AC version). It has a curb weight of 11,060 kg, a gross vehicle mass of 18,000 kg, a wheelbase of 5,000 mm, and a top speed of 69 km/h.
Powertrain: Equipped with a TZ480XSLC12BB motor from Hubei Lvchi Precision Electric Drive System Co., Ltd., with a rated power of 120 kW and a peak power of 200 kW. It is equipped with a CATL lithium iron phosphate battery pack and is available nationwide.
Safety Features: Standard ABS (manufactured by Guangzhou Ruili Komi), a motor controller with a speed limit of 69 km/h, and an integrated satellite positioning driving recorder.
Flexible Options: Air conditioning can be removed (reducing the height to 3020mm), the tailgate grille and rear logo can be adjusted, side hatch grilles with different structures can be selected, and the position marker lights can be moved to the roof.
The Dongfeng Chaolong EQ6105CTBEV4 bus (pure electric, 10-40 seats) is suitable for operation on urban trunk and branch routes. Its 10-40 seat configuration meets diverse passenger needs, and its pure electric design balances environmental friendliness with low operating costs.
|
Vehicle parameters/information |
|
|
Announcement Model |
EQ6105CTBEV4 |
|
use |
Public buses |
|
Body length |
10490mm |
|
Body width |
2500mm |
|
Ride height |
3020,3200mm |
|
Vehicle quality |
11000kg |
|
Total mass |
16000kg |
|
Number of seats |
21-40 |
|
Maximum speed |
69km/h |
|
Air conditioning system |
Optional |
|
Audiovisual system |
MP3 player |
|
Auxiliary configuration |
Half-width roller sunshade, fire extinguisher, safety hammer, automatic fire extinguisher in the engine compartment, emergency switches for passenger doors inside and outside the vehicle |
|
Engine/motor parameters |
|
|
motor |
TZ368XS-MFM100G01 |
|
Motor power |
200kW |
|
Motor brand |
Shenzhen Minfu Woneng New Energy Vehicle Co., Ltd. |
|
Chassis parameters/configuration |
|
|
Chassis model |
Unibody |
|
Front and rear suspension |
2380/3110mm |
|
Number of springs |
-/- |
|
Number of axes |
2 |
|
wheelbase |
5000mm |
|
Axle load |
5500/10500kg |
|
Front track |
2070mm |
|
rear track |
1860mm |
|
Approach departure angle |
9/8° |
|
tire |
|
|
Number of tires |
6 |
|
Specification |
275/70R22.5 |
