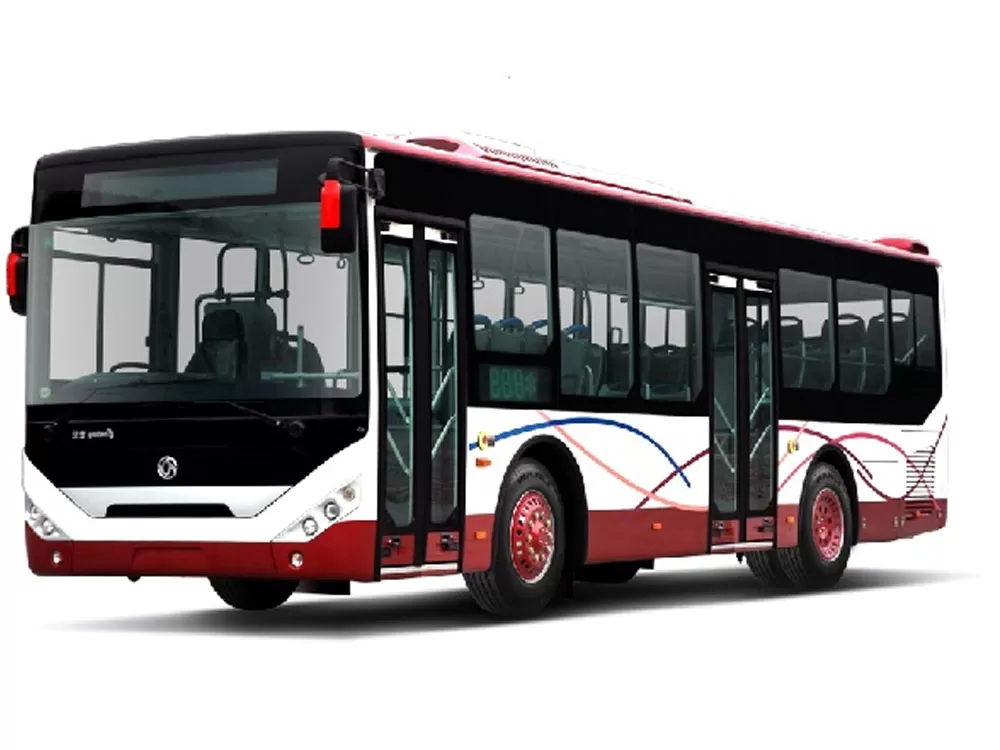

The Dongfeng Chaolong EQ6105CHTN2 Bus (Natural Gas, China V Emission Standard, 20-41 Seats) is a representative model of the Dongfeng Chaolong natural gas powertrain series. Positioned as a medium-sized city bus, the EQ6105CHTN2 boasts a length of 10.5 meters, a monocoque structure, and a top speed of 69 km/h. Equipped with a Yuchai YC6G230N-50 natural gas engine boasting 170 kW and a displacement of 7.8 L, it meets China V emission standards and is suitable for both urban public transportation and group passenger transport.
Flexible Space: Available in a variety of seating configurations, ranging from 20 to 41 seats, with a 5530 mm wheelbase and a 2490 mm width, it balances passenger efficiency and roadworthiness.
Safety and Environmental Protection: Equipped with ABS anti-lock braking system and a satellite-based driving recorder, the natural gas powertrain significantly reduces carbon emissions, meeting China V environmental standards.
Technical Design: Available heights are 3150mm or 3330mm, with 11R22.5 tires and optimized front and rear overhang ratios to accommodate complex road conditions.
The Dongfeng Chaolong EQ6105CHTN2 bus (natural gas National V standard, 20-41 seats) is designed for urban bus routes and short- and medium-distance group transport. Its natural gas powertrain balances economical efficiency and environmental friendliness, making it suitable for high-frequency operations.
|
Vehicle parameters/information |
|
|
Announcement Model |
EQ6105CHTN2 |
|
use |
Public buses |
|
Body length |
10490mm |
|
Body width |
2500mm |
|
Ride height |
3340mm |
|
Vehicle quality |
10400kg |
|
Total mass |
16000kg |
|
Body structure |
Non-load bearing |
|
Number of seats |
20-41 |
|
Maximum speed |
69km/h |
|
Air conditioning system |
Optional Pine roof-mounted air conditioner, 32KW |
|
Audiovisual system |
MP3 player, optional MP4 or MP5 car hard disk player, manual folding display |
|
Auxiliary configuration |
24V, 170W defroster, standard bus seats (29+1), electric wiper motor, front and rear combination lights, half-width sunshade, 800A sunroof, electric fan, interior mirror, fire extinguisher |
|
Engine/motor parameters |
|
|
engine |
WP6NG240E50 |
|
Engine power |
176kW |
|
displacement |
6750mL |
|
Engine brand |
Weichai Power Xigang (Weifang) New Energy Engine Co., Ltd. |
|
Emission standards |
GB11340-2005, GB18285-2005, GB17691-2005 National V |
|
Chassis parameters/configuration |
|
|
Chassis model |
EQ6101HN5AC1 Class III Dongfeng Motor Corporation |
|
Front and rear suspension |
2380/3110mm |
|
Number of springs |
3/4 |
|
clutch |
Single-piece dry type Ø395mm, hydraulic remote control, gas power assist |
|
Number of axes |
2 |
|
wheelbase |
5000mm |
|
Axle load |
5500/10500kg |
|
Front track |
2060mm |
|
rear track |
1860mm |
|
Approach departure angle |
9/8° |
|
tire |
|
|
Number of tires |
6 |
|
Specification |
11R22.5 |
