Cargo-Specific: Developed based on the Dongfeng Chaolong chassis, it meets the National V emission standards and is suitable for urban distribution and regional logistics.
Flexible Layout: Available with 2- or 3-seat cab configurations and a cargo bed volume of 33-34 cubic meters, it supports large cargo loads.
Diesel Power: Equipped with a 140-horsepower diesel engine and a 5-speed manual transmission, it has a maximum load capacity of 3.77 tons, balancing power and economy.
High-Strength Structure: Utilizes a rigid frame and a high-strength steel cargo bed with internal truss tabs for easy cargo securing.
Practical Interior: Designed for durability, the cab features cushioned seats in knitted fabric and air brakes for enhanced comfort on long-distance trips.
Safety features: ABS and EBD systems are standard, along with reflective warning strips around the vehicle body. Modular taillight design reduces maintenance costs.

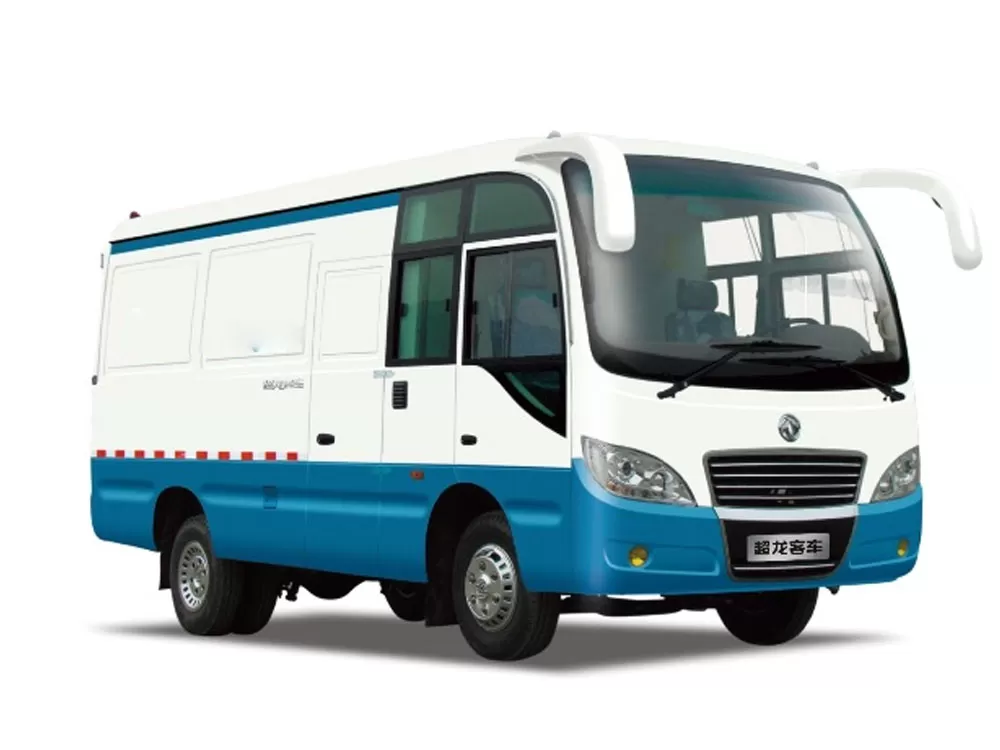

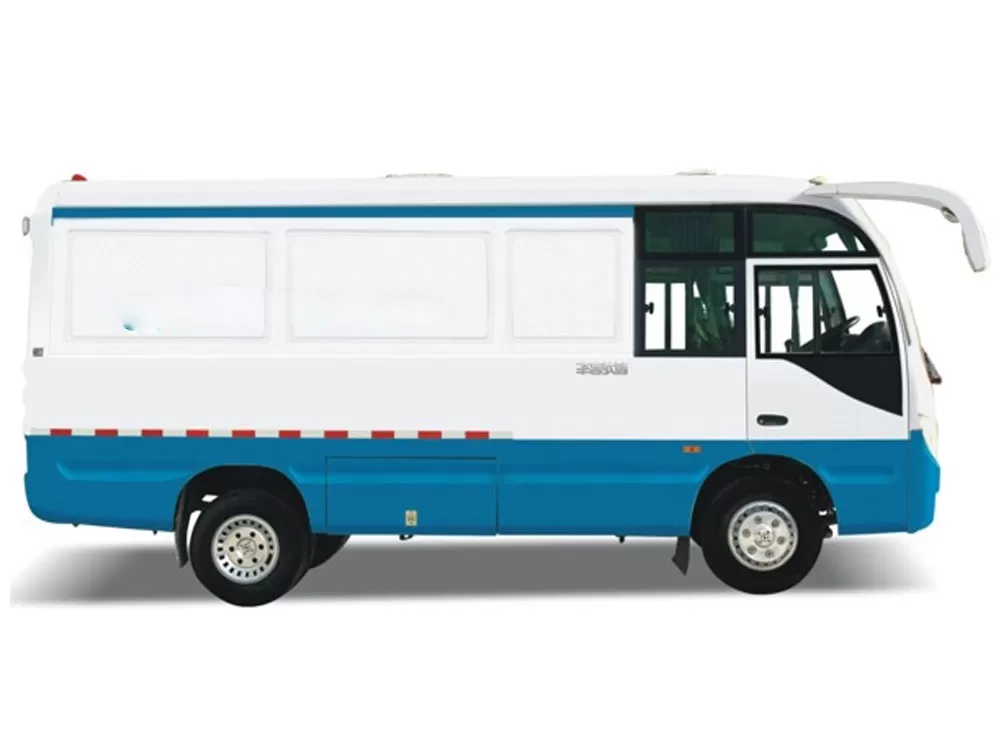

The Dongfeng Chaolong EQ5041XXYTV van (diesel National V standard, 2-3 seats) features a large cargo compartment, high load capacity, and a specialized logistics design to meet efficient transportation needs.
|
Vehicle parameters/information |
|
|
Announcement Model |
EQ5041XXYTV |
|
use |
Special passenger car |
|
Body length |
5990mm |
|
Body width |
2250mm |
|
Ride height |
2870,3030mm |
|
Vehicle quality |
3405kg |
|
Total mass |
4495kg |
|
Body structure |
Non-load-bearing |
|
Maximum speed |
100km/h |
|
Audiovisual system |
MP3 player |
|
Auxiliary configuration |
24V, 130W gear shift defroster; 2 standard seats; electric wipers; front combination headlights, rear combination headlights; PVC floor coverings in the driver's area, iron checkered plate in the cargo area, half-width roll-up sunshade, 1 fire extinguisher (4kg), interior mirror, seat belts, electric fan, air horn |
|
Engine/motor parameters |
|
|
engine |
YC4FA115-50,WP3.7Q113E50 |
|
Engine power |
85,83kW |
|
displacement |
2982,3660mL |
|
Engine brand |
Guangxi Yuchai Machinery Co., Ltd., Weichai Power Yangzhou Diesel Engine Co., Ltd. |
|
Emission standards |
GB17691-2005 National V, GB3847-2005 |
|
Chassis parameters/configuration |
|
|
Chassis model |
EQ6570KZ5AC Class III Dongfeng Motor Corporation |
|
Front and rear suspension |
1160/1530mm |
|
Number of springs |
9/11 |
|
gearbox |
LD535 overspeed gear (4FA115) / JK5S470 overspeed gear |
|
clutch |
Diaphragm spring, clutch assist |
|
Number of axes |
2 |
|
wheelbase |
3300mm |
|
Axle load |
1900/2595kg |
|
Front track |
1750mm |
|
rear track |
1600mm |
|
Approach departure angle |
22/14° |
|
tire |
|
|
Number of tires |
6 |
|
Specification |
7.00-16,7.00R16,7.00-16LT 10PR,7.00R16LT 10PR,7.00-16LT,7.00R16LT |
