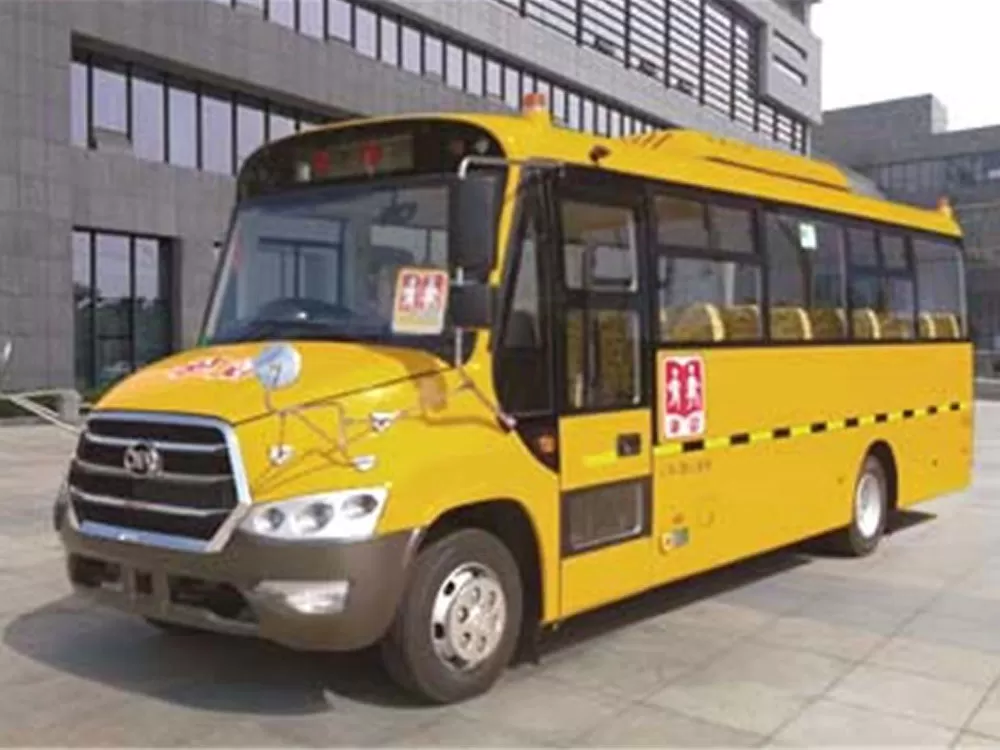

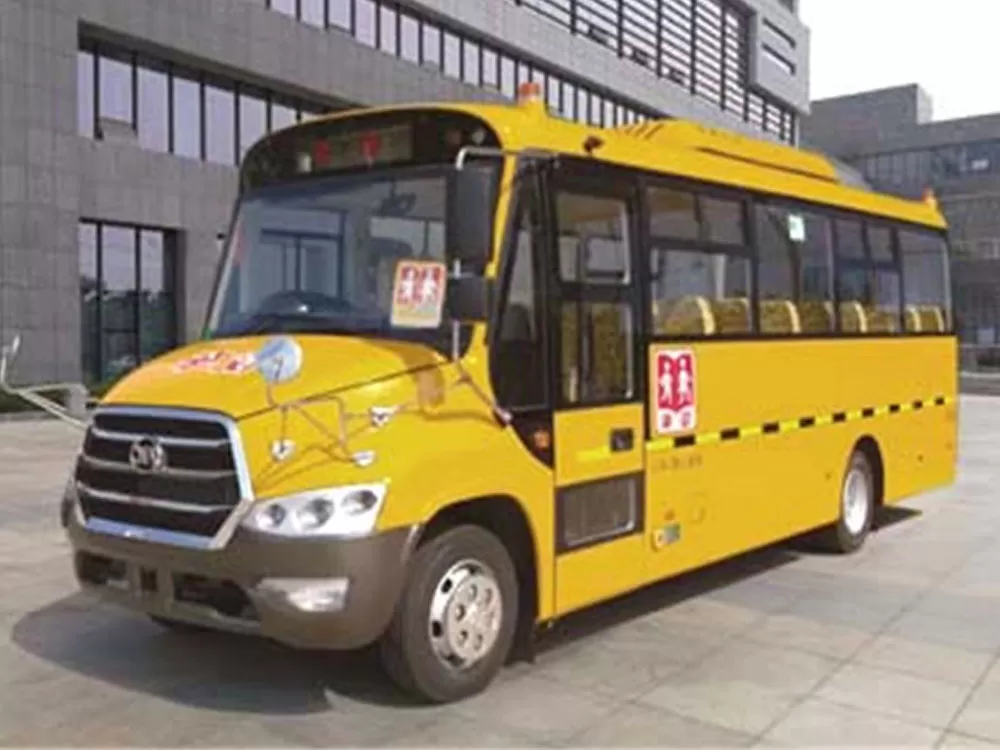

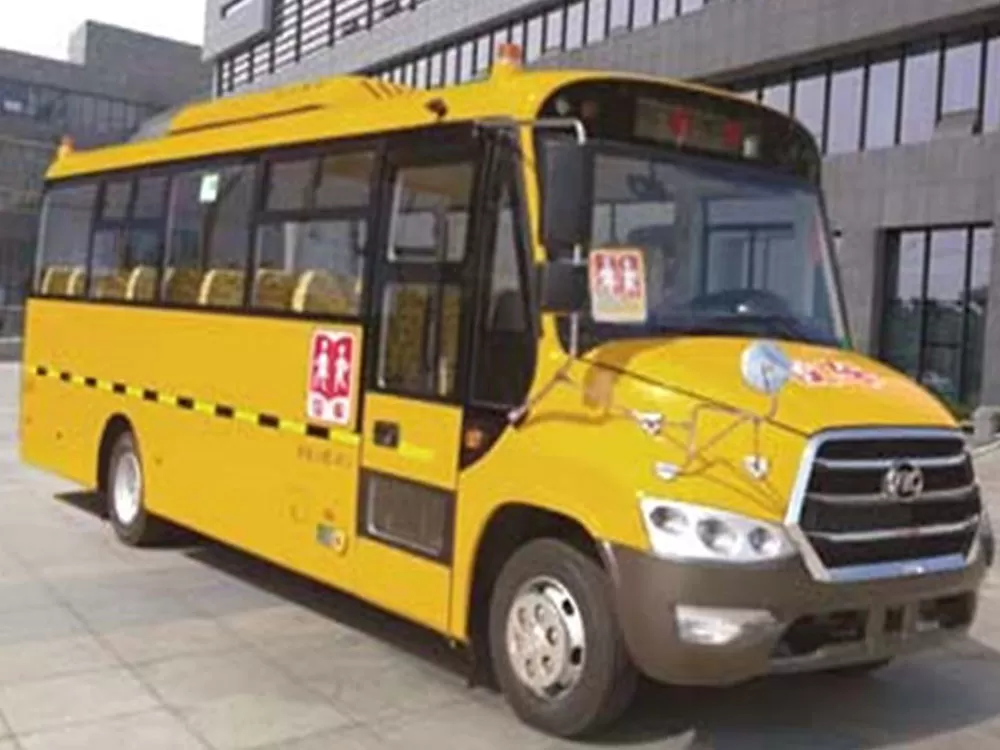

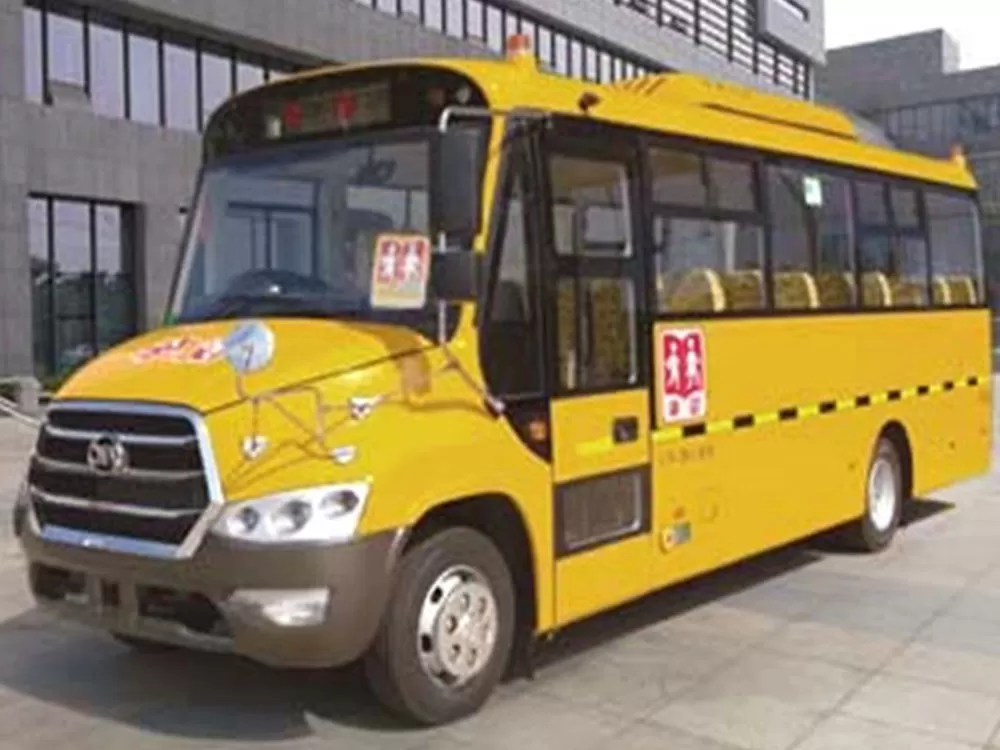

Ankai HFF6801KX51 elementary school bus (diesel National V emission standard, 24-45 seats)

Ankai HFF6801KX51 Elementary School Bus (National V Diesel, 24-45 Seats)

Ankai HFF6801KX51 Sets a New Standard in School Bus Safety. The 2025 HFF6801KX51 is a National V diesel school bus designed by Ankai Bus specifically for elementary school student safety, offering a wide range of seating configurations from 24 to 45. The vehicle features a fully monocoque structure and is equipped with a high-efficiency Weichai engine. It has passed the EU ECE R66 rollover certification and integrates multiple active safety systems, providing a comprehensive barrier of protection for students.

Technical Highlights

Weichai National V Powertrain

Equipped with a WP4.1Q140E50 diesel engine (103kW) featuring high-pressure common rail and SCR technology, it achieves fuel consumption as low as 18L/100km and complies with the GB17691-2005 National V emission standard. It is paired with a Fast 6-speed transmission, improving shifting smoothness by 25%, making it suitable for complex urban and rural road conditions.

Exclusive Safety Design

A 360-degree panoramic imaging system and an anti-forgetting alarm provide real-time monitoring for boarding and alighting safety.

The emergency escape window features a blast-out design, opening quickly within 3 seconds in an emergency.

Intelligent Operation Configuration

An integrated school bus-specific GPS monitoring platform allows parents to check the vehicle's location in real time.

Optional temperature monitoring and air purification systems enhance health protection.

Vehicle Configuration

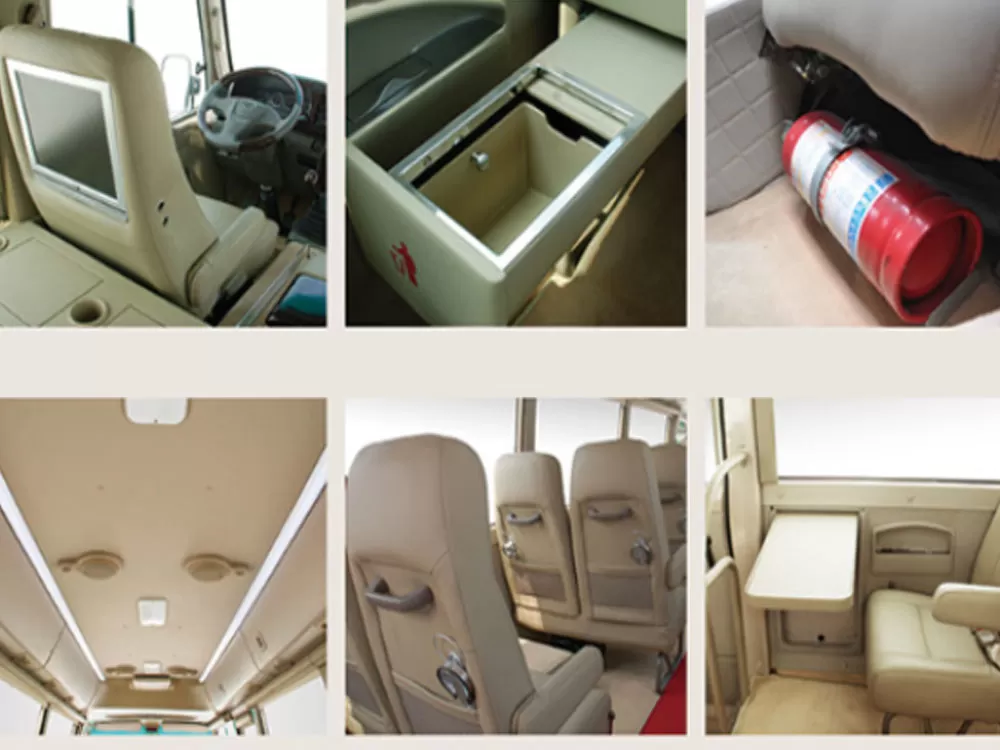

Standard School Bus Edition (24-32 Seats)Features a 2+2 dedicated child seat with a centralized seatbelt release mechanism. High-end models can be equipped with optional UV-resistant glass and a first aid kit, meeting the needs of high-standard school bus operations.

Customized Commuter Edition (33-45 Seats)Optimized standing room, anti-slip handrails, and a backpack storage area are included. Optional smart card swiping and wireless internet access enhance commuting convenience.

The vehicle has passed 300,000 km of high-altitude and high-temperature testing, and its 5,000mm wheelbase ensures cornering agility in narrow roads. The 29° approach angle design is suitable for unpaved rural roads and is the safest choice for school bus operations.
