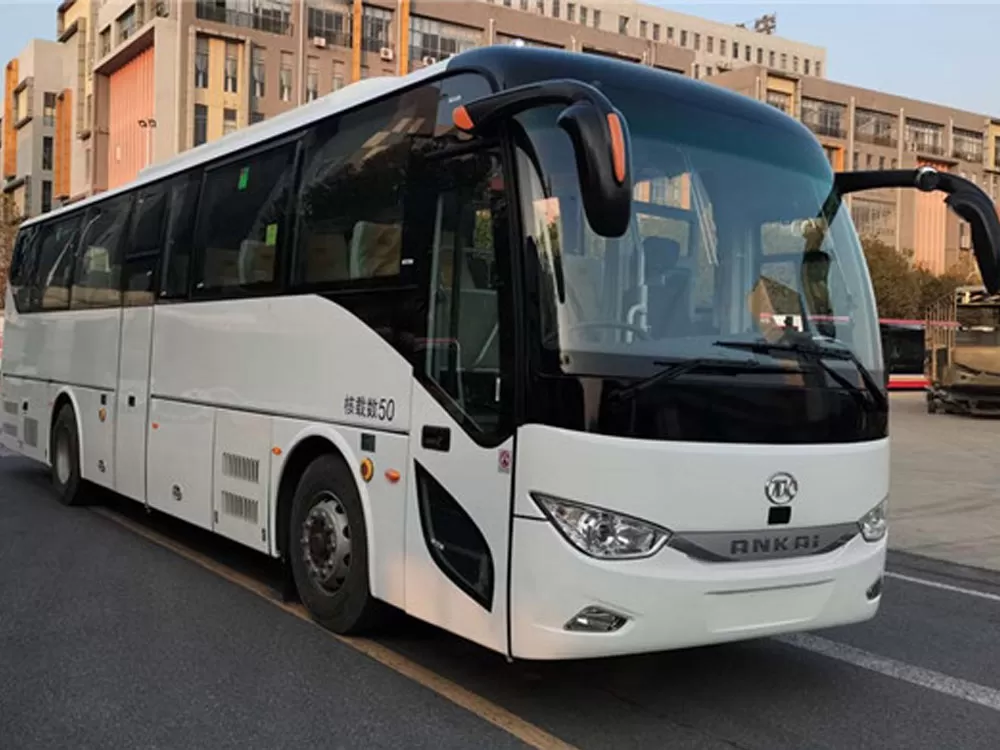

Ankai HFF6140A9D6Y Bus (China VI Diesel, 24-56 Seats)
Ankai HFF6140A9D6Y China VI Diesel Bus: The All-Round Choice. The 2025 HFF6140A9D6Y is a diesel-powered model designed by Ankai Bus for medium- and long-distance passenger transport and group travel, offering flexible seating arrangements of 24-56 seats. Adhering to China VI emission standards and equipped with a highly efficient diesel engine, the vehicle delivers powerful power and excellent fuel economy, making it a reliable choice for medium- and long-distance passenger transport and group travel.
Technological Breakthrough
The efficient diesel powertrain is equipped with a YCK08330-60 diesel engine, boasting a maximum power of 243 kW, offering smooth and responsive power delivery. Paired with a 6-speed automatic manual transmission, it offers smarter shifting and a more comfortable driving experience.
Intelligent Chassis System
Comfort Edition: Equipped with air suspension, it effectively reduces bumps and enhances ride comfort.
Enhanced Edition: Equipped with a steel plate suspension, it offers increased load capacity and adapts to complex road conditions.
Environmental Protection and Safety
Meets China VI emission standards, offering leading environmental performance. Standard safety features such as ABS and vehicle stability control provide a safer ride.
Vehicle Matrix
Passenger Standard Edition (24-40 seats): Optimized seating layout provides spacious passenger space. Premium seats and independent air conditioning vents enhance long-distance comfort.
Group Custom Edition (41-56 seats): Extended to 11 meters, it features a large luggage compartment. Optional features include an in-car entertainment system and folding tables to meet group travel needs.
Standard satellite-based driving recorder supports intelligent fleet management.
Optional ETC device improves traffic efficiency. This vehicle undergoes rigorous testing, and the engine comes with an extended warranty. Leveraging Ankai's established after-sales network, we provide full lifecycle service support.
Vehicle parameters/information
|
Announcement Model
|
HFF6140A9D6Y
|
use
|
Passenger bus, tourist bus, group bus
|
Body length
|
13700mm
|
Body width
|
2550mm
|
Ride height
|
3780mm
|
Vehicle quality
|
15300kg
|
Total mass
|
20300kg
|
Number of seats
|
24-56
|
Maximum speed
|
100km/h
|
Engine/motor parameters
|
engine
|
WP10H400E62
|
Engine power
|
294/399kW
|
displacement
|
9500mL
|
Engine brand
|
Weichai Power Co., Ltd.
|
Emission standards
|
National VI
|
Chassis parameters/configuration
|
Front and rear suspension
|
2620/3230mm
|
Number of springs
|
-/-/-
|
Number of axes
|
3
|
wheelbase
|
6500+1350mm
|
Axle load
|
5800/14500 (two-axle group) kg
|
Front track
|
2075,2060mm
|
rear track
|
1860/2100mm
|
Approach departure angle
|
8/8°
|
tire
|
Number of tires
|
8
|
Specification
|
295/80R22.5
|
