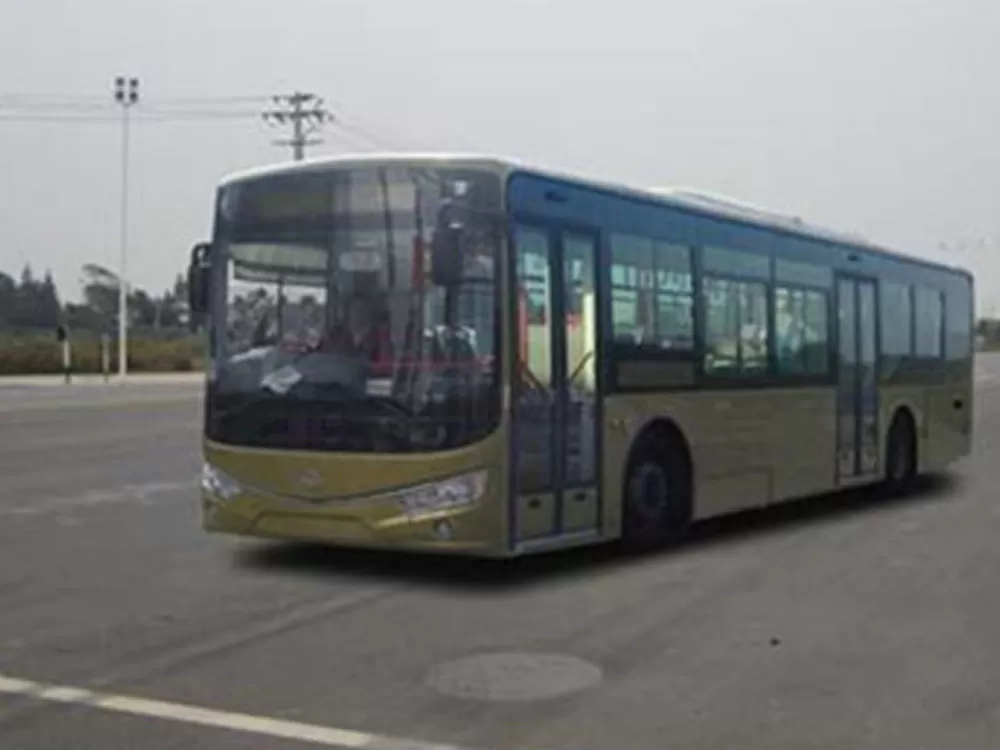

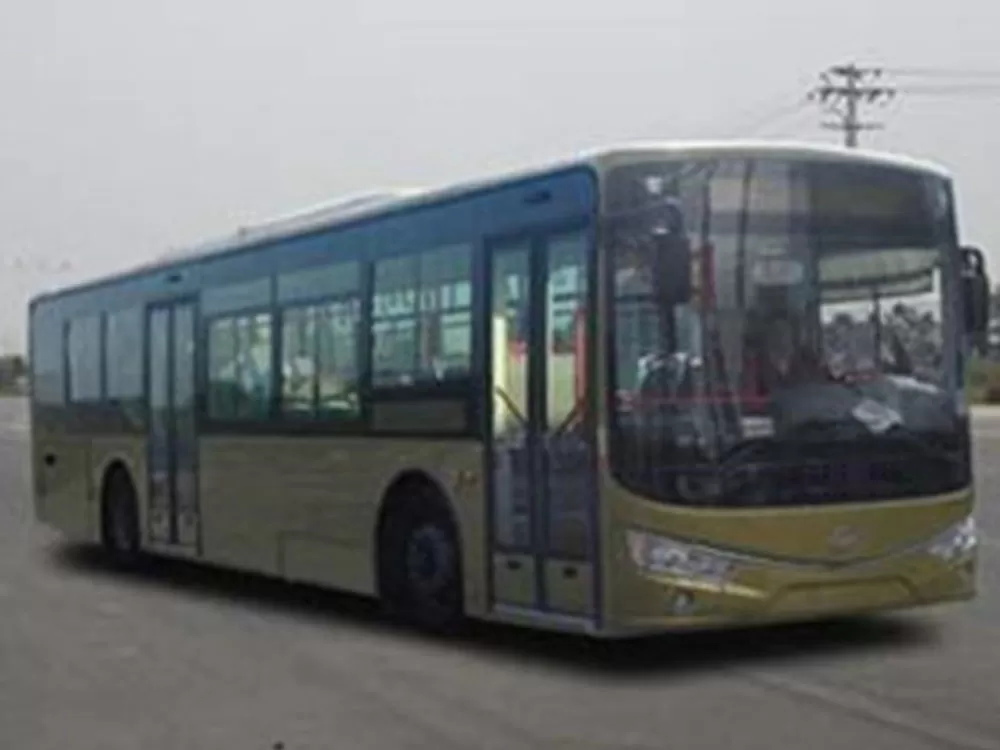

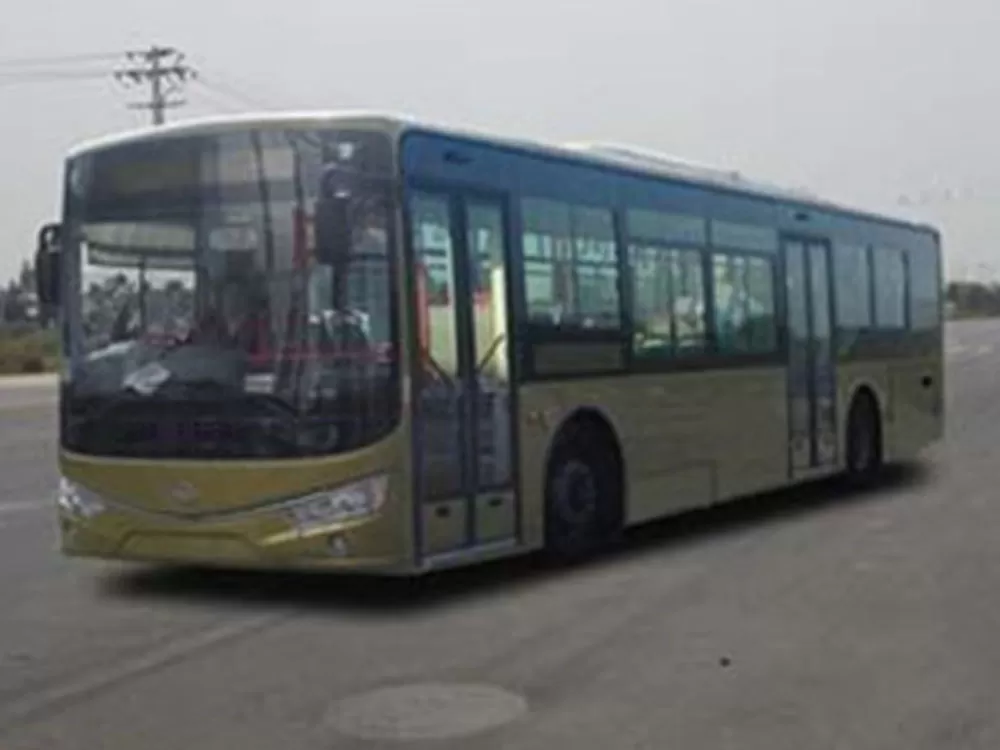

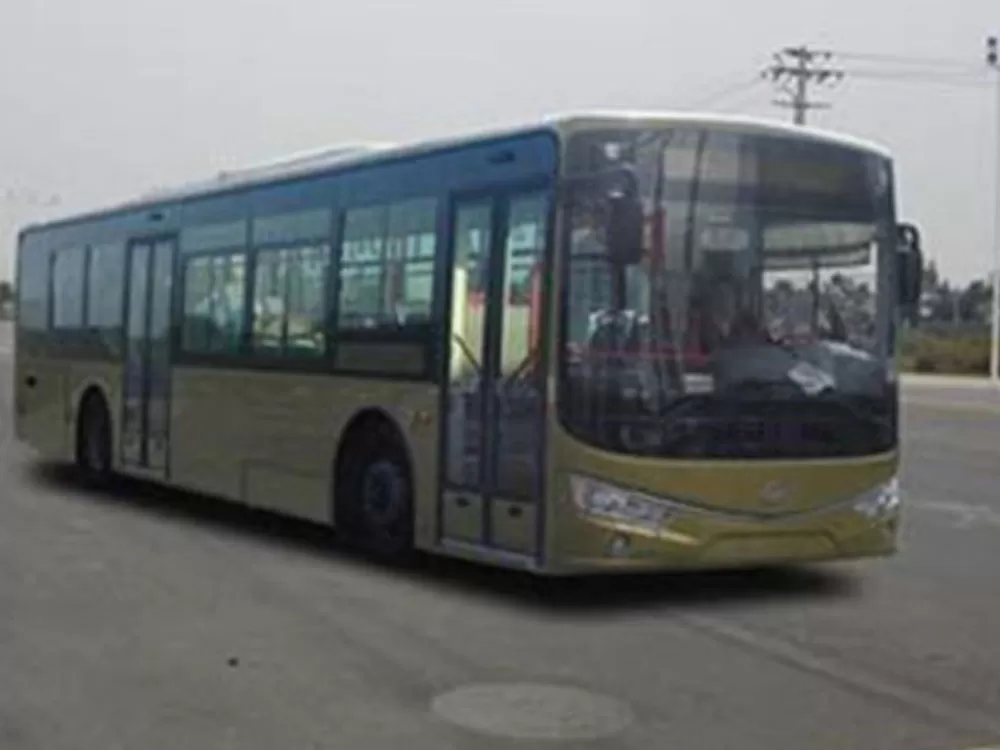

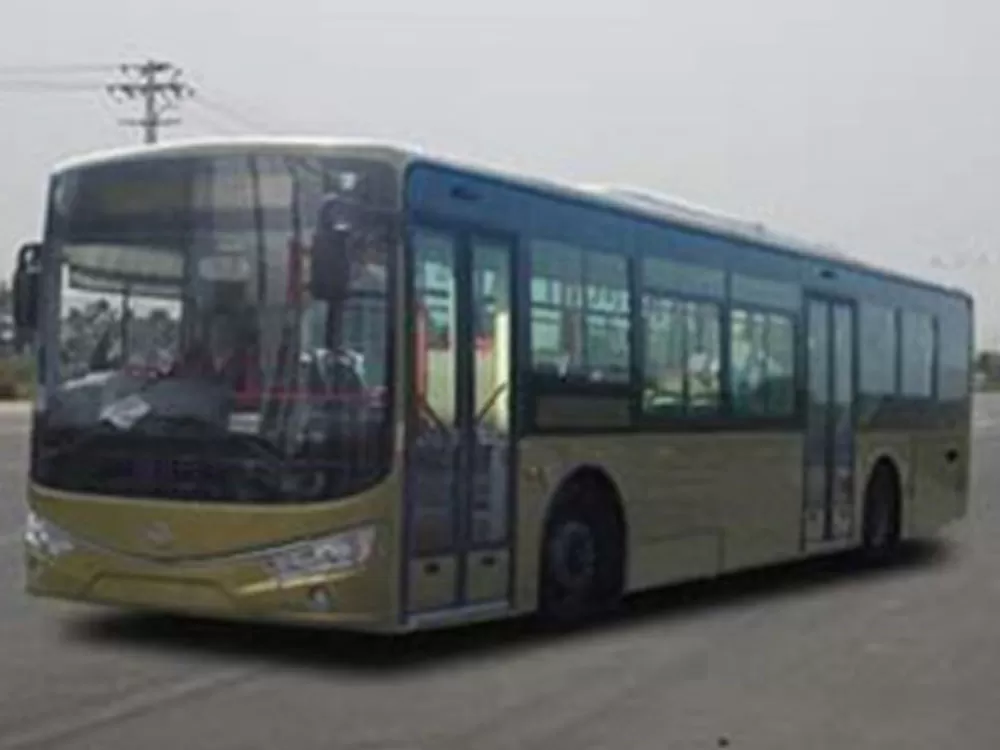

Ankai HFF6129G03EV-41 bus (pure electric 10-45 seats)

Ankai HFF6129G03EV-41 Bus (Pure Electric, 10-45 Seaters)

Pure Electric Powertrain

Equipped with a high-energy-density lithium iron phosphate battery from CATL, boasting a capacity of 350kWh, it boasts a range exceeding 400km under CLTC conditions and supports dual-charger fast charging (80% battery life in 30 minutes). The motor utilizes permanent magnet synchronous technology, boasting a peak power of 240kW and an acceleration time of 0-50km/h of ≤8 seconds, making it suitable for high-frequency urban start-stop scenarios.

Vehicle Segments and Scenarios

High-Density Commuter Edition: 45-seat 3+2 layout, featuring a lightweight seat design and optimized battery compartment layout. With a body length of 12 meters and a wheelbase of 6.8 meters, it is ideal for transporting high passenger volumes during peak hours.

Flexible Shuttle Edition: 24-seat low-floor design, equipped with electric wheelchair guides and barrier-free facilities. With a body length of 10.5 meters and a turning radius of ≤12 meters, it is suitable for community micro-circulation and scenic area shuttles.

Smart Bus Edition: Integrates the Internet of Vehicles 4.0 system, supports remote OTA updates, and is equipped with a smart dispatch terminal and passenger counting cameras, making it compatible with smart city bus networks.

Intelligent and Safety Features

Intelligent Driving: Standard features include Automatic Emergency Braking (AEB) and Lane Departure Warning (LDWS), with an optional Level 2 automated driving assistance system (including ACC).

Energy Management: The intelligent heat pump air conditioning system reduces winter energy consumption by 15%, and brake energy regeneration efficiency is increased to 25%, resulting in an overall energy consumption of ≤0.8 kWh/km.

Safety Protection: The battery compartment meets IP68 protection standards, has passed extreme tests such as needle penetration and crushing, and is equipped with a 24-hour battery status monitoring system.

Volume deliveries began in first-tier cities such as Beijing and Shanghai in 2025. Customer feedback indicates excellent endurance stability in high summer temperatures (actual endurance rate ≥ 95%). Each vehicle reduces carbon emissions by approximately 50 tons annually and has been certified as a China Green Product. The modular battery design supports quick replacement, county-level maintenance service coverage is 100%, and the warranty period of key components is extended to 8 years/600,000 kilometers.
