Ankai HFF6120GS03EV double-decker bus (pure electric 40-63 seats)

Ankai HFF6120GS03EV Double-Decker Bus (Pure Electric, 40-63 Seaters)

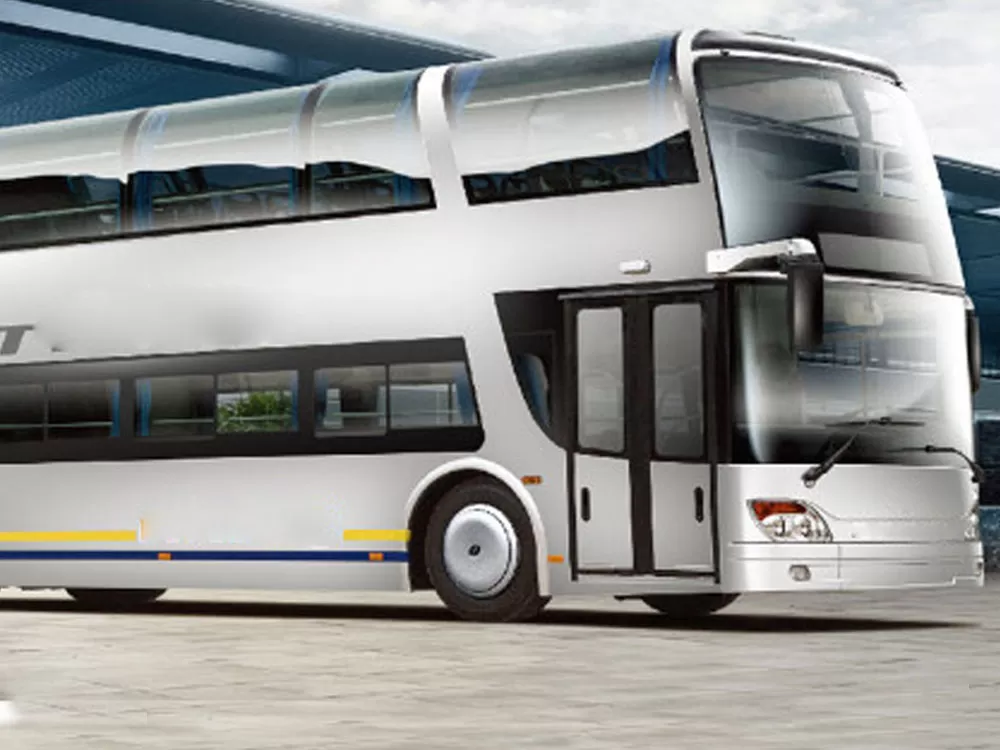

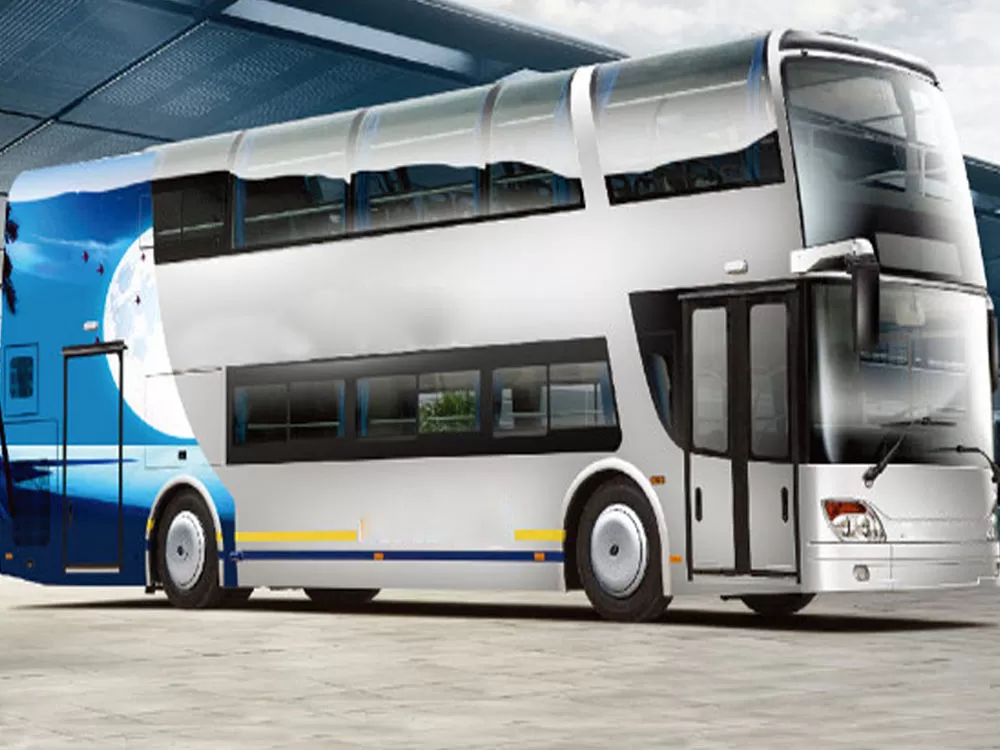

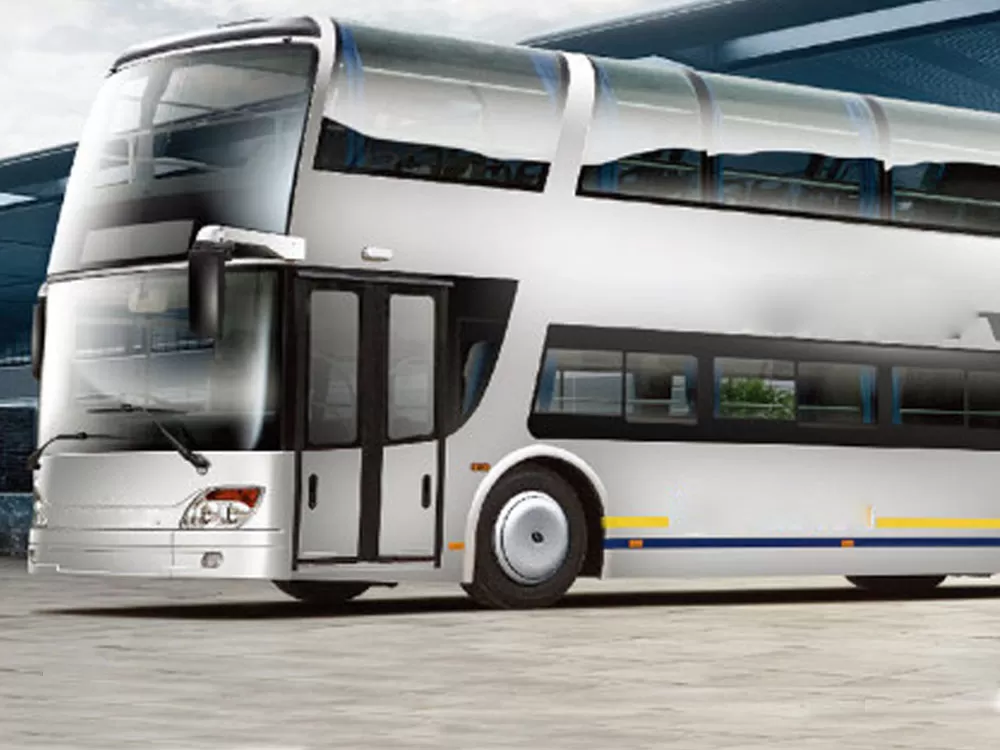

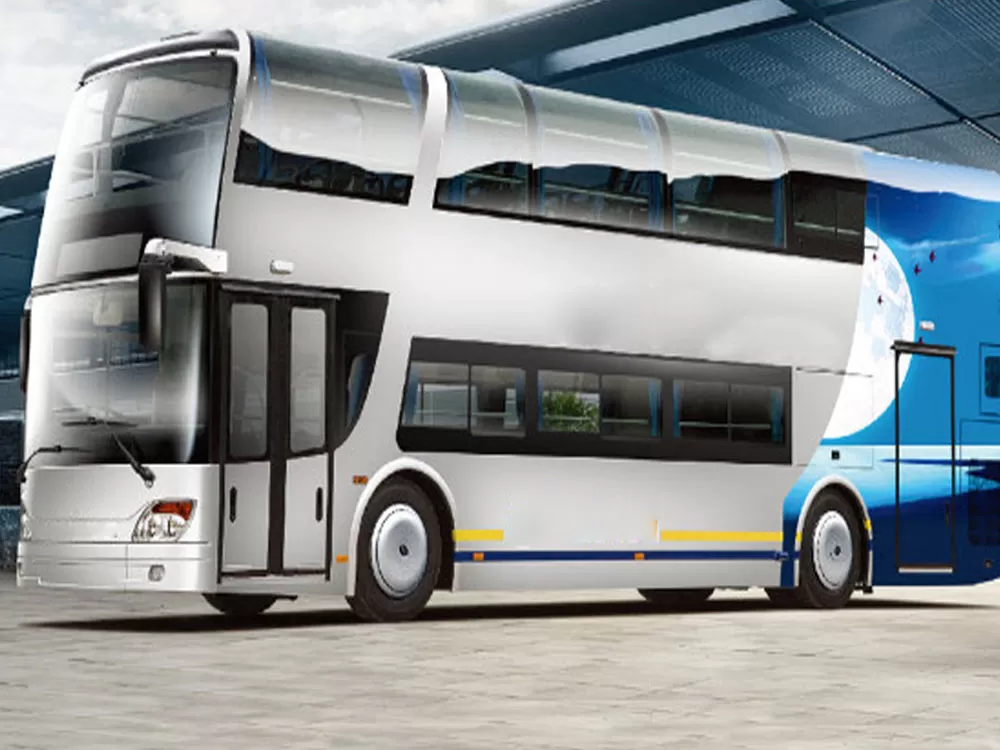

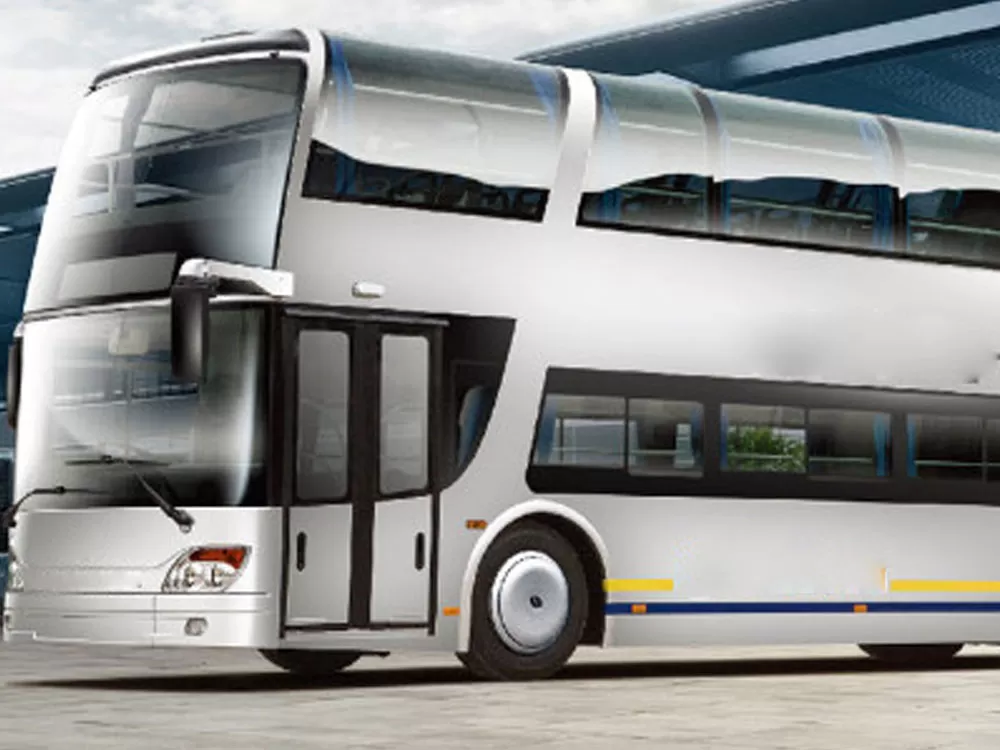

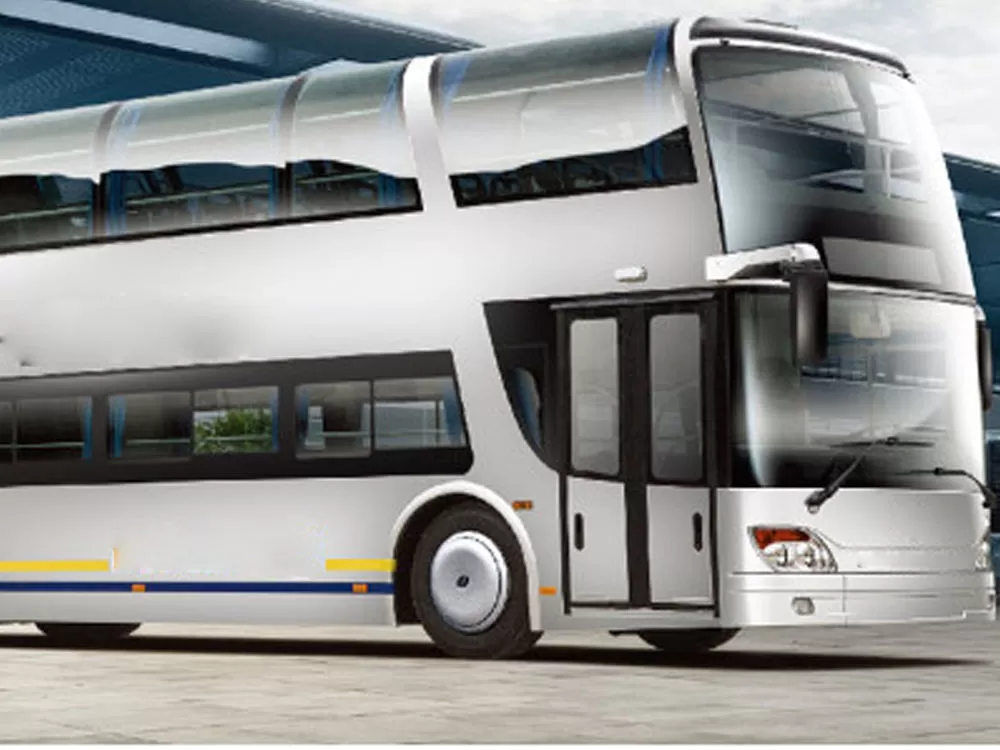

The Ankai HFF6120GS03EV is a pure electric double-decker city bus, 12 meters long and 2.55 meters wide. It features a low-floor design (one-step) and airbag suspension, with a rated capacity of 40-63 seats (expandable to 99). It is equipped with a permanent magnet synchronous motor drive system, boasting a peak power of 200kW and a top speed of 69 km/h. It is equipped with a high-capacity CATL battery pack and supports an all-in-one intelligent controller to optimize energy efficiency.

Fitting and Interior

The vehicle features a fully monocoque structure with a three-axle wheelbase (specific parameters have not been disclosed), a curb weight of 18.5 tons, and a gross vehicle mass of 25 tons. Safety features include a dual-circuit air brake system, air suspension with two front, four middle, and two rear suspension arms, and the "Ankai E-Control" remote monitoring terminal to ensure driving stability. The interior features a panoramic sunroof and large picture windows on the upper deck, orange and white soft-padded leather seats with integrated cup holders, tabletops, and other personalized features, creating a perfect backdrop for city sightseeing.

Features

This bus model was once used on Beijing public transportation systems. Its double-decker design was visually recognizable and served as a city tourism icon. The second-floor interior offers a comfortable atmosphere with LED lighting and electric heating and cooling. An LCD screen displays cultural content, and the low-floor design enhances the passenger experience. This model has been discontinued, but some vehicles remain in service on selected routes.
