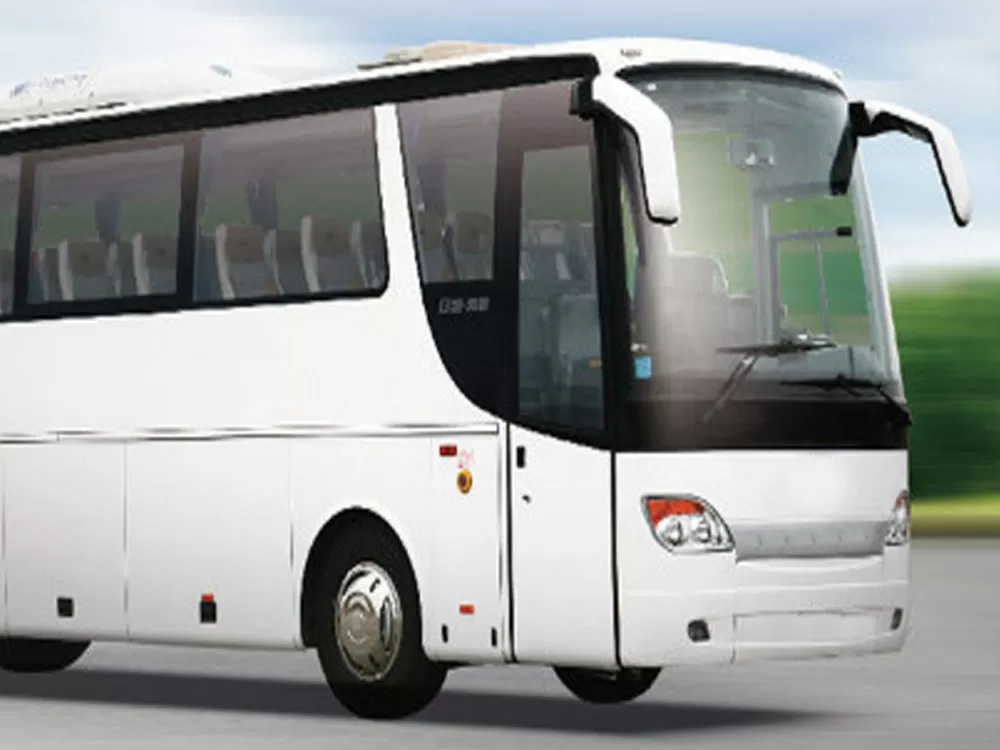

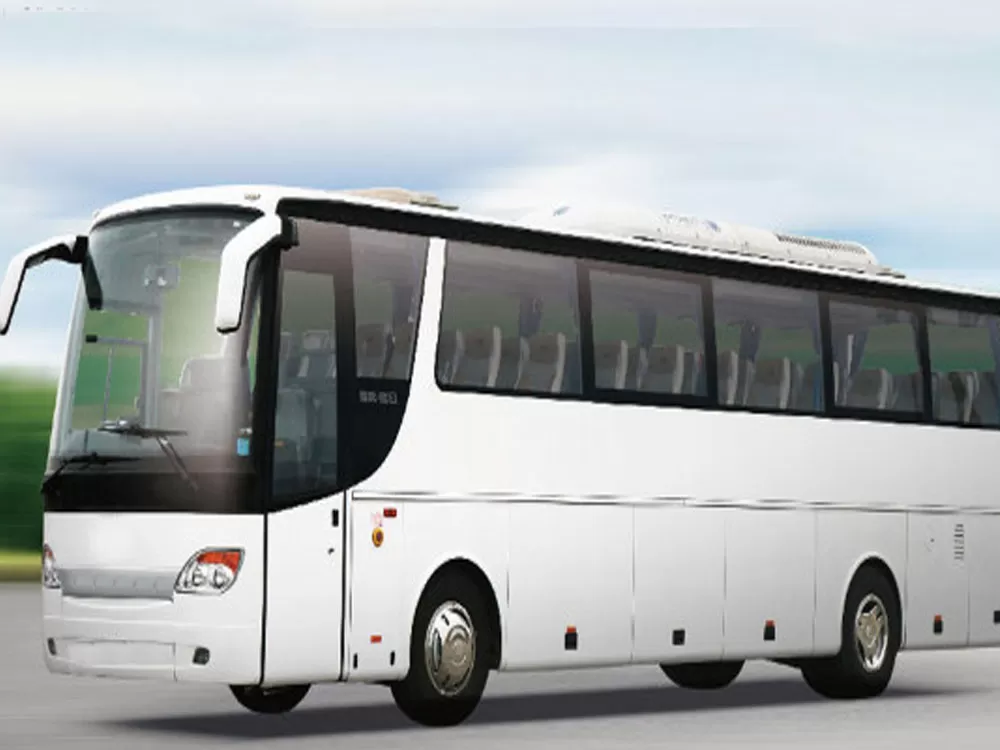

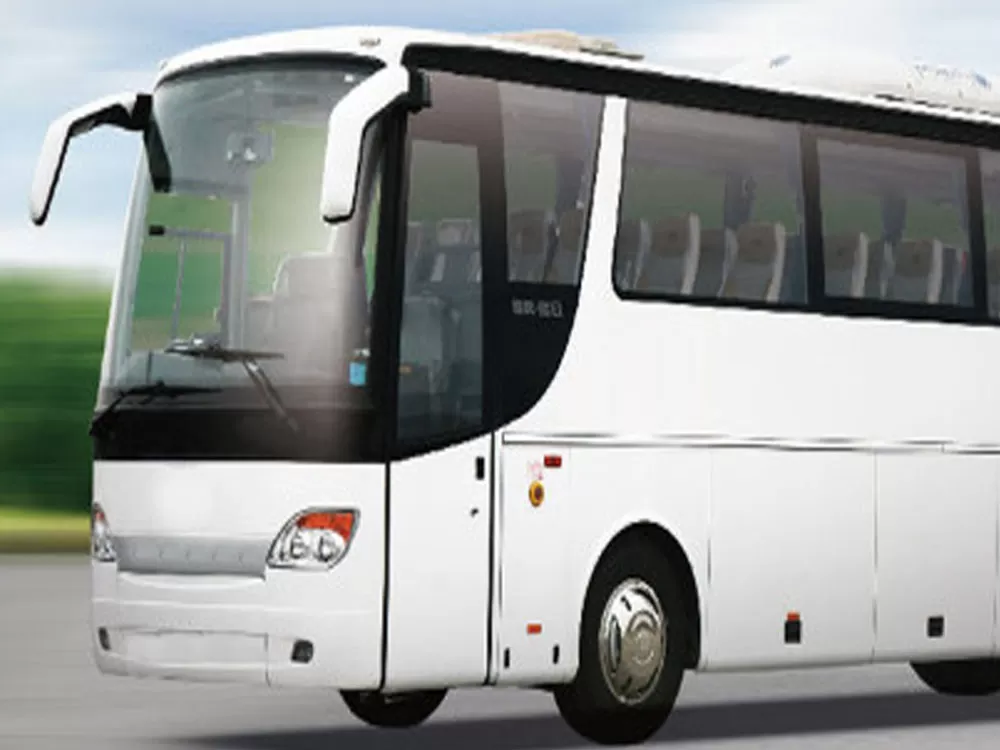

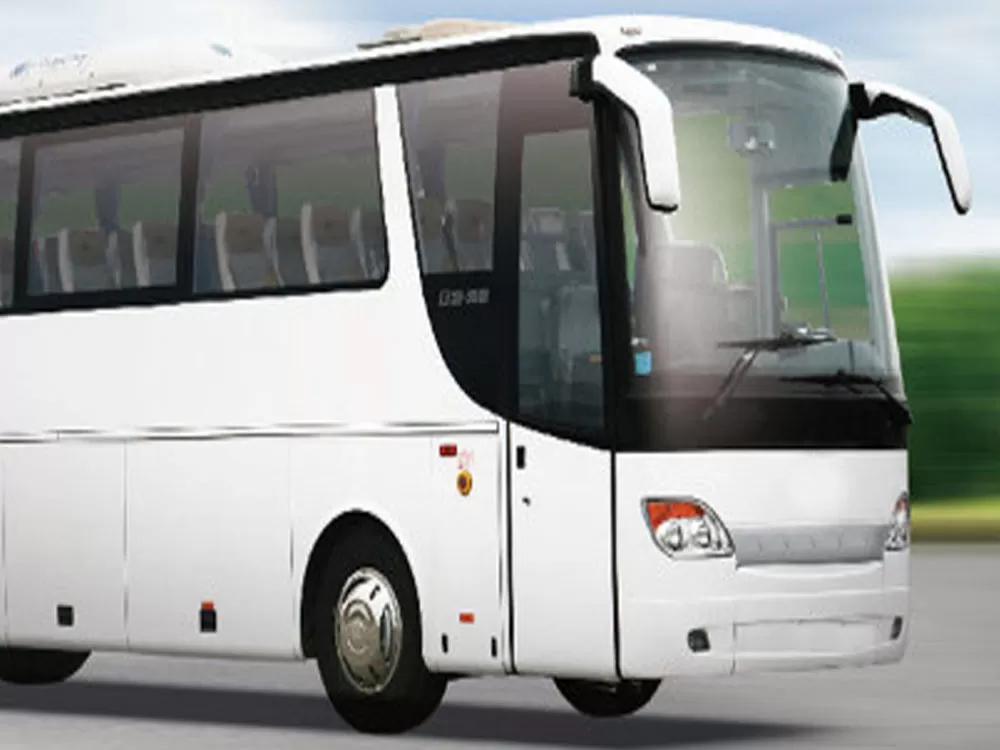

Ankai HFF6111K10EV1 bus (pure electric, 24-53 seats)

Ankai HFF6111K10EV1 Bus (Pure Electric, 24-53 Seats)

Pure Electric Power System

Battery Technology: Equipped with CATL's high-energy-density lithium iron phosphate battery, with a capacity of 350kWh, achieving a CLTC range of over 400km and supporting dual-gun fast charging (80% recharge in 30 minutes). Motor Performance: Uses a permanent magnet synchronous motor with a peak power of 240kW, accelerating from 0-50km/h in ≤8 seconds, suitable for frequent stop-and-go urban traffic.

Vehicle Variants and Application Scenarios

High-Density Commuter Version: 53-seat 3+2 layout, 12m length, 6.8m wheelbase, with a large-capacity battery pack, optimized for peak-hour commuter transport.

Comfortable Tour Bus Version: 45-seat 2+2 airline-style seating, with fold-down tables, USB ports, and Wi-Fi, 850mm seat spacing, targeting the high-end tourism charter bus market.

Flexible Shuttle Bus Version: 24-seat low-floor design, with a wheelchair ramp and accessibility features, turning radius ≤12m, suitable for community shuttle services and tourist area transportation.

Intelligent and Safety Features

Intelligent Driving: Standard features include AEB (Automatic Emergency Braking) and LDWS (Lane Departure Warning System); optional L2-level autonomous driving assistance system (including ACC Adaptive Cruise Control).

Energy Management: Intelligent heat pump air conditioning system reduces energy consumption by 15% in winter, regenerative braking efficiency reaches 25%, and overall energy consumption ≤0.8kWh/km.

Safety Protection: The battery compartment meets IP68 protection standards, passing extreme tests such as puncture and crush, and features a 24-hour battery status monitoring system.

Urban Deployment: Mass production and delivery to major cities like Beijing and Shanghai are planned for 2025. User feedback indicates excellent range stability even in high-temperature summer conditions (actual range achievement rate ≥95%). Environmental Benefits: Each bus reduces annual carbon emissions by approximately 50 tons and has received China's Green Product Certification. Maintenance convenience: The modular battery design allows for quick replacement; 100% coverage of repair services at the county level; and the warranty period for key components has been extended to 8 years/600,000 kilometers.
