Ankai HFF6109K10EV-3 bus (pure electric 24-51 seats)

Ankai HFF6109K10EV-3 Bus (Pure Electric, 24-51 Seats)

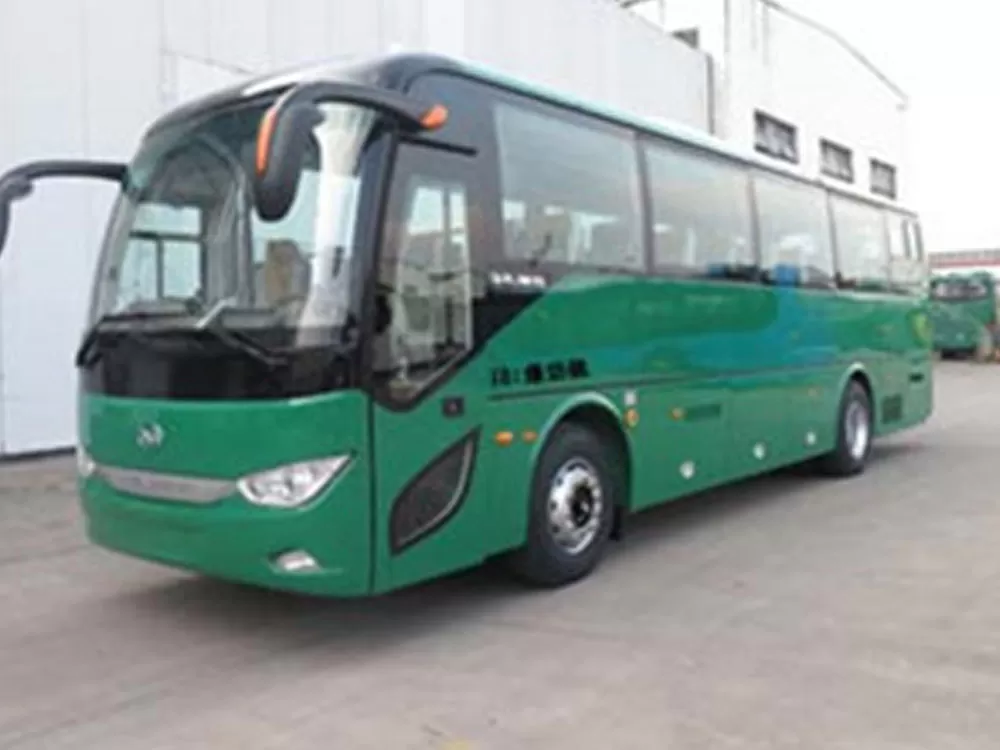

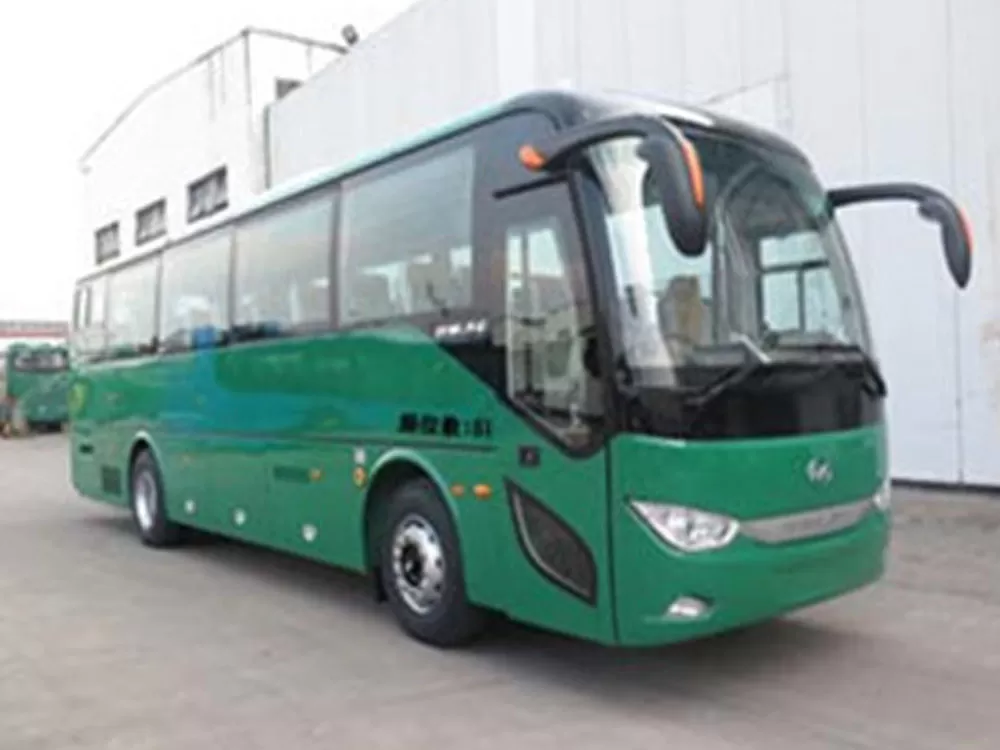

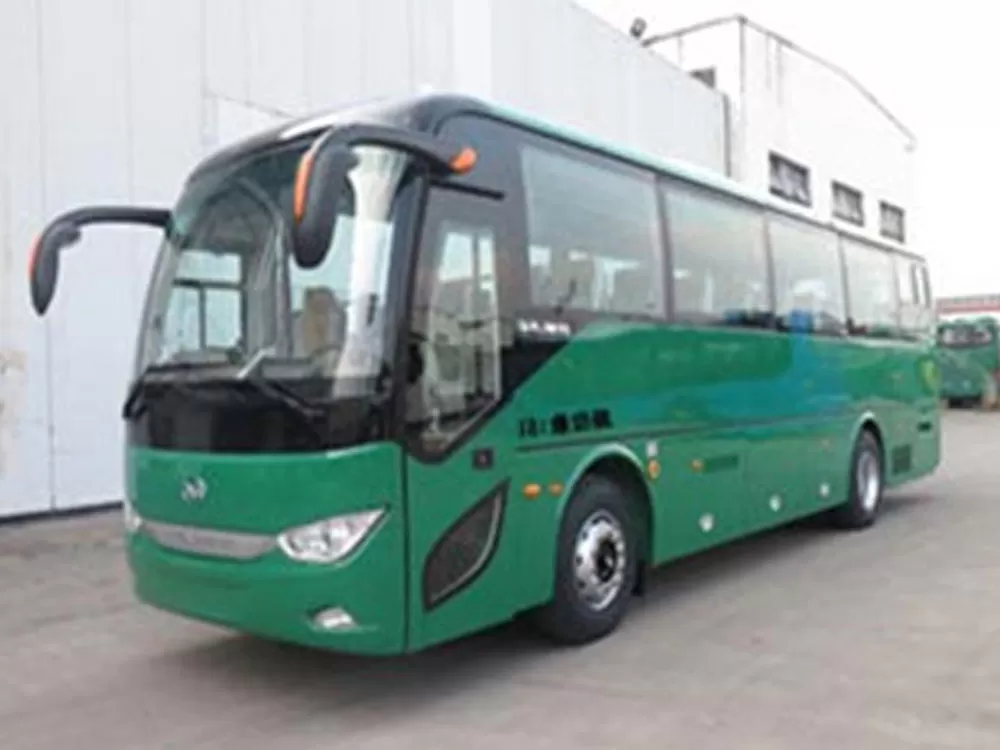

Ankai HFF6109K10EV-3: The green energy of pure electric buses. The 2025 HFF6109K10EV-3 is a pure electric bus designed by Ankai Bus for medium- and long-distance passenger transport and group travel, offering flexible configurations of 24-51 seats. The vehicle features a fully monocoque design, equipped with a permanent magnet synchronous motor and a lithium iron phosphate battery pack. Its CLTC range exceeds 400 kilometers, and it supports dual-charger fast charging and intelligent energy management, achieving a perfect combination of zero emissions and efficient operation.

Technical Highlights

The highly efficient powertrain, equipped with a permanent magnet synchronous motor (peak power of 180kW), accelerates from 0 to 50 km/h in just 12 seconds and reaches a top speed of 100 km/h. Its unique intelligent torque distribution technology increases energy recovery efficiency to 85%, significantly reducing operating costs.

Intelligent Energy Management

Equipped with a 282kWh lithium iron phosphate battery pack, it supports dual-charger fast charging in 1.5 hours (SOC 0-80%). A battery preheating system is standard across all models, ensuring reliable starting even in temperatures as low as -30°C.

Safe and Comfortable Architecture

The high-strength steel body is rollover-certified and comes standard with EBS (Electric Braking System) and Lane Departure Warning.

The six-airbag air suspension automatically adjusts vehicle height based on load, enhancing passenger comfort.

Vehicle Configuration

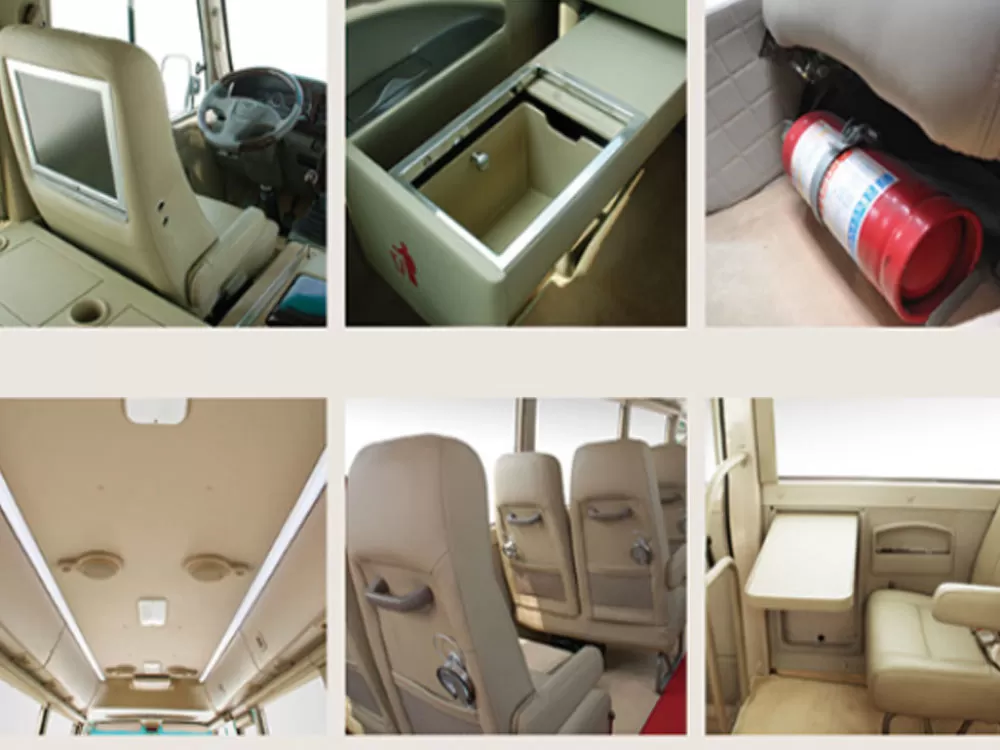

The Standard Passenger Edition (24-32 seats) features a 2+2 seating layout and is equipped with pneumatic swing doors and manual emergency exits. Higher-end models can be equipped with optional water dispensers and luxurious interior features, meeting the high-end travel needs of tour groups.

The Custom Commuter Edition (33-51 seats) offers enhanced standing room (capacity up to 90 passengers), non-slip handrails, and a large luggage rack. Optional 360-degree surround-view cameras and blind-spot monitoring enhance safety in complex road conditions.

The vehicle has passed 500,000 km of high-altitude and cold-weather testing, and its 6,000mm wheelbase ensures cornering flexibility. It supports V2G vehicle-to-grid interaction technology, providing reverse power during off-peak hours, reducing overall operating costs by 30%. Its three-electric system comes with an extended 8-year/500,000 km warranty, making it an ideal choice for upgrading green passenger transport.
