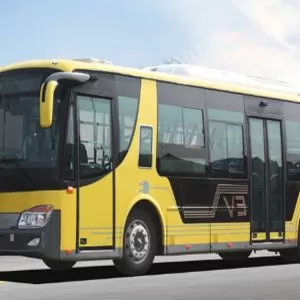

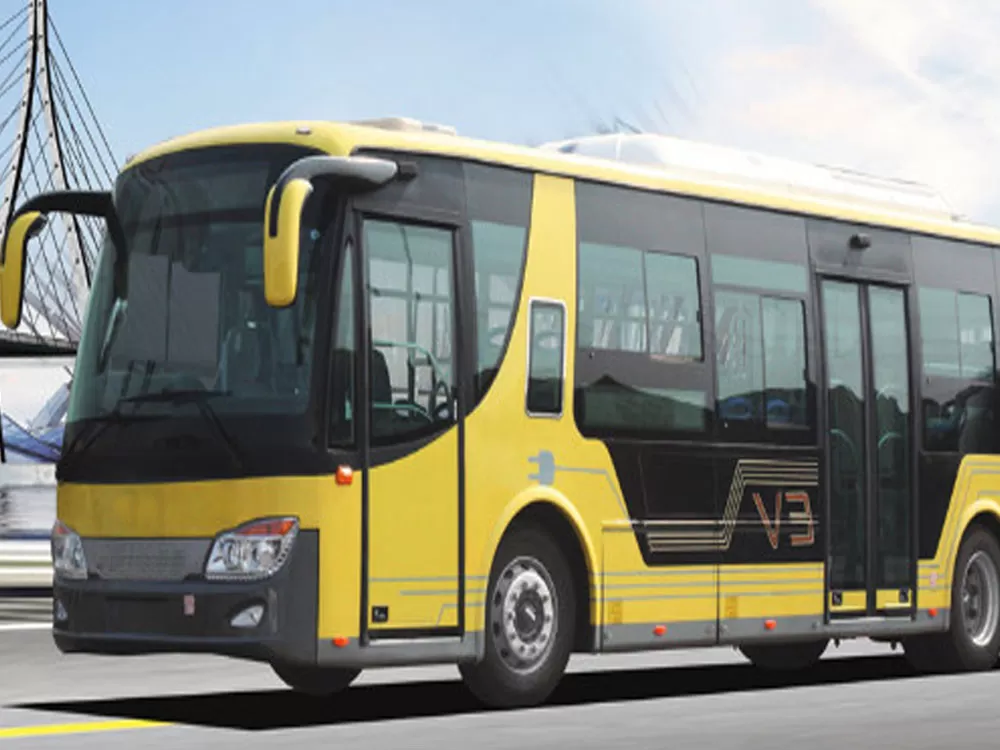

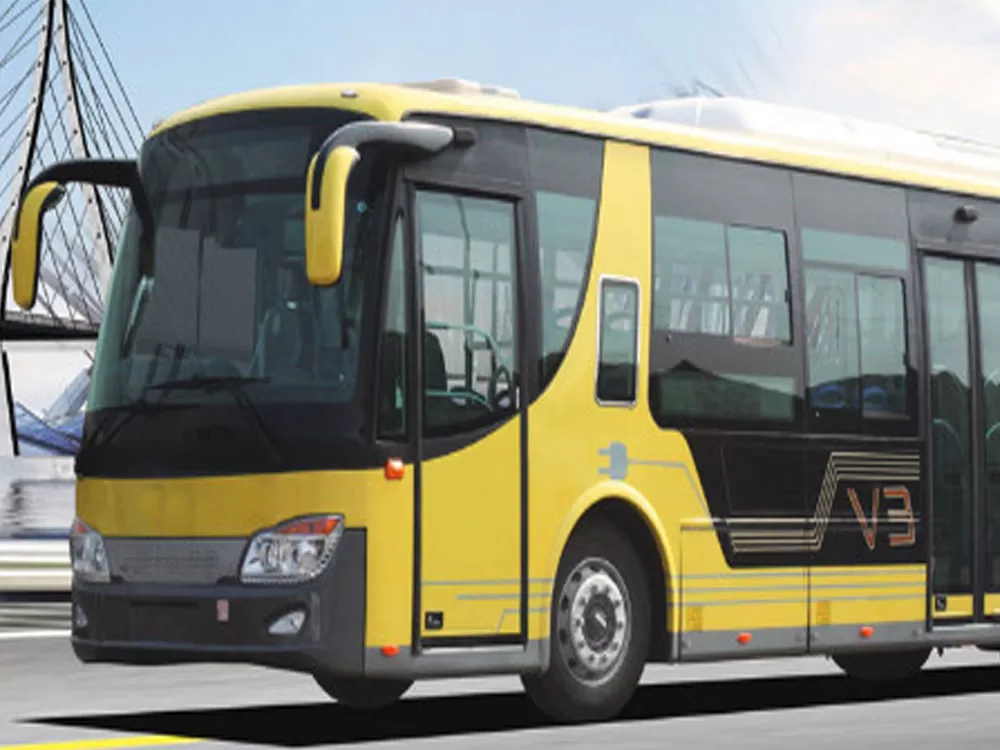

Ankai HFF6101K10EV bus (pure electric, 24-47 seats)

Ankai HFF6101K10EV Bus (Pure Electric, 24-47 Seats)

Pure Electric Power System

Battery Technology: Equipped with CATL (Contemporary Amperex Technology Co., Ltd.) high-energy-density lithium iron phosphate batteries, with a capacity of up to 350kWh, and a CLTC rated range exceeding 400km. Supports dual-gun fast charging (80% recharge in 30 minutes). Motor Performance: Uses a permanent magnet synchronous motor with a peak power of 240kW, 0-50km/h acceleration time ≤8 seconds, suitable for frequent stop-and-go urban traffic.

Vehicle Variants and Application Scenarios

High-Density Commuter Version: 47-seat 3+2 layout, 10.5m length, 5150mm wheelbase, equipped with a large-capacity battery pack, optimized for peak-hour commuter transport.

Comfortable Tour Bus Version: 35-seat 2+2 airline-style seating, 850mm seat spacing, with fold-down tables, USB ports, and Wi-Fi, targeting the high-end tourism charter bus market.

Flexible Shuttle Bus Version: 24-seat low-floor design, equipped with a wheelchair ramp and accessibility features, turning radius ≤12m, suitable for community shuttle services and tourist attraction transportation.

Intelligent and Safety Features

Intelligent Driving: Standard features include AEB (Automatic Emergency Braking) and LDWS (Lane Departure Warning System). Optional L2-level autonomous driving assistance system (including ACC Adaptive Cruise Control).

Energy Management: Intelligent heat pump air conditioning system reduces energy consumption by 15% in winter, regenerative braking efficiency reaches 25%, and overall energy consumption ≤0.8kWh/km.

Safety Protection: The battery compartment meets IP68 protection standards, passing extreme tests such as puncture and crush. Equipped with a 24-hour battery status monitoring system.

Urban Deployment: Mass production and delivery to major cities like Beijing and Shanghai are planned for 2025. User feedback indicates excellent range stability even in high-temperature summer conditions (actual range achievement rate ≥95%). Environmental Benefits: Each bus reduces annual carbon emissions by approximately 50 tons and has received China's Green Product Certification. Maintenance convenience: The modular battery design allows for quick replacement; 100% coverage of repair services at the county level; and the warranty period for key components has been extended to 8 years/600,000 kilometers.
