Ankai HFF6101K10D1E5 bus (diesel engine, Euro V standard, 24-46 seats)

Ankai HFF6101K10D1E5 Bus (Diesel, Euro V, 24-46 Seats)

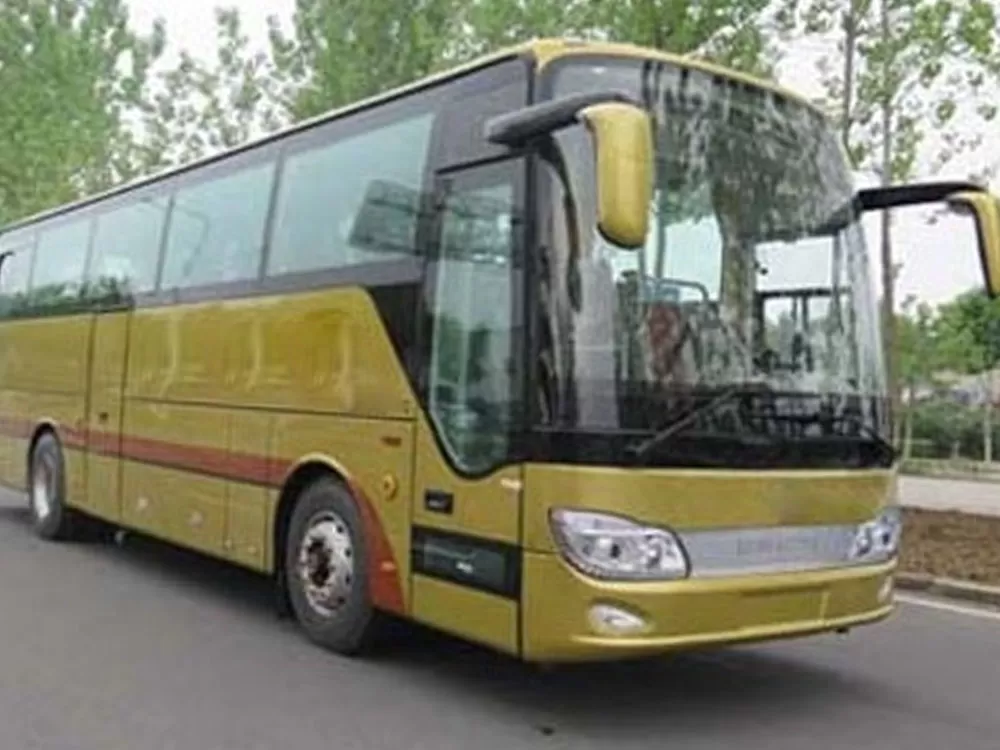

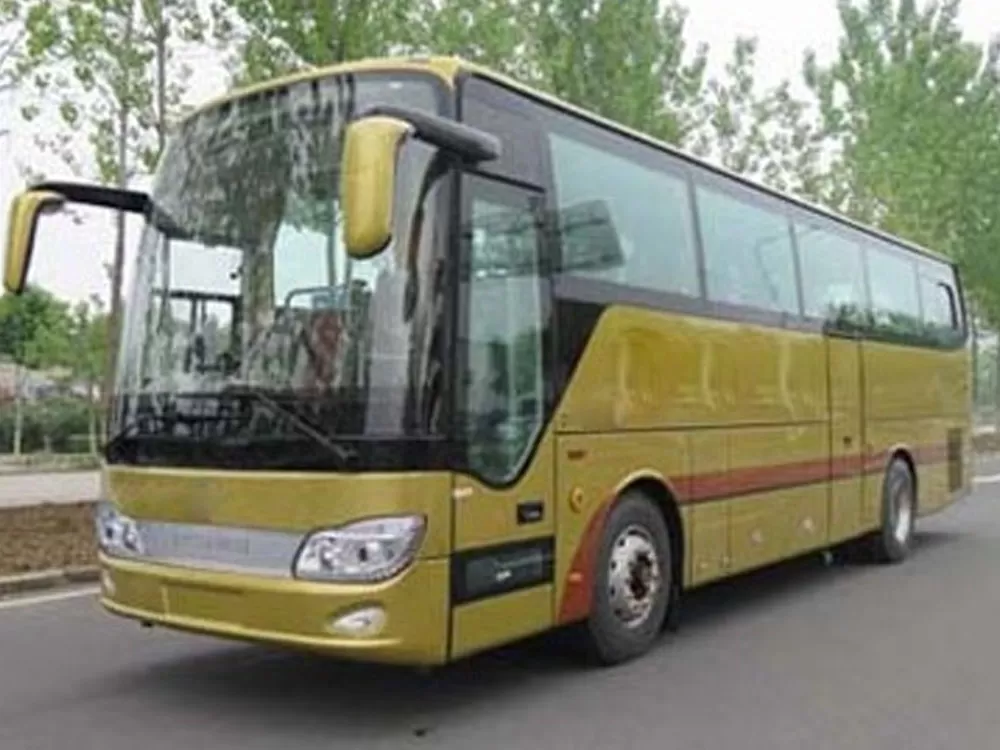

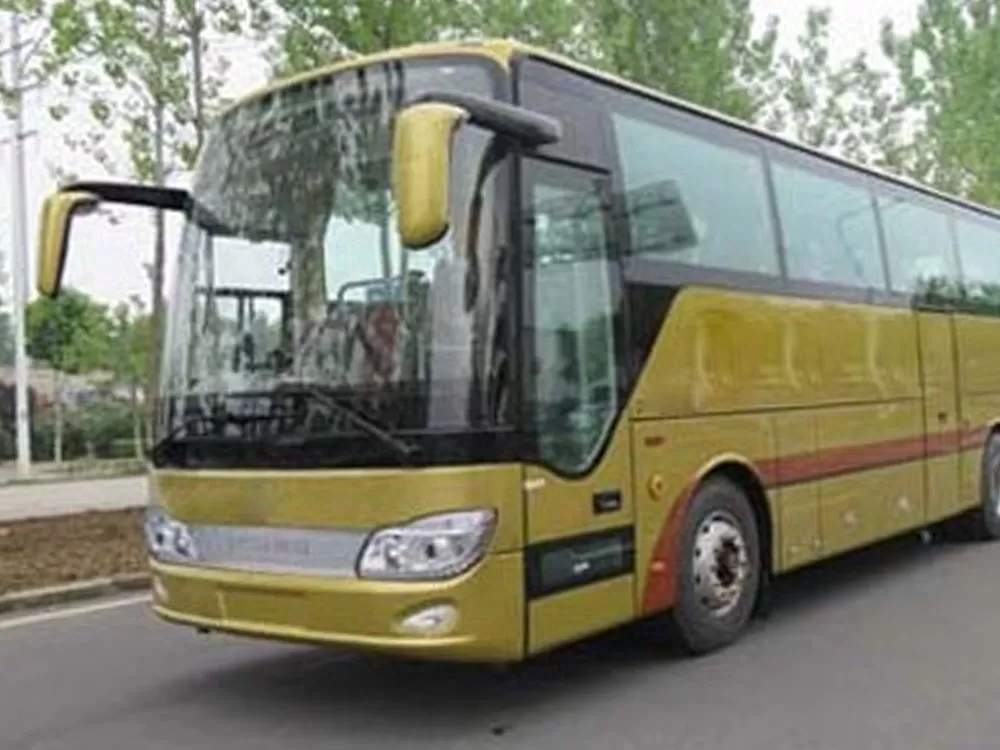

The 2025 Ankai HFF6101K10D1E5 Euro V diesel bus, built upon the brand's extensive experience in the passenger transport industry, offers three distinct models to suit various operating scenarios. Powered by a Weichai WP7.300E51 Euro V diesel engine (7470mL displacement, 220kW maximum power), it meets the GB17691-2005 emission standard. The bus features a monocoque body structure, a 5150mm wheelbase, and overhangs of 2220mm (front) and 3120mm (rear), ensuring flexibility and stability over its 10.5m length. Standard features include 11R22.5 tires and disc brakes front and rear, with a top speed of 100km/h, balancing performance and operational economy. As a traditional power-train option, it complements the company's electric vehicle platform, offering solutions for diverse transportation needs.

Three Distinct Vehicle Configurations

High-Density Commuter Version: 46-seat 3+2 layout, optimized seat spacing and luggage space (4.2m³), large fuel tank (900L) for peak-hour commuting, 10.5m length, 5150mm wheelbase for urban road maneuverability.

Comfort Tour Bus Version: 35-seat 2+2 airline-style seating, 850mm seat spacing, folding tables, USB ports, and Wi-Fi, targeting the premium tour bus market; optimized for long-distance comfort.

Multi-Purpose Shuttle Bus Version: 24-seat low-floor design, wheelchair ramp and accessibility features, turning radius ≤12m, suitable for community shuttle and tourist area transport; flexible seating for diverse needs. All models feature a monocoque body structure with 2220mm (front) and 3120mm (rear) overhangs, ensuring flexibility and stability. The power system features a Weichai WP7.300E51 Euro V diesel engine with a displacement of 7470mL and a maximum power output of 220kW, meeting the GB17691-2005 emission standard, balancing power performance and operational economy.

Intelligent and Safety Features

Intelligent Driving Assistance: Standard features include ESC (Electronic Stability Control) and AEBS (Automatic Emergency Braking System), with optional LDWS (Lane Departure Warning System). Braking distance is reduced by 12% in mountainous terrain.

Vehicle Networking System: Integrated with a 4.0 platform, it monitors engine performance and fuel consumption in real time, with a 90% fault detection accuracy and supports remote OTA updates.

Safety Protection: The fuel tank compartment meets IP68 protection standards, passing extreme tests such as puncture and compression, and features a 24-hour fuel leak monitoring system.

Comfort Features: A three-zone independent climate control system keeps cabin noise below 60 decibels (at 80 km/h), and includes UV-resistant glass and a first-aid kit for enhanced passenger comfort.

This bus series utilizes a modular fuel system design, achieving 100% county-level service coverage, and extends the warranty period for key components to 8 years/600,000 km, significantly reducing operational downtime. The 2025 Ankai HFF6101K10D1E5 Euro V diesel bus is operating in 30 provinces and cities across China. User feedback shows its power system performs stably in high-altitude environments, with actual fuel consumption exceeding 95% of the target. Each bus reduces annual carbon emissions by approximately 35 tons, earning it a China Green Product certification. Its chassis strength and ease of maintenance are highly praised, especially for long-distance transportation in the northwest and southwest regions. The modular fuel system design ensures 100% county-level service coverage and extends the warranty period for key components to 8 years/600,000 km, effectively reducing operating costs. As a conventional power vehicle, its environmental performance complements that of new energy platforms, providing a reliable solution for diverse transportation needs.
