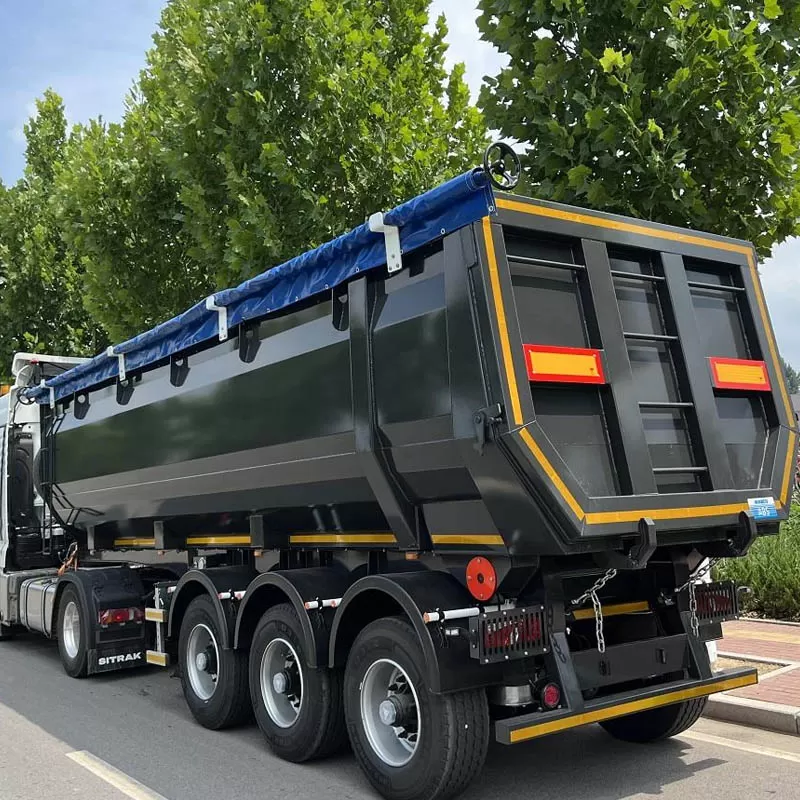

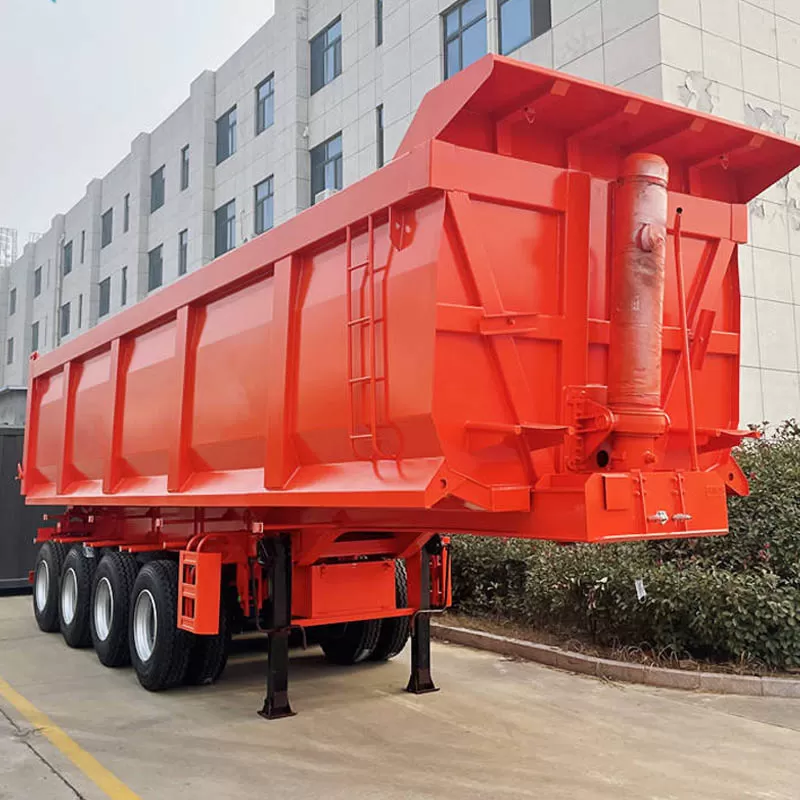

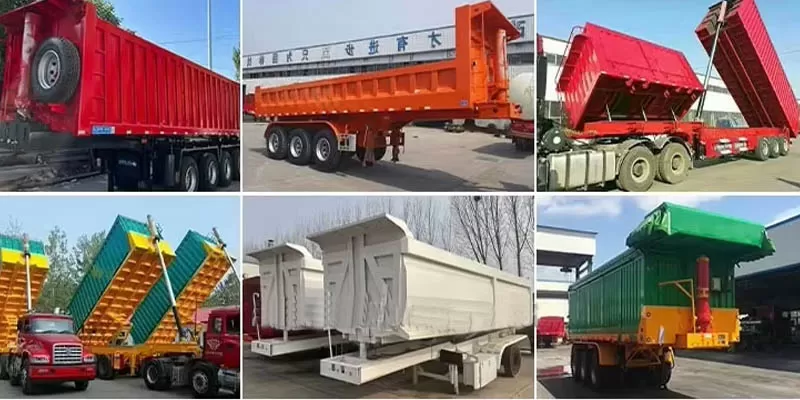

These self-dumping trailers, also known as rear-dump trailers, operate by unloading cargo at the rear of the vehicle. They are commonly used for transporting loose materials such as aggregates, sand, gravel, and construction waste, and are used in industries such as construction, mining, agriculture, waste management, landscaping, and excavation.
|
type |
semi-trailer |
|
brand |
custom made |
|
Compatible vehicle types |
Truck trailer |
|
size |
13m * 6m * 2m |
|
axle |
|
|
color |
Custom colors |
|
Main sales |
8mm at the bottom, 6mm at the sides |
|
axle brands |
JOST 2.0-inch (50mm) / 3.5-inch (90mm) |
|
landing gear |
JOST brand dual-speed |
|
Maximum load |
10001-15000 kg |
|
country of origin |
Shandong, China |
|
Material |
steel |
|
Product Name |
Rear dump semi-trailer |
|
Function |
Transporting heavy equipment |
|
Braking system |
Dual-circuit air braking system |
|
tire |
11.00R20 (as needed) |
|
suspension |
The machine is an air suspension. |
|
Maximum load |
|
|
Single package size |
Truck trailer |
|
Gross weight of a single product |
10,500,000 kg |
|
Trailer Name |
4-axle dump trailer |
|
size |
10900 mm * 2500 mm * 3600 mm |
|
load |
30T, 40T, 45T, 50T, 60T, 24 cubic meters, 25 cubic meters, 30 cubic meters, 40 cubic meters, 45 cubic meters |
|
tire |
12R22.5, 11.00r20, 12.00r20, 315/80R22.5 |
|
Material |
Main beam Q345B, upper flange: 14 mm, middle flange: 10 mm, lower flange: 16 mm |
|
axle |
13T/16T/20T BPW or FUWA or EAST |
|
floor |
8mm plate, 6mm sidewall |
|
landing gear: |
28-ton dual-speed JOST brand |
|
Braking system: |
Drum brake, 2-wire pneumatic braking system with 2 oil tanks and 6 air chambers. |
|
pause: |
Mechanical suspension/air suspension |
|
Spare tire carrier: |
1 item |
|
painting: |
Complete body sandblasting double primer coating |
|
color: |
Customization options |
|
Dump style |
Rear tilt unloading or side tilt unloading |
|
promote |
Hydraulic lifting cylinder |
