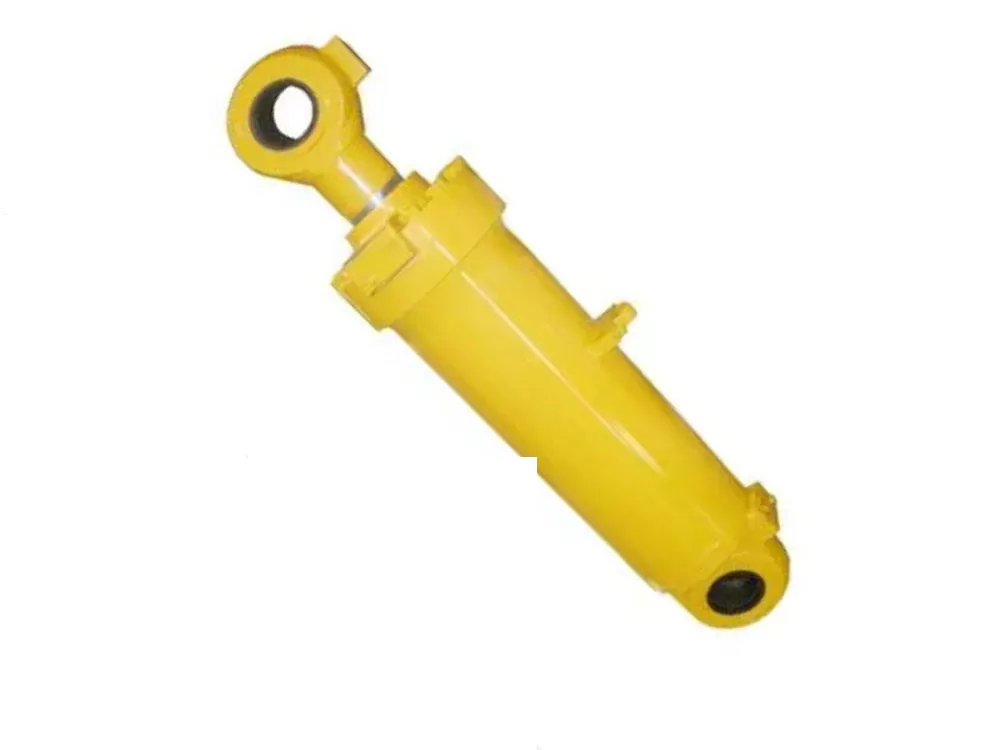

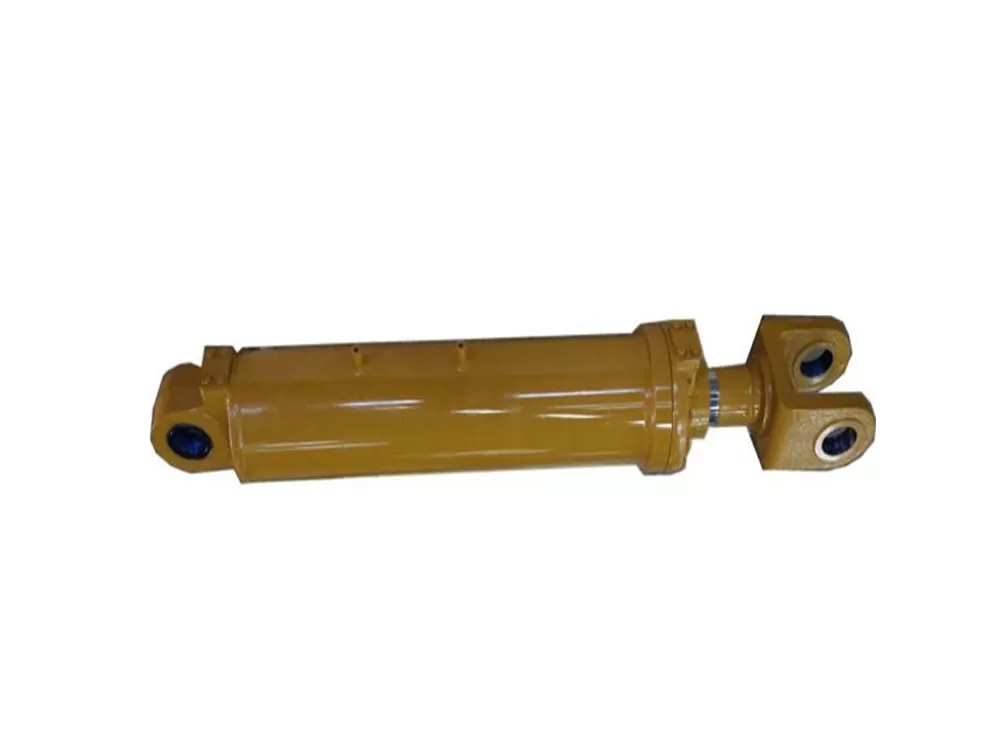

A "tilting cylinder" generally refers to a hydraulic cylinder used to achieve tilting movements of equipment, platforms, or components. It is a key actuator in a hydraulic system, converting hydraulic energy into mechanical energy (linear motion), thereby driving a change in the angle of the load.
Provide controllable thrust or pull. Drive connected components (such as the cargo box of a dump truck, the working device of construction machinery, industrial platforms, material tippers, etc.) to rotate or tilt around one or more hinge points. Achieve precise angle control (usually through hydraulic valves and control systems).
Dump Trucks/Tipping Trucks: This is the most common application. Tilting cylinders (usually one or two) are installed between the chassis and the cargo box. When the cylinder extends, it lifts the rear of the cargo box, automatically unloading the goods.
Construction Machinery such as Excavators and Loaders: Used to control the tilting angle of the bucket, boom, etc.
Garbage Trucks: Used to tip over garbage compactors or lift and dump garbage.
Agricultural Machinery: Such as tipping over tractor trailers, unloading from harvester hoppers, etc.
Industrial Equipment: Such as furnace tipping, ladle tipping, tipping machines, tilting workbenches, stage equipment, ship deck equipment, etc.
Special Vehicles and Platforms: Such as platform leveling for aerial work platforms, tilting and lowering for fire truck ladders, etc.
The tilting cylinder is the core hydraulic actuator for achieving the tilting function of equipment, especially indispensable in the field of dump trucks. Its design must consider parameters such as load, stroke, installation space, and pressure. Understanding its type, structure, and working principle is crucial for proper selection, use, and maintenance to ensure safe, reliable, and efficient operation. When using the equipment, always adhere to operating procedures, paying particular attention to safety precautions when the load is lifted.
|
brand |
SHANTUI |
|
Warranty period |
No after-sales service |
|
Mechanical test report |
Unavailable |
|
quality |
High quality |
|
country of origin |
Shandong, China |
|
Video factory inspection |
Unavailable |
|
Warranty period |
No after-sales service |
|
size |
300*250 * 250mm |
|
Part Name |
hydraulic cylinder |
