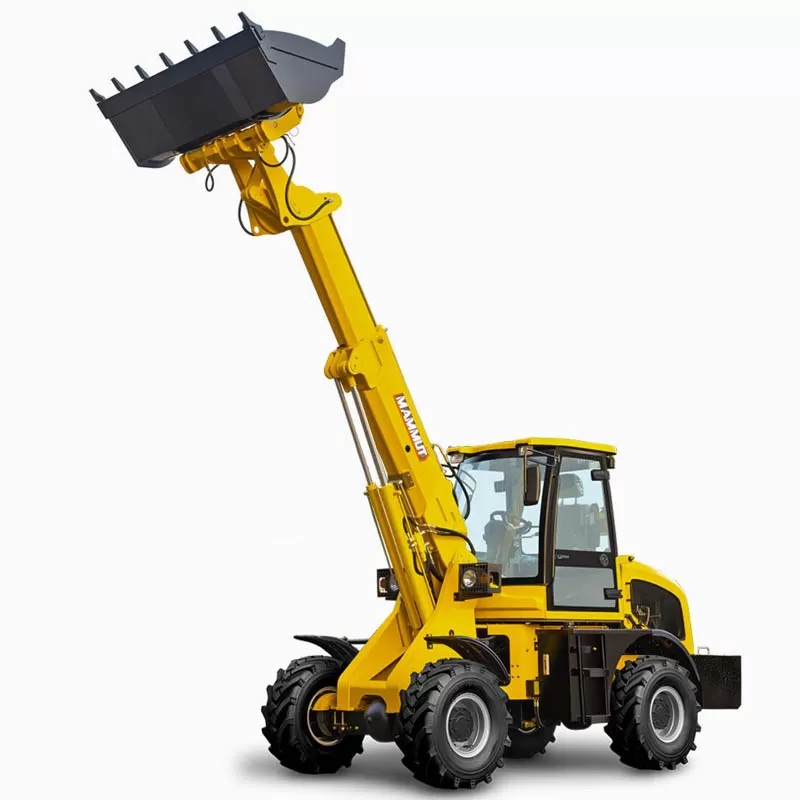

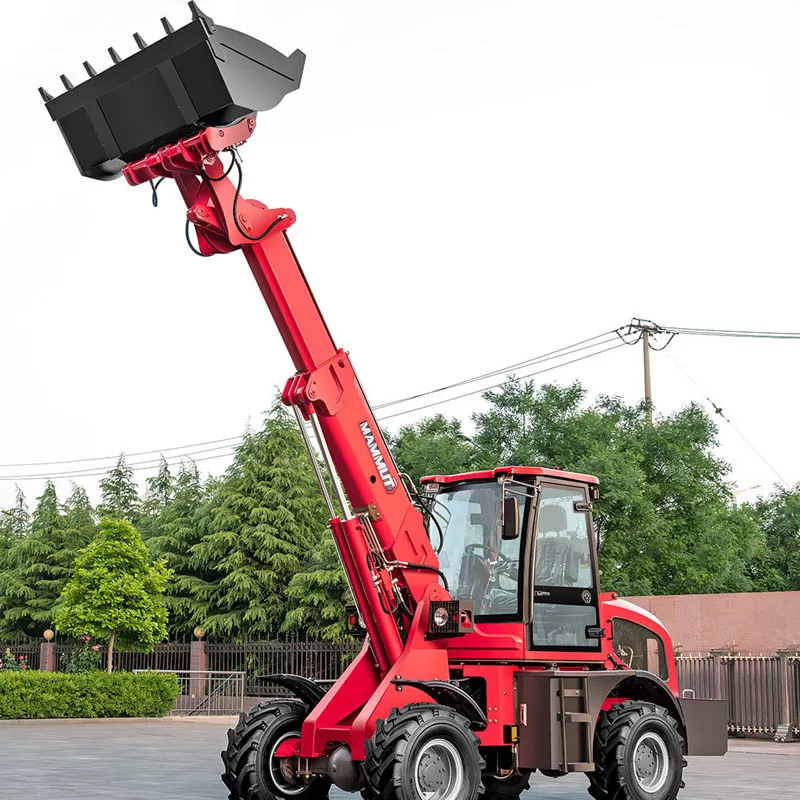

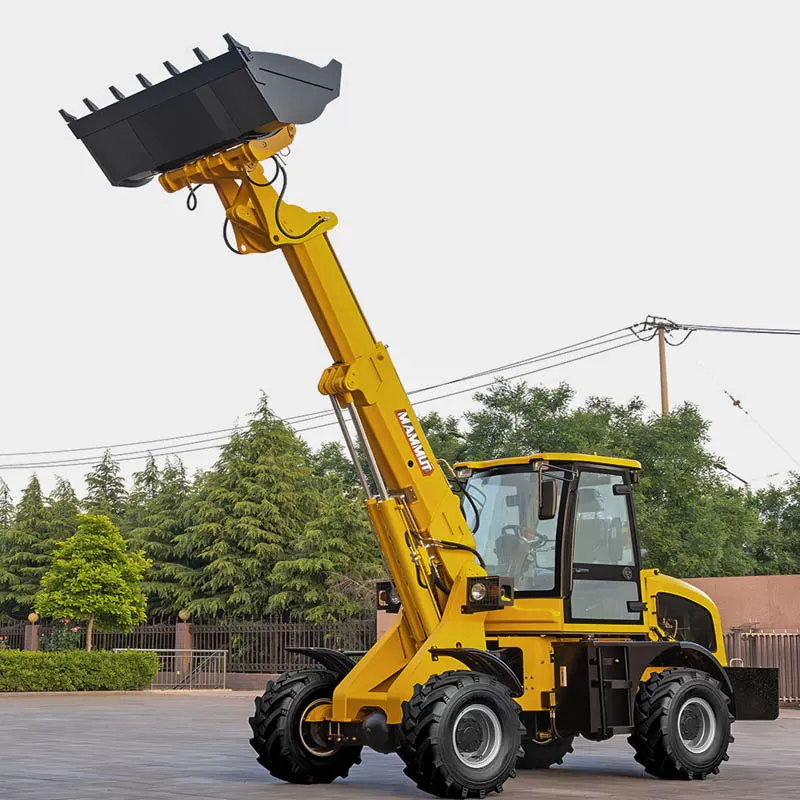

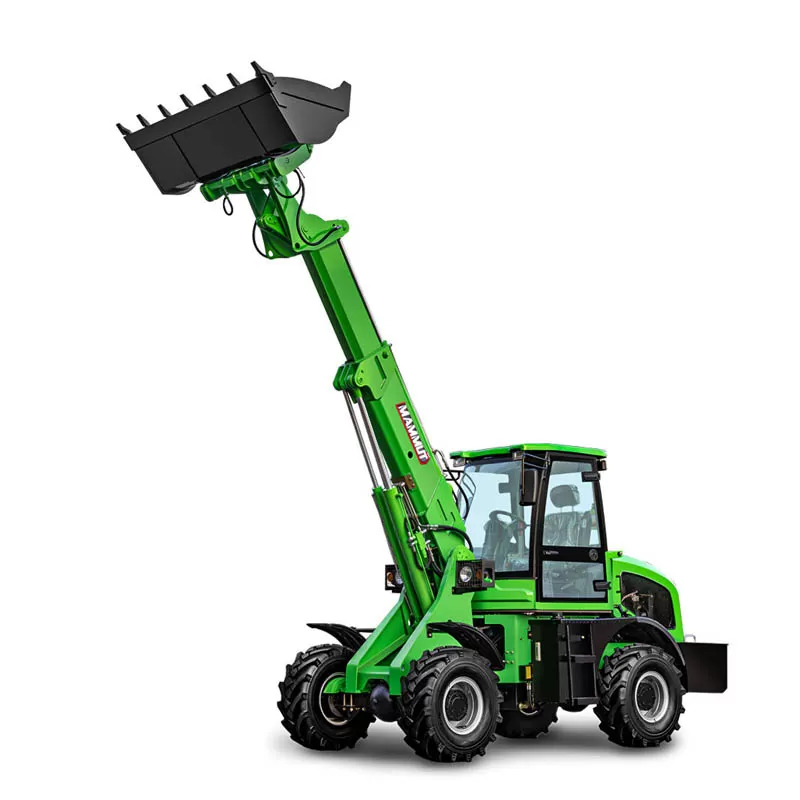

The telescopic arm loader is a small construction machine with a telescopic arm that can efficiently complete loading, excavation, transportation and other operations in narrow spaces (such as courtyards, construction site corners, warehouses). Its core advantages are flexibility and versatility.
Telescopic arm loaders can quickly transfer materials, reduce waiting time, and improve overall efficiency. Attachments (such as buckets, forks, grabbers, etc.) can be replaced to achieve multiple uses in one machine. The whole machine is compact and has a small turning radius, making it suitable for operations in narrow sites. The hydraulic system and mechanical structure design ensure stable operation in complex terrain. Equipped with safety devices such as limiters and overload protection valves to ensure operator safety.
|
brand |
OEM |
||
|
Engine Brand |
OEM |
||
|
Bucket capacity |
|
||
|
Warranty period |
1year |
||
|
Hydraulic pump brands |
OEM |
||
|
Length x Width x Height |
5437*1700*2470 |
||
|
Hydraulic valve brands |
OEM |
||
|
Mechanical test report |
Available |
||
|
Core components |
PLC, pressure vessel, engine, gear, motor, pump, bearing, gearbox |
||
|
Name |
Wheel loader manufacturing |
||
|
Certification |
|
||
|
engine |
Honda |
||
|
project |
Articulated wheel loader |
||
|
Power (W) |
42kW |
||
|
country of origin |
SHANDONG |
||
|
Body weight |
4500 kg |
||
|
Exercise |
tracked loader |
||
|
Hydraulic cylinder brands |
Power Source |
||
|
Unique selling points |
High work efficiency |
||
|
Video factory inspection |
Available |
||
|
Product Name |
Telescopic front wheel loader |
||
|
Keywords |
Wheel Loaders China |
||
|
color |
Customer requirements |
||
|
Working weight |
1600 |
||
|
1.0 Engine Details |
|||
|
(1) Model: |
2 |
||
|
(2) Engine type: |
Inline, water-cooled, four-stroke diesel engine |
||
|
(3) Rated power: |
42 kilowatts |
||
|
(4) Rated speed: |
2400 rpm |
||
|
(4) Standard operating condition fuel consumption ratio: 230g/kw.H |
|||
|
2.0 Transmission System |
|||
|
(1) Type: |
Fixed spindle power conversion |
||
|
(2) Shift control hydraulic pressure |
1.2-1.6 MPa |
||
|
(3) Rated input speed: |
2500 (rpm) |
||
|
(4) Maximum Breakthrough Power: |
36.8KN |
||
|
3.0 barrels |
|||
|
(1) Bucket capacity: |
0.6 cubic meters |
||
|
(2) Bucket width: |
2000 mm |
||
|
(3) Bucket type: |
Heavy bolts on teeth |
||
|
(4) Rated load: |
1600 kg |
||
|
(5) Operating weight |
4300 kg |
||
|
4.0 Overall Dimensions |
|||
|
(1) Total length (bucket on the ground) |
5832 mm |
||
|
(2) Overall height |
2619 mm |
||
|
(3) Tilting height: |
3777 mm |
||
|
(4) Increase height: |
4232 mm |
||
|
(5) Overall width |
1700 mm |
||
|
5.0 Operating Procedures |
|||
|
(1) Steering system: |
Articulated chassis with hydraulic power steering |
||
|
(2) Minimum turning radius: |
2400 mm |
||
|
(2) Maximum turning radius: |
4145 mm |
||
|
(3) Drive system: |
Hydraulic converter |
||
|
6.0 Braking System |
|||
|
(1) Service brake |
Four-wheel hydraulic paving brake |
||
|
(2) Parking brake |
Manual operation |
||
|
7.0 tires |
23.5/70-16 tires/Ag tires |
||
|
8.0 wheelbase |
2317 mm |
||
