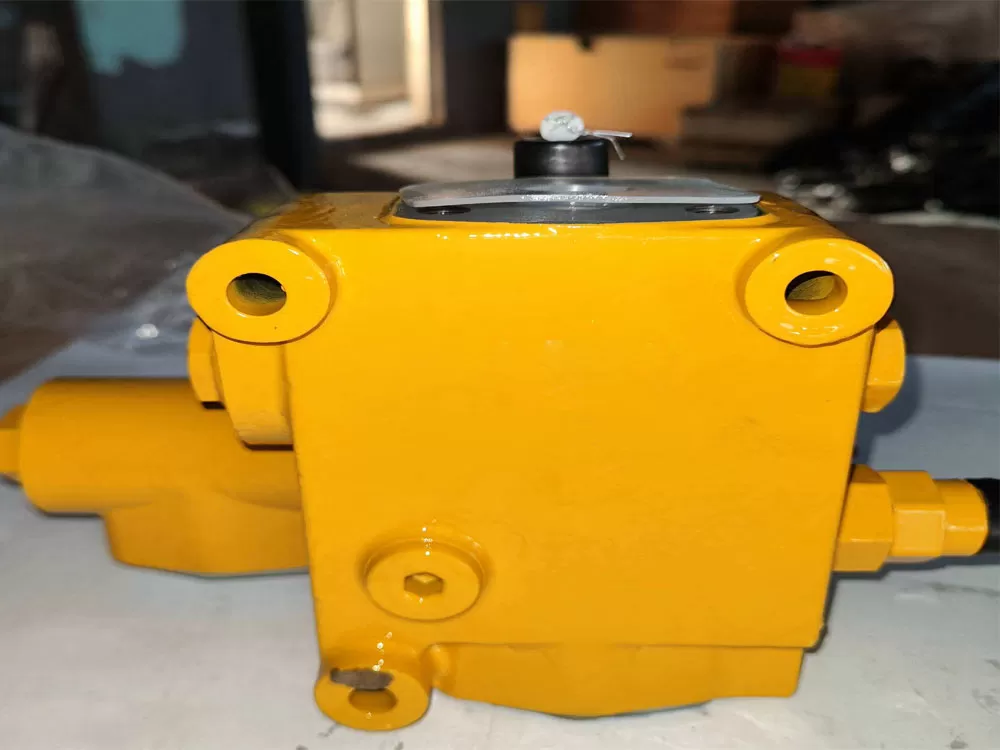

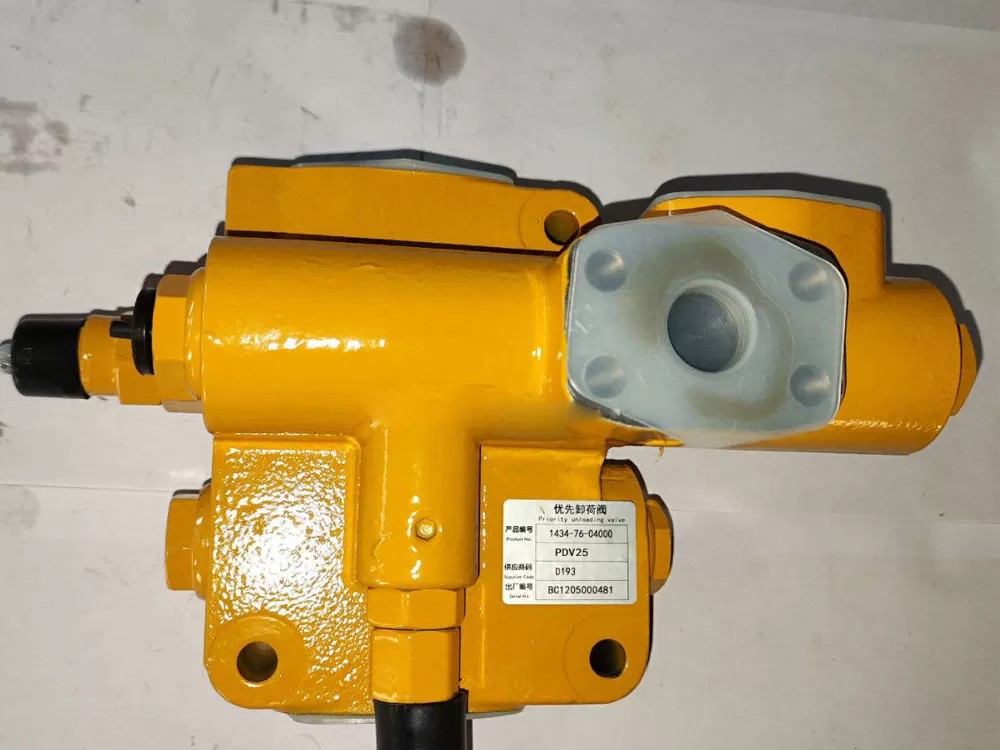

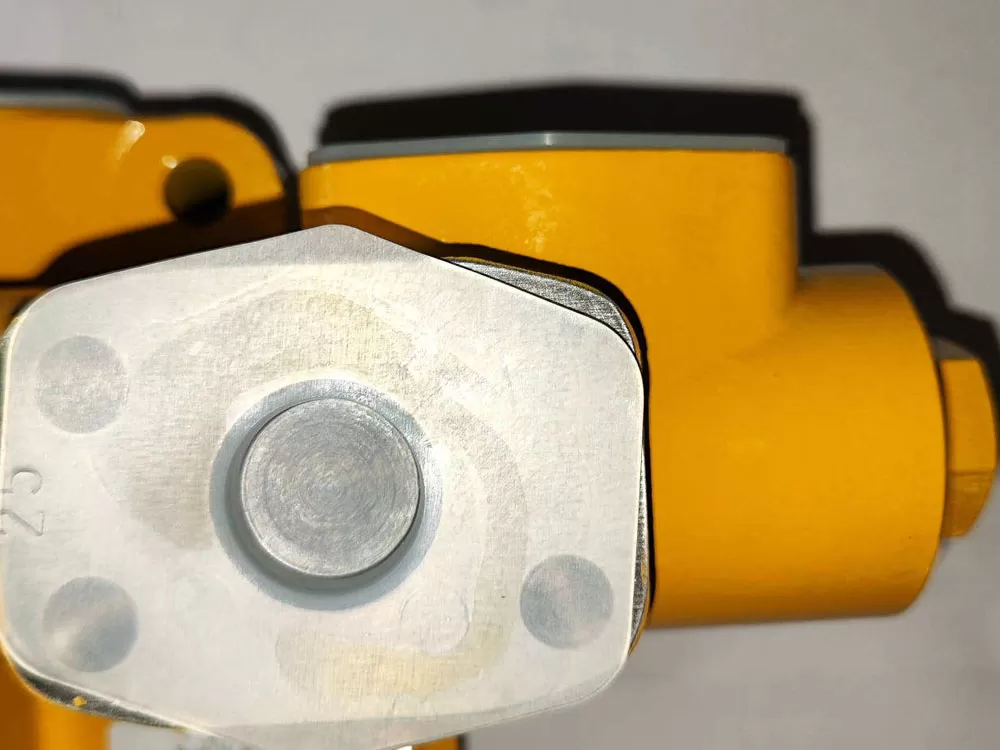

Original priority unloading valve, part number 1434-76-04000, PDV25 model, best quality in stock.

Original Priority Unloading Valve Part No. 1434-76-04000 PDV25, Best Quality Stock Available

The "Priority Unloading Valve" is a key composite valve in the hydraulic systems of construction machinery (such as wheel loaders, excavators, etc.) that integrates priority oil supply and system unloading (or pressure control) functions. It is developed from the "original priority valve," adding an unloading function to improve system efficiency (reduce energy consumption and heat generation) while still ensuring the absolute priority oil supply safety of the steering system.

Core Functions

Priority Oil Supply: This is its fundamental and primary function. Like the original priority valve, it absolutely prioritizes ensuring that the steering system (CF port) receives all the required flow and pressure, regardless of engine speed or working device load. Only after the steering demand is met is the remaining flow supplied to the working device (EF port).

Unloading: This is its key enhanced function, distinguishing it from the original priority valve. When the system is in standby mode (i.e., steering is not required and all operating levers are in the neutral position), this valve automatically guides excess hydraulic pump output back to the tank at a very low pressure (close to the tank pressure). This avoids the throttling losses and significant heat generation caused by high-pressure oil flowing through the main valve in a traditional open-core system when it is in the neutral position, significantly reducing energy consumption and oil temperature.

Pressure Compensation/Pressure Limiting (Optional or Integrated): Many priority unloading valves also integrate a pressure compensation valve or safety valve function. Its main functions are:

Compensation: Maintains a stable flow to the steering system when steering and operating levers are simultaneously engaged (unaffected by changes in operating lever load pressure), ensuring smooth steering speed.

Pressure Limiting: Limits the maximum operating pressure of the entire hydraulic system, preventing overload damage to components (acting as a system safety valve).

Widely used in mobile machinery that employs a fixed displacement pump as the main hydraulic power source and has requirements for energy consumption and heat generation, while ensuring steering priority safety, the priority unloading valve represents a significant advancement in hydraulic technology. While inheriting the core safety principle of "absolute steering priority" from the original priority valve, it significantly improves the efficiency and complex operational performance of fixed displacement pump hydraulic systems by introducing intelligent unloading functionality (responding to the neutral signal of the working device) and readily available pressure compensation. It is a highly successful and widely applied solution in the transition from traditional fixed displacement pump systems to more efficient load-sensitive/electro-hydraulic proportional systems.
