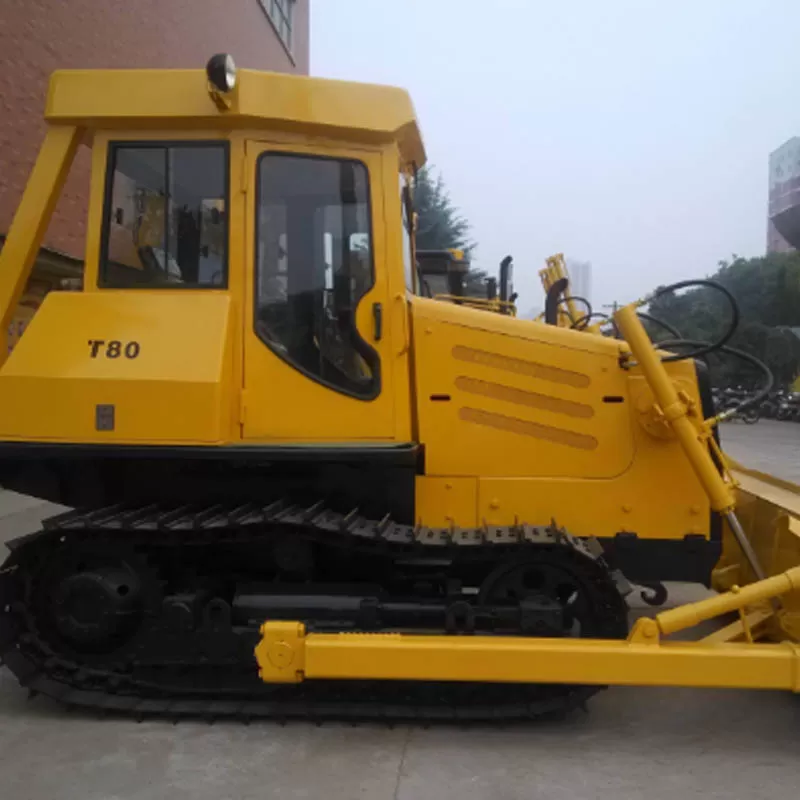

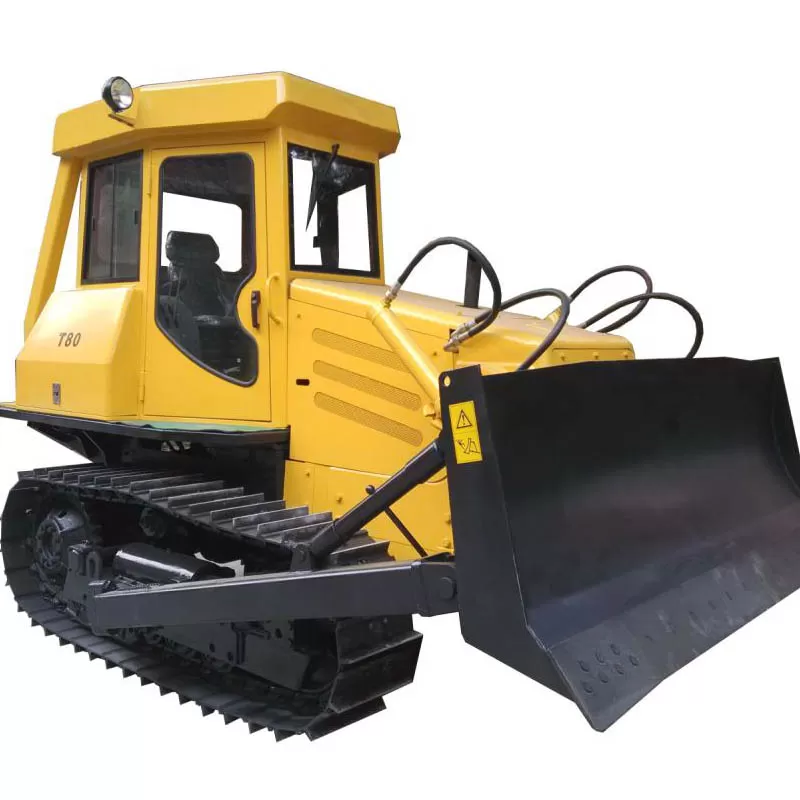

Our T80 crawler bulldozer is equipped with a YTR4A3Z-22 turbocharged engine. The engine provides strong power, low operating noise, and low fuel consumption.
With a 4F2R fixed-shaft mechanical shift gearbox, the construction equipment is adaptable to various working environments. Its running gear features a rigid chassis and semi-rigid suspension. It has an advanced operating control system and full hydraulic power steering. This bulldozer is suitable for bulldozing operations in narrow areas. It comes with standard heating and ventilation. Air conditioning is optional. It boasts high reliability and high working efficiency. The standard bulldozer blade size is 2480W x 922Hmm. The maximum lifting height is 736.5 mm. The maximum soil depth of the bulldozer blade is also specified.
|
Exercise |
Tracked excavator |
|
bulldozer blade capacity |
4.5 cubic meters |
|
Warranty period |
1 year |
|
Hydraulic pump brands |
China |
|
Unique selling points |
High work efficiency |
|
Mechanical test report |
Available |
|
model |
T80-3 |
|
Engine Model |
LR4A3Z-22 |
|
track width |
400mm |
|
Body weight |
8600KG |
|
country of origin |
Guangxi, China |
|
Hydraulic cylinder brands |
China |
|
Hydraulic valve brands |
China |
|
Video factory inspection |
Available |
|
Core components |
PLC, engine, bearings, gearbox, motor, pressure vessel, gears, pump. |
|
Length x Width x Height |
4200*2480 *2740mm |
|
Rated power (kW/rpm) |
70/2200kW/r/min |
|
bulldozer blade |
2480*922mm |
