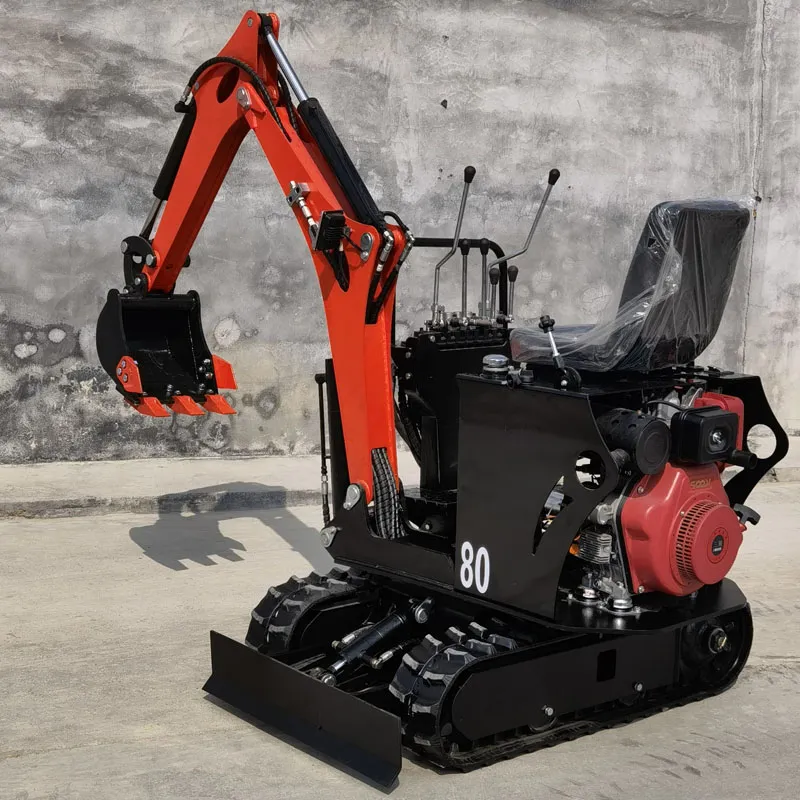

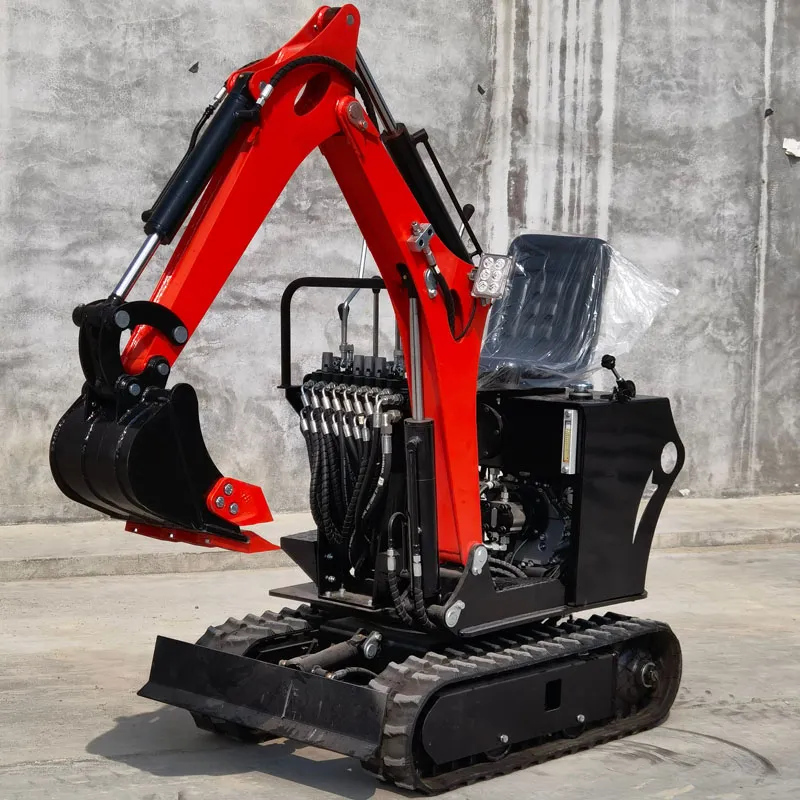

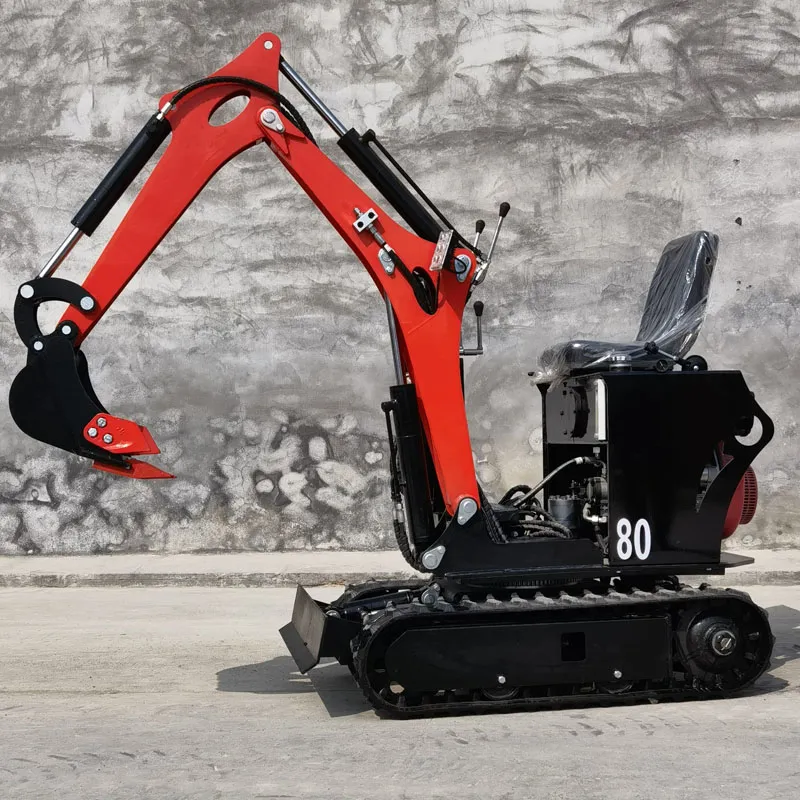

The compact size of the excavator allows easy passage through narrow passages and doors. The telescopic undercarriage and dozer blade allow the excavator to be configured for excellent working stability and optimal performance. The powerful engine and perfectly matched hydraulic system provide efficient, economical and reliable performance for the toughest jobs. The bucket hose is well protected inside the boom and the cylinder is mounted above the structure. The operator area is spacious and laid out to provide comfort and easy operation. The excellent engine provides excellent power with minimal fuel consumption, thereby increasing productivity per tank of fuel.
|
Important properties |
|
|
brand |
OEM |
|
Hydraulic cylinder brand |
OEM |
|
country of origin |
Shandong, China |
|
Warranty |
1 year |
|
Hydraulic valve brand |
OEM |
|
Power (horsepower) |
7.6KW |
|
Exercise |
Crawler Excavator |
|
Maximum digging depth |
1635mm |
|
brand |
OEM |
|
Mechanical test report |
Available |
|
Standard bucket width |
0.025 |
|
Minimum turning radius |
1280 |
|
Blade lifting height |
190 |
|
Work Pressure |
16MPA |
|
Climbing |
30 |
|
Bucket Capacity |
0.23m3 |
|
Engine Brand |
KOOP |
|
Weight |
760 kg |
|
Hydraulic pump brand |
OEM |
|
Unique Selling Point |
High work efficiency |
|
Core Components |
PLC, pressure vessel, engine, other, gear, motor, bearing |
|
Maximum digging height |
2755mm |
|
Maximum digging radius |
3000 |
|
Rated speed |
3000 r/min |
|
Video factory inspection |
Available |
|
Maximum height of dumplings |
1760 |
|
Maximum digging distance |
2200 |
|
Blade drop depth |
210 |
|
Main pump |
6ML/R |
|
Maximum digging force |
10KN |
|
Packaging and Shipping Information |
|
|
Packaging Details |
wooden case |
|
Sales Unit |
Single item |
|
Shipping Port |
QingDao Port |
|
Product Parameters |
|
|
Engine Type |
Changchai192FAW / KoopKD192F (Europe V) / UppowerKD192F (Europe V) |
|
Engine parameters |
7.6 kW-3000 rpm/7 kW-3000 rpm/7.6 kW-3000 rpm |
|
Work Pressure |
16Mpa |
|
Main pump |
6 ml/right |
|
Climbability |
30° |
|
Max. Digging Force |
10KN |
|
Operation Mode |
Mechanical Operation |
|
Special features |
◆ Mini size for small space workplaces |
|
◆ Different styles of engine hoods are provided as pictures |
|
|
◆ Optional arm side swing |
|
|
◆ Optional steel rails and four-leg shelves |
|
