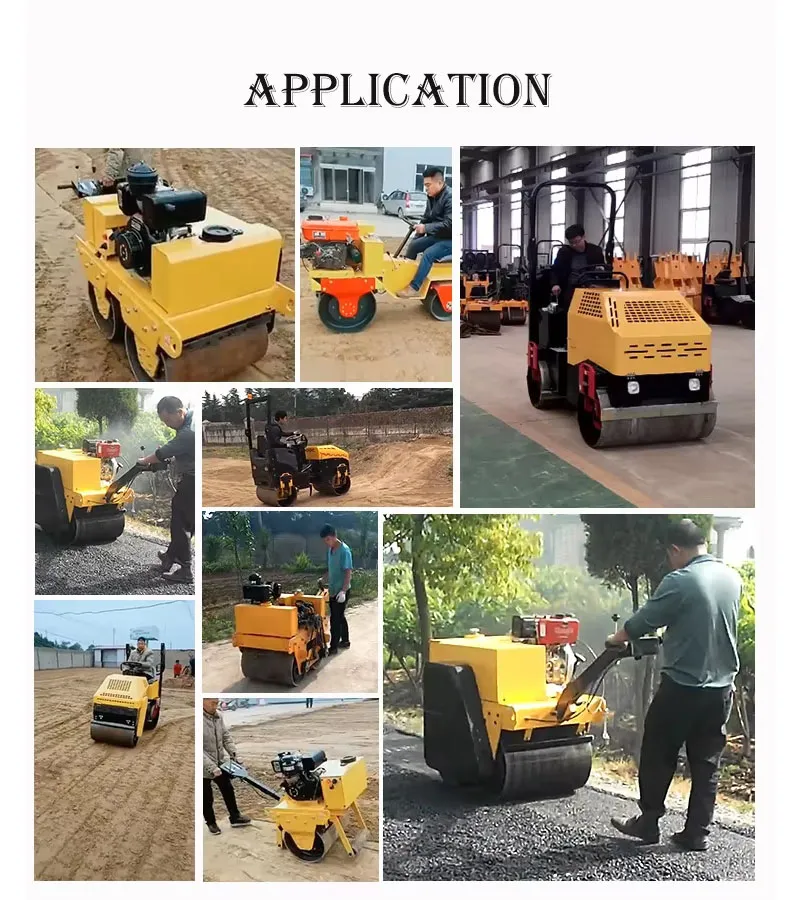

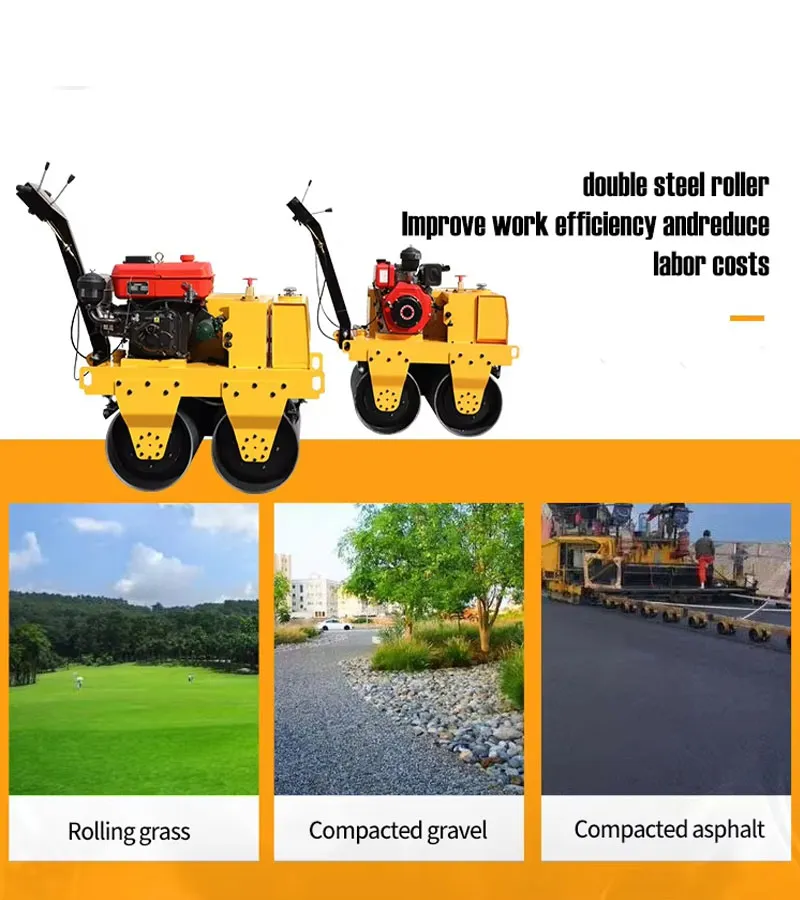

The domestic Changchai engine is powerful and easy to start; bidirectional hydraulic walking, small working radius, simple operation, flexible rotation; the surface is sprayed with plastic, beautiful, rust-proof and anti-corrosion. The machine is used to compact asphalt surfaces, flat ditches, roads, sports fields and lawn foundations. The roller structure of the wheel is compact, easy to transport and high working efficiency. The steel wheel is equipped with a self-compacting polyurethane self-cleaning scraper to prevent dust and asphalt from accumulating on the wheel and make the compaction more stable.
|
Important properties |
|
|
Gradeability |
30% |
|
Power (horsepower) |
7.5 KW |
|
Hydraulic valve brand |
OEM |
|
type |
Vibratory roller |
|
country of origin |
China |
|
Warranty |
1 year |
|
drum |
Double drum roller |
|
Core Components |
Motor, Pump, Engine |
|
Drum diameter |
600 mm |
|
Video factory inspection |
Available |
|
color |
yellow |
|
Engine Model |
Water Cooling |
|
After-sales service |
Video technical support |
|
brand |
OEM |
|
brand |
OEM |
|
Hydraulic pump brand |
OEM |
|
Engine Brand |
OEM |
|
Travel speed |
0~12 Km/h |
|
weight |
0.65 tons |
|
Unique Selling Point |
Easy to maintain |
|
Exciting force |
54KN |
|
Dimensions (L x W x H) |
1980mm*820mm*1100mm |
|
Mechanical test report |
Available |
|
Product Name |
Double steel wheel vibratory roller |
|
Drive mode |
Hydraulic transmission |
|
application |
0.8 ton small road compactor |
|
Provide after-sales service |
Free spare parts |
|
Packaging and Shipping Information |
|
|
Packaging Details |
wooden case |
|
Sales Unit |
Single item |
|
Shipping Port |
QingDao Port |
|
Single packing size |
2000X820X1100 cm |
|
Gross weight of a single product |
60.000 KG |
|
Product Parameters |
|
|
Working weight (kg) |
650.00 |
|
Exciting force(kN) |
30.00 |
|
Amplitude(mm) |
0.60 |
|
Walking speed (km/h) |
0-4 |
|
Level ability (%) |
30.00 |
|
Vibration frequency (Hz) |
70.00 |
|
Dimensions (mm) |
1980mmx820mmx1100mm |
|
Steel wheel size (mm) |
430*600*1 |
|
Engine Model |
OEM |
|
Engine power (horsepower) |
8.00 |
|
Static linear load (N/cm) |
54.00 |
|
Drive method |
Hydraulic drive |
|
Vibration Mode |
Mechanical vibration |
|
Walking style |
Bidirectional hydraulic |
|
start method |
Hand pull/electric start |
|
Water tank capacity(L) |
20.00 |
|
Hydraulic oil tank capacity (L) |
20.00 |
