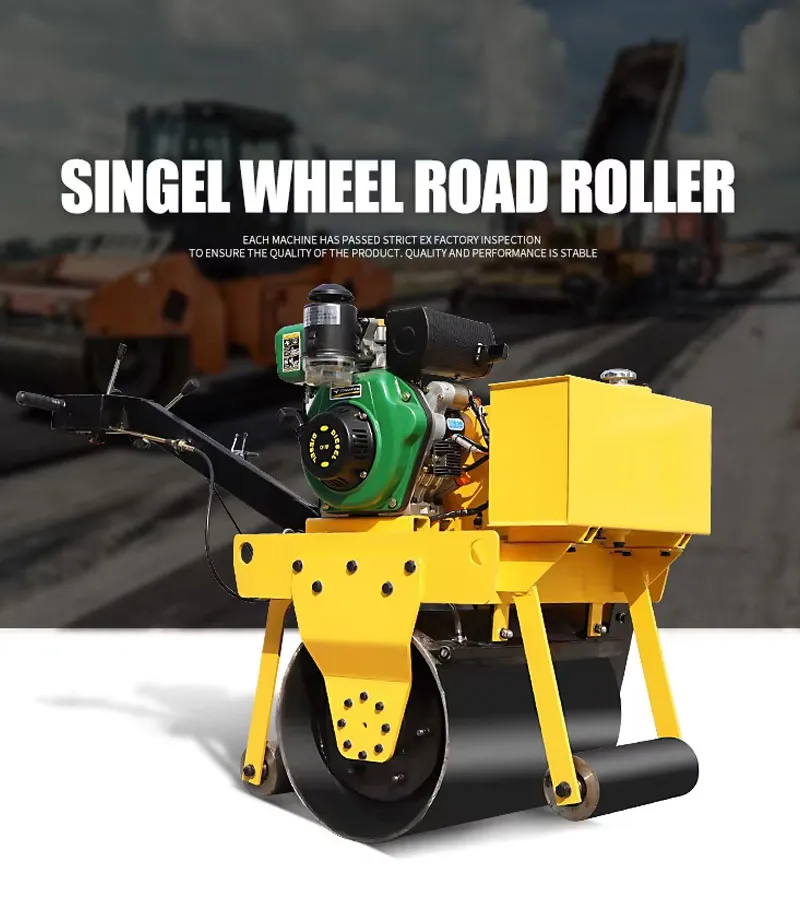

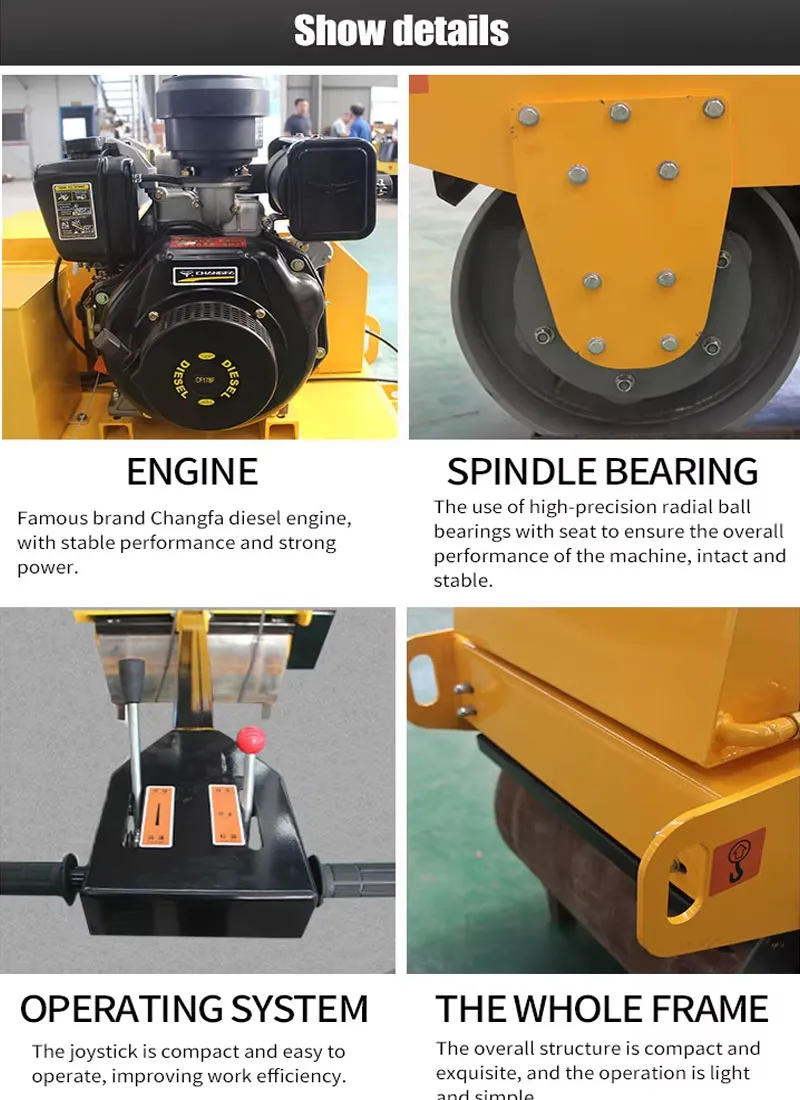

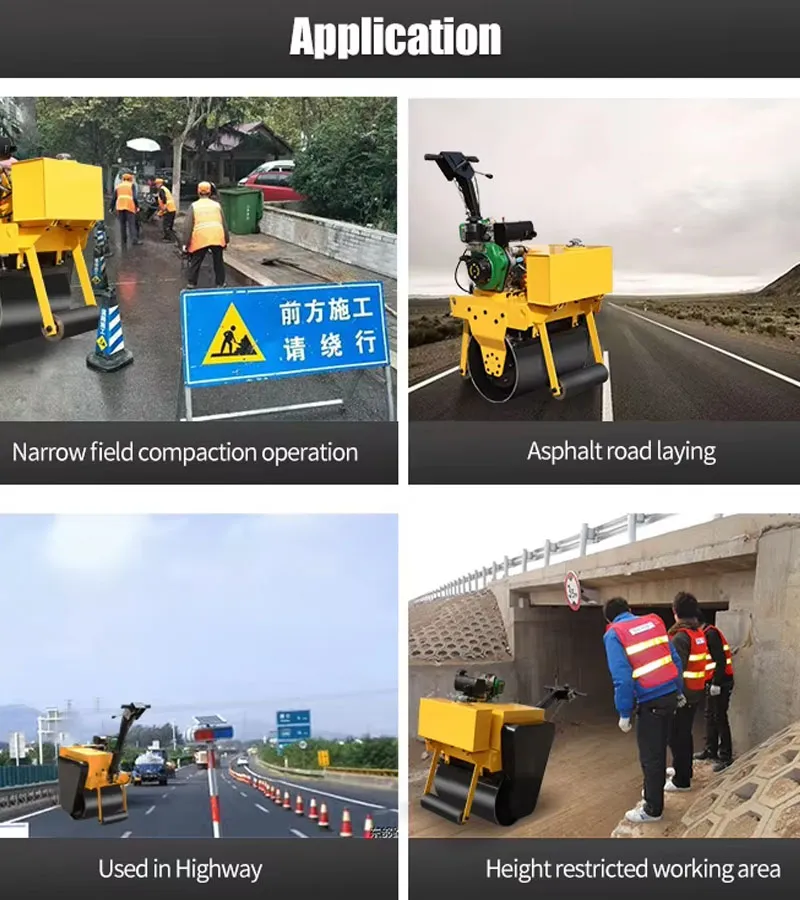

China 4.8 KW single drum vibratory mini roller is used for compacting asphalt surfaces, gravel, sand and other engineering foundations. It is also suitable for compacting playground tracks and undulating lawns. Equipped with high-quality Changfa diesel engine, brand quality assurance, superior performance, easy starting; small working radius, can be constructed in narrow areas; bearings are equipped with Japanese NSK high-precision bearings to ensure the overall performance of the equipment is intact; using a famous brand hydraulic transmission system, stepless speed change, front and back travel, easy to change direction. Ensure the overall performance of the equipment is intact.
Equipped with high-quality Changfa diesel engine, brand quality assurance, superior performance, easy starting; small working radius, can be constructed in narrow areas bearings are equipped with Japanese NSK high-precision bearings to ensure the overall performance of the equipment is intact; using a famous brand hydraulic transmission system, stepless speed change, front and back travel, easy to change direction, ensure the overall performance of the equipment is intact. HW600C single drum 0.45 tons 0.5 tons roller tells you roller
|
Product Attributes |
|
|
Gradeability |
30% |
|
Power (horsepower) |
4.8 KW |
|
Hydraulic valve brand |
OEM |
|
type |
Vibratory roller |
|
country of origin |
China |
|
Warranty |
1 year |
|
drum |
Single drum roller |
|
Core Components |
Motor engine |
|
Drum diameter |
430mm |
|
Video factory inspection |
Available |
|
color |
yellow |
|
app |
Underground garage |
|
Vibration Control |
Hydraulic vibration |
|
Local Service Location |
none |
|
Hydraulic pump brand |
OEM |
|
Engine Brand |
OEM |
|
Travel speed |
0~14 km/h |
|
weight |
420 |
|
Unique Selling Point |
Easy to maintain |
|
Exciting force |
25 kN |
|
Dimensions (L x W x H) |
1300*820*1100 |
|
Mechanical test report |
Available |
|
Product Name |
Vibratory roller |
|
Engine Model |
OEM |
|
Operating Weight |
480KG |
|
After-warranty service |
Video technical support |
|
Provide after-sales service |
On-site installation, commissioning and training |
|
Shipping Information |
|
|
Packaging Details |
If you need 1-3 units would be Wooden box |
|
Sales Unit |
Single item |
|
Gross weight of a single product |
450.000 KG |
|
Shipping Port |
QingDao Port |
|
Single packing size |
1300X820X1100 cm |
|
Product Specifications |
|
|
Working weight (kg) |
420 |
|
Exciting force(kN) |
25 |
|
Amplitude(mm) |
0.6 |
|
Walking speed (km/h) |
0-4 |
|
Level ability (%) |
30 |
|
Vibration frequency (Hz) |
70 |
|

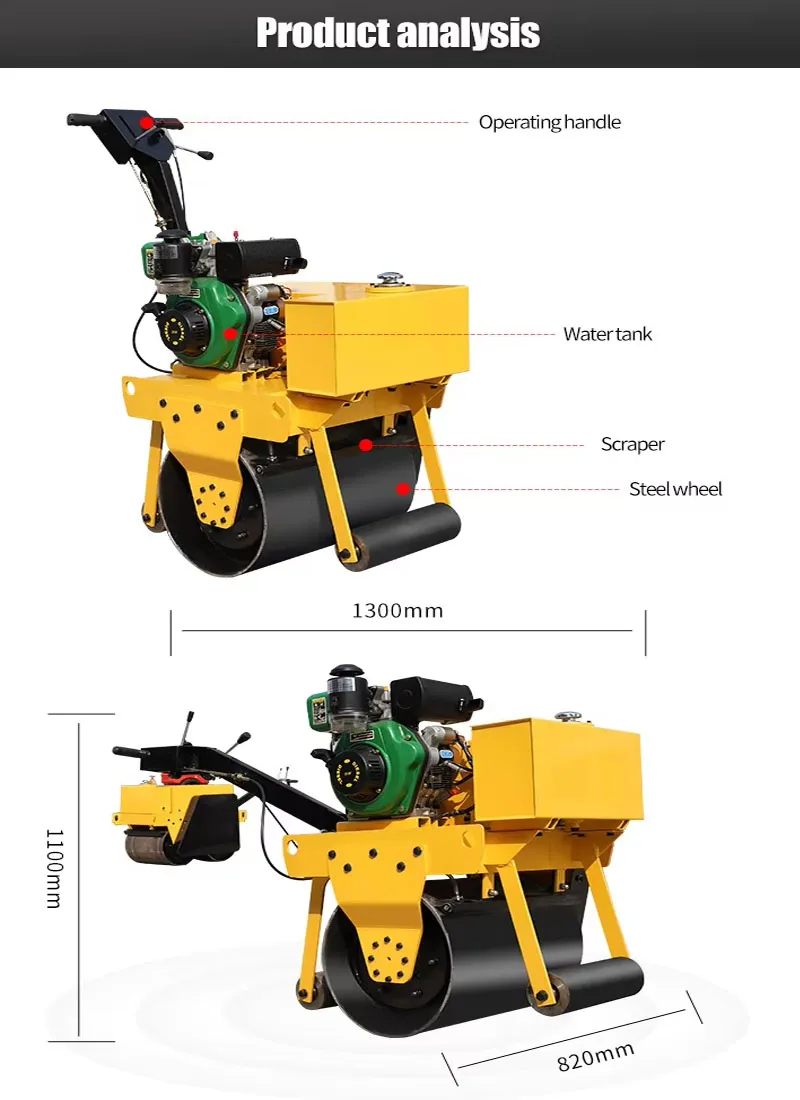

Dimensions (mm) |
1300x820x1100 |
|
Steel wheel size (mm) |
Medium 430*600*1 |
|
Engine Model |
Changchai/Changfa 170 |
|
Engine power (HP) |
6 |
|
Static line load (N/cm) |
45 |
|
Drive method |
Hydraulic drive |
|
Vibration Mode |
Mechanical vibration |
|
Walking style |
Bidirectional hydraulic |
|
Startup Method |
Hand pull/electric start |
|
Water tank capacity (liters) |
20 |
|
Hydraulic oil tank capacity (liters) |
20 |
