Get the cheapest parallel export price, we will reply you within 24 hours.

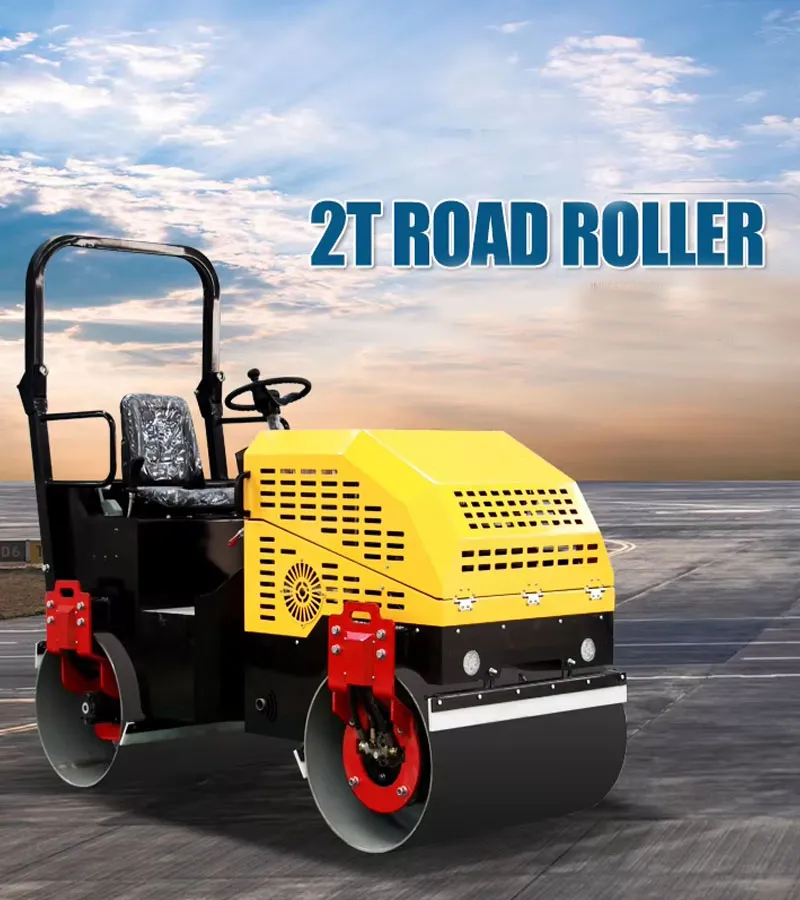

Integrating advanced technologies at home and abroad, it has strong power and superior performance; The 2-ton vibratory roller consists of a frame, front wheels, rear wheels, power system, control system, hydraulic system, electrical system, sprinkler system, mud scraper system, paint and marking, roll cage and other components. The machine is two-wheel drive, while the front wheel is a steering wheel and the rear wheel is a vibrating wheel. It is easy to operate, safe and reliable. The frame adopts an articulated frame structure, which makes the width of the steel wheel larger than the width of the body, and the compaction operation can be carried out as close to the curb as possible without pressure leakage or crushing. The hydraulic system adopts international famous brand hydraulic components, with high transmission efficiency and reliable quality. The machine has a three-level braking system to ensure safe and reliable driving.
|
Important properties |
|
|
Gradeability |
30% |
|
Power (horsepower) |
25HP |
|
Classification |
Vibratory roller |
|
country of origin |
Shandong, China |
|
Warranty |
1 year |
|
drum |
Double drum roller |
|
Core Components |
Motor, Engine |
|
Drum diameter |
560+1000+2 |
|
Video factory pickup |
Available |
|
Vibration(mm) |
0.6 |
|
Steel wheel size (mm) |
560+1000+2 |
|
Drive method |
Dual zone hydraulic swivel |
|
Walking style |
Double-direction hydraulic single vibration |
|
Water tank capacity(L) |
90 |
|
brand |
OEM |
|
Engine Brand |
OEM |
|
Travel speed |
0-8 km/h |
|
The emphasis is |
2 tons |
|
Unique Selling Point |
Low maintenance cost |
|
Exciting force |
35 kN |
|
Dimensions (L x W x M |
2200x1200x1580MM |
|
Mechanical testing |
Available |
|
Product Name |
Double steel wheel vibratory roller |
|
Vibration frequency (Hz) |
70 |
|
Static linear load (N/cm) |
57 |
|
Vibration Mode |
Fully hydraulic |
|
Start Method |
Electric start |
|
Packaging and Shipping Information |
|
|
Packaging Details |
wooden case |
|
Sales Unit |
Single item |
|
Gross weight of a single product |
60.000 KG |
|
Shipping Port |
Qingdao/Shanghai |
|
Single packing size |
2200X1300X1600 cm |
|
Product Parameters |
|
|
Working weight (kg) |
2000.00 |
|
Exciting force(kN) |
35.00 |
|
Amplitude(mm) |
0.60 |
|
Walking speed (km/h) |
0-8 |
|
Level ability (%) |
30.00 |
|
Vibration frequency (Hz) |
70.00 |
|

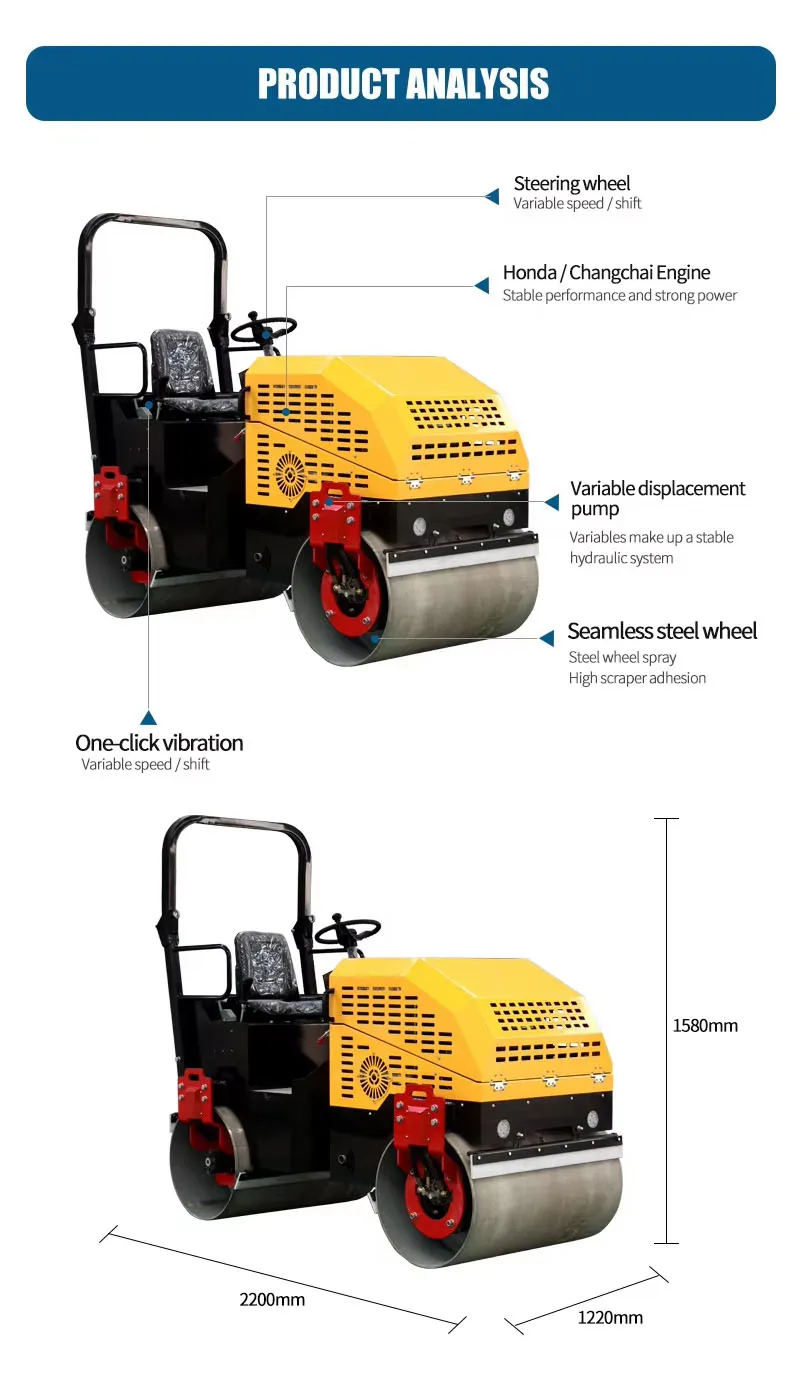

Dimensions (mm) |
2200mm × 1200mm × 1580mm |
|
Steel wheel size (mm) |
Φ560*1000*2 |
|
Engine Model |
Changchai/chanfa 192/Hummer L15 |
|
Engine power (horsepower) |
25.00 |
|
Static linear load (N/cm) |
57.00 |
|
Drive method |
Dual drive hydraulic rotation |
|
Vibration Mode |
Fully hydraulic |
|
Walking style |
Double-direction hydraulic single vibration |
|
Start Method |
Hand pull/electric start |
|
Water tank capacity(L) |
90.00 |
|
Hydraulic oil tank capacity (L) |
20.00 |
