Get the cheapest parallel export price, we will reply you within 24 hours.

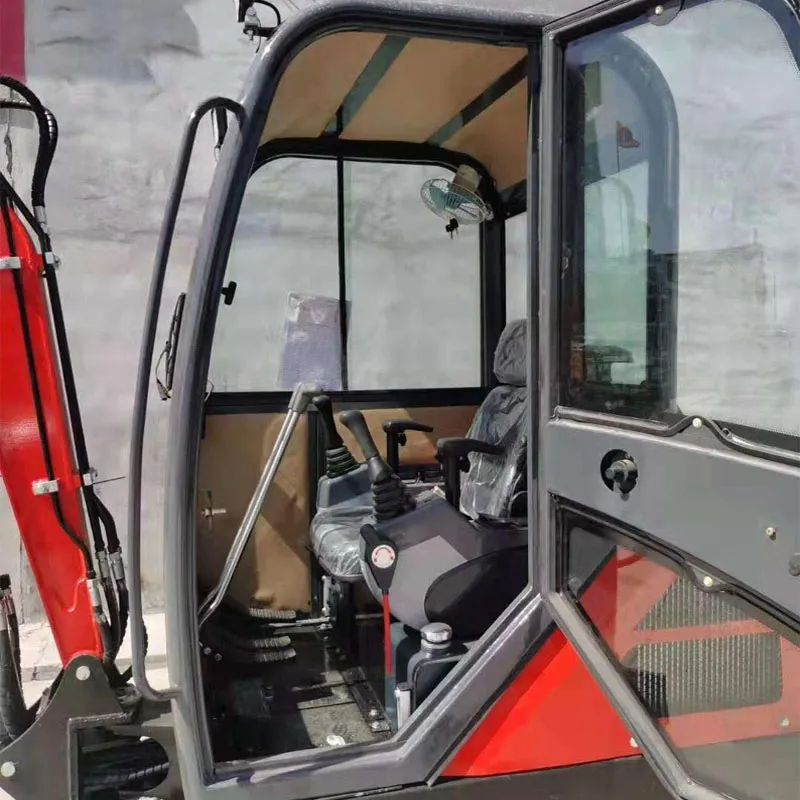

The compact size of the excavator allows easy passage through narrow passages and doors. The telescopic undercarriage and dozer blade allow the excavator to be configured for excellent working stability and optimal performance. The powerful engine and perfectly matched hydraulic system provide efficient, economical and reliable performance for the toughest jobs. The bucket hose is well protected inside the boom and the cylinder is mounted above the structure. The operator area is spacious and laid out to provide comfort and easy operation. The excellent engine provides excellent power with minimal fuel consumption, thereby increasing productivity per tank of fuel.
|
Important properties |
|
|
brand |
OEM |
|
Hydraulic cylinder brand |
OEM |
|
country of origin |
Shandong, China |
|
Warranty |
1 year |
|
Hydraulic valve brand |
OEM |
|
Power (horsepower) |
36.8KW |
|
Exercise |
Crawler Excavator |
|
Maximum digging depth |
2400MM |
|
brand |
Lai Gong |
|
Mechanical test report |
Available |
|
Standard bucket width |
450MM |
|
Minimum turning radius |
1900MM |
|
Blade lifting height |
210MM |
|
Work Pressure |
20MPA |
|
Climbability |
35 |
|
Bucket Capacity |
0.05m 3 |
|
Engine Brand |
Laidong |
|
Weight |
2000 kg |
|
Hydraulic pump brand |
Vickers |
|
Unique Selling Point |
High work efficiency |
|
Core Components |
PLC, pressure vessel, others, engine, gear, motor, pump, bearing.. |
|
Maximum digging height |
3800MM |
|
Maximum digging radius |
4300MM |
|
Rated speed |
2300RPM |
|
Video factory inspection |
Available |
|
Maximum height of dumplings |
2550MM |
|
Maximum digging distance |
3150MM |
|
Blade drop depth |
230MM |
|
Main pump |
28ML/R |
|
Maximum digging force |
12KN |
|
Packaging and Shipping Information |
|
|
Packaging Details |
wooden case |
|
Sales Unit |
Single item |
|
Shipping Port |
QingDao Port |
|
Single packing size |
355X105X237 cm |
|
Gross weight of a single product |
2020.000 KG |
|
More Information |
|
|
Standard bucket capacity |
0.025m 3 |
|
Standard bucket width |
370 mm |
|
Maximum digging depth |
1800 mm |
|
Max digging height |
2820 mm |
|
Maximum dumping height |
2050 mm |
|
Maximum digging radius |
3050 mm |
|
Maximum rotation radius |
1450 mm |
|
Maximum digging distance |
2300mm |
|
Push the blade to increase height |
180 mm |
|
Push the blade down to the desired depth |
210 mm |
