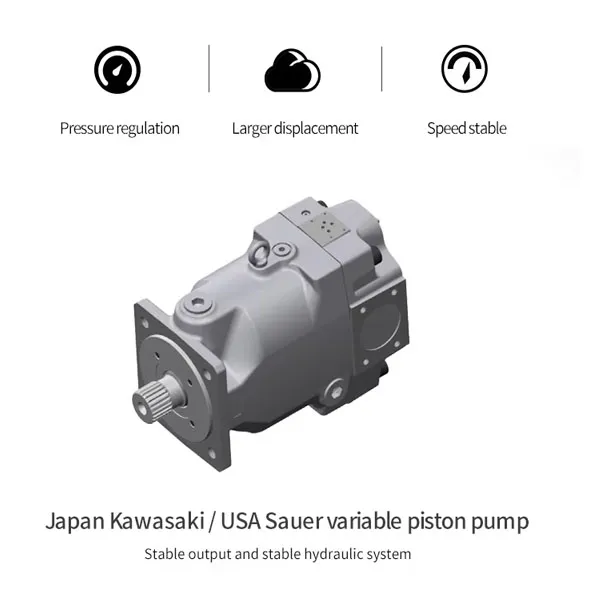

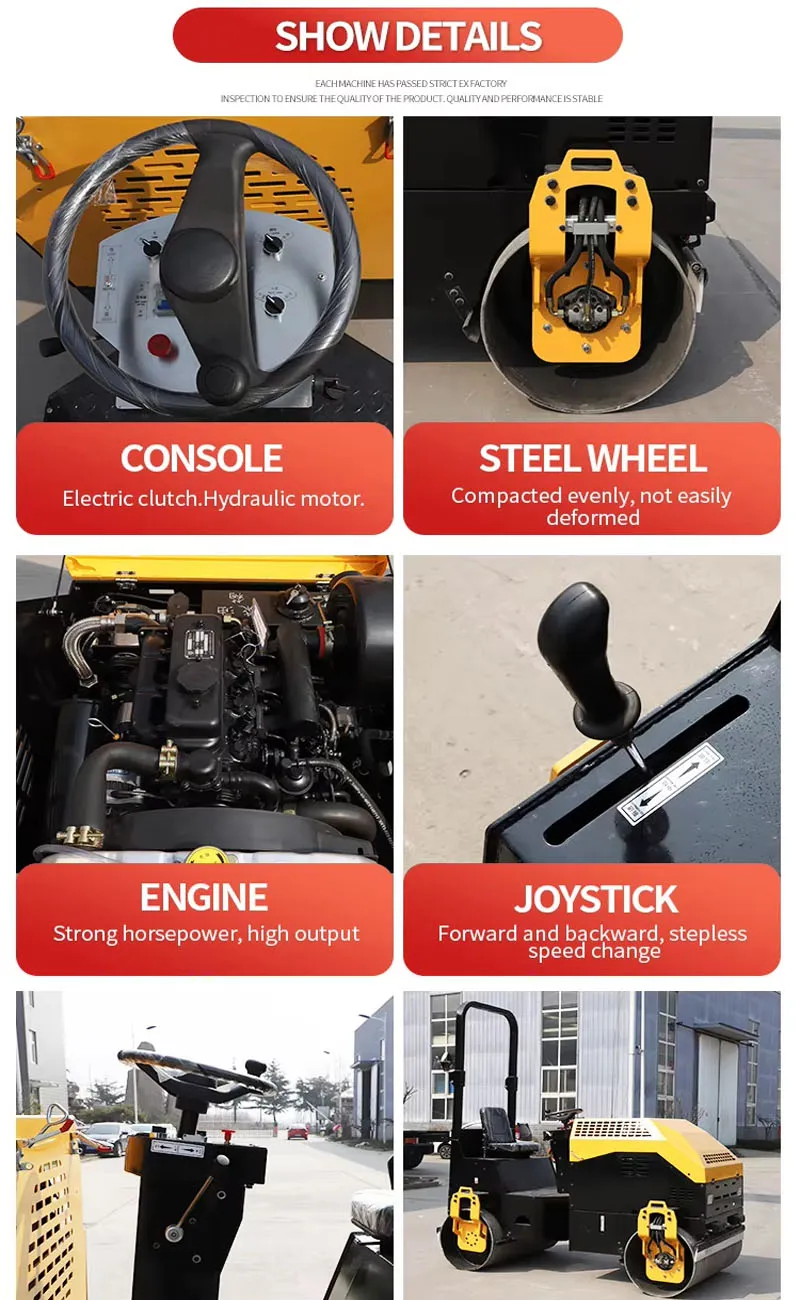

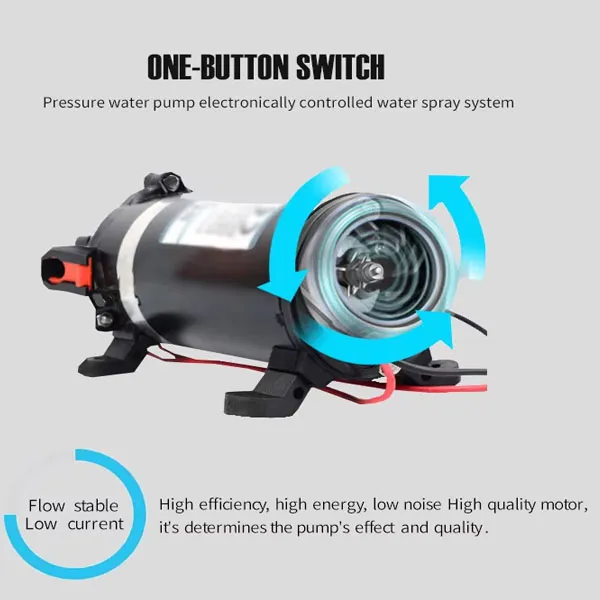

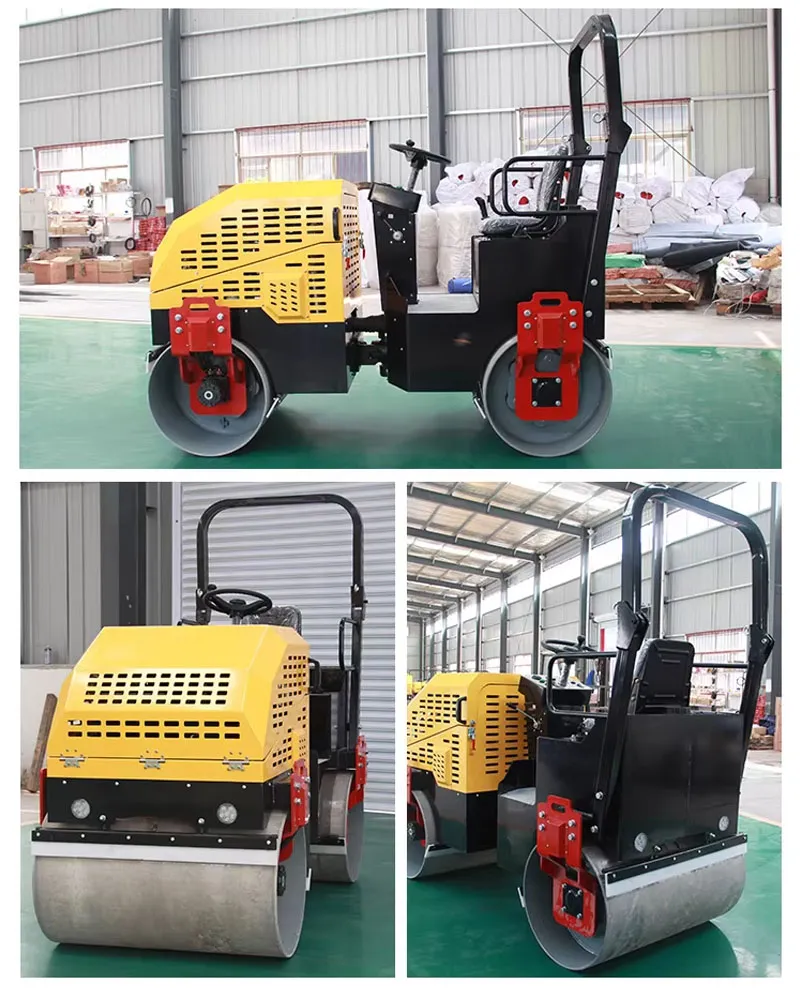

Combining advanced domestic and foreign technologies, it has strong power and superior performance; the 2-ton roller consists of a frame, front wheels, rear wheels, power system, control system, hydraulic system, electrical system, automatic sprinkler system, mud scraping system, paint and marking, roll cage and other places. The machine is dual-wheel driven, while the front wheels are steering wheels and the rear wheels are vibrating wheels. It is easy to operate, safe and reliable. The frame adopts an articulated frameless structure, which makes the width of the steel wheel wider than the body, and can be compacted as close to the roadside as possible without pressure leakage or crushing. The hydraulic system adopts internationally renowned brand hydraulic components, which have high transmission efficiency and reliable quality. The machine has a three-level braking system to ensure safe and reliable driving.
|
Important properties |
|
|
Gradeability |
30% |
|
Power (horsepower) |
18.6 kW |
|
Hydraulic valve brand |
OEM |
|
type |
Vibratory roller |
|
country of origin |
China |
|
Warranty |
1 year |
|
drum |
Double drum roller |
|
Core Components |
Motor, Engine |
|
Drum diameter |
560 |
|
Video factory inspection |
Available |
|
engine |
Diesel Engine |
|
Drive Mode |
Hydrostatic bidirectional |
|
brand |
OEM |
|
Hydraulic pump brand |
OEM |
|
Engine Brand |
OEM |
|
Travel speed |
0~14 km/h |
|
weight |
2 tons |
|
Unique Selling Point |
Full hydraulic system |
|
Exciting force |
35 kN |
|

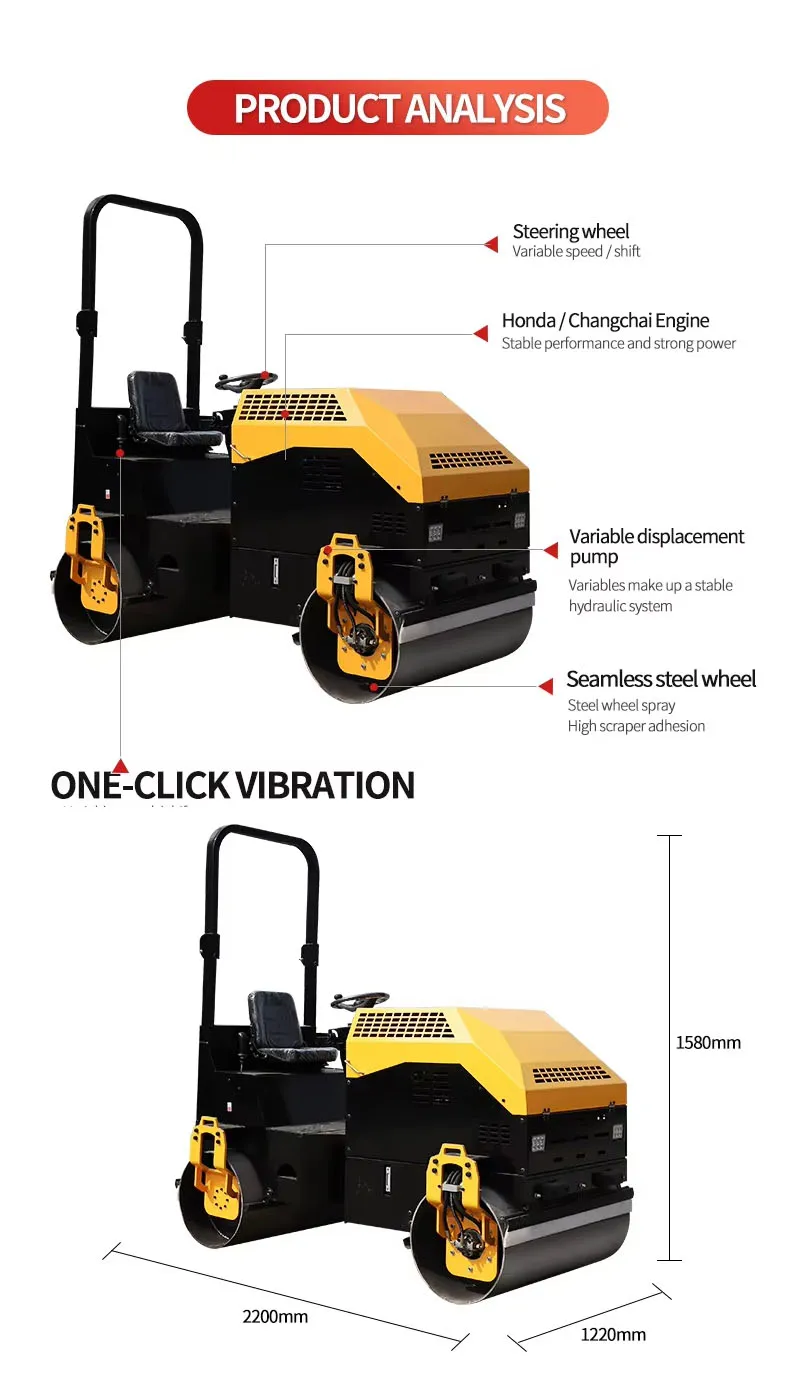

Dimensions (L x W x H) |
2200*1200*1580 |
|
Mechanical test report |
Available |
|
Product Name |
Double steel wheel vibratory roller |
|
app |
Highway bridge engineering concrete pavement |
|
Vibration frequency |
70HZ |
|
Packaging and Shipping Information |
|
|
Packaging Details |
wooden case |
|
Sales Unit |
Single item |
|
Shipping Port |
QingDao Port |
|
Product Parameters |
|
|
power |
37.5 kW |
|
Bucket Capacity |
2.8 M3 |
|
Operating Weight |
125 tons |
|
Maximum traction |
96kN |
|
Tipping load |
6kN |
|
Engine displacement |
6750 ml |
|
Maximum Torque |
500 Nm |
