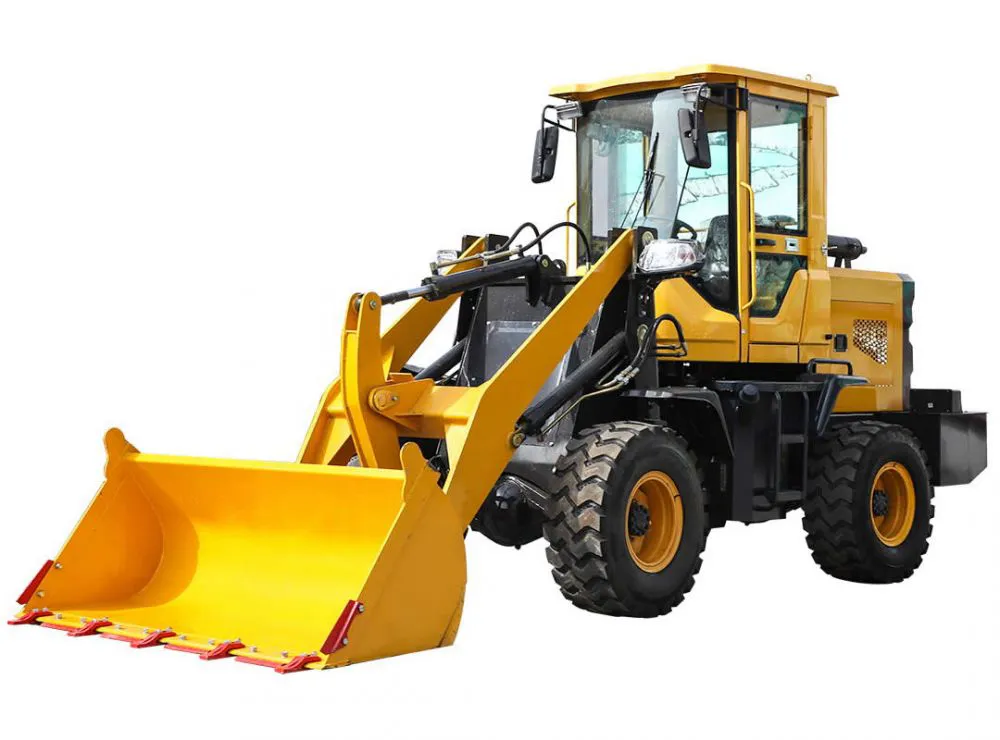

China 1.5Ton 42 kw small wheel multifunctional loader

China 1.5Ton wheel multifunctional loader is a small multifunctional wheel loader, mainly for agricultural, municipal and light engineering scenes. Its core features are as follows:

1. Product core parameters

Basic parameters

Rated load: 1.5 tons;

Bucket capacity: 0.6m³ (standard engineering bucket);

Unloading height: 3.2 meters;

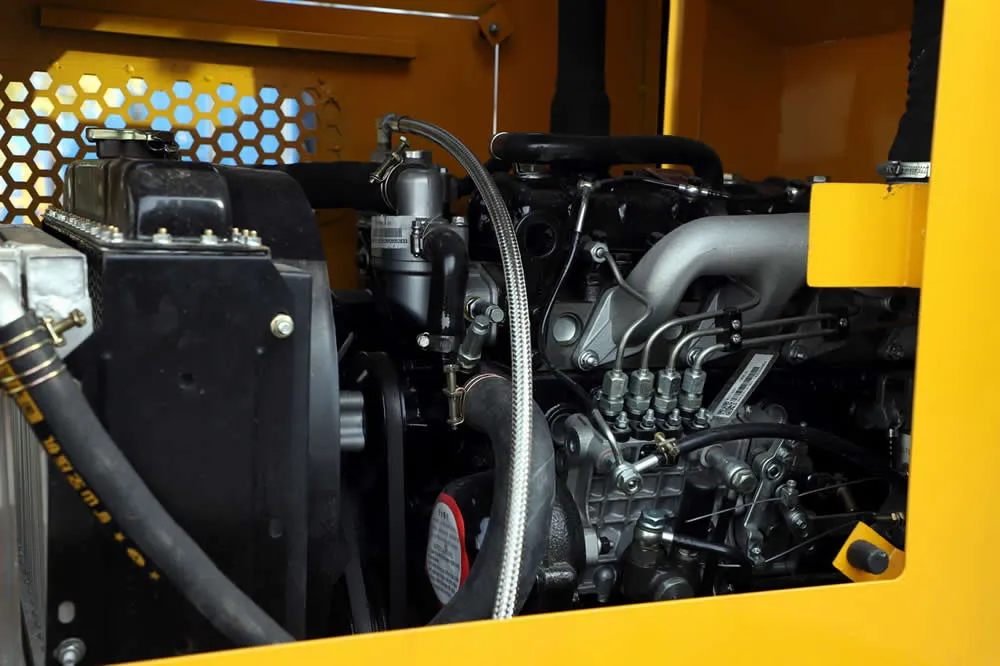

The engine is equipped with Yunchai or Huajie 490 diesel engine (42kW), which meets the emission standards of non-road machinery and optimizes fuel economy; the transmission system adopts a mechanical gearbox.

More product parameters are shown in the following table:

Product Parameters
Rated load (tons)	1.5
Engine Model	Yunchai/Huajie 490
Power (KW)	42
Gearbox	mechanical
Axles	Isuzu Bridge
Unloading height (m)	3.2
Bucket width (m)	1.8
Bucket capacity (m³)	0.6
tire	20.5-16
Dimensions	5400*1700*2700
Optional Configuration	Yunnei 490; National III engine; 3.5m unloading height; upper three and lower four-grip forks; upper five and lower six-grip forks; deeper bucket

2. Structural design and functional advantages

Adaptive structure

Wheelbase 2.1 meters, minimum turning radius ≤5 meters, strong passability in narrow sites;

Tailless frame design reduces operating blind spots.

Multifunctional expansion

The hydraulic system supports quick-change interfaces and can be adapted to forks, wood grabbers, breakers and other accessories;

Some models provide "two-end busy" configuration (front loading and rear digging) to achieve multi-functionality.

Reliability enhancement

The frame has been fatigue-enhanced tested, and the key hinge points use 28-32HRC tempered pins;

The drive axle is standardly equipped with Isuzu technical axle;

The operating mechanism adopts pilot hydraulic control, and the steering force is ≤25N•m to reduce fatigue strength.
