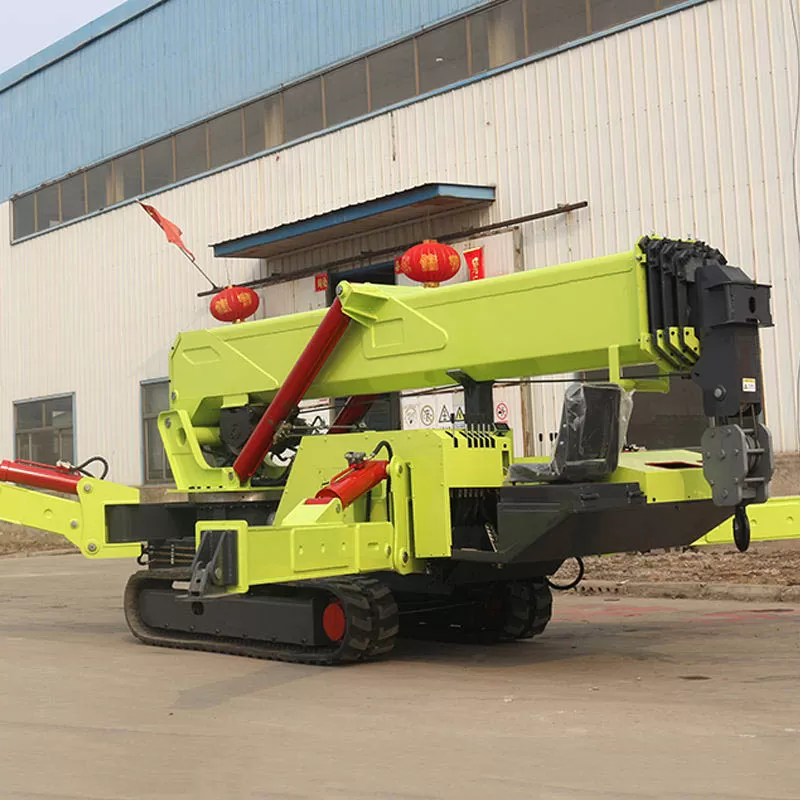

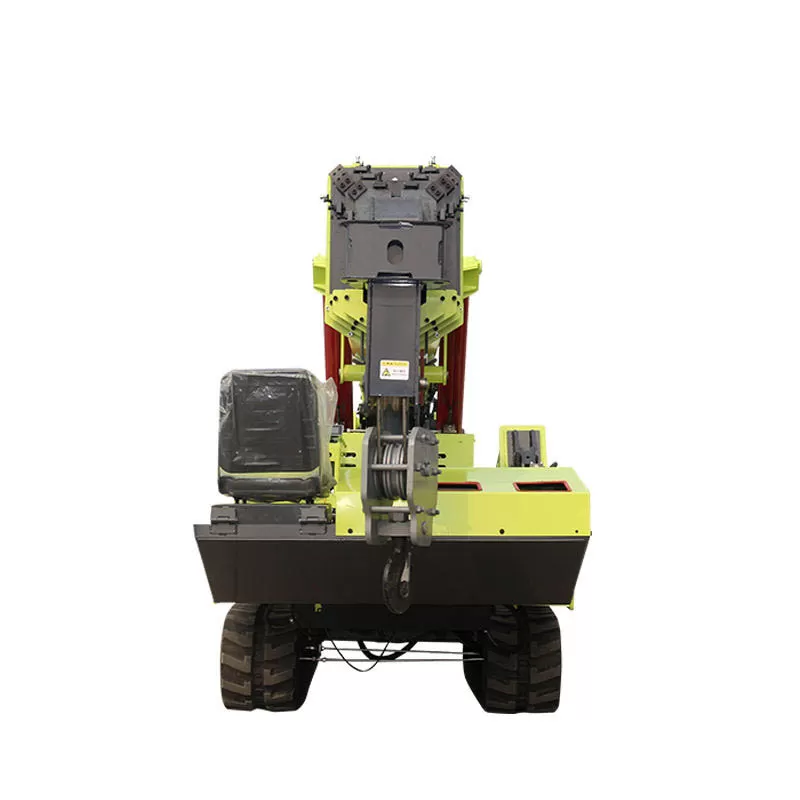

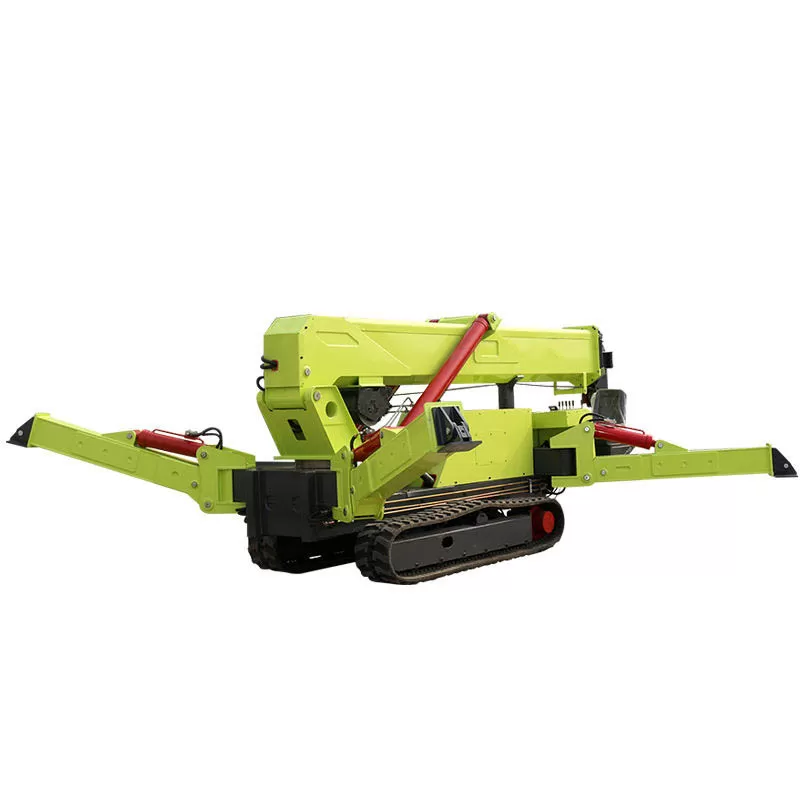

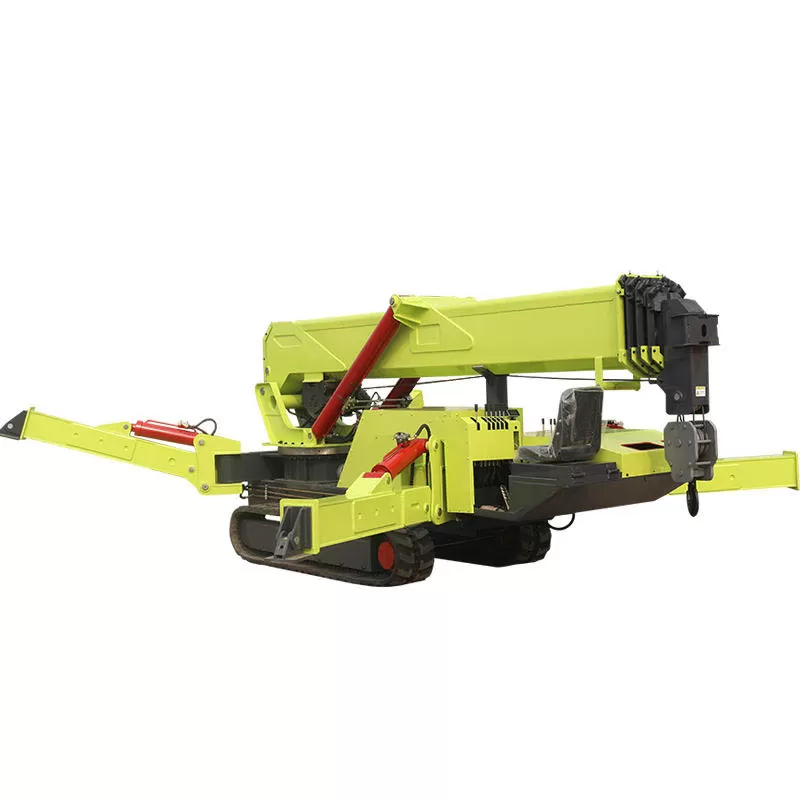

Features of the Spider Crane: The spider crane is suitable for confined spaces. It is a fully rotating, boom-type, and fully hydraulically driven crane.
The main boom has 4-5 sections, and the main boom sections adopt a U-shaped structure. The single-stage hydraulic cylinder and wire rope telescopic mechanism enable synchronous extension and retraction of the main boom. The boom retraction limit is protected by both marking and alarm systems. The crane is equipped with a radiator, which is more conducive to working in high temperatures during the summer.
|
Rated load capacity |
8Ton |
|
Maximum lifting height |
17m |
|
Weight (KG) |
8000 |
|
Kangyuan |
China |
|
Video factory inspection |
Available |
|
Scope of application |
Construction works |
|
Maximum |
16m * 0.2t |
|
working radius |
5-Section Boom |
|
Boom type |
0-5.5km/h, hydraulic motor drive, two speeds (rubber tracks) |
|
Trave ling device |
Diesel engine and electric motor (dual |
|
Standard configuration |
power) |
|
Production process |
Baking paint assembly process |
|
Rated lifting torque |
17m x 0.9t |
|
brand |
AWY/OEM |
|
Core components |
Engine gearbox |
|
Warranty period |
Year |
|
Mechanical test report |
Available |
|
Product name |
8t MINICRANE |
|
Maximum |
17m x 0.9t |
|
above-groundift |
4.5m-16m |
